VF-1 User Manual v4.0 ©2023 VALKPC
VF-1 User Manual v4.0 ©2023 VALKPC
VF-1 User Manual v4.0 ©2023 VALKPC
VF-1 User Manual
Specifications
Volume
14.3L
Size (L x W x H)
330mm x 255mm x 170mm
Size including feet (L x W x H)
330mm x 270mm x 170mm
Supports
Motherboard
Mini-ITX, Mini-DTX
Power supply
SFX only
Drives
3 x 2.5" SSD
I/O
1 x USB-C Type-C 3.1 Gen 2
Fans
2 x 120/140mm intake standard 25mm fan
Additional fans attachment to radiator possible (see compatibility guide)
CPU cooler
Max height: 140mm when side radiator not used
GPU
4-slot GPU (Beast mode), 3-slot GPU (Classic, Reverse mode)
Max length: 310mm
Max height: 149mm
Radiator (Top)
240mm type supported
Radiator (Side)
240mm or 280mm type supported
VF-1 User Manual v4.0 ©2023 VALKPC
VF-1 User Manual

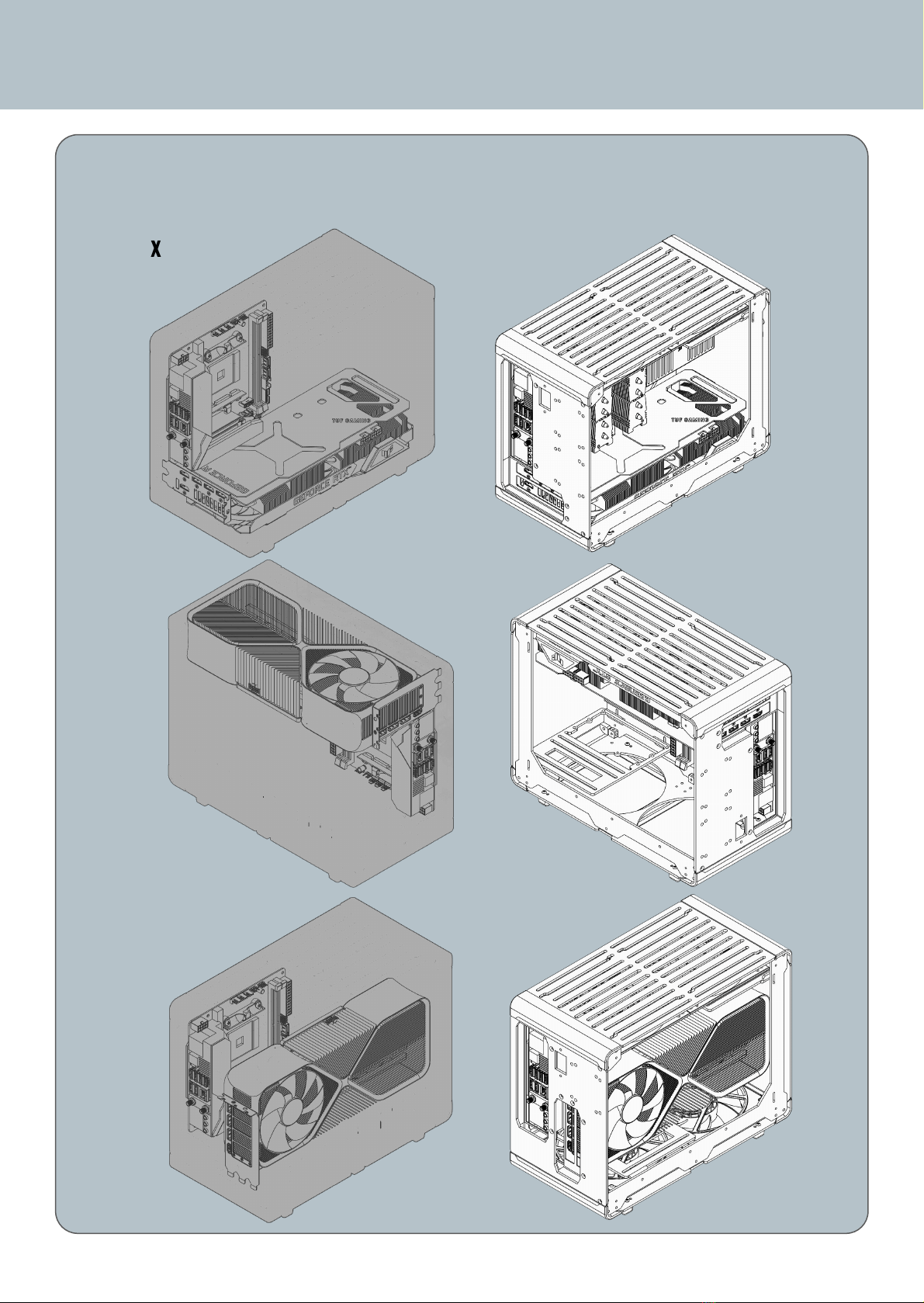

All possible layouts
VF-1 can be configured to all popular ITX configurations with some simple rearrangements
Classic ITX
Reverse ITX
Beast mode
VF-1 User Manual v4.0 ©2023 VALKPC
VF-1 User Manual
Compatibility
GPU
Graphics card specifications vary by add-in-card manufacturer. Please refer to the following guidelines when
picking your GPU.
Max supported GPU dimension, 310mm x 149mm. Note that if you are installing a water block, they often have
protruding fitting mounts that adds to the height/length.
Up to 4-slot GPU is supported. Please note that the rear IO Panel only has 2 slot openings. This is not a problem
for 3-slot cards like the GeForce RTX™ Founders Edition as the 3rd slot has no ports. Only 3-slots supported for
Classic and Reverse mode.
Max Height
149mm
Max Length 310mm
VF-1 User Manual v4.0 ©2023 VALKPC
Compatibility
CPU
Max height 140mm when side radiator not used.
Fan mounts
120mm or 140mm fans can be mounted on the base or top panels.
Radiator
240mm radiators can be mounted on the base or top panels in positions same as fans. In addition, radiators can
also be side mounted by resting on the PSU panel.
VF-1 User Manual
Radiator thickness
When used together with fans, total
radiator thickness must be carefully
considered.
Side mounted radiator allows for the
biggest flexibility with standard
thickness fans and radiator.
For other positions, consider using slim
fans and radiators.
VF-1 User Manual v4.0 ©2023 VALKPC
Compatibility
PSU Mount
The PSU mount is a multipurpose panel and can be used for mounting SSD drives or pump.
Reference dimension of mount
positions
VF-1 User Manual
VF-1 User Manual v4.0 ©2023 VALKPC
Read before assembly
★Study the instructions thoroughly before assembly.
★There are many small screws, nuts and similar parts. Assembly them carefully referring to
the drawings.
★It is advised to assembly each step exactly as shown.
★This product is designed to be easy to assemble. But this is not a toy and should be kept out
of children’s reach.
★It is important to NOT over-tighten screws.
3D printed parts
★This product contains 3D printed parts.
★3D printed parts included are printed at the highest quality settings. But due to the nature
of such parts, small surface blemishes are unavoidable and do not aect performance.
VF-1 User Manual v4.0 ©2023 VALKPC
Reverse ITX
VF-1 User Manual
VF-1 User Manual v4.0 ©2023 VALKPC
1
1Base assembly
Outer - Base
Flat-head M3x6mm x 4
2
2
OPTION: Attaching filter frames and fans (120mm)
Feet x 4
Button-head M3x10mm x 4
Filter Frame
Square Block x 6
Button-head M3x10mm Countersink
side on bottom
!
Square Block
Button-head M3x6mm x 2
Feet
Flat-head M3x6mm Button-head M3x6mm
Filter Frame x 2
Button-head M3x6mm x 8
Button-head M3x6mm
Button-head M3x30mm
Button-head M3x30mm x 8
Do not over
tighten screws
!
