Issue 2

1 947012

TALKBACK INTERCOM SYSTEM

V-2927 CLOCK CONTROL CARD

FOR THE V-2924A

INTRODUCTION

The V-2927 Clock Control Card is an optional plug-in card designed for use with the V-2924A

Talkback Intercom System with a V-2928 Option Card. It provides correction and control

functions for various impulse and synchronous clocks. The V-2927 also provides a digital output

used with the V-DCPI, Digital Clock Protocol Interface, to provide time correction data to Valcom

wired and wireless clocks. Programming of various clock types is performed via Windows

compatible Programming Tool. The V-2927 requires the use of the V-CIO Clock Interface Board

when used with mechanical time clocks.

DIMENSIONS/WEIGHT

•5.30”L x 3.00”W x 1.10”D

(13.46cm x 7.62cm x 2.79cm)

•0.9 lbs. (0.41 kg)

FEATURES

•Valcom Digital Output

•Two clock ports, independently programmable

•24 mechanical clock types supported (see code list

on next page for types)

•Manual clock advance (operation dependent on clock types), dial code accessible

•Programmable adjustment for daylight savings time (DST) (operation dependent on clock

types)

•Automatic clock correction after time update

•Automatic clock correction after power disruption

•Windows Programming Tool

MINIMAL SYSTEM REQUIREMENT

•V-2924A Control Unit with V-2928 Option Card

•V-2927 Clock Control Card

•Rev 2.00 Programming Tool

•Rev 2.02 Control Unit Software

•486 or higher personal computer with Windows 95, Windows 98 or Windows NT 4.0

operating system, 8 MB RAM, 30 meg free system disk space

•V-CIO Interface Board (for impulse clocks)

•1 available DB9 serial communications port

OPERATION

The V-2927 Clock Control Card installs into connectors J3 and J4 shown in Figure 1. The output

connections are presented to the V-CIO Clock Interface Board via P2, DB15 male of the V-2927

Clock Control Card. Two independent clock ports, consisting of two normally open contacts

each, are provided. These ports work independently of each other and allow the system to

control two clock types simultaneously. A status LED is provided for each relay to indicate

activity. An administrative code, (#97XX, with XX being number of minutes to advance), is

provided to manually correct or advance various impulse clocks.

(Default code is 01).

INSTALLATION

The V-2927 must be installed prior to programming its available options.

WARNING: Disconnect main power before servicing!

•Remove the side plate and top cover of the Control Unit and set aside

•Remove and discard plate covering connector port opening for Clock Card DB15

•Remove four standoff nuts from Option Card

•Install 4 standoffs (shown in Figure 1)

•Connect J1 of Clock Card to J3 (shown in Figure 1)

•Connect J2 of Clock Card to J4 (shown in Figure 1)

•Press Clock Card firmly in place to make sure connectors are seated properly

•Install and tighten 4 standoff nuts on V-2927 board

•Replace top cover and side plate of the Control Unit and plug in the power supply

•Plug Clock Card connector into P2 (Clock Card Connector Port - See Figure 1 for location)

•Make connections to V-CIO board if mechanical clocks are being used (See Figure 2 for

location)

CLOCK TYPE CODES

Code Description Code Description

Valcom Sync-wired 12-hour

Simplex sync-wired 24-hour

Generator start

Simplex 59th minute

Utility impulse

European reverse

Honeywell Faraday

National time, hourly

Rauland, national time, 12-corr

Stromberg

Simplex, dual motor, 45th minute

Simplex, dual motor, 59th minute

Cincinnati D6

Cincinnati D3

Stromberg, 58th

Standard electric time, FMT

Standard electric time, AR2

Standard electric time, AR3A

Dukane 24A

Dukane 240. 24 hour

Dukane 240. 12 hour

Standard electric GR

Simplex 1.8" digital 12-hour

Simplex 1.8" digital 24-hour

TECHNICAL ASSISTANCE

When trouble is reported, verify that power is being supplied to the unit and there are no broken

connections. Check voltages for proper polarity on the cross connect block.

Assistance in troubleshooting is available from the factory. When calling you should have a VOM

and a test set and be calling from the job site. Call (540) 563-2000 and press 1 for Technical

Support or visit our website at http://www.valcom.com.

Valcom equipment is not field repairable. Valcom, Inc. maintains service facilities in Roanoke,

VA. Should repairs be necessary, attach a tag to the unit clearly stating company name, address,

phone number, contact person and the nature of the problem. Send the unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

HIGH VOLTAGE AREA

DISCONNECT POWER

BEFORE SERVICING

Install

Standoffs

Here

FIGURE 1 - CLOCK CARD PLACEMENT ON THE CONTROL BOARD

Side View

Top View

P10 P1

RS232 Serial Port

for SMDR (DB9

Connector)

PC Programming

Port (located on

Option Board)

J1 and J2 are located on the under

side of the Clock Card

Clock Control

Card Port

(located on

Clock Card -

DB15 Connector)

Remove and

discard plate

covering

connector port

Align J1 on the Clock Card directly over J3.

Align J2 on the Clock Card directly over J4.

Press V-2927 firmly in place.

Clock Card

positions

directly over

the Option

Board

CLOCK TYPE CODES

Type # Description Figure #

Valcom Sync-wired 12-hour

TED Systems A1000M & D1000

Simplex/Edwards Sync-wired 24-hour

Simplex Generator Start (12 hour & Hourly Correction)

Simplex/IBM Impulse, 3 Wire, 58th or 59th Minute

Simplex Impulse, 2 Wire, 59th Minute Ref

Utility Impulse 12VDC or 24VDC (Non-Corrective)

European Duplex Reverse Polarity (24VDC or 48VDC)

Honeywell Faraday (1300 Series) / Cincinnati (D Synchronous)

National Time Hourly

Rauland, National Time, 12 Hour Correction

Stromberg (Synchronous, 56th Minute Ref, Electronic)

Simplex, dual Motor, 45th Minute Ref

Simplex, dual Motor, 59th Minute Ref

Cincinnati D6 (Impulse, 12 Hour Correction)

Cincinnati D3 (Impulse, 59th Minute Ref)

Stromberg (Impulse, 58th Minute Ref)

Standard Electric Time FMT-Dual Motor Couch C542014 through

C452019; C452133 through 452145

Standard Electric Time, AR2, Impulse, 59th Minute ref

Standard electric Time, AR3A, Impulse, 60th Minute Ref

Dukane 24A, 24 Hour Correction

Dukane 240, 24 Hour Correction

Dukane 240, 12 Hour Correction

Standard Electric GR Sync 12 Hour Correction

Simplex 1.8” digital 12 Hour

Simplex 1.8” digital 24 Hour

15/16

Simplex 6333 Series LED Load Chart

14 AWG 16 AWG 18 AWG 20 AWG 22 AWG 24 AWG

24960’ 3109’ 1956’ 1250’ 781’ 481’

4 2480’ 1555’ 978’ 625’ 391’ 240’

6 1653’ 1036’ 625’ 417’ 260’ 160’

8 1240’ 777’ 489’ 313’ 195’ 120’

10 992’ 622’ 391’ 250’ 156’ 96’

12 827’ 518’ 326’ 208’ 130’ 80’

14 709’ 444’ 279’ 179’ 112’ 69’

16 620’ 389’ 245’ 156’ 98’ 60’

18 551’ 345’ 217’ 139’ 87’ 53’

20 496’ 311’ 196’ 125’ 78’ 48’

22 451’ 283’ 178’ 114’ 71’ 44’

24 413’ 259’ 163’ 104’ 65’ 40’

26 382’ 239’ 150’ 96’ 60’ 37’

28 354’ 222’ 140’ 89’ 56’ 34’

30 331’ 207’ 130’ 83’ 52’ 32’

32 310’ 194’ 122’ 78’ 49’ 30’

34 292’ 183’ 115’ 74’ 46’ 28’

36 276’ 173’ 109’ 69’ 43’ 27’

38 261’ 164’ 103’ 66’ 41’ 25’

Number Of Clocks

40 248’ 155’ 98’ 63’ 39’ 24’

DB15

P2 CLOCK

CONTROLS

V-2927

V-CIO

NO1

REL1

NC1

NO2

REL2

NC2

NO3

REL3

NC3

NO4

REL4

NC4

CLOCK CIRCUIT 1

CLOCK CIRCUIT 2

+24V

GND

CKT1

CKT2

CKT3

CKT4

DIGITAL OUT+

DIGITAL OUT-

GND

FIGURE 2

V-CIO CLOCK INTERFACE

BOARD CONNECTIONS

TO V-C6124P

POWER

SUPPLY

V-2927 CLOCK CONTROL CONNECTIONS

PIN # FUNCTION WIRE COLOR

NOT USED

DIGITAL OUT+

DIGITAL OUT-

NOT USED

CLK 1 K1 C

CLK 1 K1 N/O

CLK 1 K4 C

CLK 1 K4 N/O

CLK 2 K3 C

CLK 2 K3 N/O

CLK 1 K2 C

CLK 2 K2 N/O

GND

BLACK

WHITE

RED

GREEN

ORANGE

BLUE

WHITE/BLACK

RED/BLACK

GREEN/BLACK

ORANGE/BLACK

BLUE/BLACK

BLACK/WHITE

RED/WHITE

GREEN/WHITE

BLUE/WHITE

EACH CLOCK I/O P.C. BOARD CAN SUPPORT 2 CLOCK CIRCUITS: CLK 1 AND CLK 2.

EACH CIRCUIT CONSISTS OF TWO RELAYS K1 AND K2: FORM C CONTACTS RATED 10A @ 30VDC/10A @125VAC

WARNING: DO NOT ATTEMPT TO OPERATE CLOCKS DIRECTLY FROM MASTER CLOCK BOARD!

CONTACTS OF RELAYS ON MASTER CLOCK BOARD ARE NOT PROTECTED.

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and service

for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or

refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;

2. the defect is not the result of damage, misuse, or negligence after the original shipment;

3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened

(a service charge plus parts and labor will be applied to units defaced or physically damaged);

4. freight charges for the return of products to Valcom are prepaid;

5. all units 'out of warranty' are subject to a service charge. The service charge will cover minor repairs

(major repairs will be subject to additional charges for parts and labor).

This warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be

liable for any anticipated profits, consequential damage, loss of time or other losses incurred by the buyer in connection

with the purchase, operation or use of the product.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the

carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the

F.O.B. point.

Headquarters:

Valcom, Inc.

5614 Hollins Rd

Roanoke, VA 24019

Phone: (540) 563-2000

FAX: (540) 362-9800

Autres manuels pour V-2924A

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Valcom Système d'interphone

Valcom

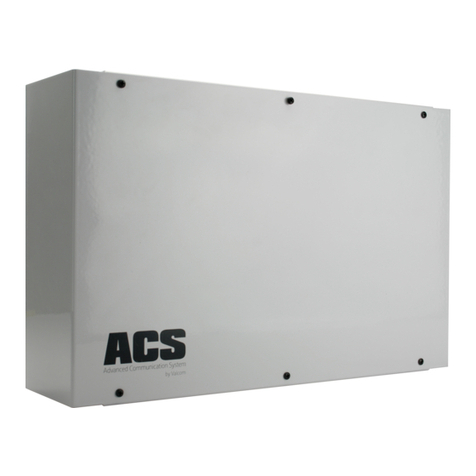

Valcom V-ACS25 Manuel utilisateur
