exposed riser rail kit with diverter
installation & maintenance instructions
please leave these instructions with the customer
important - please read
27
Please read these instructions carefully before starting installation and keep for future
reference.
Remove all packaging and check the product for missing parts or damage before
starting installation.
Any alterations made to this product and ttings may infringe water regulations and
will invalidate the guarantee.
The installation must comply with all Local/National Water Supply Authority
Regulations/Byelaws and Building and Plumbing (UK:BS6700) Regulations.
We strongly recommend that you use a qualied and registered plumber.
Installer must comply with current regulations.
Please note if installing in an enclosed environment, access should be left for servicing
and maintenance. No costs relating to inadequate access can be accepted.
maintenance
To remove any build up of limestone on the shower head, just rub your ngers lightly
over the nozzles.
installers/users notes
care of the mixer
Our products are nished to the highest standard and due care needs to be taken to
ensure their looks are retained.
We recommend cleaning all products with a soft damp cloth ONLY and advise strongly
against the use of ALL cleaning products i.e. powders and liquids.
If the above instructions are not followed this will invalidate your guarantee in the
event of a problem occurring.
6
dimensions
3
operation
installation
Handset
Place one of the rubber washers into the
cone end of the hose and screw to the
handset slot the cone into the shower
head holder on the riser.
Place the second rubber washer into the
other end of the hose and attach it to
the diverter.
Rotate the control handle 90°
clockwise to divert the water from the
handset to the riser.
Rotate the control handle 90°anti -
clockwise to divert the water from the
riser to the handset.
Place the cone part of the hose into
the handset holder, the holder can
be repositioned by pressing the
button at the back and sliding up
and down.
1048mm
62mm
554mm
110mm
200mm
400mm
installation
45
installation
Warning! Please check for any
hidden cables and pipes before drilling
holes in the wall.
Before installing your new riser rail,
ush through the pipe work to ensure
removal of debris, turn o the water
supply.
Mark the position of the diverter on
the wall at the required height. Mark a
vertical line up the wall from the centre
of the diverter.
Prepare the wall with a ush ½”
connector, and connect to the water
supply coming from the mixer.
Using the supplied PTFE tape screw the
adaptor into the wall.
Riser rail
Assemble by sliding the support bracket
onto the top riser, make sure that the
top riser is pointing away from the wall
and the grub screw is on the underside
of the bracket.
Screw the riser into the bottom of the
top riser.
Reposition the bracket over the joint and
tighten the 2 screws within the bracket
to secure the bracket to the riser.
Temporarily hold the riser assembly onto
the adaptor, with a pencil mark around
the support bracket.
Remove the riser rail assemble.
Place the mounting bracket centrally
within the marked position and mark the
screw hole.
Using a 6mm drill bit for the wall plug,
drill the wall at the centre of the marked
position and x the mounting bracket
in position using the supplied wall plug
and screw.
Push the riser rail assembly onto the
adaptor being careful not to damage the
seals.
Push the support bracket onto the
mounting bracket and secure from
underneath with the hexagonal grub
screw using the supplied Allen key.
Secure the diverter to the adapter
by tightening the grub screw on the
underside using the supplied Allen key.
Finally, make sure there is a rubber
washer in place in the shower head and
screw onto the top riser.

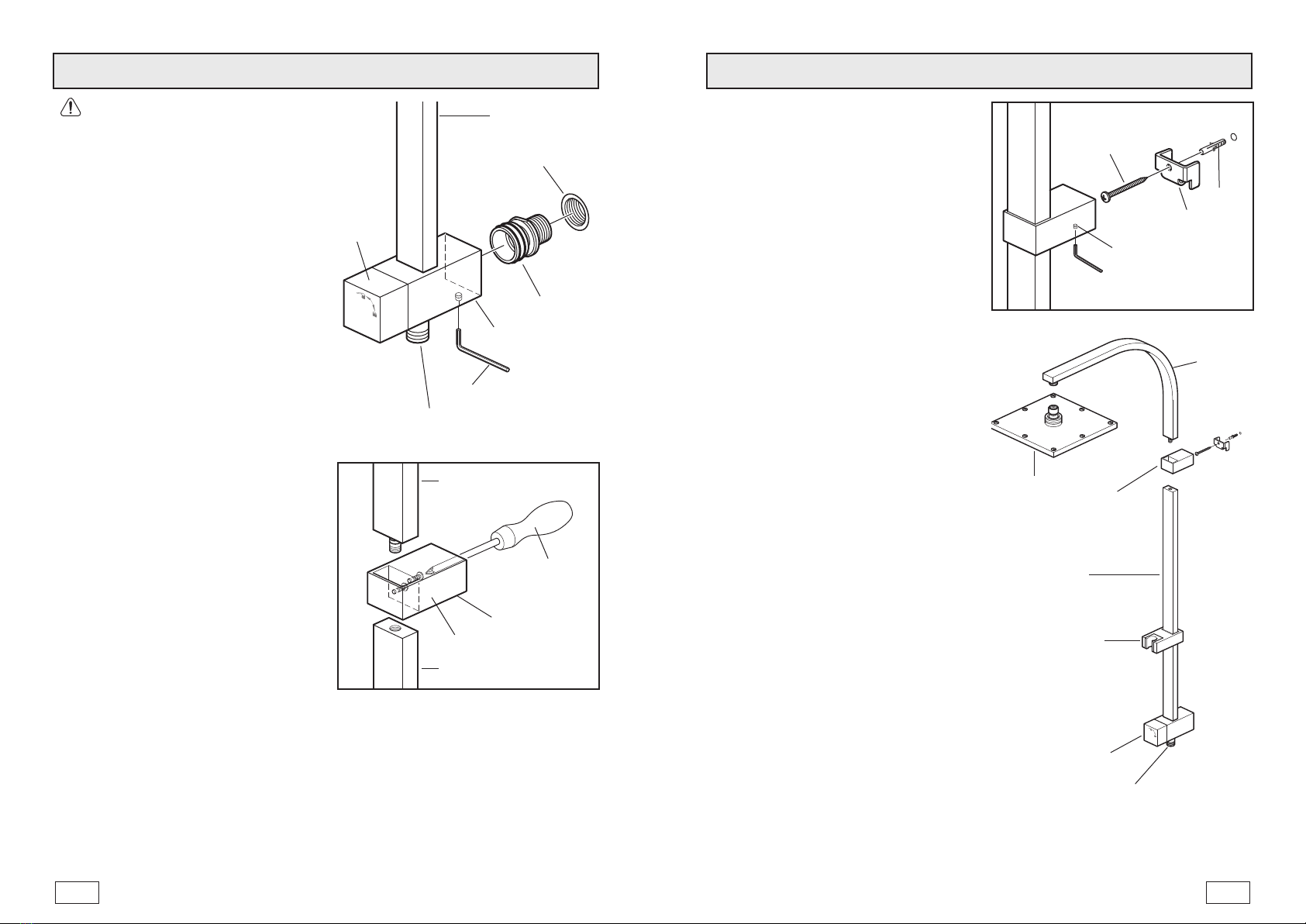

Diverter
Wall plug
Shower head
Mounting
bracket
Handset
holder
Screw
Top riser
Riser
Support bracket
Grub screw
Control
handle
Shower hose connection
Connector
(not supplied)
Allen key
Screw driver
Top riser
Support
bracket
Shower hose
connection
Riser
Adaptor
Riser
Grub screw
Diverter
