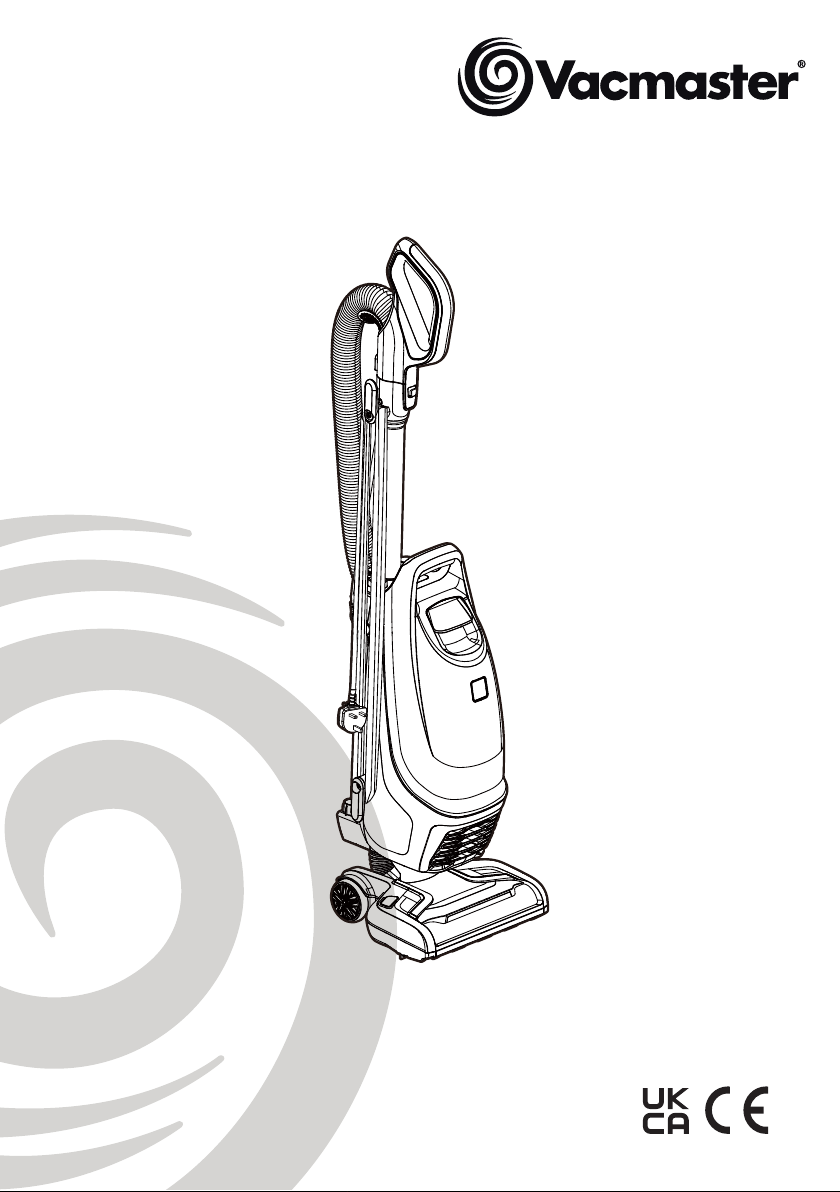

Vacmaster UB0212EUK Manuel utilisateur

20 21

171819

23 24 25 26 27

456

8910

TABLE OF CONTENTS

SECTION PAGE

Symbols ........................................................................................................................................... 5

Safety Information ............................................................................................................................ 6

Unpacking and Product Features..................................................................................................... 8

Assembly ......................................................................................................................................... 9

Operation ....................................................................................................................................... 10

Maintenance................................................................................................................................... 13

Troubleshooting.............................................................................................................................. 16

Technical Data ................................................................................................................................ 19

Recycling and Disposal .................................................................................................................. 19

Guarantee....................................................................................................................................... 20

SYMBOLS

Caution.

Read instruction manual. Failure to follow the warnings and

instructions may result in electric shock, re and/or serious injury.

Appliance in which protection against electric shock does not rely

on basic insulation only but in which additional safety precautions

are provided, such as double insulation or reinforced insulation,

there being no provision for protective earthing or reliance upon

installation conditions.

Do not dispose of electrical equipment in domestic waste.

Thank you for purchasing this Vacmaster® vacuum cleaner. Feel condent that with Vacmaster®

you are obtaining a high-quality product that is engineered for optimal performance. This vacuum

cleaner is suitable for use with dry materials.

FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.

SAFETY INFORMATION

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE

USING THIS VACUUM CLEANER.

When using the equipment, a few safety precautions must be

observed to avoid injuries and damage. Please read the complete

operating manual with due care. Keep this manual in a safe

place so that the information is always available. If you give

the equipment to any other person, give them these operating

instructions as well. We cannot accept any liability for damage or

accidents which arise due to a failure to follow these instructions

and the safety information.

• This machine is for dry and indoor use only.

• Never leave the appliance switched on unattended, if you leave

the work area, switch the appliance off or unplug it from the

power supply.

• Do not vacuum or use this vacuum cleaner near ammable

liquids, gases or explosive vapours like gasoline or other fuels,

lighter uids, cleaners, oil-based paints, natural gas, hydrogen,

or explosive dusts like coal dust, magnesium dust, grain dust or

gun power, or toxic materials. Sparks inside the motor can ignite

ammable vapours or dust. Do not vacuum toxic materials.

• This vacuum cleaner is not suitable for the vacuuming of

asbestos or asbestos dust.

• Do not vacuum anything that is burning or smoking, such as

cigarettes, matches, or hot ashes.

• Do not use the vacuum cleaner in a wet environment or to

vacuum wet materials.

• Do not use steam cleaners, pressure washers or immerse in

water to clean the vacuum cleaner.

• Ensure the hose and connections are always pointed away from

the operators face, hair, ears and eyes during operation and

never direct the nozzle towards persons or animals.

• Clear the working area of any items or possessions that you do

not wish to be vacuumed before operation.

• Keep cord away from heated surfaces.

• Do not expose to rain. Store indoors only.

• Do not unplug by pulling on the cord. To unplug, grasp the plug,

not the cord.

• Do not use with damaged cord, plug or other parts.

• Do not pull or carry by cord, use cord as handle, close a door on

cord, or pull cord around sharp edges or corners.

• Do not handle the plug or vacuum cleaner with wet hands.

• Do not use or store near hazardous materials.

• Do not use this vacuum cleaner with a torn lter or without the

lter installed.

• Do not allow to be used as a toy. Close attention is necessary

when used near children. Do not allow the appliance to be used

by children.

• Do not try to touch the brushroll while the vacuum cleaner is

switched on and the brushroll is spinning.

• Unplug from power supply when not in use or before carrying

out maintenance.

• The machine should be disconnected from its power source

during cleaning or maintenance and when replacing parts.

• Turn off vacuum cleaner before unplugging from power source.

• Do not cover the ventilation openings. Do not vacuum with any

ventilation openings blocked; keep free of dust, lint, hair or

anything that may reduce air ow.

• Keep hair, loose clothing, ngers, all parts of body away from

openings and moving parts.

• If the supply cord is damaged, it must be replaced by the

manufacturer, a qualied service agent or similarly qualied

persons in order to avoid a hazard.

• This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance

by a person responsible for their safety.

• Children should be supervised to ensure that they do not play

with the appliance.

• Besides the operating instructions and the binding accident

prevention regulations valid in the country of use, observe

recognized regulations for safety and proper use.

• Before starting work, the operating staff must be informed on

- use of the vacuum cleaner.

- risks associated with the material to be picked up.

- safe disposal of the picked up material.

1 Handle 15 Accessory Storage

2 Handle Release Button 16 Connection Hose

3 Carry Handle 17 Wand Release Button

4 Dust Bag Chamber Release 18 On/Off Button

5 Dust Bag Chamber Cover 19 Brushroll On/Off Button

6 Exhaust Filter Cover 20 Bag Fill Level Indicator

7Task Lights 21 Lift Off Button

8 Motorised Floor Head 22 Crevice Tool

9 Brushroll Status Indicator 23 Dusting Brush

10 Lower Cord Hook 24 Pet Mate

(Only for UB0213EUK)

11 Power Cord 25

Dust Bag

(x 6, one is pre-installed)

(Only for UB0212EUK)

12 Upper Cord Hook 26

Dust Bag

(x 12, one is pre-installed)

(Only for UB0213EUK)

13 Flexible Suction Hose 27 Instruction Manual

14 Hose Release Button

UNPACKING AND PRODUCT FEATURES

ASSEMBLY

Remove all the contents from the packaging; make sure you have all contents as listed on page 8.

2. To connect the vacuum cleaner body to the motorised oor head align the oor head neck with

the guides on the body and lower into place until a ‘click’ is heard (Fig. 1 & 2).

3. Install the wand onto the vacuum body. Align the base of the wand ( ) into the guides located

at the bottom of the vacuum cleaner body ( ). Ensure the upper wand release button ( ) is

located above the guides located on the main body ( ) and then insert downwards. A ‘click’ can

be heard once secured (Fig. 3 & 4).

NOTE: DO NOT tilt the wand to insert it into the nozzle neck (Fig. 5).

DO NOT insert the wand before placing the body onto the nozzle (Fig. 6).

4. Insert the handle into the wand until you hear a ‘click’ (Fig. 7).

5. Insert the hose into body until you hear a ‘click’ (Fig. 8).

6. Wrap the power cord around the upper and lower cord hooks (Fig. 9).

NOTE: Make sure to wrap the power cord around the upper cord hook rst, secure the power cord

into the guide ( ).

7. Secure the plug to the power cord (Fig. 10).

WARNING: Wrapping the power cord too tightly with excessive stress on the cord may

cause damage. A damaged cord is an electrical shock hazard and could cause personal

injury or damage.

OPERATION

CAUTION: Moving parts! To reduce the risk of personal injury, DO NOT touch the brushroll

when vacuum cleaner is turned on. Contacting the brushroll while it is rotating can cut,

bruise or cause other personal injuries. Always turn off before maintenance. Use caution

when operating near children or pets (Fig. 11)

1. Power Cord - Release & Use

1) Turn the upper cord hook to either side to release the power cord (Fig. 12).

2) Detach the power cord plug from the power cord.

3) Be sure the power cord is locked into the upper locking notch ( ) (Fig. 13).

4) Plug the power cord into a power outlet.

5) Press the On/Off button to turn the vacuum cleaner on.

6) Once you have completed vacuuming, press the On/Off button and unplug the power cord plug

from the outlet.

7) Return the upper cable hook into the upright storage position and wrap the cord loosely.

WARNING: If abnormality/failure occurs, stop using the product immediately and disconnect

the power plug.

2. Operation Modes

UPRIGHT MODE

NOTE: Make sure the vacuum cleaner is correctly assembled. Do not operate vacuum cleaner

without a dust bag in place.

1) Release the handle by placing foot on the oor head nozzle and pull back (Fig. 14).

2) To turn the vacuum cleaner on, press the On/Off button (Fig. 15).

Turn Rotating Brushroll On/O󰀨

Upon rst use your vacuum cleaner starts with the brushroll off.

You can turn the brushroll on for use on carpet by pressing the brushroll On/Off button (Fig 15).

NOTE: The vacuum cleaner will remain in the last used brushroll setting ready for next use.

NOTE: Brushroll does not rotate when handle is in fully upright position.

CAUTION: Do not allow the vacuum cleaner to remain in one spot for any length of time

when the brushroll is turning. Damage to carpet may occur.

3) Once you have completed vacuuming, press the On/Off button and unplug the power cord from

the power outlet.

NOTE: Do not allow the motorised oor head to be lifted away from the oor surface when

vacuuming.
