Getting Started

Before you begin

1. Pre-register with Vonage Service by logging on to www.vonage.com.

2. Check and make sure you meet the system requirement below.

• You must have a personal computer with the following applications and

hardware:

• Microsoft® Internet ExplorerTM 5.5 or higher for Windows; or

Microsoft® Internet ExplorerTM 5.x or Apple® SafariTM 1.0 for Mac® OS

9 or higher

• CD-ROM drive

• 10/100 Base-T Ethernet Port

• DSL or two-way Cable broadband Internet Service

• Two-way broadband modem supporting a minimum of 90kbps uplink

• Ethernet port on modem; USB-only modems are not supported

3. During installation you may be required to enter a username and password

if you are a DSL user who is required to enter a user name and password

(PPPoE) to access the Internet, and you may be required to enter a

 speciﬁcIPaddressesifyouhaveastaticIPaddress.Before you begin, be

sure to contact your Internet Service Provider to obtain this information.

4. Check for package contents (see page 3 for a complete list) then follow

the step-by-step installation directions (see page 4)toinstallandconﬁgure

the IP8100 series telephone.

Note: you may download the latest copy of the IP8100 series telephone

User Manual by accessing the Customer Support tab on www.vtech-

phones.com

Getting Started

Portions of the software associated with this product are open source, and fall

within the scope of the GNU General Public License (GPL). Accordingly, those

portions of code are available to the public, consistent with the requirements of

the GPL, in either source code format or object code format, depending upon

the nature of the code at issue. If you would like to exercise your right to receive

the available code, please send a cashier’s check, payable to VTech Communi-

cations, Inc., in the amount of $10.00 (U.S.$) to:

VTech Communications, Inc.,

9590 SW Gemini Drive, Suite 120

Beaverton OR 97008

ATTN: Information Technology Group / IP8100 GPL code request,

along with a written request for the available code. If your request does not fully

comply with the foregoing requirements, VTech reserves the right to reject your

request. Further, by requesting and receiving the available code, you release

VTech, its afﬁliates, and its and their ofﬁcers, directors, employees, and

representatives(“VTech Parties”) from any liability or responsibility relating to

such code, and you acknowledge that the VTech Parties make no representa-

tions with respect to the origin, accuracy, usability, or usefulness of such code,

and the VTech Parties have no responsibility to you whatsoever concerning

the code, including without limitation any responsibility to provide explanation,

support, upgrade, or any communication whatsoever. Your review or use of the

available code is at your sole risk and responsibility.

GPL License Information

Getting Started

6. Charger Wall Mounting Bracket(s)

7. Belt Clip(s)

8. User Documentation CD

9. Quick Start Guide

10. Battery(ies)

1. Base Unit

2. Handset(s)

3. Handset Charger(s)

4. Ethernet Cables

5. Base Power Adapter

The IP8100 series Broadband telephone is an advanced Broadband VoIP

cordless telephone set, capable of supporting up to four handsets. Your pack-

age contains:

Base Unit

Handset

Base AC Adapter Handset Charger

Blue Ethernet Cable

Belt Clip User Docu-

mentation CD Quick Start Guide Charger Wall

Mounting Bracket

Battery

Yellow Ethernet Cable

Package Contents

Your broadband telephone accommodates up to 4 handsets. You can add new

handset, model IP811, by visiting www.vtechphones.com

Getting Started

Installation Directions

Installation Without A Router

DSL or Cable Modem

INTERNET

Base Unit

Handset 1 & 2

NOTE: The IP8100 series telephone is

expandable up to a total of 4 handsets.

Uses model IP811 (sold separately)

WAN Port

Warning: Do not route the Ethernet cable to outdoors, and ensure that you are

using a safety approved DSL or Cable modem with proper electrical isolation.

PC/LAN Port

STEP 1

Unplug the power cord from your Cable or DSL modem (the device your ISP

provided which provides high-speed Internet). Make sure that you turn your

computer off and that you do NOT plug in your IP8100 series broadband tele-

phone until instructed to do so.

Helpful Hint: The modem should be powered off for at least 10 minutes. If it is

turned off for a shorter period of time, it may remember old information that will

prevent it from working properly.

STEP 2

Disconnect all cables between your Cable or DSL modem and your computer.

Getting Started

STEP 4

Connect one end of the blue Ethernet cable to the blue port, labeled “WAN,”

located on the back of the base unit and connect the other end of the blue cable

to the Ethernet port on your cable or DSL modem.

STEP 5

Reconnect power cord to the modem then turn the modem on. Please wait until

all lights on the modem stop blinking.

Helpful Hint: This should take a few minutes, but may take as long as 10 min-

utes.

STEP 6

Plug the power cord into the power port located on the bottom or your IP8100

series telephone and the other end into the electrical outlet. This turns the IP

8100 series broadband telephone on.

Helpful Hint: Do NOT interrupt this registration process by unplugging the pow-

er or by using the handsets until the READY indicator light on the front of base

hasgonefromﬂashingyellowtoasteadygreen.

Helpful Hint: Use only the power cord provided in this package; using an older

power cord can damage the broadband telephone.

STEP 7

Turn your computer on, and check your computer to see if your Internet is work-

ing, try to visit any website. If your Internet is working, please proceed to STEP

10. If not, please proceed to STEP 8.

STEP 8:

Cable Users

If you receive Internet access through a Cable modem, you may need to register

the IP8100 series phone with your ISP. Please contact them to update your

information; you will likely need your WAN MAC address, which is located on

the bottom of the base. Once your ISP has updated your account, proceed to

step 9.

-- OR --

DSL Users

If you have DSL and are required to enter a user name and password (PPPoE)

when accessing the Internet, you may be required to authenticate the IP8100

series telephone.

Installation Directions

STEP 3

Connect one end of the yellow Ethernet cable to the yellow port, labeled “PC/

LAN,” located on the back of the base unit and connect the other end of the yel-

low cable to the Ethernet port of your computer.

Getting Started

Installation Directions

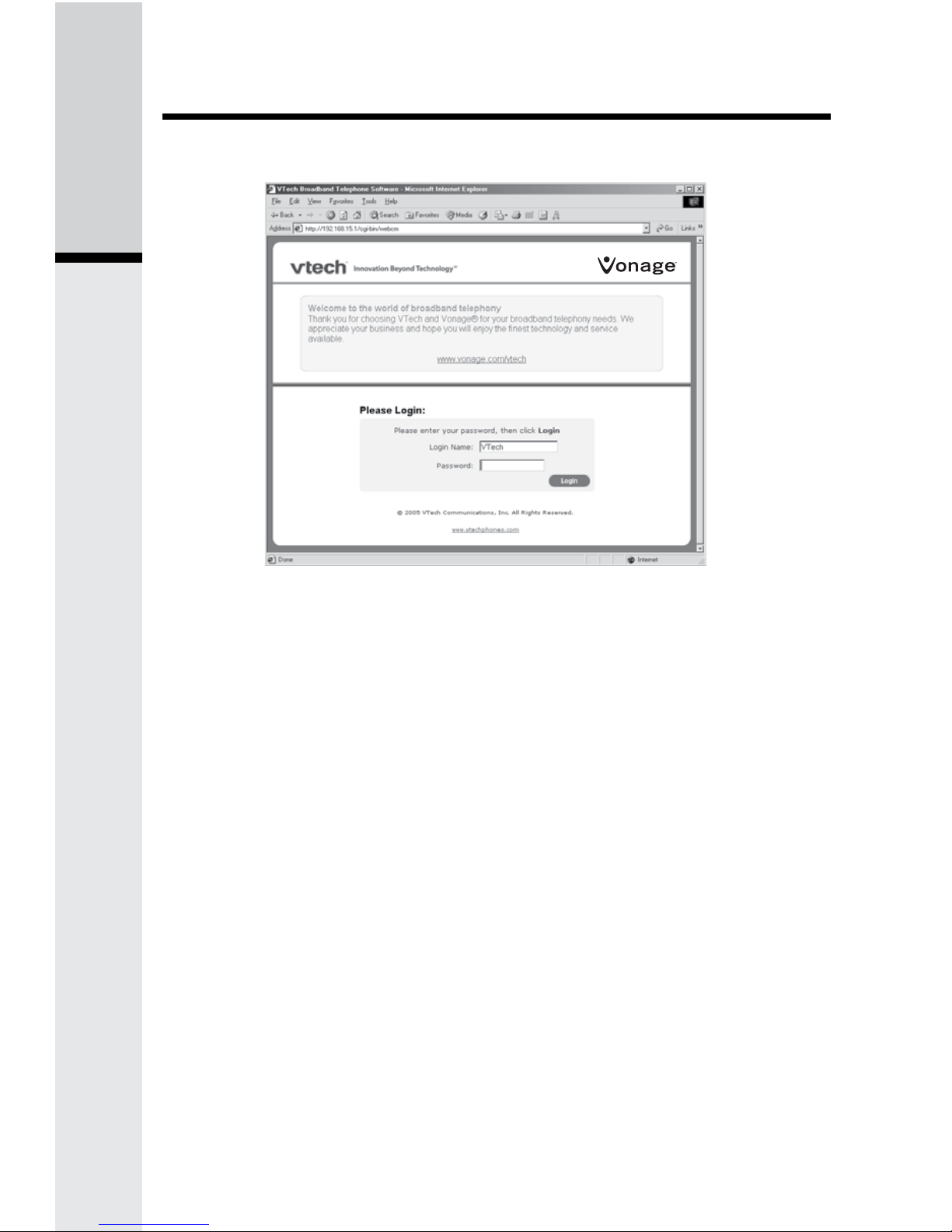

A. Open a web browser such as Microsoft ® Internet Explorer using the

computer connected through your IP8100 Ethernet port. In the

 addressoflocationﬁeld,type<http://192.168.15.1>andpressENTER.

This displays the login screen. Enter the default password ‘VTech’

and click on login.

B. On the Setup Wizard screen, click Run Wizard to start the set-up.

C. Follow Wizard screens to complete the setup.

STEP 9:

Check for dial tone by pressing the ON button on your handset. If you do not hear

a dial tone, please refer to the Troubleshooting section of the user manual.

Congratulations! Even if you are transferring your number, you are ready to

start taking advantage of the great savings and superior quality of Vonage right

now! Please call 800-342-1791 to setup your voicemail service and to learn

about other free Vonage features included with every Vonage calling plan.

Getting Started

Existing

Network Router

Base Unit INTERNET

DSL or Cable Modem

WAN Port

Laptop

Handset 1 & 2

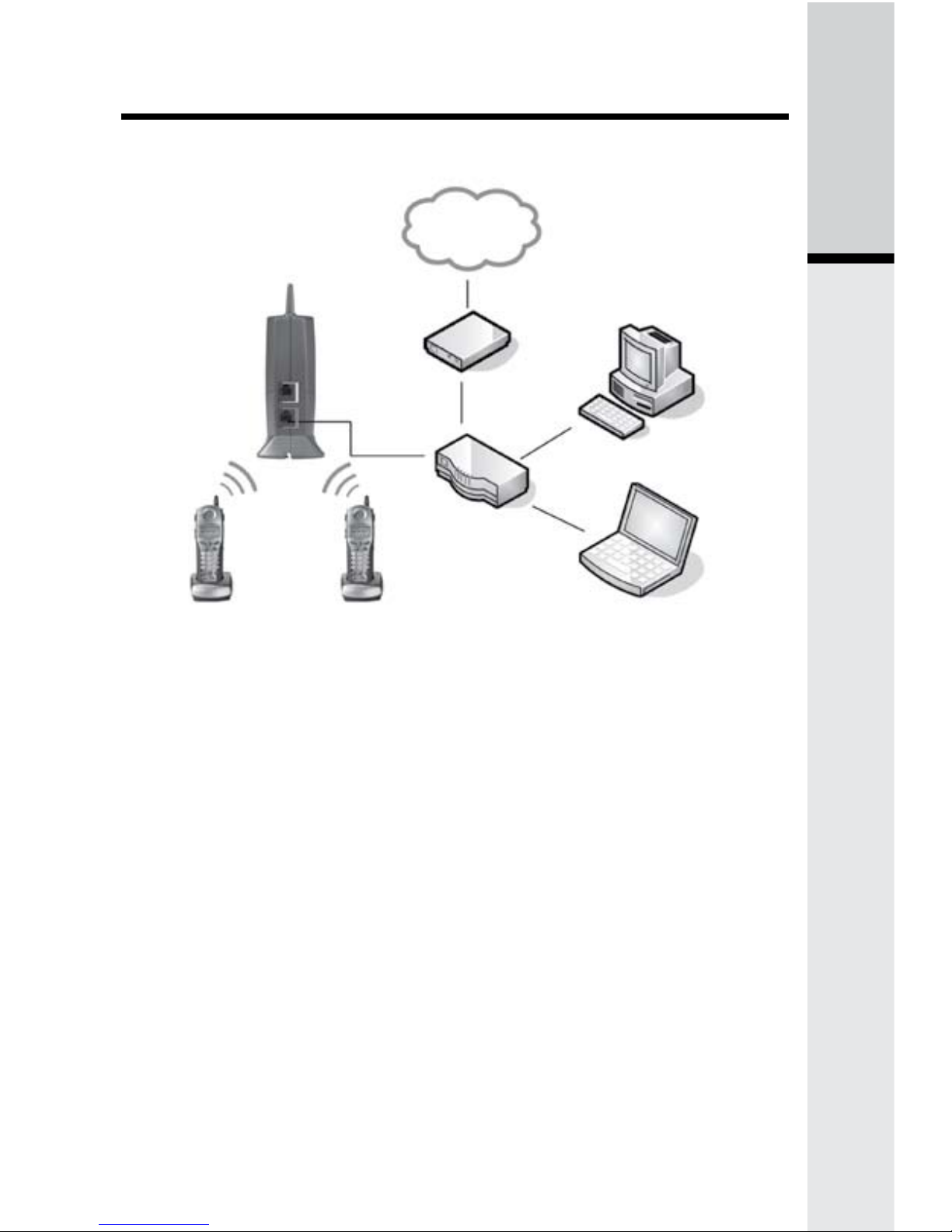

Installation With A Router

Installation Directions

STEP 1:

Using the blue Ethernet cable provided, connect one end into the blue port,

labeled “WAN,” located on the back of the IP8100 series broadband telephone

base unit and connect the other end into an available LAN port on your router. If

you have a wireless router, place the base unit at least three feet (36 inches) away

from your router to avoid interference.

Helpful Hint: If all the Ethernet ports on your existing router are full, disconnect

one of the attached devices from the existing router. Plug the blue Ethernet cable

into the now free port on your router. Connect the device you just unplugged

from your router to the yellow “PC/LAN” port located on the back of IP8100 series

broadband telephone base unit.

Warning: Do not route the Ethernet cable to outdoors, and ensure that you are

using a safety approved DSL or Cable modem with proper electrical isolation.

NOTE: The IP8100 series telephone is expandable up to

a total of 4 handsets. Uses model IP811 (sold separately)

Getting Started

STEP 2:

Plug the power cord into the power port located on the bottom of your base unit

and the other end into the electrical outlet. This turns the broadband telephone

on.

Helpful Hint: Do NOT interrupt this registration process by unplugging the pow-

er or by using the handsets until the READY indicator light on the front of base

hasgonefromﬂashingyellowtoasteadygreen.

Helpful Hint: Use only the power cord provided in this package; using any other

power cord could damage the broadband phone.

STEP 3:

Check for dial tone by pressing the ON button on your handset. If you do not

hear a dial tone, please refer to the Troubleshooting section of the user manu-

al.

Congratulations! Even if you are transferring your number, you are ready to start

taking advantage of the great savings and superior quality of Vonage right now!

Please call 800-342-1791 to setup your voicemail service and to learn about

other free Vonage features included with every Vonage calling plan.

Installation Directions

Getting Started

Installation Directions

DSL or Cable Modem

INTERNET

Laptop

Base Unit

Handset 1 & 2

WAN Port

STEP 1:

Using the blue Ethernet cable provided, connect one end into the blue port,

labeled “WAN,” located on the back of the IP8100 series broadband telephone

base unit and connect the other end into an available LAN port on your router. If

you have a wireless modem router, place the base unit at least 3 feet away from

your router to avoid interference.

Helpful Hint: If all the Ethernet ports on your existing router are full, disconnect

one of the attached devices from the existing router. Plug the blue Ethernet ca-

ble into the now free port on your router. Connect the device you just unplugged

from your router to the yellow “PC/LAN” port located on the back of IP8100 se-

ries broadband telephone base unit.

STEP 2:

Plug the power cord into the power port located on the bottom of your base unit

and the other end into the electrical outlet. This turns the IP8100 series broad-

band telephone on.

Warning: Do not route the Ethernet cable to outdoors, and ensure that you are

using a safety approved DSL or Cable modem with proper electrical isolation.

NOTE: The IP8100 series telephone is expandable up to

a total of 4 handsets. Uses model IP811 (sold separately)

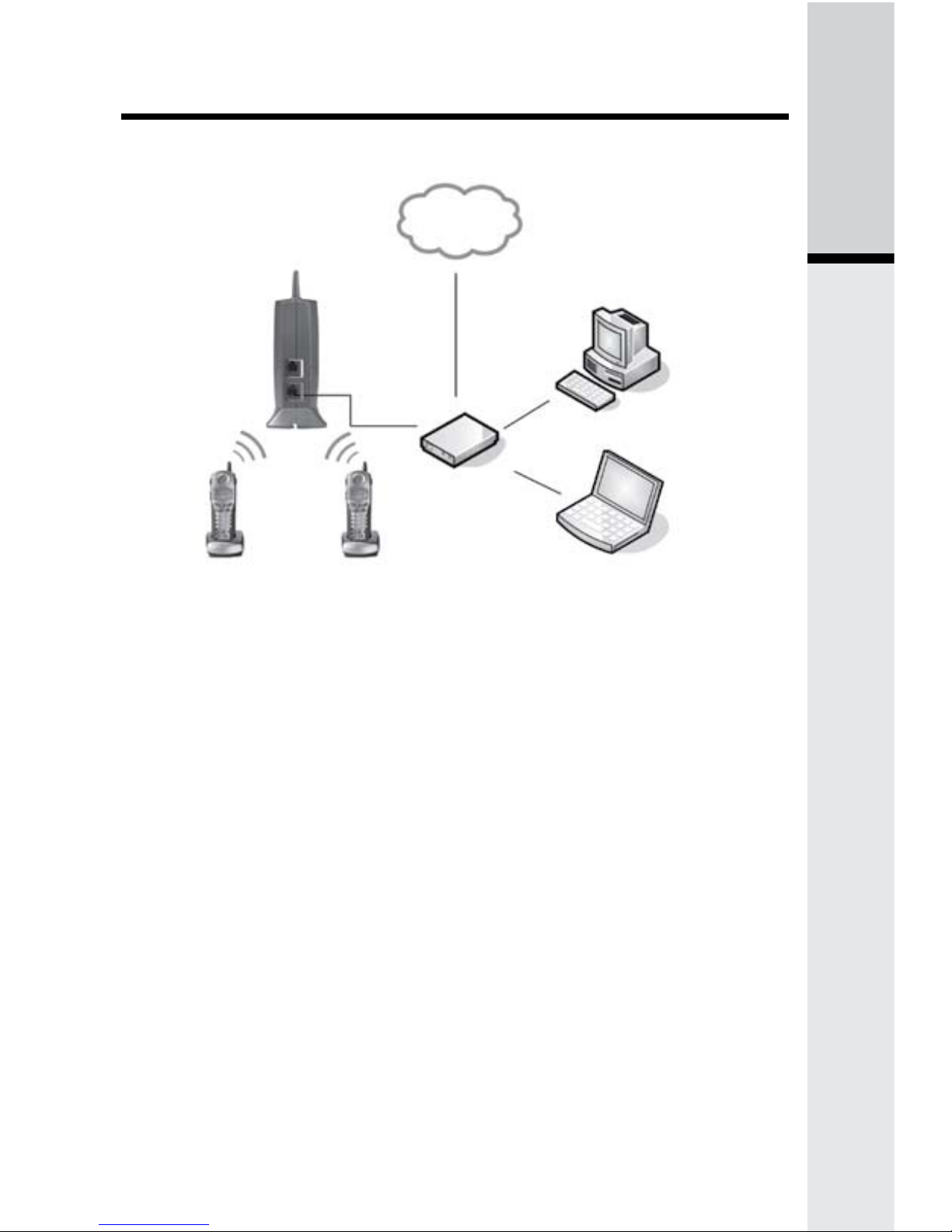

Installatiozn With A Modem Router

Getting Started

Helpful Hint: Do NOT interrupt this registration process by unplugging the pow-

er or by using the handsets until the READY indicator light on the front of the

basehasgonefromﬂashingyellowtoasteadygreen.

Helpful Hint: Use only the power cord provided in this package; using an older

power cord can damage the broadband phone.

STEP 3:

Check for dial tone by pressing the ON button on your handset. If you do not

hear a dial tone, please refer to the Troubleshooting section of the user manu-

al.

Congratulations! Even if you are transferring your number, you are ready to

start taking advantage of the great savings and superior quality of Vonage right

now! Please call 800-342-1791 to setup your voicemail service and to learn

about other free Vonage features included with every Vonage calling plan.

Installation Directions

Autres manuels pour Vonage IP 8100-2

Table des matières

Autres manuels V-tech Téléphone

V-tech

V-tech 5801 Manuel utilisateur

V-tech

V-tech LS1500-B Manuel utilisateur

V-tech

V-tech CD1153 Manuel utilisateur

V-tech

V-tech 2625 s Manuel utilisateur

V-tech

V-tech ia5851 - Cordless Phone - Operation Guide de l'utilisateur

V-tech

V-tech CD1113 Manuel utilisateur

V-tech

V-tech VT5871/5808 - V-Tech 5.8 GHz Expandable Cordless... Manuel utilisateur

V-tech

V-tech Contemporary Series A2100 Manuel utilisateur

V-tech

V-tech i5868 Manuel utilisateur

V-tech

V-tech ia5824 Manuel utilisateur

V-tech

V-tech IP 5825 Manuel utilisateur

V-tech

V-tech ErisStation VCS752 Manuel d'instructions

V-tech

V-tech ErisStation VCS752 Manuel utilisateur

V-tech

V-tech ErisTerminal VSP885G Manuel utilisateur

V-tech

V-tech CareLine SN1157 Manuel utilisateur

V-tech

V-tech ErisTerminal VSP861 Manuel utilisateur

V-tech

V-tech i6785 Manuel utilisateur

V-tech

V-tech LS6181 Manuel utilisateur

V-tech

V-tech DS6151 Manuel utilisateur

V-tech

V-tech 1411 Manuel utilisateur

V-tech

V-tech Contemporary Series A2100 Manuel utilisateur

V-tech

V-tech CD1261 Manuel utilisateur

V-tech

V-tech LS1350-B Manuel utilisateur

V-tech

V-tech TrimStyle NG-A3311 Manuel utilisateur

Manuels Téléphone populaires d'autres marques

GE 2-9480 Manuel utilisateur

Geemarc

Geemarc PHOTOPHONE 155 Manuel utilisateur

D-Link

D-Link DWR-720/PW Manuel utilisateur

Interquartz

Interquartz Gemini IQ333 Manuel utilisateur

SSS Siedle

SSS Siedle HT 840-0 Manuel utilisateur

Motorola

Motorola TITANIUM Manuel utilisateur

Panasonic

Panasonic ICX Manuel utilisateur

LG H870DS Manuel utilisateur

Samsung

Samsung GT-I9500 Manuel utilisateur

AT&T

AT&T Trimline 205 Manuel utilisateur

Selta

Selta zenyth 600 Manuel utilisateur

Doro

Doro AFTI 20 Manuel utilisateur

UNIQCELL

UNIQCELL A1 Manuel utilisateur

Panasonic

Panasonic KX Series Manuel utilisateur

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuel utilisateur

BT Decor 425 Manuel utilisateur

NEC

NEC SV8500 Manuel utilisateur

Teledex

Teledex PEARL Manuel utilisateur
