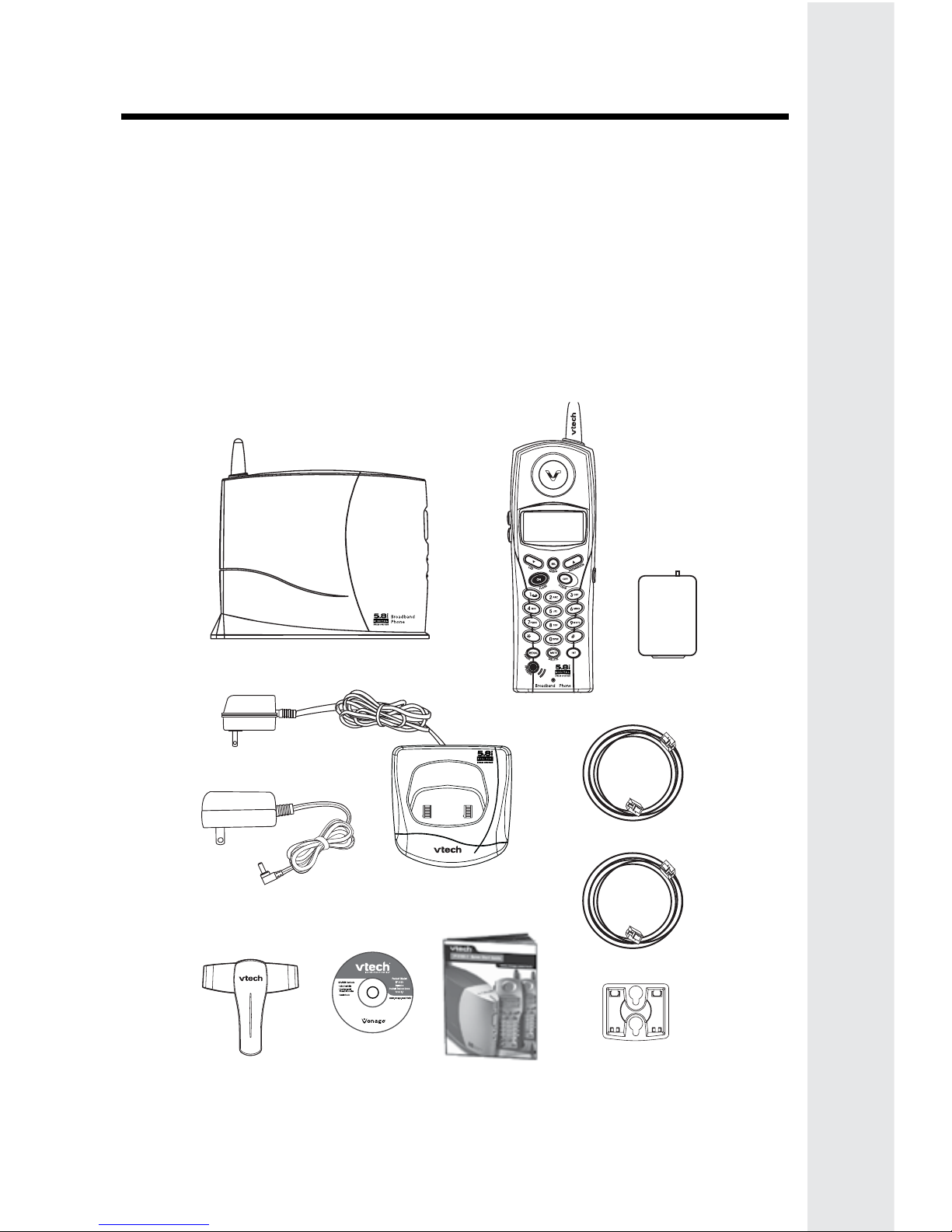

Parts Check List

Note: Use ONLY VTech battery 80-5808-00-00 or VTech replacement

89-1324-00-00.

6. Charger Wall Mounting Brackets

7. Belt Clip(s)

8. User Documentation CD

9. Quick Start Guide

10. Battery(ies)

1. Base Unit

2. Handset(s)

3. Handset Charger(s)

4. Ethernet Cables

5. Base Power Adapter

The system is an advanced Broadband cordless telephone set, capable of sup-

porting four handsets.

This manual is designed to familiarize you with this Broadband cordless telephone.

We strongly recommend you read the manual before using your phone.

Base Unit

Handset

Base AC Adapter Handset Charger

Blue Ethernet Cable

Belt Clip User Docu-

mentation CD Quick Start Guide Charger Wall

Mounting Bracket

Battery

Note: If you have purchased the IP8100 series telephone, please also refer to

the parts list in your IP811 user’s manual.

Yellow Ethernet Cable

1. Antenna

2. Earpiece

3. Volume Control

4. CID (Scroll Down)

5. On (Flash)

6. Voicemail

7. Dialing Keys (0-9, *, #)

8. Redial (Pause)

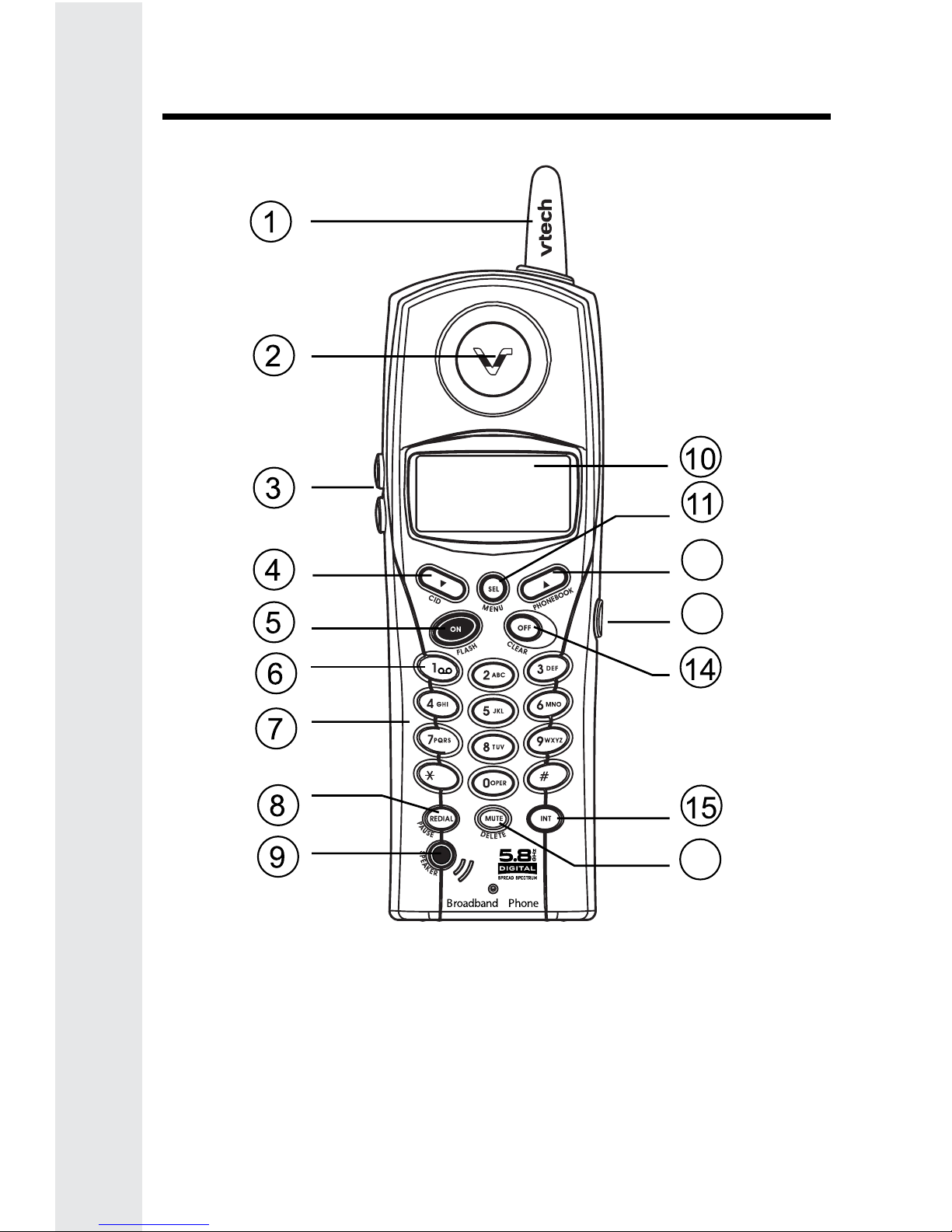

The Handset Layout

9. Speakerphone

10. LCD Display

11. Select (Menu)

12. Phonebook (Scroll Up)

13. Headset Jack (2.5mm)

14. Off (Clear)

15. Intercom

16. Mute (Delete)

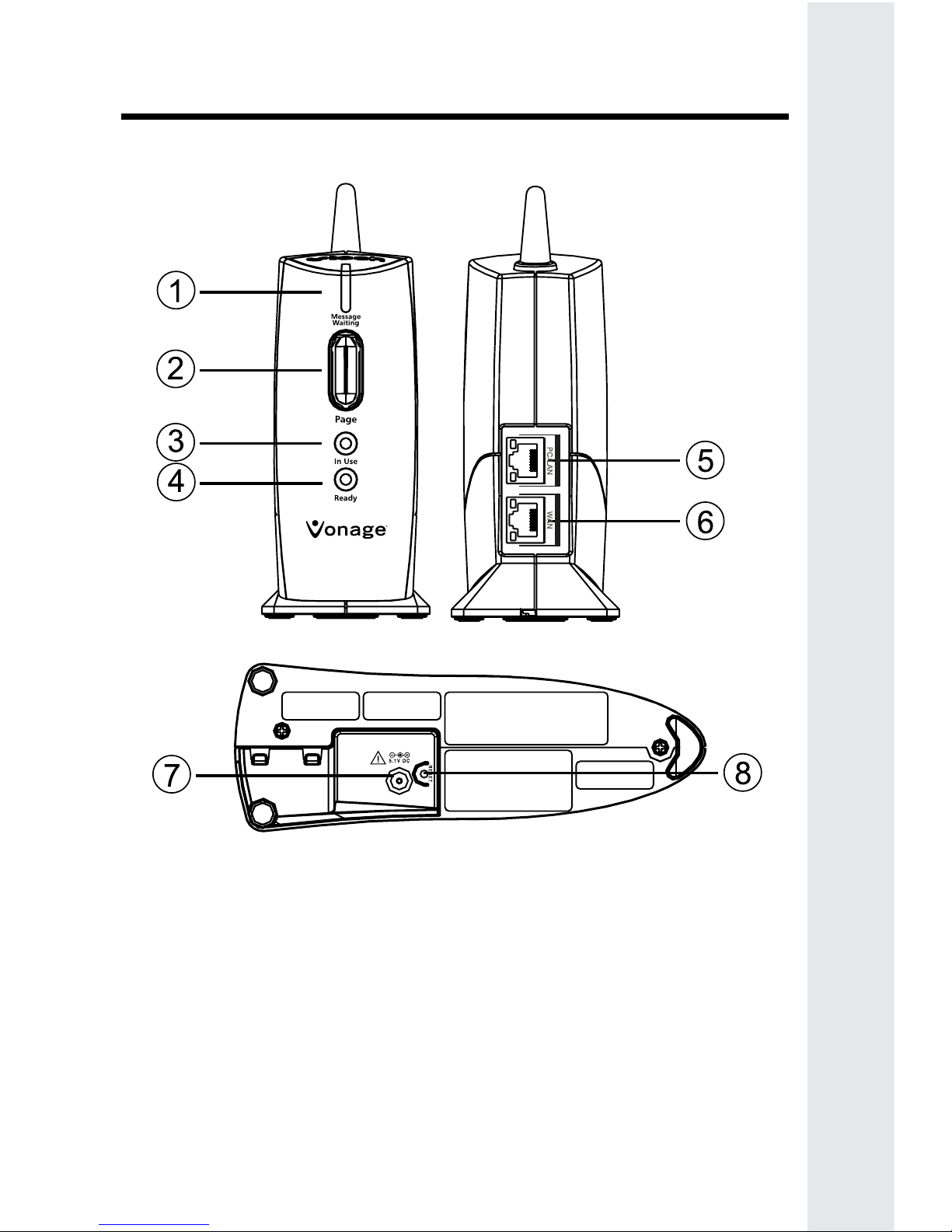

The Base Unit Layout

1. Message Waiting LED

2. Page key

3. In Use LED

4. Service Status LED

5. LAN Port

6. WAN Port

7. DC Connector Jack

8. Reset Switch

Getting Started

Setup

Charging of the Handset Battery Pack

The handset of your cordless telephone is powered by a rechargeable battery

pack. It charges automatically whenever handset is in its charger.

You should charge the batteries for 10-12 hours when you rst receive your

phone. You will know the battery pack needs charging when:

• The low battery message is displayed:

• The handset seems completely dead, the LCD is

completely clear and does not activate when you

press the keys.

Note: While in PLACE IN CHARGER (low battery)

mode, the keypad sounds, backlighting and speak-

erphone features will not work. When the battery has been charged, the features

will return to their normal function.

IMPORTANT:

1. Donotdisposeofthebatterypackinare,itmightexplode.

2. Donotopenormutilatethebatterypack.Toxicsubstancesmaybereleased,

causing harm to eyes or skin.

3. Exercisecareinhandlingbatteriesinordertopreventanaccidentalshortof

the charge contacts, potentially causing the batteries to overheat.

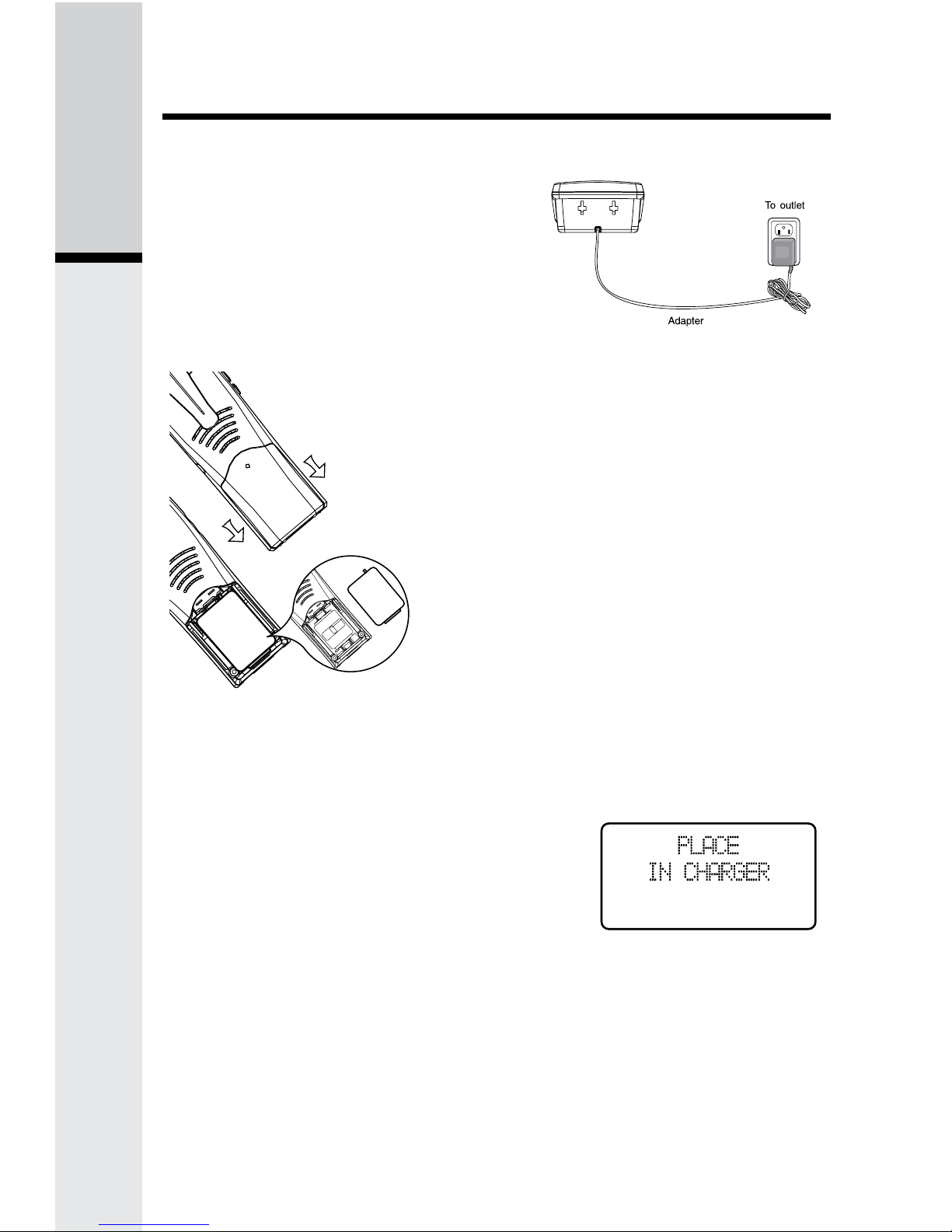

Installation of Battery Pack in Handset

Follow the steps below:

1. Remove the battery compartment

cover by pressing on the indentation

and sliding downward. Place the new

battery pack in the handset with the

positive and negative poles aligned in

the battery compartment.

2. Replace the battery cover by sliding it

upwards.

3. If the new battery pack is not already

charged, place the handset in its

charger, and allow it to charge for

10-12 hours. After initial charge, a

maintenance charge of 8 hours should

besufcient.

Connecting power to Base Unit/Hand-

set Charger

1. Plug the power adapter into an electrical

outlet, and the connector into the connec-

tor jack at the bottom of the base unit.

2. Choosethelocationforyourhandsetcharger,

and plug its power supply into an electrical

outlet.

Getting Started

Setup

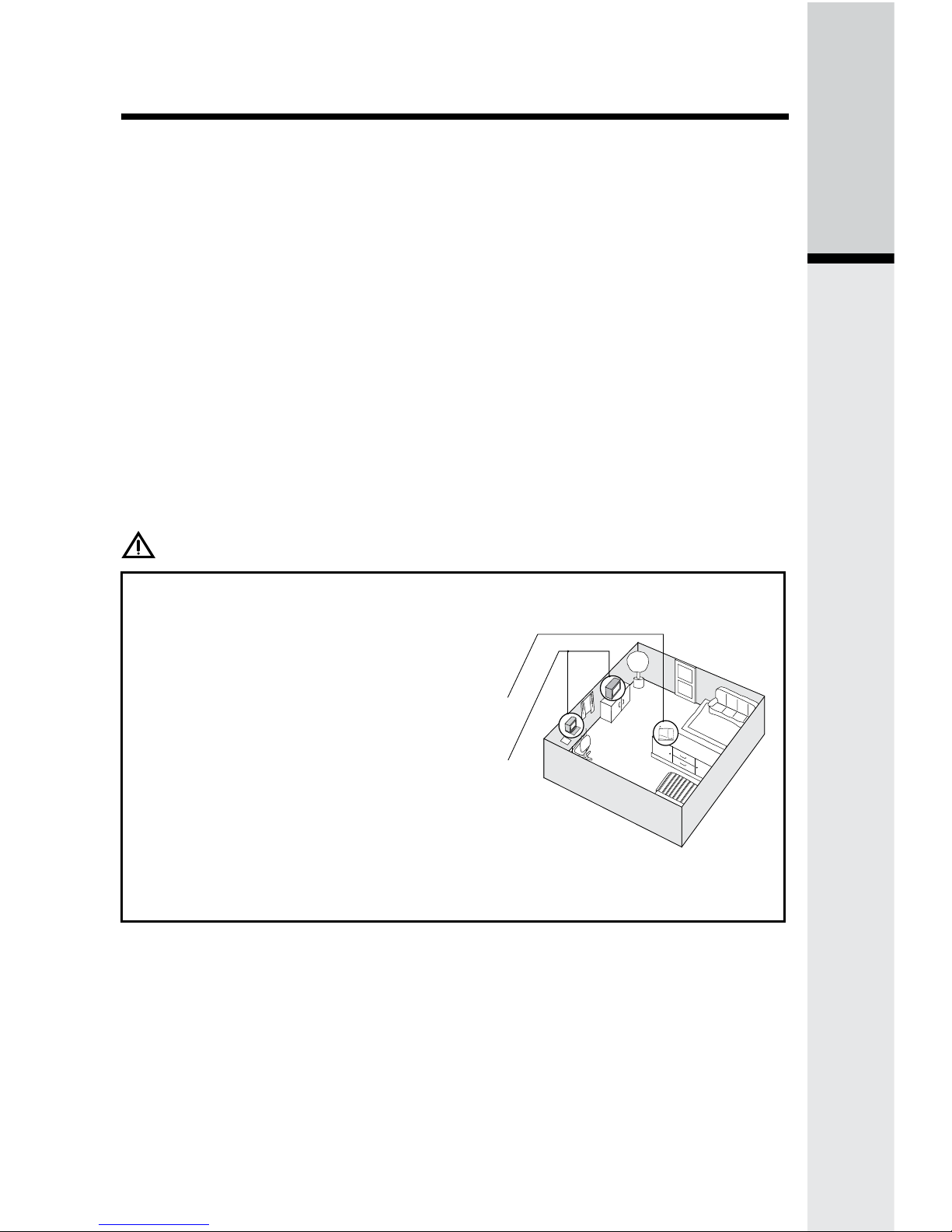

IMPORTANT! MAXIMUM PERFOR-

MANCE OF YOUR CORDLESS TELE-

PHONE SYSTEM:

1.Install your base unit and extension

handsets away from electronic equip-

ment, such as personal computers,

television sets and microwave ovens.

2. In locations where there are multiple

cordless telephones, separate the

base units as far away as possible.

3. Install your telephone equipment away

from heat sources and sunlight.

4. Avoid excessive moisture, dust or

extremecold.

CAUTION: Use only the VTech power supply provided with your telephone.

4. Do not dispose of the battery pack into household garbage. Please refer to the

information concerning proper battery recycling.

5. Do not charge the battery pack with other electrical devices.

Reset Switch

The reset switch, when quickly pressed and released, will reset the phone and

restart the software. Beware that when the reset switch is pressed and held for

more than 10 seconds and then released, the phone will restore to factory defaults.

Thisincludesclearingandresettingthepasswordonthewebconguration.

Reset switch does not affect your base unit power, RF operation, or any of the

telephone handset settings.

Checking for Dial Tone

After the battery is charged, press ON on the handset. The LCD displays PHONE and

shows a call timer, and you will hear a dial tone. If not, see In Case of Difculty.

Add new handsets to make your phone more versatile

Your telephone can accommodate up to four cordless handsets. You can add

new handsets (Model IP811, sold separately) at any time. You can register a

maximumoffourhandsets.

Getting Started

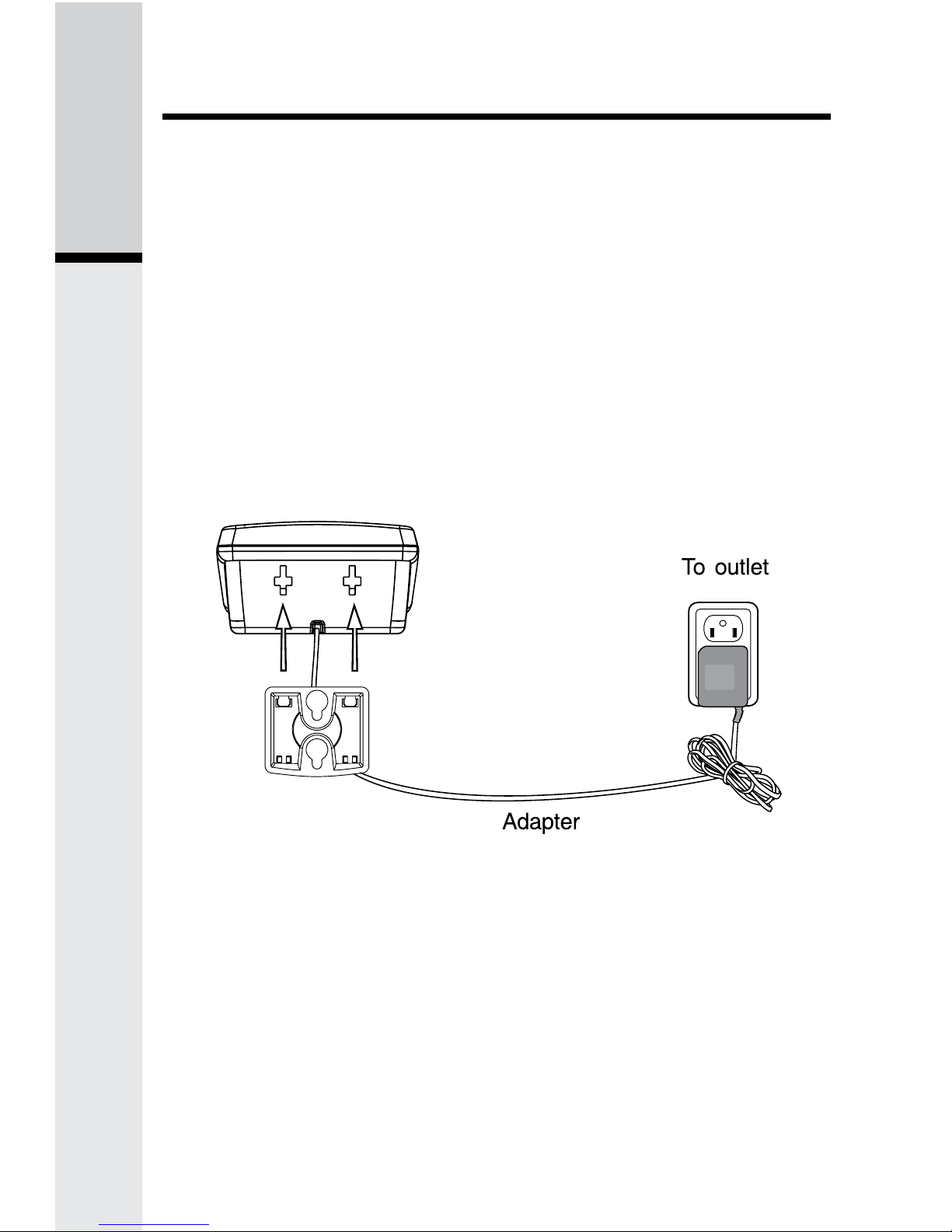

Wall Mounting

The wall mount brackets are designed for use on standard wall mount plates

only. Wall mounting is optional. Only the handset chargers (not the main base

unit) can be wall mounted.

1. Plug the power adapters into electrical outlets, and the connector to the bot-

tom of the handset charger.

2. Line up the tabs on the wall mount brackets with the holes at the back of the

handsetcharger.Snapthewallmountbracketrmlyinplace.

3. Mount the handset charger on the wall. Position the handset charger so the

mountingstudswilltintotheholesonthewallmountbracket.Slidehandset

charger down on the mounting studs until it locks into place.

Getting Started

Setup

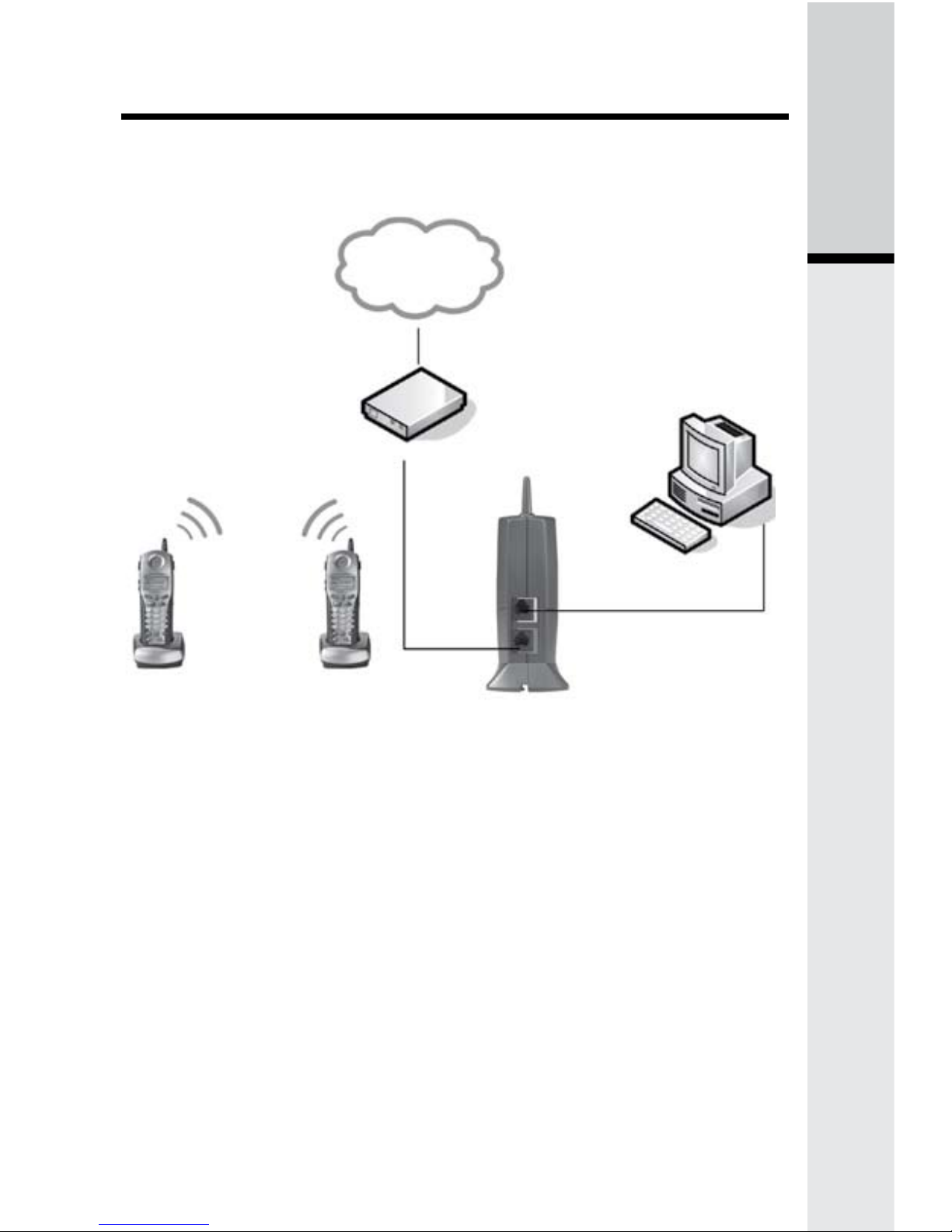

Installation Without A Router

DSL or Cable Modem

INTERNET

Base Unit

Handset 1 & 2

NOTE: The IP8100 series telephone is

expandableuptoatotalof4handsets.

Uses model IP 811 (sold separately)

WAN Port

Warning: Do not route the Ethernet cable to outdoors, and ensure that you are

using a safety approved DSL or Cable modem with proper electrical isolation.

PC/LAN Port

STEP 1

Unplug the power cord from your Cable or DSL modem (the device your ISP

provided which provides high-speed Internet). Make sure that you turn your

computer off and that you do NOT plug in your IP8100 series broadband tele-

phone until instructed to do so.

Helpful Hint: The modem should be powered off for at least 10 minutes. If it is

turned off for a shorter period of time, it may “remember” old information that will

prevent it from working properly.

Getting Started

Setup

STEP 4

Connect one end of the blue Ethernet cable to the blue port, labeled “WAN,”

located on the back of the base unit and connect the other end of the blue cable

to the Ethernet port on your cable or DSL modem.

STEP 5

Reconnect power cord to the modem then turn the modem on. Please wait until

all lights on the modem stop blinking.

Helpful Hint: This should take a few minutes, but may take as long as 10 min-

utes.

STEP 6

Plug the power cord into the power port located on the bottom or your IP8100

series telephone and the other end into the electrical outlet. This turns the IP

8100 series broadband telephone on.

Helpful Hint: DO NOT interrupt this registration process by unplugging the pow-

er or by using the handsets until the READY indicator light on the front of IP8100

seriesbasehasgonefromashingyellowtoasteadygreen.

Helpful Hint: Use only the power cord provided in this package; using an older

power cord can damage the broadband telephone.

STEP 7

Turn your computer on, and check your computer to see if your Internet is work-

ing, try to visit any website. If your Internet is working, please proceed to STEP

10. If not, please proceed to STEP 8.

STEP 2

Disconnect all cables between your Cable or DSL modem and your computer.

STEP 3

Connect one end of the yellow Ethernet cable to the yellow port, labeled “PC/

LAN,” located on the back of the base unit and connect the other end of the yel-

low cable to the Ethernet port of your computer.

STEP 8:

Cable Users

If you receive Internet access through a Cable modem, you may need to register

the IP8100 series telephone with your ISP. Please contact them to update your

information; you will likely need your WAN MAC address, which is located on

the bottom of the IP8100 series telephone. Once your ISP has updated your

account, proceed to step 9.

-- OR --

Getting Started

Setup

DSL Users

If you have DSL and are required to enter a user name and password (PPPoE)

when accessing the Internet, you may be required to authenticate the IP8100

series telephone.

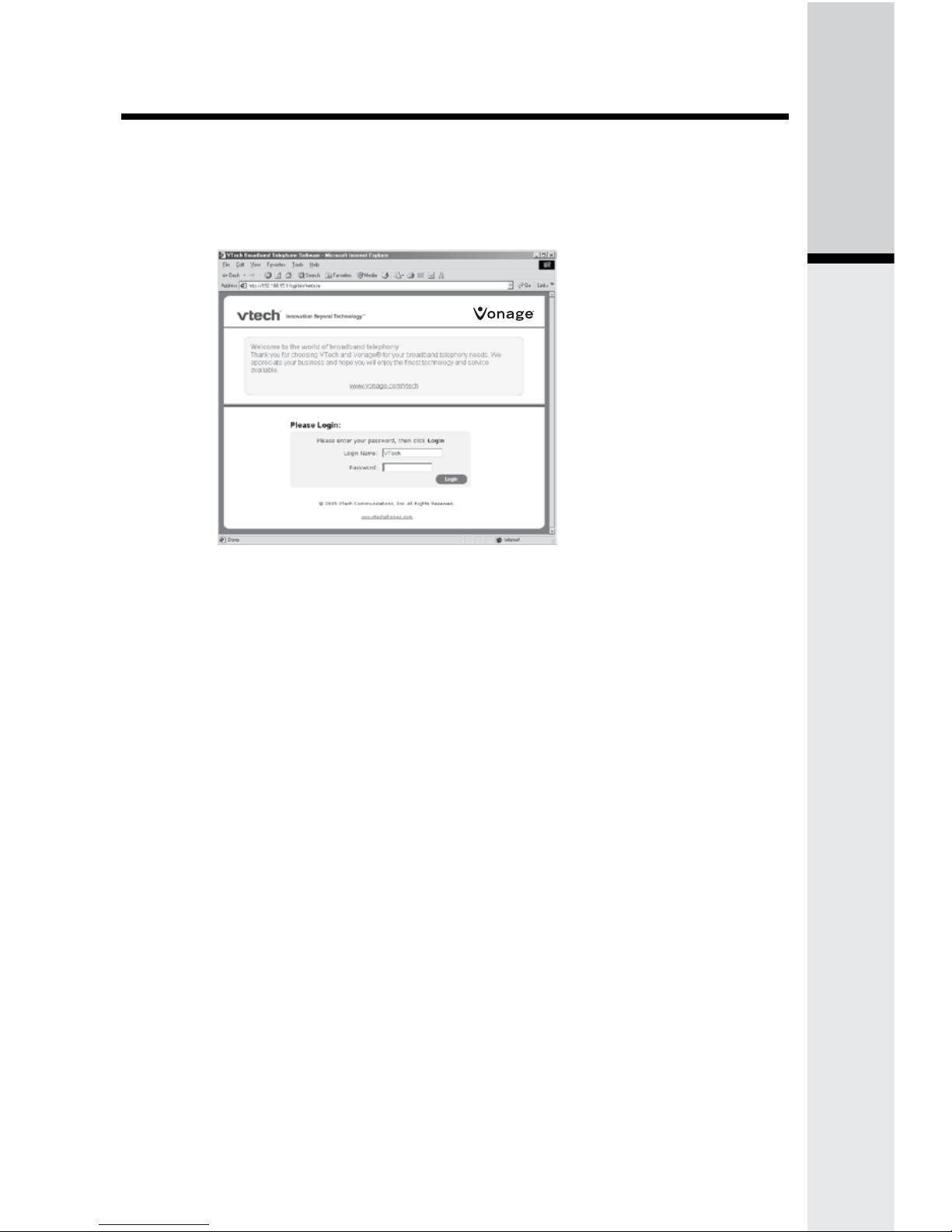

A. OpenawebbrowsersuchasMicrosoft®InternetExplorerusingthe

computer connected through your phone Ethernet port. In the address

 oflocationeld,type<http://192.168.15.1>andpressENTER. This

displays the login screen. Enter the default password ‘VTech’ and

click on login.

B. On the Setup Wizard screen, click Run Wizard to start the set-up.

C. Follow Wizard screens to complete the setup.

STEP 9:

Check for dial tone by pressing the ON button on your handset. If you do not hear

a dial tone, please refer to the Troubleshooting section of the user manual.

Congratulations! Even if you are transferring your number, you are ready to start

taking advantage of the great savings and superior quality of Vonage right now!

Please call 800-342-1791 to setup your voicemail service and to learn about

other free Vonage features included with every Vonage calling plan.

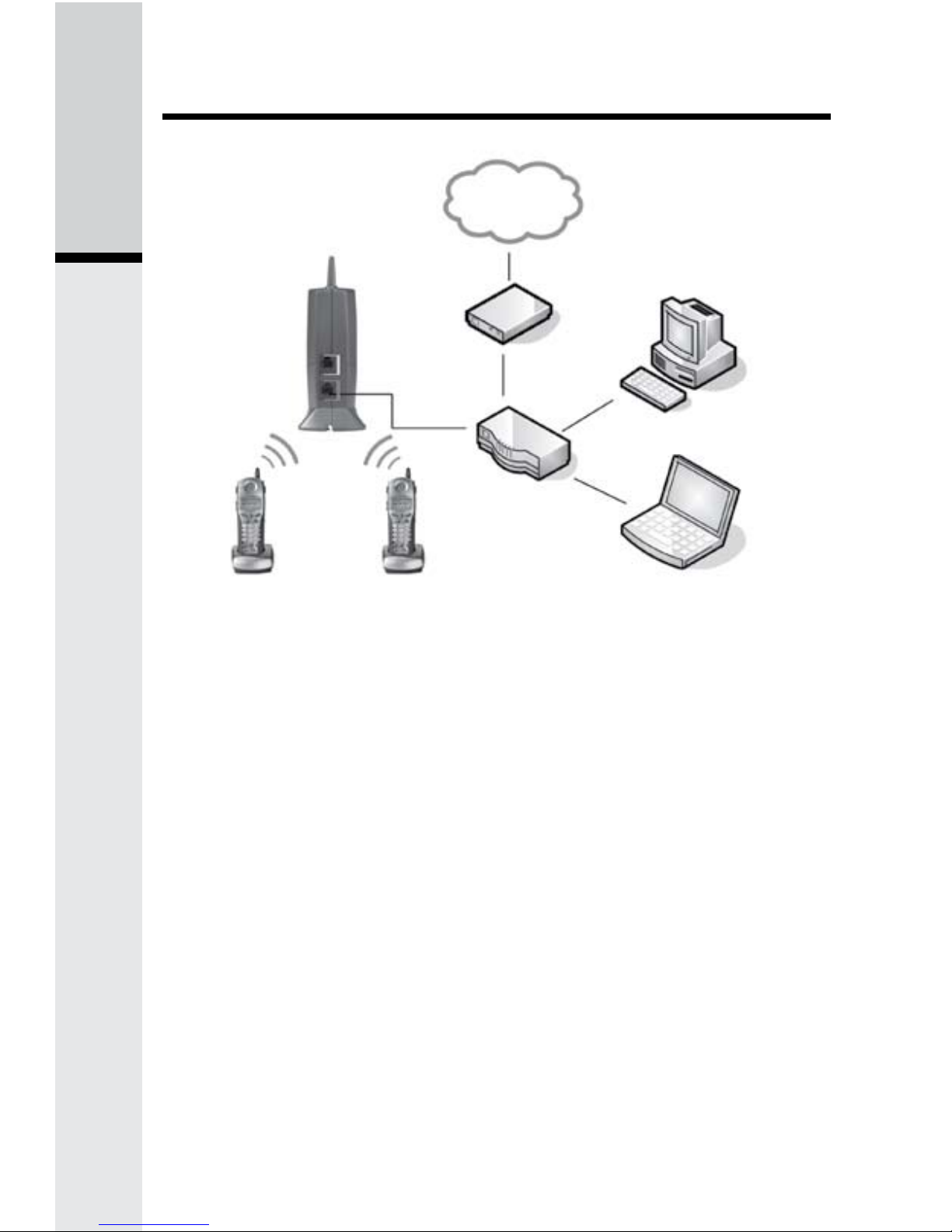

Getting Started

Existing

Network Router

Base Unit INTERNET

DSL or Cable Modem

WAN Port

Laptop

Handset 1 & 2

Installation With A Router

Setup

Warning: Do not route the Ethernet cable to outdoors, and ensure that you are using a

safety approved DSL or Cable modem with proper electrical isolation.

NOTE:TheIP8100seriestelephoneisexpandableupto

a total of 4 handsets. Uses model IP 811 (sold separately)

STEP 1:

Using the blue Ethernet cable provided, connect one end into the blue port, labeled WAN,

located on the back of the IP8100 series broadband telephone base unit and connect the

other end into an available LAN port on your router. If you have a wireless router, place the

base unit at least 3’ away from your router to avoid interference.

Helpful Hint:IfalltheEthernetportsonyourexistingrouterarefull,disconnectoneofthe

attacheddevicesfromtheexistingrouter.PlugtheblueEthernetcableintothenowfree

port on your router. Connect the device you just unplugged from your router to the yellow

PC/LAN port located on the back of IP8100 series broadband telephone base unit.

STEP 2:

Plug the power cord into the power port located on the bottom of your base unit and the

other end into the electrical outlet. This turns the IP8100 series broadband telephone on.

Helpful Hint: DO NOT interrupt this registration process by unplugging the power or by

using the handsets until the READY indicator light on the front of base has gone from

ashingyellowtoasteadygreen.

Helpful Hint: Use only the power cord provided in this package; using an older power cord

can damage the broadband phone.

STEP 3:

Check for dial tone by pressing the ON button on your handset. If you do not hear a dial

tone, please refer to the Troubleshooting section of the user manual.

Congratulations! Even if you are transferring your number, you are ready to start taking

advantage of the great savings and superior quality of Vonage right now! Please call 800-

342-1791 to setup your voicemail service and to learn about other free Vonage features

included with every Vonage calling plan.

Autres manuels pour Vonage IP 8100-2

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels V-tech Téléphone

V-tech

V-tech ia5839 - Cordless Phone - Operation Guide de l'utilisateur

V-tech

V-tech ia5823 Manuel utilisateur

V-tech

V-tech PMX-S54 0 Series Manuel utilisateur

V-tech

V-tech ia5839 - Cordless Phone - Operation Manuel utilisateur

V-tech

V-tech DS6111-2 DS6111-3 Manuel utilisateur

V-tech

V-tech ia5865 Manuel utilisateur

V-tech

V-tech i6727 Guide de configuration

V-tech

V-tech ErisTerminal VSP875G Manuel utilisateur

V-tech

V-tech VSP781 Manuel d'instructions

V-tech

V-tech DECT 6.0 CS6114 Manuel utilisateur

V-tech

V-tech LS1400-B Manuel utilisateur

V-tech

V-tech ErisTerminal VSP610AErisTerminal VSP608A Manuel utilisateur

V-tech

V-tech ia5890 Manuel utilisateur

V-tech

V-tech ia5851 - Cordless Phone - Operation Manuel utilisateur

V-tech

V-tech ia5863 Manuel utilisateur

V-tech

V-tech i5868 Manuel utilisateur

V-tech

V-tech CS6519A Manuel utilisateur

V-tech

V-tech ia5845 Manuel utilisateur

V-tech

V-tech VSP735 Manuel utilisateur

V-tech

V-tech Analog Contemporary Series Manuel utilisateur

V-tech

V-tech SIP Next Gen Series Manuel utilisateur

V-tech

V-tech S1100 Manuel utilisateur

V-tech

V-tech ErisTerminal VSP885G Manuel utilisateur

V-tech

V-tech ErisStation VCS752 Manuel utilisateur

Manuels Téléphone populaires d'autres marques

GE 2-9480 Manuel utilisateur

Geemarc

Geemarc PHOTOPHONE 155 Manuel utilisateur

D-Link

D-Link DWR-720/PW Manuel utilisateur

Interquartz

Interquartz Gemini IQ333 Manuel utilisateur

SSS Siedle

SSS Siedle HT 840-0 Manuel utilisateur

Motorola

Motorola TITANIUM Manuel utilisateur

Panasonic

Panasonic ICX Manuel utilisateur

LG H870DS Manuel utilisateur

Samsung

Samsung GT-I9500 Manuel utilisateur

AT&T

AT&T Trimline 205 Manuel utilisateur

Selta

Selta zenyth 600 Manuel utilisateur

Doro

Doro AFTI 20 Manuel utilisateur

UNIQCELL

UNIQCELL A1 Manuel utilisateur

Panasonic

Panasonic KX Series Manuel utilisateur

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuel utilisateur

BT Decor 425 Manuel utilisateur

NEC

NEC SV8500 Manuel utilisateur

Teledex

Teledex PEARL Manuel utilisateur
