V-tech LS6204 - Cordless Extension Handset Manuel utilisateur

Model: LS6204

User’s manual

www.vtech.com

DECT

Table of contents

1. IMPORTANT SAFETY INSTRUCTIONS .......................1

2. SETTING UP THE TELEPHONE ...................................2

2.1 Package contents ..............................................................2

2.2 Location .............................................................................2

2.3 Setting up ..........................................................................3

2.3.1 Connecting the charger .....................................3

2.3.2 Installing and charging the battery pack ............4

2.4 Set date and time ..............................................................4

2.4.1 Change the Date Format ...................................4

2.4.2 Change the Time Format...................................5

2.4.3 Set Date/Time....................................................5

3. GETTING TO KNOW YOUR PHONE ............................6

3.1 Overview of your handset ..................................................6

3.2 Handset LCD display .........................................................7

3.3 Charger..............................................................................8

3.4 Navigating the menus ........................................................8

3.5 Menu map..........................................................................9

4. USING ADDITIONAL HANDSETS ..............................10

4.1 Registration .....................................................................10

4.2 Intercom and Conference Call.........................................11

4.2.1 Intercom...........................................................11

4.2.2 Transfer an External Call.................................11

4.2.3 Make a 3-way Conference Call .......................12

4.2.4 Switch between internal call and

external call ....................................................13

5. TROUBLESHOOTING .................................................14

6. TECHNICAL SPECIFICATIONS..................................17

1. IMPORTANT SAFETY INSTRUCTIONS

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury,

including the following:

1. Read and understand all the instructions.

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this product near water (for example, near a bath tub, kitchen sink, swimming pool).

5. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.

6. Unplug this product from the wall outlet and refer servicing to VTech under the following conditions:

• When the power adapter or plug is damaged or frayed.

• If the product does not operate normally by following the operating instructions.

• If the product has been dropped and the cabinet has been damaged.

• If the product exhibits a distinct change in performance.

7. Avoid using corded telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from

lightning.

8. Do not use the telephone to report a gas leak in the vicinity of the leak.

9. Use only the supplied NiMH (Nickel Metal Hydride) battery pack! The operation periods for the handsets are only applicable with the default

battery pack capacities.

10. The use of other battery pack types or non-rechargeable battery packs/primary cells can be dangerous. These may cause interference and/

or unit damages. The manufacturer will not be held liable for damage arising from such non-compliance.

11. Do not use third party charging bays. The battery pack may be damaged.

12. Please note the correct polarity while inserting the battery pack.

13. Do not immerse battery pack in water, do not place in fire.

If you have questions about this product, or having difficulty with setup or operation, call our VTech Electronics (HK) Ltd.

Customer Service Centre Tel: 852-2776 3223

Technical Inquiry Hotline Tel: 852-2667 7433

Setting up the telephone

2. SETTING UP THE TELEPHONE

2.1 Package contents

The package contains the following items:

･1 Handset ･1 Rechargeable battery pack

･1 Charger ･1 Chinese operation manual

･1 AC power adapter ･1 English operation manual

2.2 Location

For maximum coverage and reduce the interference, here are some guidelines you should consider when you place the base unit,

- place it at a convenient, high, and central location with no obstructions between the handset and base unit in an indoor environment.

- place it away from electronic appliances such as televisions, microwave ovens, radios, personal computers, wireless devices or other

cordless phones.

- avoid facing radio frequency transmitters, such as external antennas of mobile phone cell stations.

- avoid plugging it into the same circuit as other major household electrical appliances because of the potential for interference. Try moving

the appliance or the base unit to another power outlet.

If the reception for a base unit location is not satisfactory, move it to another location for better reception. Depending on the surrounding

conditions as well as spatial and structural factors, the range may be reduced. The range indoors is normally less than outdoors.

2.3 Setting up

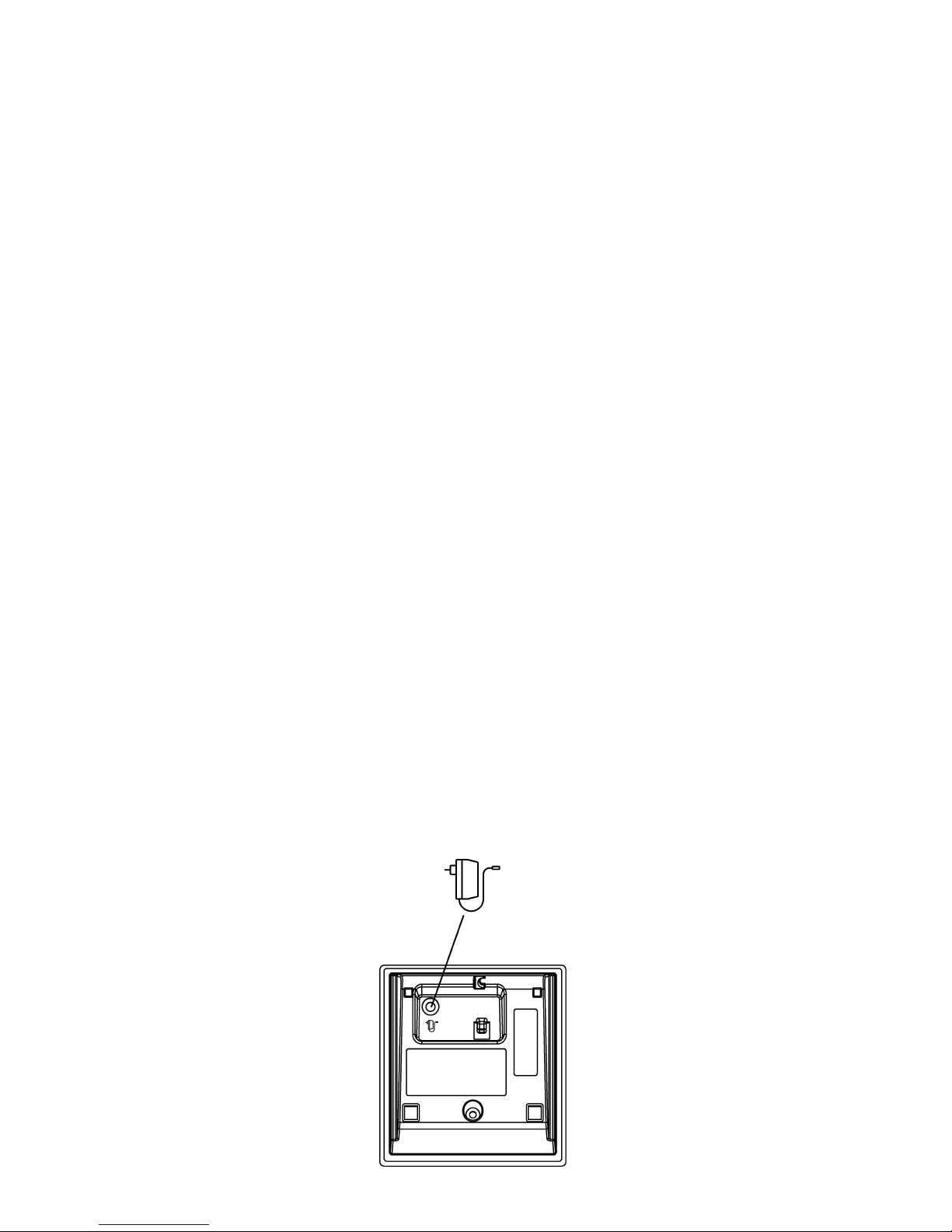

2.3.1 Connecting the charger

1. Plug the power supply into the charger.

2. Plug the power supply cord into the wall outlet not controlled by a wall switch.

3. Always use the cables provided in the box.

Setting up the telephone

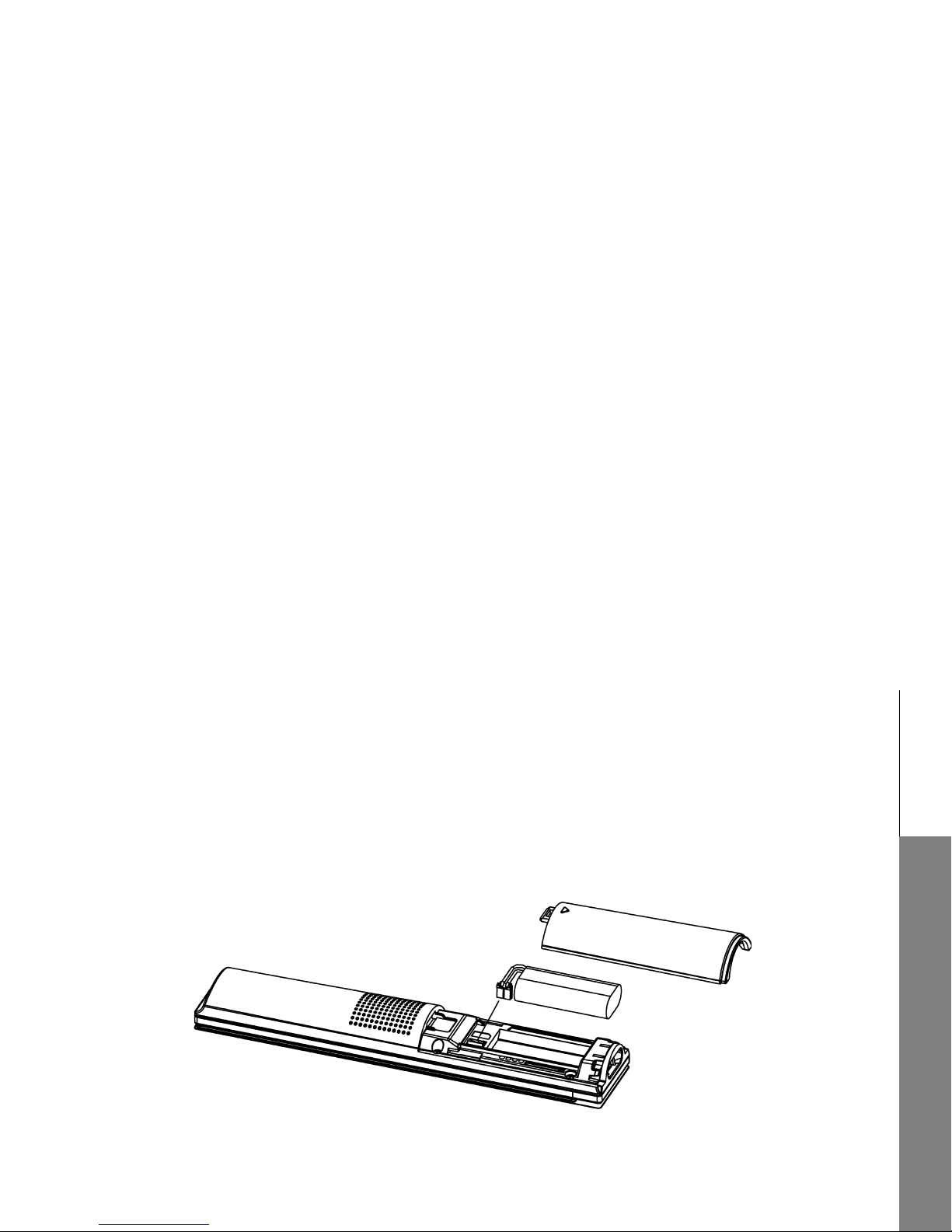

2.3.2 Installing and charging the battery pack

1. Slide out the battery compartment cover.

2. Place the supplied battery pack as indicated. Locate the battery pack lead and connector and plug it into the socket inside the battery

compartment (the red wire should be on the left). Tuck the battery pack leads in the space above the battery pack.

3. Slide the battery compartment cover back.

4. Put the handset on the charger or base and charge the battery pack for 16 hours first time.

Use only the supplied NiMH rechargeable battery pack.

2.4 Set date and time

Provided you have subscribed to your network's caller ID service, the date and time will be set automatically with every incoming call.

2.4.1 Change the Date Format

1. Press MENU and U/Dto select SETTINGS.

2. Press SELECT and U/Dto select DATE FORMAT.

3. Press SELECT and U/Dto select DD/MM/YY or MM/DD/YY.

4. Press OK to confirm.

2.4.2 Change the Time Format

1. Press MENU and U/Dto select SETTINGS.

2. Press SELECT and U/Dto select TIME FORMAT.

3. Press SELECT and U/Dto select 12 - HOUR or 24 - HOUR.

4. Press OK to confirm.

2.4.3 Set Date/Time

1. Press MENU and U/Dto select SETTINGS.

2. Press SELECT to select SET DATE/TIME, and then press SELECT.

3. Enter the date by the keypad, using the date format you set in Section 2.4.1.

Press U/Duntil the screen displays the correct value. Press OK to advance.

4. Press OK to enter the time by the keypad, using the time format you set in Section 2.4.2.

Press U/Duntil the screen displays the correct value. Press OK to advance.

5. Press OK to confirm.

Your VTech LS6204 is ready for use.

Getting to know your phone

3. GETTING TO KNOW YOUR PHONE

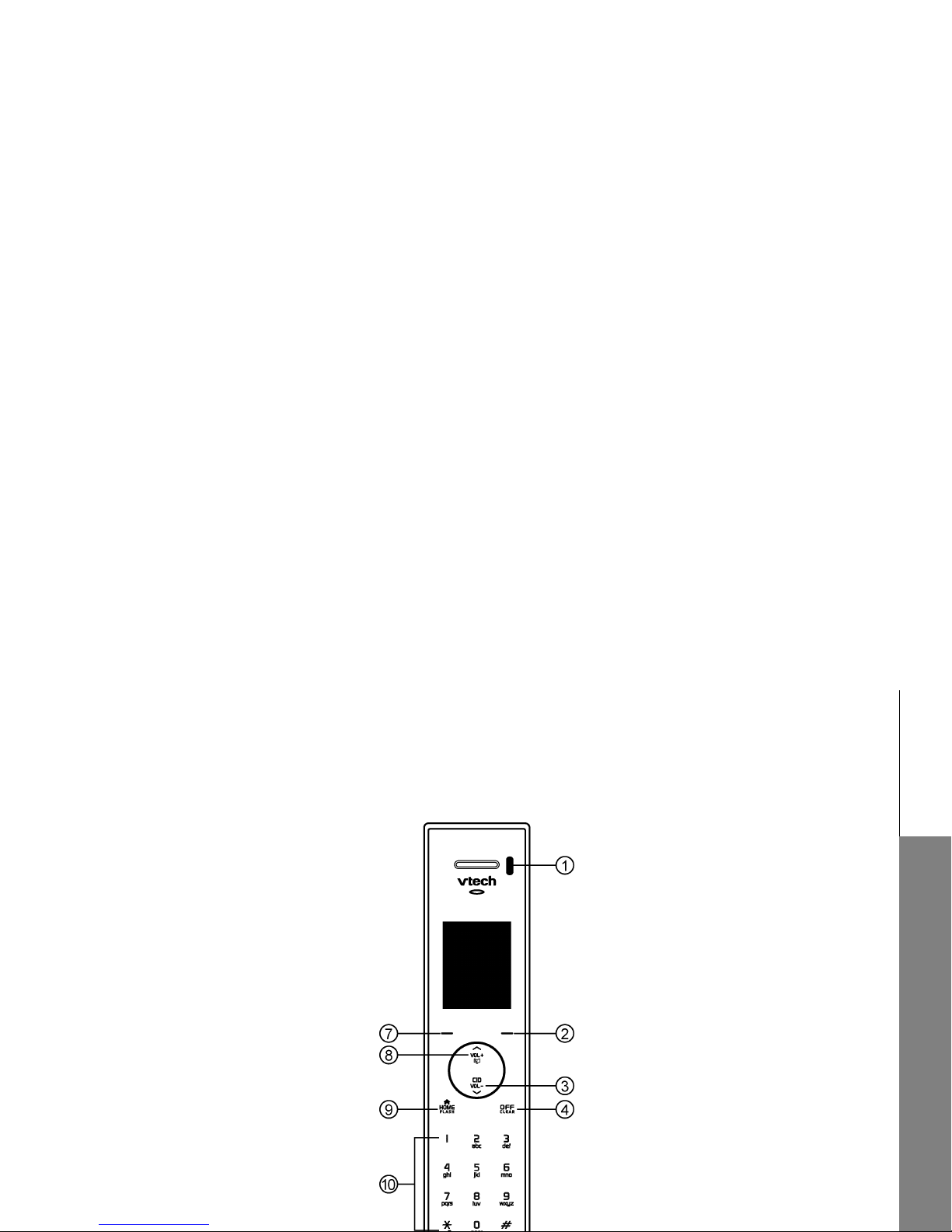

3.1 Overview of your handset

1. Infrared sensor

When the infrared sensor is covered during a

call, all keys on the dial pad are disabled.

2. Right soft key

Press to select a menu item displayed above

the key.

3. Scroll down/Volume down/Call log

In idle mode: Press to review the call log.

During a call: Press to decrease the listening

volume.

In menu mode: Press to scroll down.

4. Talk off/Clear

During a call: Press to hang up.

In ringing mode: Press to silence the ringer

temporarily.

In menu mode: Press to exit without making

changes. Press and hold to return to idle

mode.

In editing mode: Press to erase a digit or

character.

5. Cell

In idle mode: Press to make a cell call.

In ringing mode: Press to answer a cell call.

Flashes quickly when there is an incoming

cell call.

Flashes slowly when a cell call is on hold.

6. Charging LED

Steadily on when in charging.

7. Left soft key

Press to select a menu item displayed above

the key.

8. Scroll up/Volume up/Phonebook

In menu mode: Press to scroll up.

During a call: Press to increase the listening

volume.

In idle mode: Press to enter the phonebook.

9. Home/Flash

In idle mode: Press to make a home call.

In ringing mode: Press to answer a home call.

Flashes quickly when there is an incoming

home call.

Flashes slowly when a home call is on hold.

10. Alphanumeric keypad, *, #

In idle/pre-dial/editing mode/during a call:

Press to enter characters/ numbers.

In idle/pre-dial/during a call mode: Press to

insert a "#".

In idle/pre-dial/during a call mode: Press to

insert a "*".

In phonebook entry name editing mode:

Press to toggle between upper case and

lower case.

During a call: Press to turn to tone

temporarily when in pulse dialing mode.

11. Speakerphone

In idle mode: Press to make a home call.

In ringing mode: Press to answer a home or

cell call.

During a call: Press to switch between

speakerphone and handset.

12. Hold

During a call: Press to put a call on hold.

3.2 Handset LCD display

Home line - on steadily when the home line is

in use or there is an incoming home call.

CELL line - on steadily when the cell line is in

use or there is an incoming cell call.

Bluetooth connected device(s) - indicates

that there are Bluetooth connected devices on

the active devices list.

Bluetooth disconnected device(s) - indicates

that there are Bluetooth disconnected devices

on the active devices list.

Bluetooth wireless headset - on steadily

when a Bluetooth wireless headset is in use on

the home line.

Ringer off - on steadily when all the ringers of

Home, Cellular 1 and Cellular 2 are turned

off. Flashes when only one or two of the ringers

are turned off.

Speakerphone - the speakerphone is in use.

New answering system message - indicates

you have a new answering system

message(s).

Battery status - animates when the battery is

charging. Becomes solid when the battery is

fully charged.

Battery status - flashes when the battery is

low and needs charging.

Answering system on - indicates that the

answering system is turned on to answer

incoming home calls.

New call log - indicates that the missed call is

new.

Mute - the microphone is muted.

Getting to know your phone

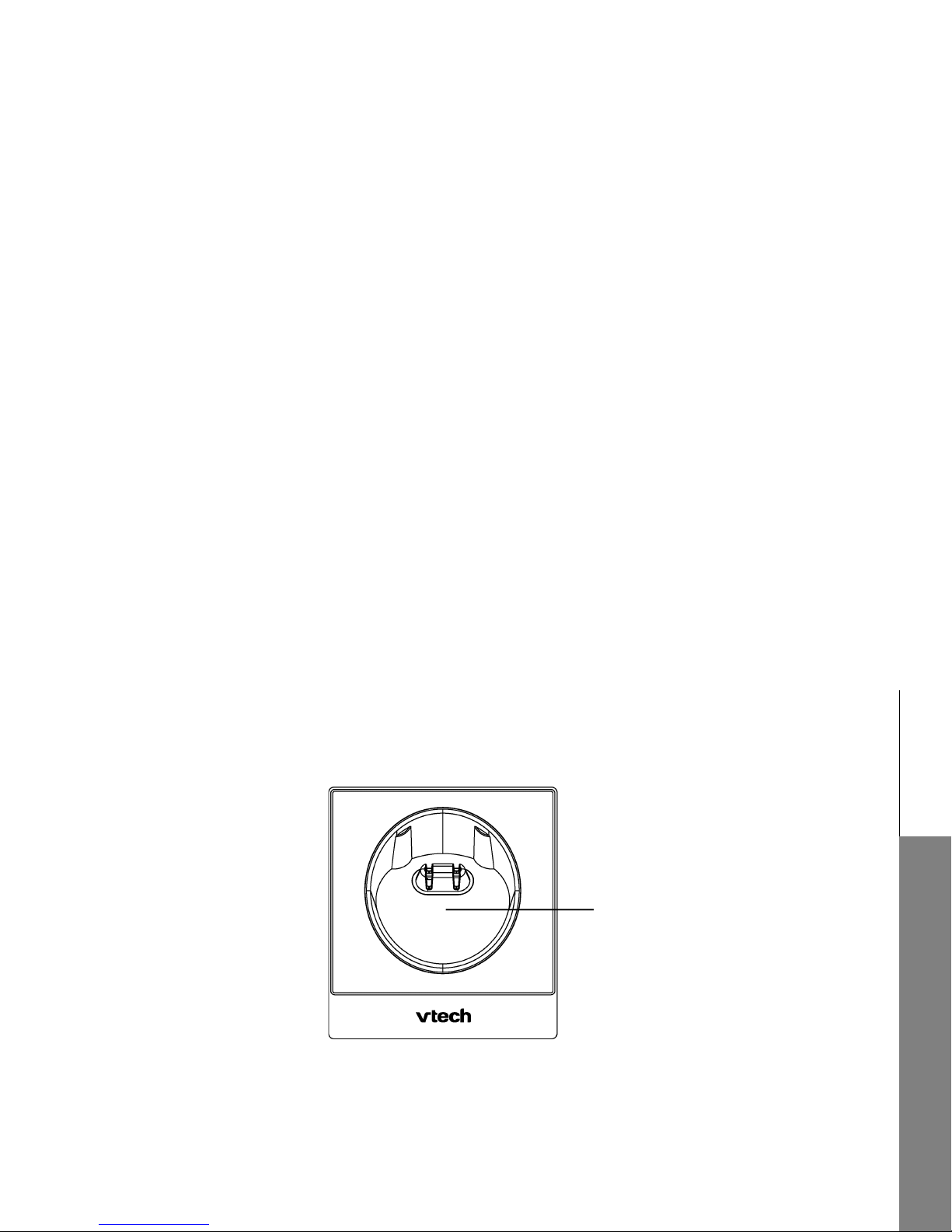

3.3 Charger

3.4 Navigating the menus

1. Press MENU.

2. Press U/Dto scroll through the menu.

3. Press SELECT to open a sub-menu or validate an option.

4. Press Fto go back to previous menu level or cancel an action.

Charger contacts
