V-tech Bs20-2432 Manuel utilisateur

When using your telephone equipment, basic safety precautions should always

be followed to reduce the risk of fire, electric shock and injury, including the

following:

1. Read and understand all instructions.

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Do not use liquid

cleaners or aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this product near water (for example, near a bath tub, kitchen

sink, or swimming pool).

5. Do not place this product on an unstable cart, stand, or table. The product

may fall, causing serious damage to the product.

6. Slots and openings in the cabinet and the back or bottom are provided

for ventilation. To protect it from overheating, these openings must not

be blocked by placing the product on the bed, sofa, rug, or other similar

surface. This product should never be placed near or over a radiator or

heat register. This product should not be placed in a built-in installation

where proper ventilation is not provided.

7. This product should be operated only from the type of power source

indicated on the marking label. If you are not sure of the type of power

supply to your home, consult your dealer or local power company.

8. Do not allow anything to rest on the power cord. Do not locate this product

where the cord will be abused by persons walking on it.

9. Never push objects of any kind into this product through cabinet slots as

they may touch dangerous voltage points or short out parts that could

result in a risk of fire or electric shock. Never spill liquid of any kind on

the product.

10. To reduce the risk of electric shock, do not disassemble this product.

Opening or removing cabinet parts other than specified access doors may

expose you to dangerous voltages or other risks. Incorrect reassembling

can cause electric shock when the appliance is subsequently used.

11. Do not overload wall outlets and extension cords as this can result in the

risk of fire or electric shock.

ImportantSafetyInstructions

12.Unplug this product from the wall outlet and contact customer support

under the following conditions:

A. When the power supply cord or plug is damaged or frayed.

B. If liquid has been spilled into the product.

C. If the product has been exposed to rain or water.

D. If the product does not operate normally by following the operating

instructions. Adjust only those controls that are covered by the

operating instructions, because improper adjustment of other controls

may result in damage and will often require extensive work by a

authorized technician to restore the product to normal operation.

E. If the product has been dropped and the cabinet has been damaged.

F. If the product exhibits a distinct change in performance.

13.Avoid using a telephone (other than a cordless type) during an electrical

storm. There may be a remote risk of electric shock from lighting.

14.Do not use the telephone to report a gas leak in the vicinity of the leak.

SAVE THESE INSTRUCTIONS

The 20-2432 is an advanced cordless telephone that operates in the 2.4GHz

frequency range.

This manual is designed to familiarize you with the 20-2432 cordless

telephone. We strongly recommend you read the manual before using your

phone.

MENU DRIVEN DISPLAYS

Introduction

The 20-2432 Handset and Base feature a user-friendly display, making it easy

to access the many features of this cordless system. The three black keys,

found directly below the LCD screen, are called soft keys. They are called

this because their functions change depending on what you're doing-making

a call, reviewing Caller ID, adding a name and number to your Phone Book,

etc.

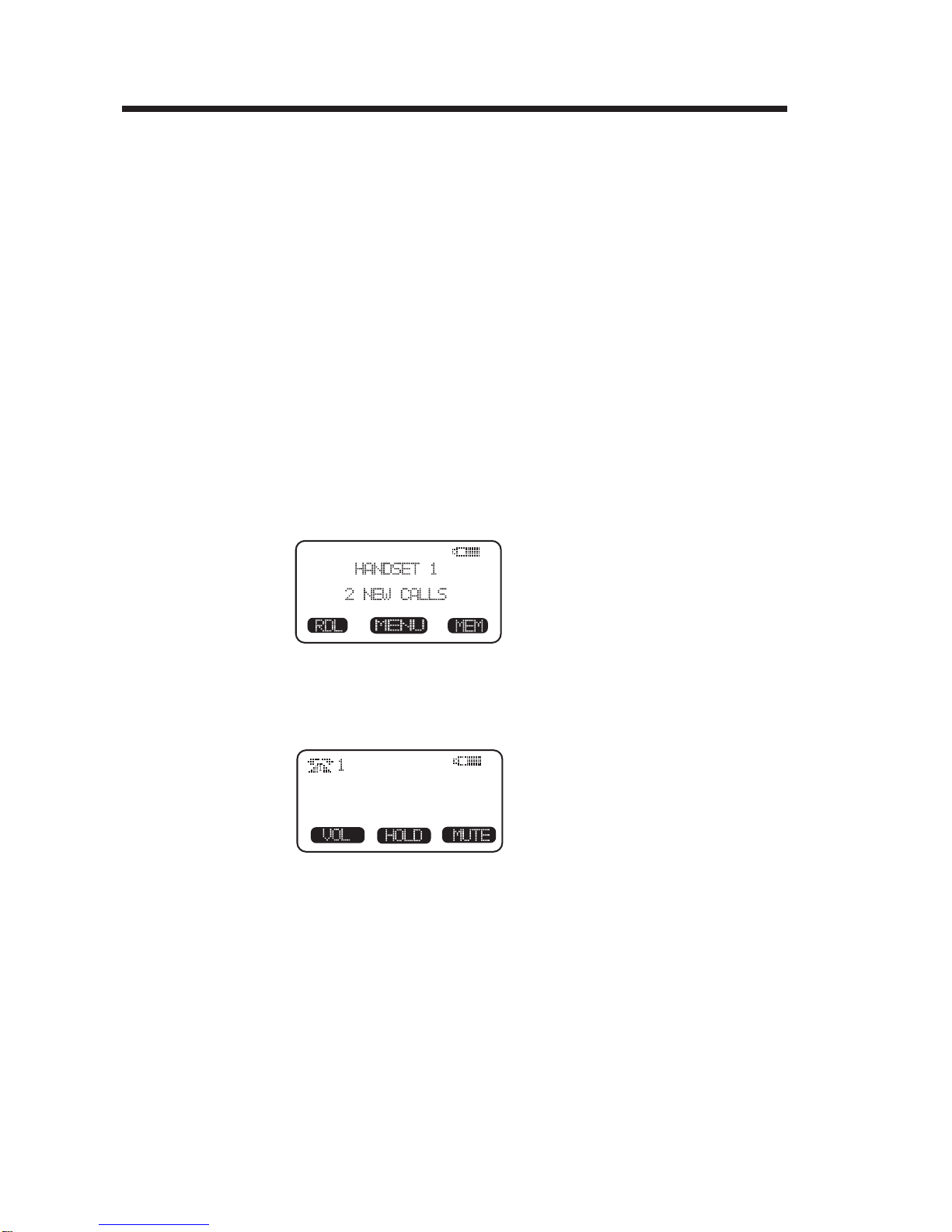

For example, when the Handset is in the idle mode, the LCD displays:

In this case, the 3 soft keys access REDIAL, MENU and MEMORY.

When the Handset is active, the LCD displays:

In this case, the 3 soft keys access VOLUME, HOLD and MUTE.

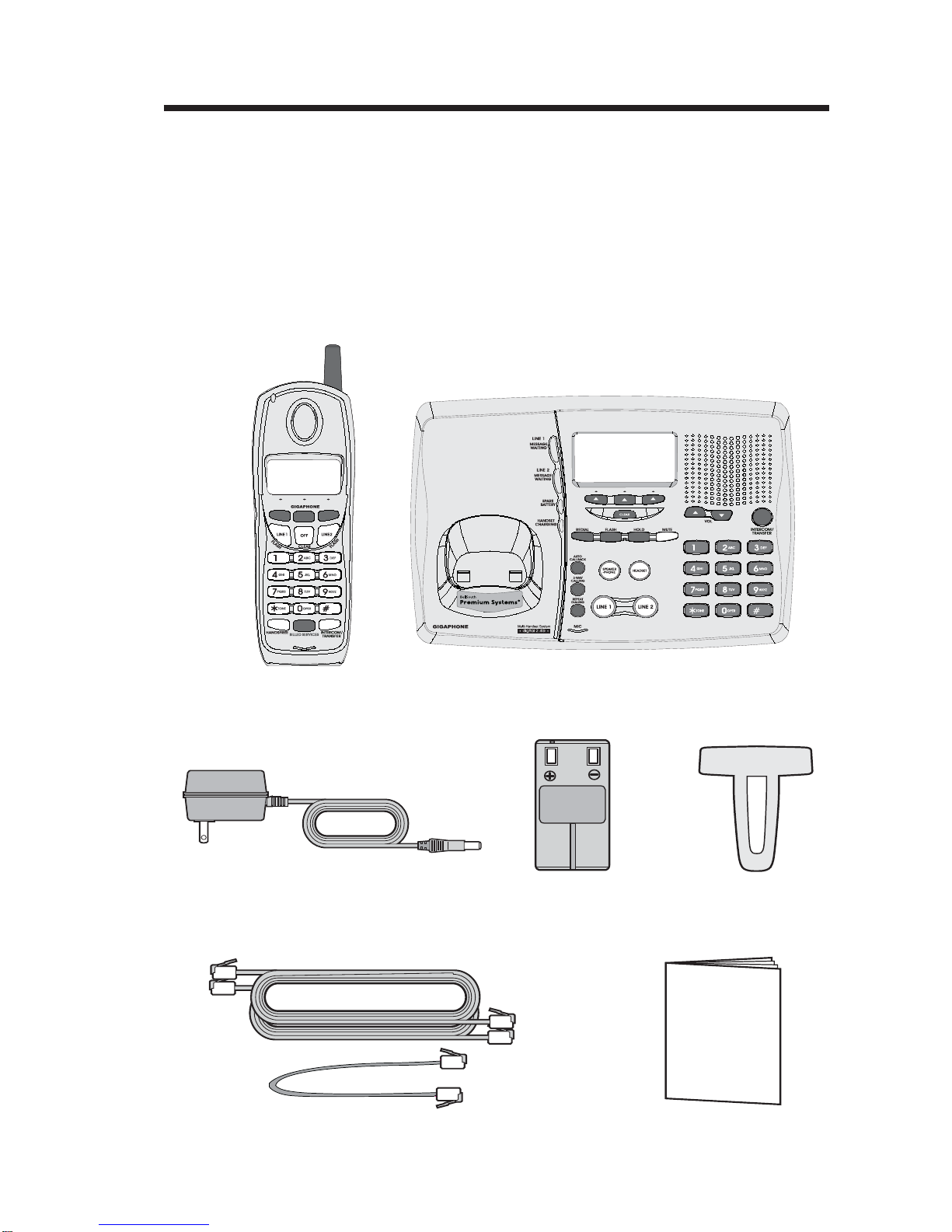

Parts Check List

5. Battery

6. Belt Clip

7. Owner's Manual

1. Base Unit

2. Handset

3. AC Power Adapter

4. Telephone Cords

Telephone Line Cord

AC Power Adapter

Handset Base Unit

Owner's Manual

OWNER'S MANUAL

Battery

Belt Clip

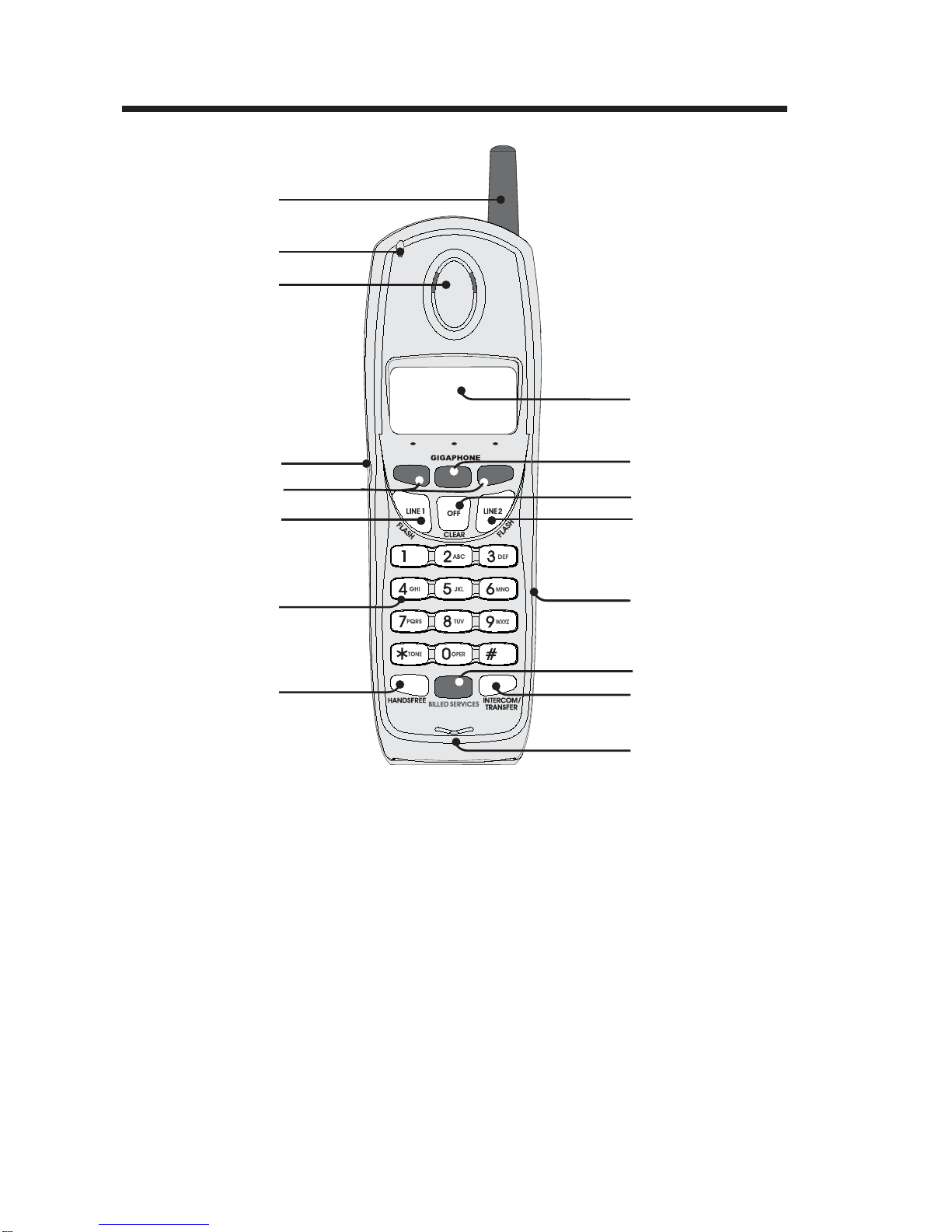

The Handset Layout

1. Antenna

2. Message Waiting Indicator

3. Earpiece

4. HeadsetJack(2.5mm)

5. ScrollKeys

6. Line 1 (Flash)

7. Dialing Keys (0-9,*,#)

8. HandsfreeSpeakerphone

9. LCD Display

10. Select/OK

11. Off (Clear)

12. Line 2 (Flash)

13. BatteryCompartment(back

of Handset)

14. BilledServicesKey

15. Intercom/TransferKey

16. Microphone

1. MessageWaitingIndicator

(Line1,Line2)

2. SpareBatteryIndicator

3. ChargeIndicator

4. ChargingContacts

5. Auto Callback Key

6. 3-Way Calling Key

7. Repeat Dialing Key

8. SpeakerphoneKey

9. Line 1 Key

10. DataJack

11. Line 1 Jack

12. Line 2 Jack

13. DCConnector

14. HeadsetJack

15. LCD Display

16. ScrollKeys

17. SelectKey

18. Clear Key

19. Volume Keys

20. Intercom/TransferKey

21. Mute Key

22. Dialing Keys (0-9,*,#)

23. Hold Key

24. FlashKey

25. Redial Key

26. Line 2 Key

27. Headset Key

28. Spare Battery Drawer

29. SpareBatteryRelease

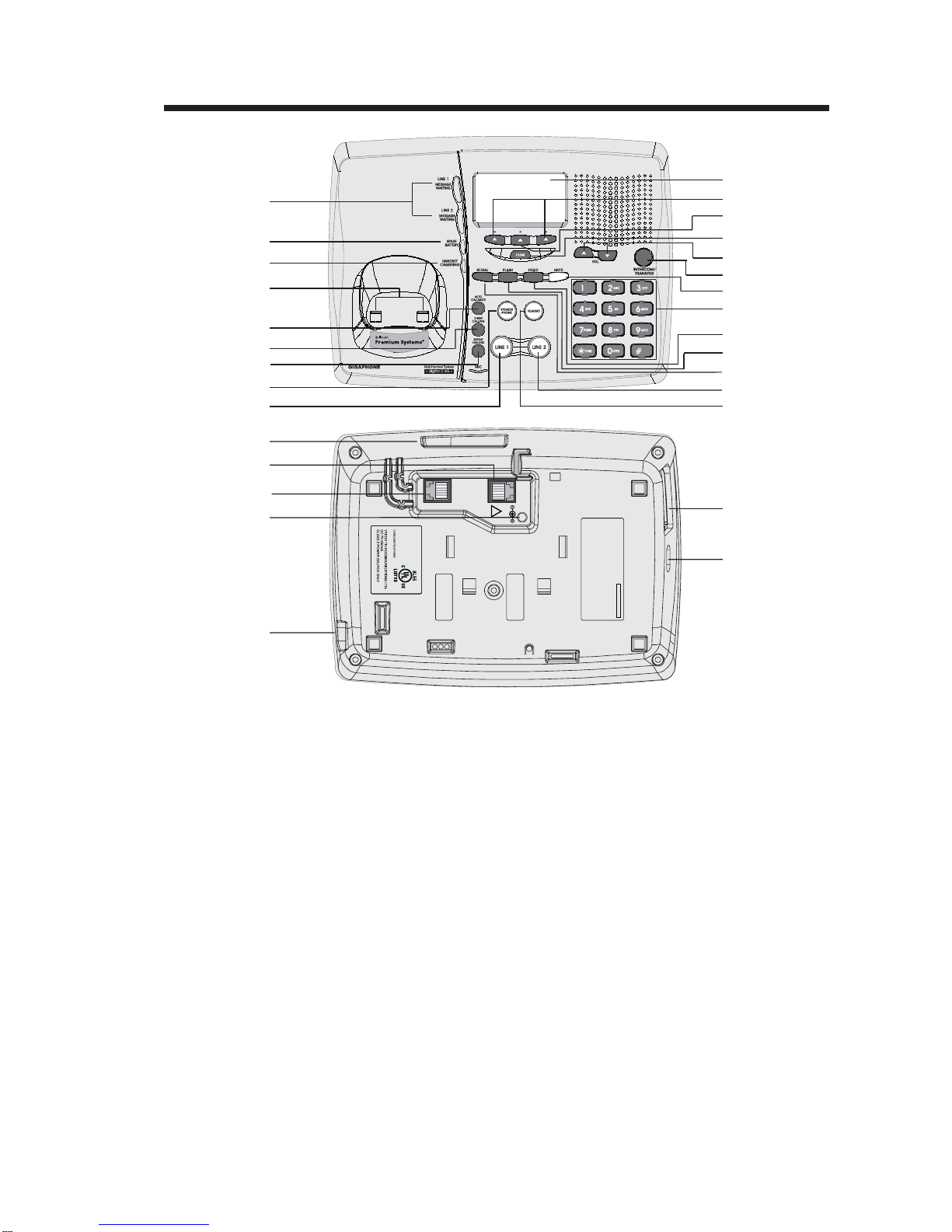

The Base Unit Layout

116

LINE 2

LINE 1/

L1 + L2

7V DC

COMPLIES WITH 47 CFR PART 68

REGISTRATION NO.: US: EW7 WI00B80-513700

RINGER E UIVALENCE: 0.0B

USOC JACK: RJ11C, RJ14C

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION

IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY

NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST

ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE

THAT MAY CAUSE UNDESIRED OPERATION.

PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING

THIS PHONE.

MODEL : 20-2432

VTECH TELECOMMUNICATIONS LTD.

MANUFACTURED IN CHINA

FCC ID: EW780-5001-00

HAC

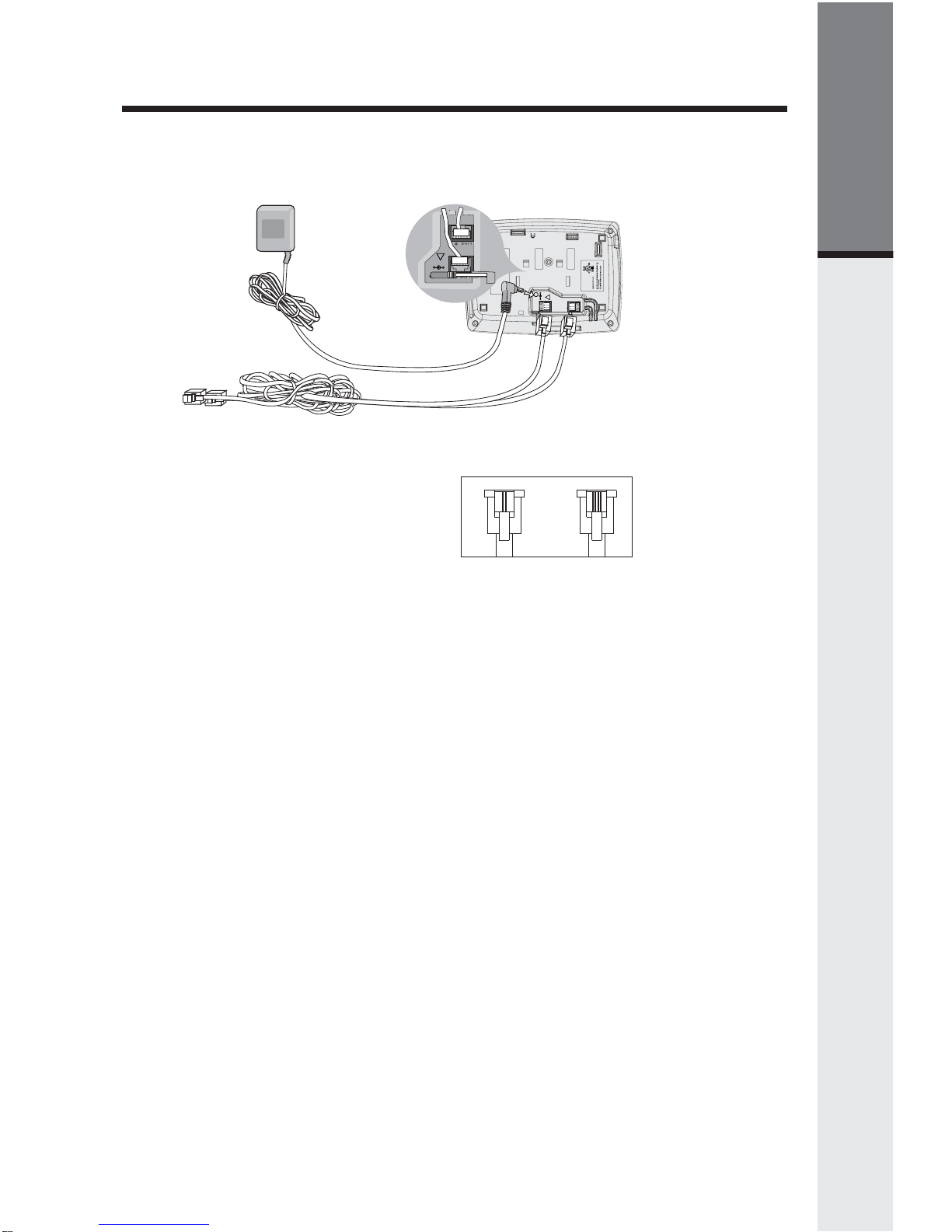

Setup

Plug the AC power adapter into an electrical outlet, and the DC connector

into the back of the base unit.

Connecting to the telephone lines

Your 2-Line 20-2432 will work fine even if you only have one telephone line.

We recommend connecting the modular telephone cord to the jack labeled

LINE 1 / L1 + L2, located on the bottom of the Base Unit. Here are steps for

connecting 2 lines:

If you have 2 Lines coming out of a Single Wall Jack:

Connect a 4-wire (RJ-14) modular phone cord between the wall jack and the

phone jack labeled L1 / L1 + L2.

Ifyou have2 Lines, each comingout ofSeparate Wall Jacks:

Connect a modular phone cord from the wall jack you want to designate as

your LINE 1, to the LINE 1 / L1 + L2 jack on the bottom of the Base Unit. Next,

connect a phone cord from the remaining wall jack to the LINE 2 jack on the

BaseUnit.

Data Port

Your 2-Line 20-2432 has a Data Port on the back of the Base Unit. This port

provides an easy way to connect your fax machine, laptop computer, modem

or other telephone device for direct access to LINE 2.

The Data Port only provides access to Line 2, so you must have an active line

connected to the LINE 2 jack on the bottom of the Base Unit. Connect a

modular phone cord from the Data Port (look for the small door marked DATA

on the back of the Base Unit) to your fax, laptop, etc.

NOTE: While the Data Port is in use, accidental use of Line 2 by a parallel

phone, your 20-2432, or a Call Waiting ID alert may interrupt the data

transmission.

GettingStarted

To AC outlet

To telephone

jack

To telephone

socket outlet AC adapter

E amples of 1-Line and 2-Line Cords

RJ-11

One line

cord

RJ-14

2 line

cord

LINE 2

LINE 1/

L1 + L2

7V DC

COMPLIES WITH 47 CFR PART 68

REGISTRATION NO.: US: EW7 WI00B80-513700

RINGER E UIVALENCE: 0.0B

USOC JACK: RJ11C, RJ14C

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION

IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY

NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST

ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE

THAT MAY CAUSE UNDESIRED OPERATION.

PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING

THIS PHONE.

MODEL : 20-2432

VTECH TELECOMMUNICATIONS LTD.

MANUFACTURED IN CHINA

FCC ID: EW780-5001-00

HAC

7V DC

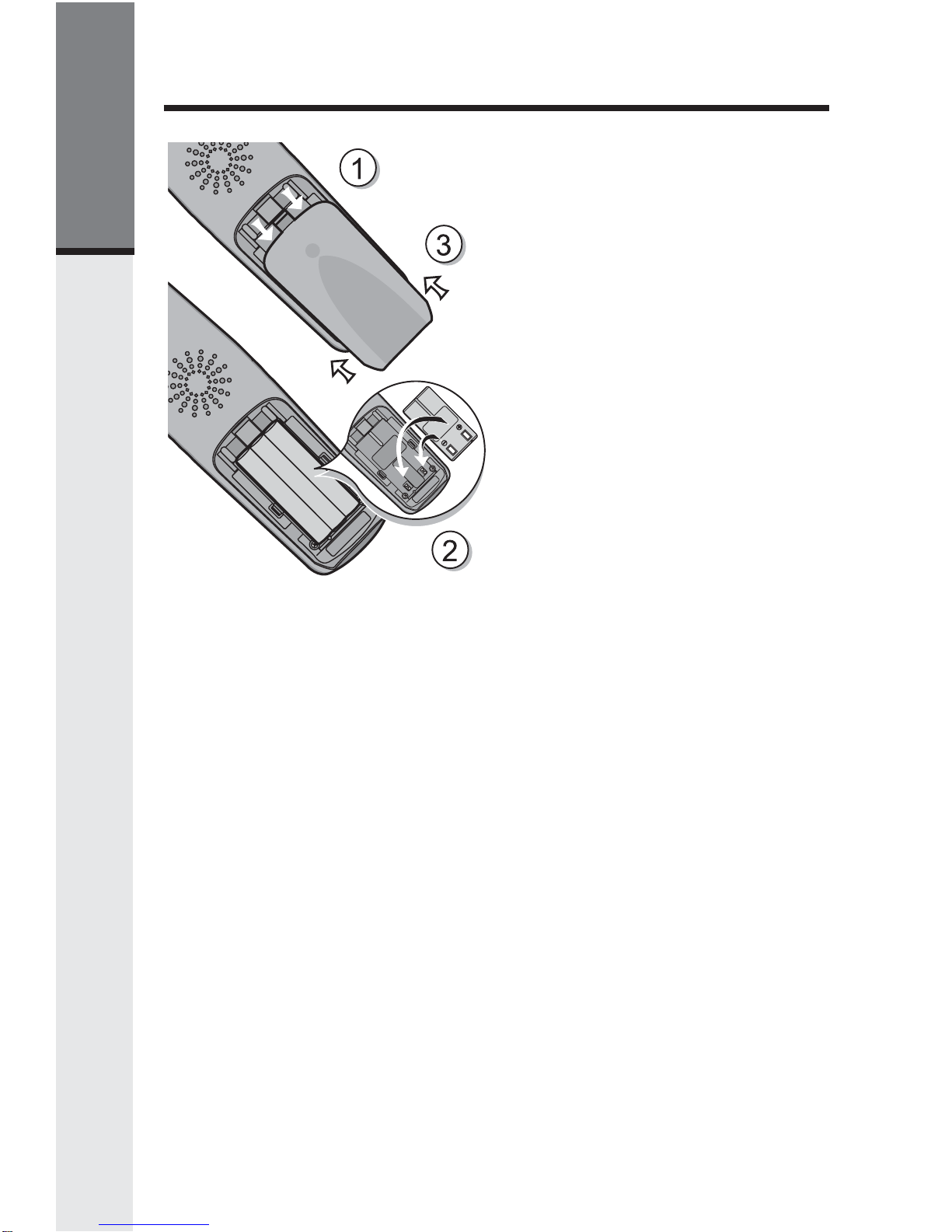

Follow the steps below:

1.Remove the battery cover by

pressing on the indent and

sliding downward.

2.Placethenewbatterypackinthe

handset with the metal contacts

aligned with the charge contacts

in the battery compartment.

3.Replace the battery cover by

sliding it upwards.

4.If the new battery pack is not

already charged, place the

handset in the base unit, or a

remotechargingstand,andallow

it to charge for 12 hours. After

initial charge, a maintenance

charge of 8 hours should be

sufficient.

Installation of Battery Pack in Handset

GettingStarted

• The handset seems completely

dead, the LCD is completely

clearanddoesnotactivatewhen

you press the keys.

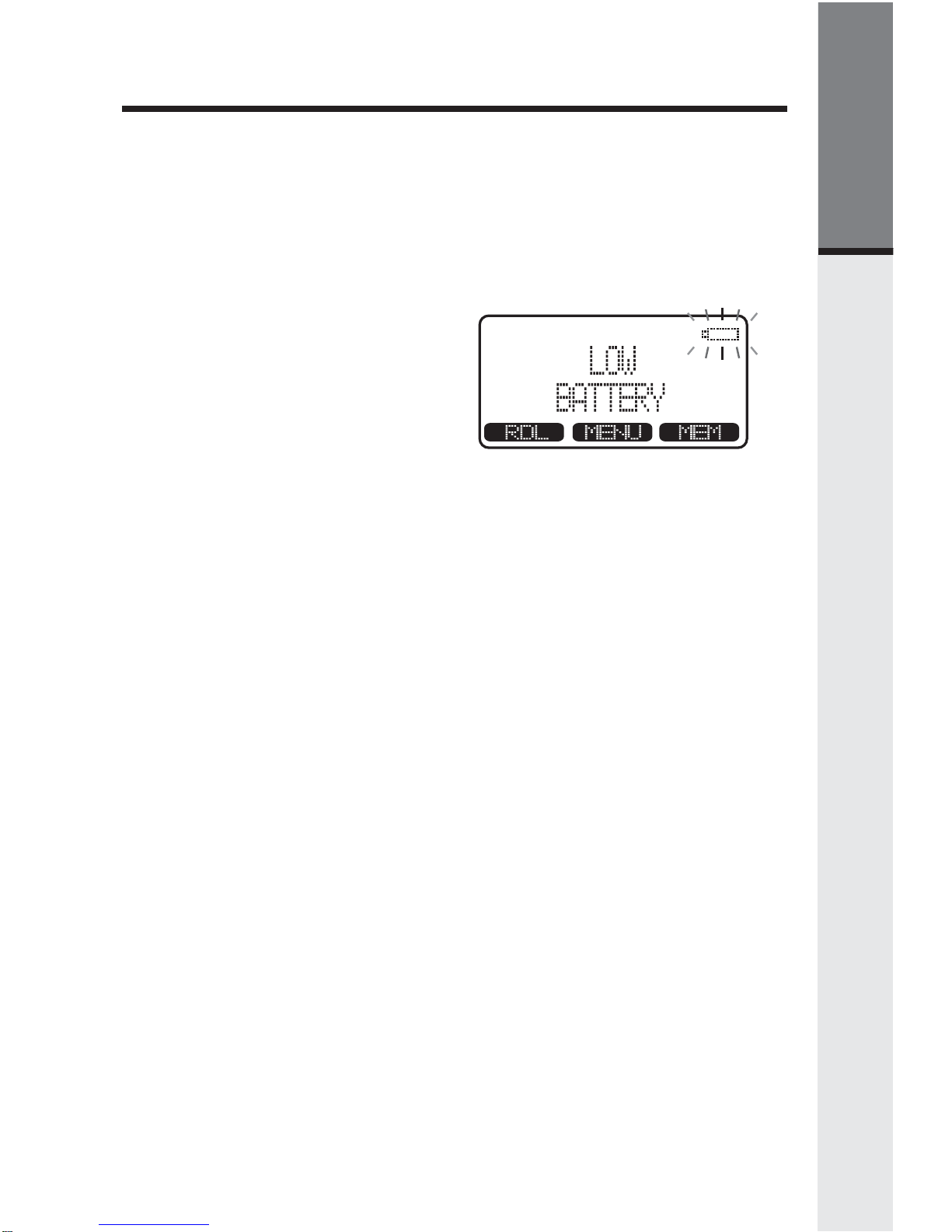

• The low battery message is

displayed :

Charging Of Handset Battery Pack

The Handset of your 20-2432 cordless telephone is powered by a rechargeable

battery pack. It charges automatically whenever the Handset is in the Base

Unit.

Youshould chargethebatterypackfor12hourswhenyoufirstreceiveyour

phone. You'll know the battery pack needs charging when:

IMPORTANT:

1. Do not dispose of a battery pack in a fire, the cell may explode.

2. Donotopenormutilatethebatterypack. Toxicsubstancesmaybereleased,

causing harm to eyes or skin.

3. Exercise care in handling battery packs in order to prevent an accidental

short of the charge contacts, potentially causing the battery pack to

overheat.

4. Do not dispose of this battery pack into household garbage. Contact your

local recycling organization for recommended disposal sites.

Charging Of Handset Battery Pack

GettingStarted

Checking for Dial Tone

After the battery is charged press a LINE key on the Handset. PHONE ON

will appear on the Handset display, and you will hear dial tone. If not, see

In Case of Difficulty.

Tone/PulseSelection

See SELECT TONE/PULSE AT THE BASE UNIT for details.

CAUTION: Use only the power supply provided with your cordless phone.

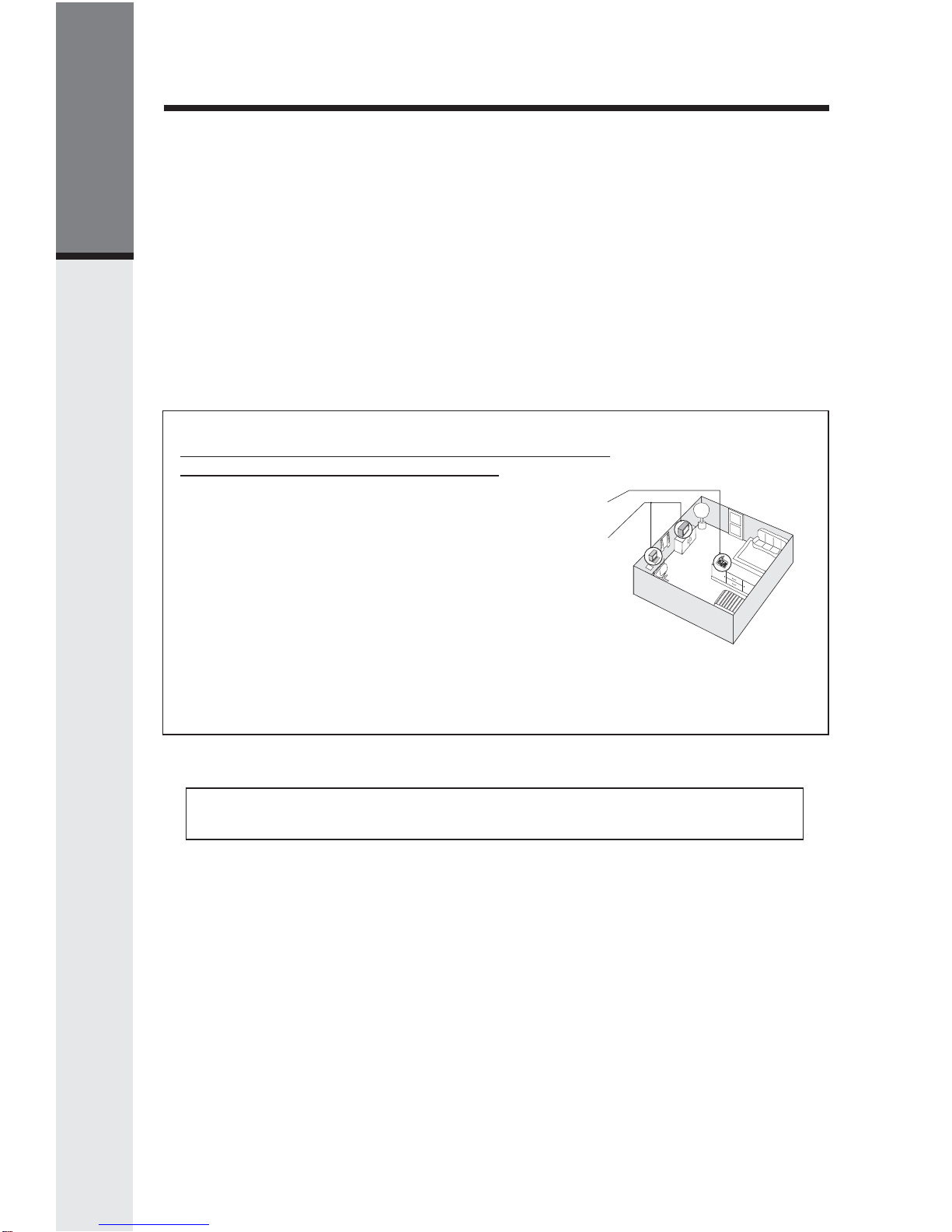

IMPORTANT:

FOR MAXIMUM PERFORMANCE OF YOUR

CORDLESS TELEPHONE SYSTEM:

1. Choose a central location for your Base Unit.

2. Install your Base Unit and Extension Handsets

away from electronic equipment, such as personal

computers, television sets and microwave ovens.

3. In locations where there are multiple cordless

telephones, separate base units as much as possible.

4. Install your telephone equipment away from heat

sources and sunlight.

5. Avoid excessive moisture, dust or extreme cold.

Dial Tone

GettingStarted

BEFORE USING YOUR HANDSET CAREFULLY PEEL OFF THE

PROTECTIVEFILMCOVERINGTHEDISPLAY.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels V-tech Téléphone sans fil

V-tech

V-tech FS6628A Manuel utilisateur

V-tech

V-tech Three Handset Connect to CELL™ Answering System with Caller... Manuel utilisateur

V-tech

V-tech 2468 - VT Cordless Phone Manuel utilisateur

V-tech

V-tech TR1-2013 Manuel utilisateur

V-tech

V-tech CS6199-4 Manuel utilisateur

V-tech

V-tech DS3101 Manuel utilisateur

V-tech

V-tech IS8151 Manuel utilisateur

V-tech

V-tech CS6858-33 Manuel utilisateur

V-tech

V-tech vt 1030 - V-tech Microphone Unidirectional Manuel utilisateur

V-tech

V-tech GZ2434 - VMix Cordless Phone Manuel utilisateur

V-tech

V-tech t2350 Manuel utilisateur

V-tech

V-tech DS6673-2 Manuel utilisateur

V-tech

V-tech vt1733 Manuel utilisateur

V-tech

V-tech 6031 Manuel utilisateur

V-tech

V-tech T2340 - 2.4 GHz Dual Handset System Guide de l'utilisateur

V-tech

V-tech DS6621 Manuel utilisateur

V-tech

V-tech 15200 Manuel utilisateur

V-tech

V-tech t2151 - Cordless Phone - Operation Guide de l'utilisateur

V-tech

V-tech CS6129-54 - V-Tech DECT 6.0 Five Handset... Manuel utilisateur

V-tech

V-tech 9119 Manuel utilisateur

V-tech

V-tech DS6771-3 Manuel utilisateur

V-tech

V-tech CS5249 Manuel utilisateur

V-tech

V-tech TeleZapper VT 2568 Manuel utilisateur

V-tech

V-tech IP8100-2/81003 Manuel utilisateur

Manuels Téléphone sans fil populaires d'autres marques

3Com

3Com NBX Manuel utilisateur

Panasonic

Panasonic KX-TGK210HK Manuel utilisateur

Panasonic

Panasonic KX-TCA181EX Manuel utilisateur

BT FREESTYLE 3200 Manuel utilisateur

AT&T

AT&T CL84102 Manuel utilisateur

BREZZICNI

BREZZICNI CL-3622 Manuel utilisateur

Panasonic

Panasonic KX-TG1831NZ Manuel utilisateur

Panasonic

Panasonic KX-TG7301E Manuel utilisateur

Furuno

Furuno FM-4721 Manuel utilisateur

Sanyo

Sanyo CLT-J70 Manuel utilisateur

Amplicomms

Amplicomms BigTel 201 Manuel utilisateur

GE 26992 Manuel utilisateur

AT&T

AT&T E1812B Manuel utilisateur

Sanyo

Sanyo CLT-670 Manuel utilisateur

GE 15432970 Manuel utilisateur

Curtis

Curtis TC595 Manuel utilisateur

Gigaset

Gigaset Gigaset 3000 Micro Manuel utilisateur

Poly

Poly VVX D230 Guide de configuration

V-tech bs20-2432 Manuel utilisateur

Manuels Téléphone sans fil populaires d'autres marques
