Quick Start Guide
2
Contents
1. What’s in the Box? ...................................................................................................3
2. Your Phone at a Glance ...........................................................................................4
3. Setting up your Phone ............................................................................................9
4. Setting up an E-mail Account ...............................................................................12
5. Personalizing your Phone .....................................................................................13
6. Browsing the Web ..................................................................................................15
7. Using the Camera ..................................................................................................16
8. Using Pictures & Videos ........................................................................................17
9. Protecting your Phone ..........................................................................................18
10. Knowing Status Indicators ....................................................................................20
11. Learn More .............................................................................................................21
12. Warranty .................................................................................................................22
3
1. What’s in the Box?
Getting
Started Disc
Smartphone
User Manual and
Quick Start Guide
Pouch
Battery
Mini-USB
Stereo Headset
USB Sync Cable
Splitter
Adapter
Y-Splitter
Cable
AC Adapter
4
2. Your Phone at a Glance
1
2
3
4
5
6
7
8
14
13
12
11
10
9
5
Item Function
1. Speaker Listen to phone call.
2.
Light Sensor
Sense dark conditions and activate a backlight under the keypad and the QWERTY keyboard
automatically, glowing in dark.
3.
Display Screen
4.
NAVIGATION
CONTROL/ENTER Use to scroll left, right, up, or down. Press the center to use as the ENTER button..
5. Left SOFT KEY Press to perform the command shown in the label above the button.
6. TALK
Press to dial a phone number or answer a call. Press and hold to activate/deactivate speakerphone
mode
.
7. HOME Press to go to the Home screen or press and hold to lock the phone keypad and the keyboard.
8. Key Press to change input modes or press and hold to choose an input mode or symbols from the list.
9. Key Press to add a space or press and hold to display a list of symbols.
10. BACK Press to go back to the previous screen, or backspace over characters.
11. END Press to end a call or exit a program. Press and hold to terminate an active data connection.
12.
Right
SOFT KEY Press to perform the command shown in the label above the button.
13. Keyboard Slide out to reveal, while slide in to hide the QWERTY keyboard with 36 keys and two soft keys.
14. LED Indicators The LED indicators notify you of the battery, network, and connectivity status of your phone. For
more information, see the table at the end of this section.
6
15
16
17
18
19
20
23
24 25
26
22
21
7

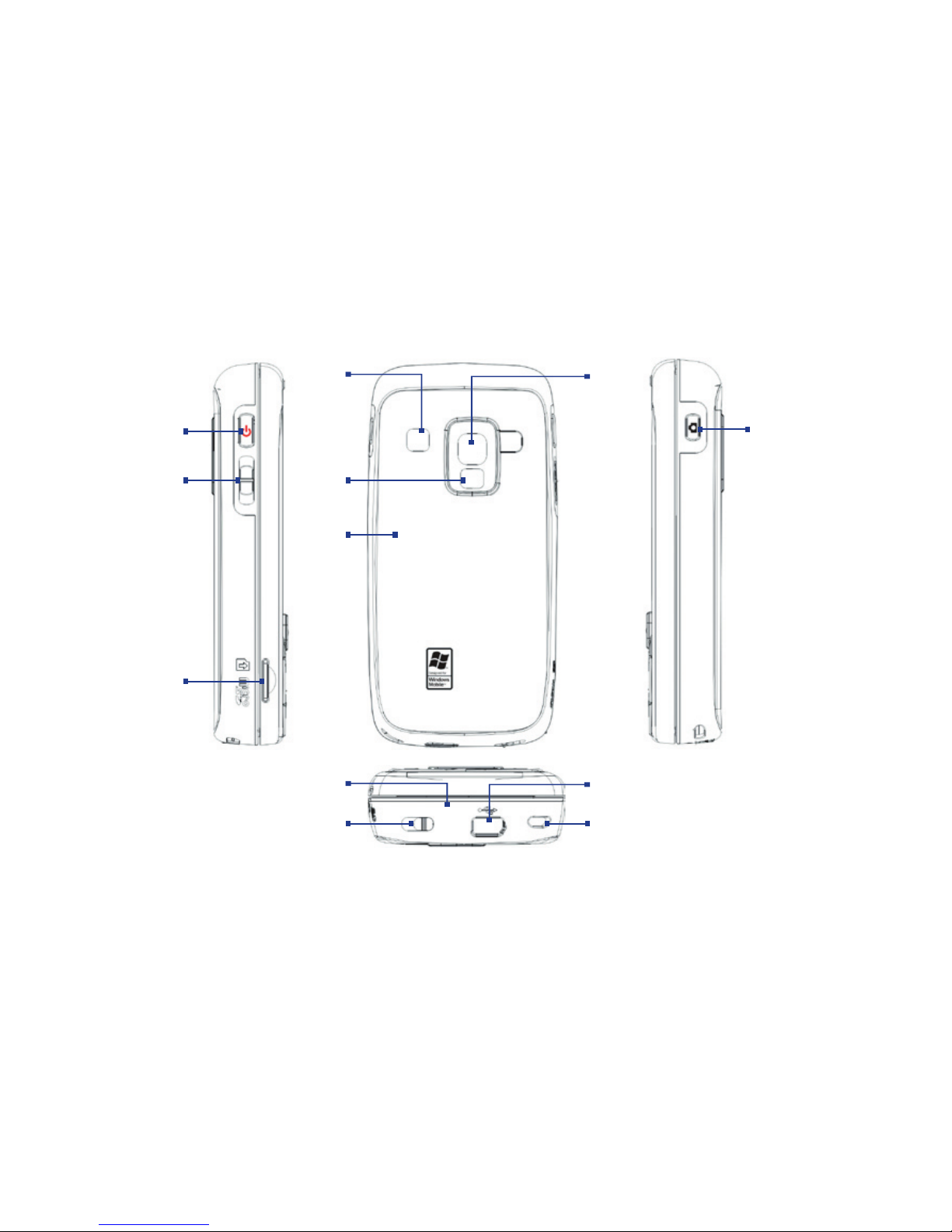

Item Function
15. POWER
Press to turn on (more than 1 second) and off the phone. Or press and quickly release the
POWER button to display the Quick List, which allows you to change profiles, open Comm
Manager, and enable/disable phone lock.
16. Volume Adjustment
Slider
Slide this up or down to increase or decrease the earpiece volume during a call. Drag and
hold the slider down to launch Voice Speed Dial.
17. microSD Slot Insert a microSD memory card for storing data.
18. Speaker Listen to audio media or phone call when using speakerphone mode.
19. Self-Portrait Mirror Turn the back side of your phone to face yourself so that your image reflects on the mirror
when taking self-portrait shots.
20. Back Cover Remove to insert or replace battery.
21. Camera lens
22. CAMERA Press and hold to open the Camera program. If already running, press to capture an image or
start recording a video clip.
23. Microphone Speak into the microphone when receiving or making a phone call or during voice recording.
24. Battery Cover Latch Slide this latch to release the battery cover.
25. Strap Holder Attach a strap for carrying your device.
26.
Sync Connector/
Earphone Jack
Use for synchronizing data, recharging the battery, connecting the earphone to listen to
audio media, or connecting the phone’s hands-free kit.
8
LED indicator lights
Various colors that might display in the two LED Indicators are summarized here.
Left LED Status
Solid green Battery is fully charged.
Blank Battery case is empty or the phone is off.
Solid amber Battery is charging or the phone is using ActiveSync to synchronize with a PC.
Solid red Battery is not installed or battery is over-discharged.
Flashing green Connected to the network.
Flashing red Battery very low (less than 10%).
Flashing amber Battery temperature is hotter or colder than the functional limits of 0 to 48 degrees Celsius
(32 to 118 degrees Fahrenheit), and has stopped charging.
Amber/Green LED off Battery fault. The “Battery Fault” indicator ( ) is displayed. In this case, the flashing green
LED can be recovered by unplugging the AC adapter.
Right LED Status
Flashing blue Bluetooth mode set to on or visible mode.
9
3. Setting up your Phone
With the following simple steps, you can easily set up and start using your phone.
1 Install and charge the battery
New batteries are shipped partially charged. Before you start using your phone, it is recommended that
you install and charge the battery.
To install the battery
1. Slide the battery cover latch to release the back cover.
2. Insert the battery by aligning the exposed copper
part of the battery pack with the protruding copper
conductor.
3. Gently push the battery into place.
4. Replace the back cover.
To charge the battery
Some batteries perform best after several full charge/discharge cycles. You can charge the battery in
one of the following ways:
• Connect your phone directly to an electrical outlet using the AC adapter.
• Connect your phone to the USB port on your PC using the USB sync cable.
Charging is indicated by a solid amber light on the LED indicator. A charging icon ( ) also appears on
the display screen. After the battery has been fully charged, the LED indicator becomes green.
Slide the battery cover latch
to open the back cover.
10
2 Install the microSD card
You can install a microSD (Secure Digital) card on your phone to have an alternative storage place for
your images, video, music, and other phone data.
• Slide in the microSD card into the slot with its gold
contacts facing up and gently push until it clicks
securely in place.
To remove, press the microSD card briefly inward and
release it to pop out of the slot.
3 Turn on your phone
Press and hold the POWER button to turn on the phone.
4 Install and set up ActiveSync or Windows Mobile Device Center
To synchronize your phone with a PC running Windows XP or earlier version of Windows, ActiveSync
is the choice. ActiveSync synchronizes information between your phone and your PC, keeping
information up-to-date on your phone as well as on the PC. Before you connect your phone to your
PC, you must install ActiveSync on the PC. ActiveSync is already installed on your phone.
1. Insert the Getting Started Disc into the CD drive of your PC.
2. Follow the instructions on the installation wizard screen to install ActiveSync.
3. Connect the USB cable to the phone and plug it into the USB port of your PC.
4.
Turn on your phone. When the PC detects a USB connection, it starts the Synchronization Setup
Wizard. Follow the instructions on the screen and select the items you want to synchronize.
