OWNER'S MANUAL
USR EV10i
The"e-SPEC"mark symbolizes environmentally
responsible technologies applied to USR power
equipment, which contains our wish to" preserve
nature for generations to come."
1
Indicates a strong possibility of severe personal injury or
death if instructions are not followed.
Indicates a possibility of personal injury or equipment
damage if instructions are not followed.
The generator is designed to give safe and dependable service if
operated according to instructions. Read and understand the Owner's
Manual before operating the generator. Failure to do so could result
in personal injury or equipment damage.
Thank you for purchasing a our generator.
This manual covers operation and maintenance of the EV10i generator.
All information in this publication is based on the latest product
information available at the time of approval for printing.
We reserves the right to make changes at any time
and without incurring any obligation.
No part of this publication may be reproduced without written
permission.
This manual should be considered a permanent part of the generator
and should remain with it if it is resold.
Pay special attention to statements preceded by the following words:
Gives helpful information.
If a problem should arise, or if you have any questions about the
generator, consult an authorized dealer.
The illustration may vary according to the type.
without notice and
2
CONTENTS
..................................................................SAFETY INSTRUCTIONS . 3
............................................................SAFETY LABEL LOCATIONS . 6
...................................................Ce mark and noise label locations . 8
.......................................................COMPONENT IDENTIFICATION . 9
................................................................PRE-OPERATION CHECK . 13
.................................................................STARTING THE ENGINE . 18
Carburetor Modification for High Altitude Operation
...........................................................................GENERATOR USE . 22
.................................................................STOPPING THE ENGINE . 34
...............................................................................MAINTENANCE . 36
...........................................................TRANSPORTING/STORAGE . 43
......................................................................TROUBLESHOOTING . 45
.............................................................................SPECIFICATIONS . 47
..........................................................................WIRING DIAGRAM . 49
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
ʵ
3
SAFETY INSTRUCTIONS
1.
To ensure safe operation
The engine exhaust system will be heated
during operation and remain hot immediately
after stopping the engine.
To prevent scalding, pay attention to the
warning marks attached to the generator.
The muffler becomes very hot during
operation and remains hot for a while after
stopping the engine.
Be careful not to touch the muffler while it is
hot. Let the engine cool before storing the
generator indoors.
Exhaust gas contains poisonous carbon
monoxide. Never run the generator in an
enclosed area. Be sure to provide adequate
ventilation.
When installed inside, adequate ventilation
should be provided.
The generator is designed to give safe and
dependable service if operated according to
instructions.
Read and understand the Owner'sManual
before operating the generator. Failure to do
so could result in personal injury or equipment
damage.
Never connect a cable other than the special
cable for parallel operation to the parallel
operation socket. Electric shocks can result if
this instruction is not followed.
ʵ
4
To ensure safe operation
Keep away from cigarette, smoke and sparks when refueling
the generator. Always refuel in a well-ventilated location.
Wipe up spilled gasoline at once.
Gasoline is extremely flammable and explosive under certain
conditions. Refuel in a well ventilated area with the engine
stopped.
Connections for standby power to a building's
electrical system must be made by a qualified
electrician and must comply with all
applicable laws and electrical codes. Improper
connections can allow electrical current from
the generator to back feed into the utility lines.
Such back feed may electrocute utility
company workers or others who contact the
lines during a power outage, and when utility
power is restored, the generator may explode,
burn, or cause fires in the building'selectrical
system.
5
To ensure safe operation
Always make a pre-operation inspection (page ) before you start
the engine. You may prevent an accident or equipment damage.
Place the generator at least 1 m (3 ft) away from buildings or other
equipment during operation.
Operate the generator on a level surface.
If the generator is tilted, fuel spillage may result.
Keep children and pets away from the generator when it is in
operation.
Keep away from rotating parts while the generator is running.
The generator is a potential source of electrical shocks when
misused; do not operate with wet hands.
Do not operate the generator in rain or snow and do not let it get
wet.
Know how to stop the generator quickly and understand operation
of all the controls. Never permit anyone to operate the generator
without proper instructions.
13
6

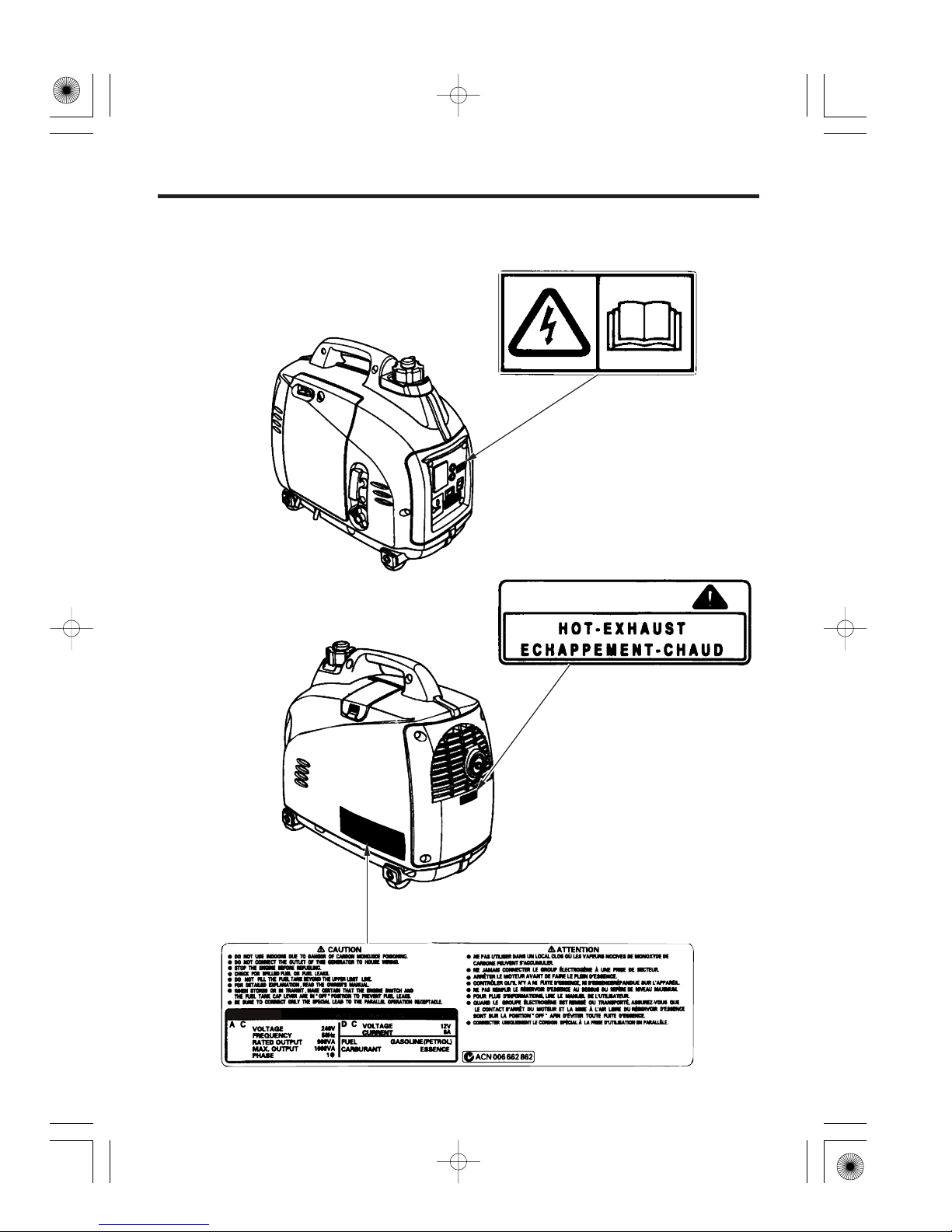

SAFETY LABEL LOCATIONS
2.
HOT CAUTION
CONNECT CAUTION
FUEL CAUTION/PARALLEL OPERATION CAUTION
READ OWNER扴 MANUAL
EXHAUST CAUTION
[For European model: G, GW, B, F, W types]
These labels warn you of potential hazards that can cause serious
injury. Read the labels and safety notes and precautions described in
this manual carefully.
If a label comes off or becomes hard to read, contact your dealer
for a replacement.
EV10i
Inverter Generator
7
[For Australian model: U type]
SOCKET CAUTION
8
Dry weight
NOISE LABEL
Maximum altitude
IP code
Performance class
Maximum ambient
temperature
CE mark and noise label locations
CE MARK
[For European model: G, GW, B, F, W types]
Model
EV10i
Inverter Generator
EV10i
Inverter Generator
