First, you should power on the USR-WIFIIO-83 with the power adapter supplied by our

company. The red LED that presents the power will grow after you power on the

device. After about 5 seconds the green LED that presents ready will glow. Now you

can use it.

1. Install LonHand software.

You

can download the LonHand software from our website

http://www.usr.so/Download/117.html

http://www.usr.so/Download/117.html , click on the floppy symbol then download the

LonHand software. Install it on your computer or your cell phone or your pad. We

supply back-end server and software on different platforms such as Windows, IOS,

Android and MAC systems.

Fig.1 Link address to software

LonHand Series product user manual www.usr.so

Jinan USR IOT Technology Limited

/ 28 tec@usr.cn

IOS system users can download the software from App store for free. Because the

software interface between IOS system and Android system is almost similar, we will

illustrate how to use it on iphone now and later , as an reference to android system

users.

T he Lonhand software are green edition, if you do not need just delete its installation

directory and its shortcut icon(windows system).

2. Set up your wireless network. Your iphone should link to our device, as shown in Fig.2.

The green LED that presents link will glow after the link between the device and

iphone have been set up.

Fig.2 Set up wireless network

3. Open the LonHand software. Slide to the fourth page, click on start button .

Fig. 3 Start-up pages of the LonHand software

4. Enter Devices page . You can find the USR-WIFIIO-83 device. Click on its name enter

Source Control page . In this page you are able to control the output, click on the

LonHand Series product user manual www.usr.so

Jinan USR IOT Technology Limited

/ 28 tec@usr.cn

button on right side, the button change blue and the output is enabled. Click it again,

the button change glue and the output is disabled. You can try it by yourself. We will

introduce this software in detail later.

Fig. 4 Devices page and Source Control page

2. Description

Description

2 .1

.1 B

B rief

rief

rief introduction

introduction

The USR-WIFIIO-83 device whose relays can be switched on or switched off by

remote control, is WIFI branch of LonHand series product , and is designed for

industrial application.

LonHand series control terminals are de velop ed for the application in the field of

smart home, Internet of Things, industrial controlling and so on. T hey are suitable for

rapid deployment, especially for mobile application because the USR-WIFIIO-83 can

be controlled by your cell phone. T hey can operate with WIFI connection compared to

traditional wired connection. T hese devices are an ideal choice to realize remote

control.

Th ese series product are suitable for household application to build smart home for

more comfortable life. Also it can be used in industry and agriculture for low cost, high

efficiency in intelligen t control of the devices . Users are capable to carry out more

effective cost control and gain higher profits, because t here

’

s no big change and

upgrading of your owned equipment under wireless remote control, users c an make

full use of your original product without more cost s for you.

LonHand Series product user manual www.usr.so

Jinan USR IOT Technology Limited

/ 28 tec@usr.cn

2. 2

2 USR-WIFIIO-83

USR-WIFIIO-83

USR-WIFIIO-83 detail

detail

detail introduction

introduction

USR-WIFIIO-83

’

s s pecific parameter s are listed in table 1.

Table1

Table1 Parameters

Parameters

Dimension(L × W × H) 104.5*83*28.7mm

antenna, external terminals and fixed edge

on both sides are not included

S upply voltage DC 12V

Number of Ports 8 outputs

3 inputs

Standby power consumption

ypical: 3W

Max : 6W

Input port operation mode Passive switch

Output p ort s maximum voltage /current AC 250V/10A

O perat ing temperature -25~75 ° C

Storage temperature -40~85 ° C

Storage humidity 5%~95%RH

Packing list antenna*1, USR-WIFIIO-83*1, CD*1, 12v

power adapter*1

2.3

2.3 USR-WIFIIO-83

USR-WIFIIO-83

USR-WIFIIO-83 features

features

T he USR-WIFIIO-83 device can be connected to the surrounding network by WIFI or

by direct cable connection (via Ethernet cable interface RJ45) after you appropriate ly

set up it. Users can control the USR - WIFIIO - 83 for proper operation with the

LonHand software in long distance.

O utput ports features:

�

M ultiple timing tasks(4 timing tasks for every output)

�

L ock of output state

�

A ll on

�

A ll off

�

S elf-define startup state

�

ouch mode

�

Jog mode

D etail operating approach es are illustrated later.

3 .

. Operation

Operation

Operation instruction

instruction

3.1USR-WIFIIO-83

3.1USR-WIFIIO-83 Hardware

Hardware

Hardware wiring

wiring

wiring instructions

instructions

instructions and

and

and application

application

application s

oltage source output ports: two COMs are common terminal. E xternal voltage

source across the two COMs are shunted by 8 relays. 8 relays are turned off by

default.

Input ports: Passive switch s tates acquisition . O ne terminal of the switch connects to

LonHand Series product user manual www.usr.so

Jinan USR IOT Technology Limited

/ 28 tec@usr.cn

GND terminal of Input ports, another terminal connects to one of 3 input ports.

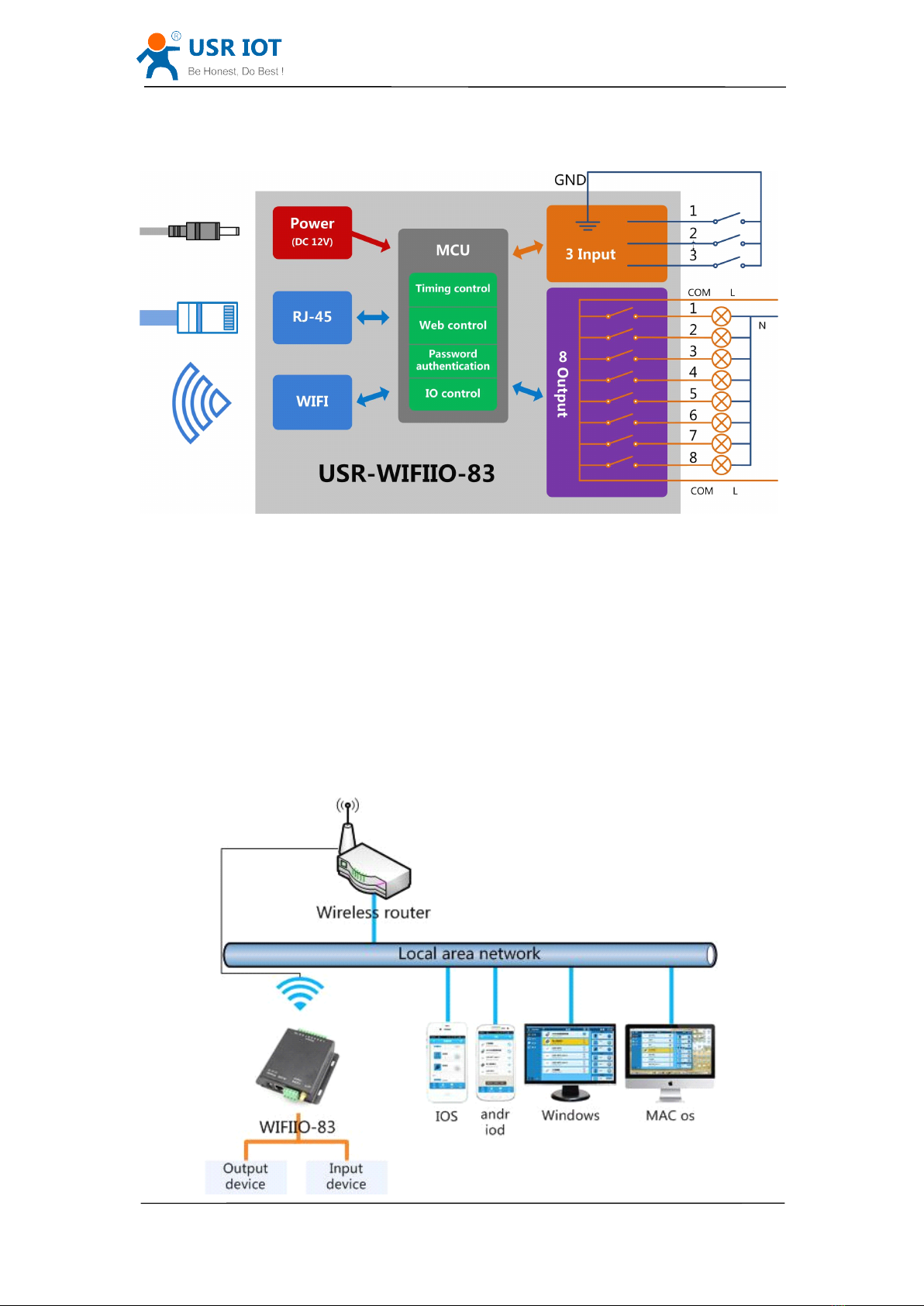

S chematic diagram is show n as bellow.

Fig.5 Schematic diagram

USR-WIFIIO-83 has 8 outp uts, the live line or positive terminal of your device

connects to one of the 8 outputs whose internal circuit connects to the live line of

external voltage source, the null line or ground of your device connects to the null line

of external voltage source.

our device can be powered on or off by switching on or

off relays by remote control. The switch states can be detected by USR-WIFIIO-83

when the switch es connect to input ports .

You

can def ine the real device the switch

represents (for example alarm).

There are two types of applications, one is local area network application, as shown

in Fig. 6; another is internet application as shown in Fig.7. We will focus on these two

types of applications in the following sections.

LonHand Series product user manual www.usr.so

Jinan USR IOT Technology Limited

/ 28 tec@usr.cn

Fig.6 Local area network application

Fig.7 Internet application

3.2

3.2 USR-WIFIIO-83

USR-WIFIIO-83

USR-WIFIIO-83 configuration

configuration

This section tells how to join the device to your local router network. There are two

ways to connect to the local router, one way is by WIFI network; another approach is

by network cable. If you buy more than one USR-WIFIIO-83, please configure one at

a time.

If have set some parameters wrong, you can restore factory defaults: find the reset

hole underneath the Reload mark (in the red ellipse) , push the button more than 3

s econds by tweezer s or other tools.

3.2.1

3.2.1 Wireless

Wireless

Wireless connection

connection

Users should configure USR-WIFIIO-83 before use. Procedures are listed as bellow :

LonHand Series product user manual www.usr.so

Jinan USR IOT Technology Limited

/ 28 tec@usr.cn

1. Open the LonHand software after your cell phone connects to USR-WIFIIO-83

wireless network. Click on the refresh button , if you don not find it. I f y our phone

and USR-WIFIIO-83 have buil t connection , the LAN symbol turn blue,otherwise it

turn gray.

Fig.8 Connect to USR-WIFIIO-83

2. C lick on the icon of USR-WIFIIO-83, click “ Login Device ” in the popup menu. E nter the

default user name and password admin of the device, click OK.

Fig.9 Login device

3. E nter WEB IO page, click on English button at the bottom of the page. C lick on

LonHand Series product user manual www.usr.so

Jinan USR IOT Technology Limited

/ 28 tec@usr.cn

Settings button at the bottom of the page.

Fig.10 WEB IO page

4. C lick OK on the popup dialog box.

Fig.11 Popup dialog box

5. S earch the local wireless router your USR-WIFIIO-83 required to join.

ake our

company wireless router for example. C lick scan button.

Table des matières

Manuels Relais populaires d'autres marques

Shelly

Shelly Pro Series Manuel utilisateur

GE MVAX 11 Manuel utilisateur

ABB

ABB RELION REF615R Manuel utilisateur

Pilz

Pilz PNOZ X10 Manuel du propriétaire

ABB

ABB SPAJ 142 C Manuel de la liste des pièces

Kemo Electronic

Kemo Electronic B197 Manuel utilisateur

Seg

Seg MRM3 Manuel utilisateur

Basler

Basler BE1-700C Manuel utilisateur

CD Automation

CD Automation REVEX 2PH 280A Manuel utilisateur

Ruelco

Ruelco 1S04 Manuel utilisateur

Basler

Basler V3E Z1P B2C1F Manuel utilisateur

Doepke

Doepke Dupline DSM 2 Manuel utilisateur

Siemens

Siemens SIRIUS 3RT1966-4D Manuel utilisateur

GE DGP Manuel utilisateur

Kyongbo Electronics

Kyongbo Electronics GDR-D01 Manuel utilisateur

Siemens

Siemens SIPROTEC 4 Manuel utilisateur

Siemens

Siemens BD2-AK03X/FS Series Manuel utilisateur

Leuze

Leuze MSI-SR5B Manuel utilisateur

USR IOT usr-wifiio-83 Manuel utilisateur

Manuels Relais populaires d'autres marques
