USR IOT USR-K2 Manuel utilisateur

USR-K2 Hardware Manual www.usriot.com

Jinan USR IOT Technology Limited 1 / 9 h.usriot.com

USR-K2 Hardware Manual

File version: 1.3.01

USR-K2 Hardware Manual www.usriot.com

Jinan USR IOT Technology Limited 2 / 9 h.usriot.com

Content

USR-K2 Hardware Manual.......................................................................................................................................... 1

1. Product Overview......................................................................................................................................................3

1.1. Dimension........................................................................................................................................................ 3

1.2. Pin Definition.................................................................................................................................................. 4

1.3. Ethernet interface LED................................................................................................................................ 5

2. Hardware Design.......................................................................................................................................................6

2.1. Typical Connection........................................................................................................................................6

2.2. Power Interface............................................................................................................................................. 6

2.3. UART Interface...............................................................................................................................................7

3. Contact.......................................................................................................................................................................... 9

4. Disclaimer.................................................................................................................................................................... 9

5. Update History........................................................................................................................................................... 9

USR-K2 Hardware Manual www.usriot.com

Jinan USR IOT Technology Limited 3 / 9 h.usriot.com

1.Product Overview

1.1. Dimension

Module size: 33.03*19.01*19.15 mm, error ±0.2mm, pin size as follow:

Figure 1 Dimension diagram

USR-K2 Hardware Manual www.usriot.com

Jinan USR IOT Technology Limited 4 / 9 h.usriot.com

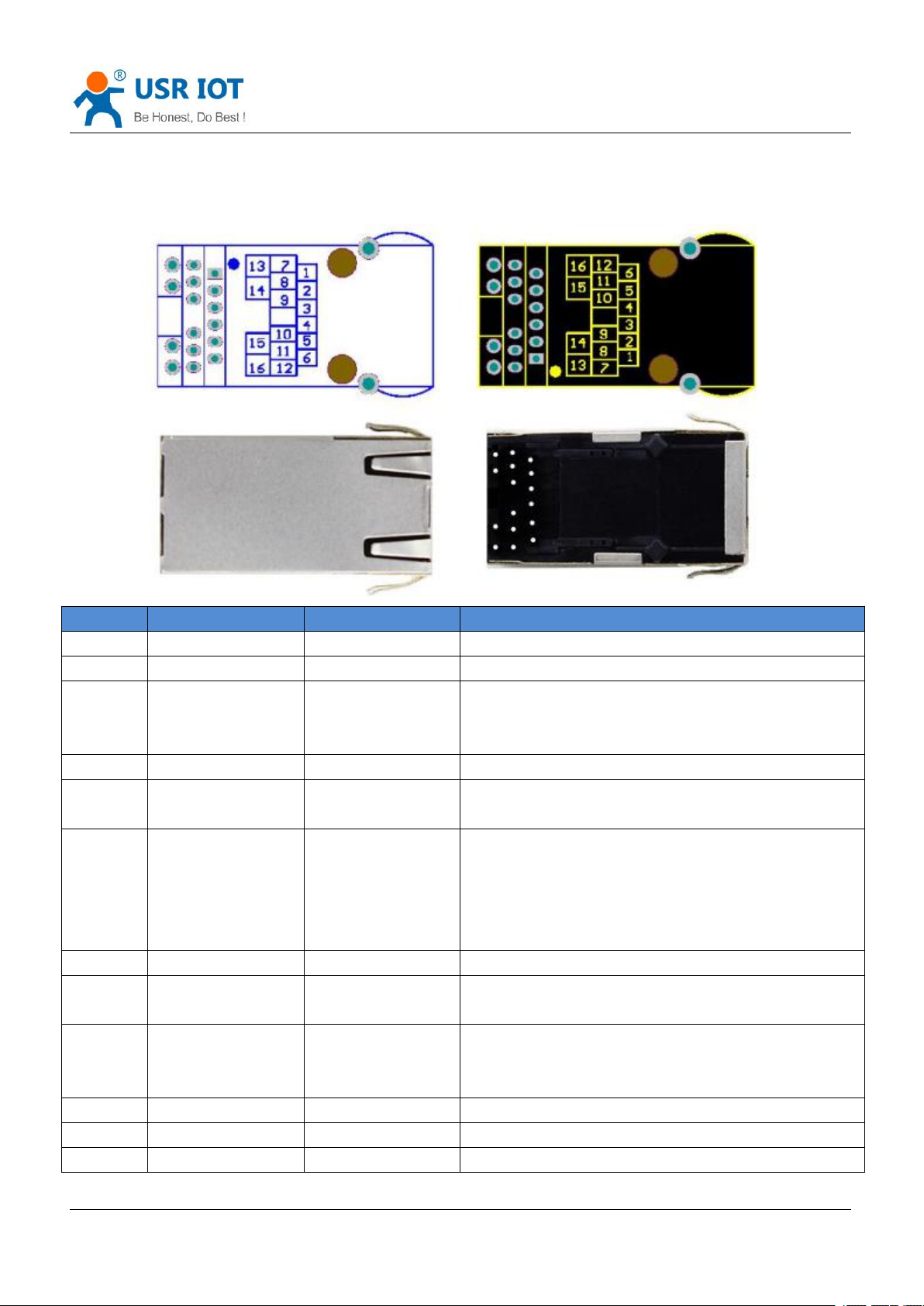

1.2. Pin Definition

Name

Signal Type

Definition

Not available

LINK

Can be used to indicate TCP connection status. After

establishing TCP connection and enabling LINK

function, led LINK will light.

RST

Inputting low level over 300ms to reset the module

485_EN

RS485 receiving/transmitting control pin, high level to

enable transmitting.

Reload(CFG)

After module powering off, pulling down Reload pin to

0V, then powering up, keeping Reload pin 0V over five

seconds and pull up Reload pin(3.3V), module will

restore default settings. Reload pin connects to

internal 10K Ohm pull-up resistor.

LED_DATA+

Ethernet interface LED_DATA+ pin

RXD

Serial port receiving pin(3.3V, TTL level) which needs

to connect to external 10K Ohm pull-up resistor.

TXD

Serial port transmitting pin(3.3V, TTL level) which

needs to connect to external 10K Ohm pull-up

resistor.

GND

Power ground

VCC

3.3V VCC

LED_LINK+

Ethernet interface LED_LINK+ pin

USR-K2 Hardware Manual www.usriot.com

Jinan USR IOT Technology Limited 5 / 9 h.usriot.com

LED_DATA-

Ethernet interface LED_DATA- pin

LED_3V3

Power supply pin for Ethernet interface LED

LED_3V3

Power supply pin for Ethernet interface LED

LED_LINK-

Ethernet interface LED_LINK- pin

Figure 2 Pin definition

1.3. Ethernet interface LED

LED

Function

Description

Green

Indicating connection status

Green LED will light after module connecting to network

Yellow

Indicating data transmission

Yellow LED will blink when module has data transmission

Figure 3 Ethernet interface LED

USR-K2 Hardware Manual www.usriot.com

Jinan USR IOT Technology Limited 6 / 9 h.usriot.com

2.Hardware Design

2.1. Typical Connection

Figure 4 Typical connection

Note:

1.Connect two LED_3V3 pin to 3.3V power supply.

2.Connect 12 pin LED_LINK+ to 16 pin LED_LINK- which has connected to internal 1K Ohm series resistor.

3.Connect 7 pin LED_DATA+ to 13 pin LED_DATA- which has connected to internal 1K Ohm series resistor.

4.RST: Resetting module and taking effect in low level. RST pin has connected to internal 10K Ohm pull-up

resistor to 3.3V. When USR-K2 works in TCP Client mode, module will connect to TCP Server. After enabling

Reset function, module will reset if TCP connection can’t be established after trying 30 times.

5.Reload: After module powering off, pulling down Reload pin to 0V, then powering up, keeping Reload pin 0V

over five seconds and pull up Reload pin(3.3V), module will restore default settings. Reload pin connects to

internal 10K Ohm pull-up resistor.

6.TXD/RXD: Serial port data transmitting/receiving pin and should connect to 10K Ohm pull-up resistor.

2.2. Power Interface

USR-K2 adopts 3.3V power supply and working current is 136m[email protected]. Pin 11 is VCC 3.3V pin which can

connect to 10UF/6V3/10% and 100nF/50V/10% bypass capacitor to make module work stably. Circuit

diagram as follow:

USR-K2 Hardware Manual www.usriot.com

Jinan USR IOT Technology Limited 7 / 9 h.usriot.com

Figure 5 Power interface

2.3. UART Interface

UART is serial data interface that can connect the RS-232 chip and transfer to the RS-232 level. UART

interface includes TXD/RXD.Taking the RS-232 level as a reference circuit diagram as follow:

Figure 6 RS232 level UART interface

When communicating to MCU with 3.3V, just connecting TXD of module to RXD of MCU and RXD of module

to TXD of MCU. When communicating to MCU with 5V, switching circuit is necessary.

Switching circuit diagram as follow:

USR-K2 Hardware Manual www.usriot.com

Jinan USR IOT Technology Limited 8 / 9 h.usriot.com

Figure 7 Switching circuit

USR-K2 Hardware Manual www.usriot.com

Jinan USR IOT Technology Limited 9 / 9 h.usriot.com

3.Contact

Company: Jinan USR IOT Technology Limited

Address: Floor 11, Building No.1, No.1166, Xinluo Street, Gaoxin District, Jinan city, Shandong province,

250101 China

Tel: 86-531-88826739

Web: www.usriot.com

Support: h.usriot.com

Email: sales@usr.cn

4.Disclaimer

This document provide the information of USR-K2 products, it hasn’t been granted any intellectual property

license by forbidding speak or other ways either explicitly or implicitly. Except the duty declared in sales terms

and conditions, we don’t take any other responsibilities. We don’t warrant the products sales and use

explicitly or implicitly, including particular purpose merchant-ability and marketability, the tort liability of any

other patent right, copyright, intellectual property right. We may modify specification and description at any

time without prior notice.

5.Update History

2017-11-02 V1.3.01 created based on Chinese version V1.3.
