UC11-N1
Quick Start Guide
www.ursalink.com
1
Welcome
Thank you for choosing Ursalink UC11-N1.
This guide describes how to install the UC11-N1 and how to connect to Ursalink Cloud. Once you complete
the installation, refer to the Ursalink UC11-N1 User Manual for instructions on how to perform
configurations on the device.
Related Documents
This Start Guide only explains the installation of Ursalink UC11-N1. For more functionality and advanced
settings, please refer to the relevant documents as below.
Document
Description
Ursalink UC11-N1 Datasheet
Datasheet for the Ursalink UC11-N1.
Ursalink UC11-N1 User Guide
Users could refer to the guide for instruction on how to configure
all the settings.
The related documents are available on Ursalink website: http://www.ursalink.com.
Declaration of Conformity
Ursalink UC11-N1 is in conformity with the essential requirements and other relevant provisions of the CE,
FCC, and RoHS.
For assistance, please contact
Ursalink technical support:
Email: support@ursalink.com
Tel: 86-592-5023060
Fax: 86-592-5023065
Ursalink UC11-N1 Quick Start Guide
www.ursalink.com
2
Before you begin to install the UC11-N1, please check the package contents to verify that you have received
the items below.
1.1 Package Contents
Optional Accessories
2 × Pole Mounting Kit
If any of the above items is missing or damaged, please contact your Ursalink sales
Representative.
A.
2.1 USB Configuration
Connect UC11-N1 with laptop via USB cable.
1 × UC11-N1 Device
2 × Data Cable
1 × USB Cable
1 × Magnet
Setscrews
1 × Warranty Card
1. Packing List
2. Hardware Installation
Ursalink UC11-N1 Quick Start Guide
www.ursalink.com
3
2.2 Mount the UC11-N1
Wall Mounting
Pole Mounting
2.3 Turn ON/OFF UC11-N1
Place the magnet on the sign “U” to turn on/off UC11-N1. Beep 2 seconds ON, beep last 6 seconds OFF.
A. Mount the enclosure to the mounting
bracket with the bracket mounting screws.
B. Mount the mounting bracket horizontally to
the wall by fixing the wall mounting screws into
the wall plugs.
A. Mount the enclosure to the mounting
bracket with the bracket mounting screws.
B. Straighten out the hose clamp and slide it
through the rectangular holes in the mounting
bracket, wrap the hose clamp around the pole.
Ursalink UC11-N1 Quick Start Guide
www.ursalink.com
4
Getting Started

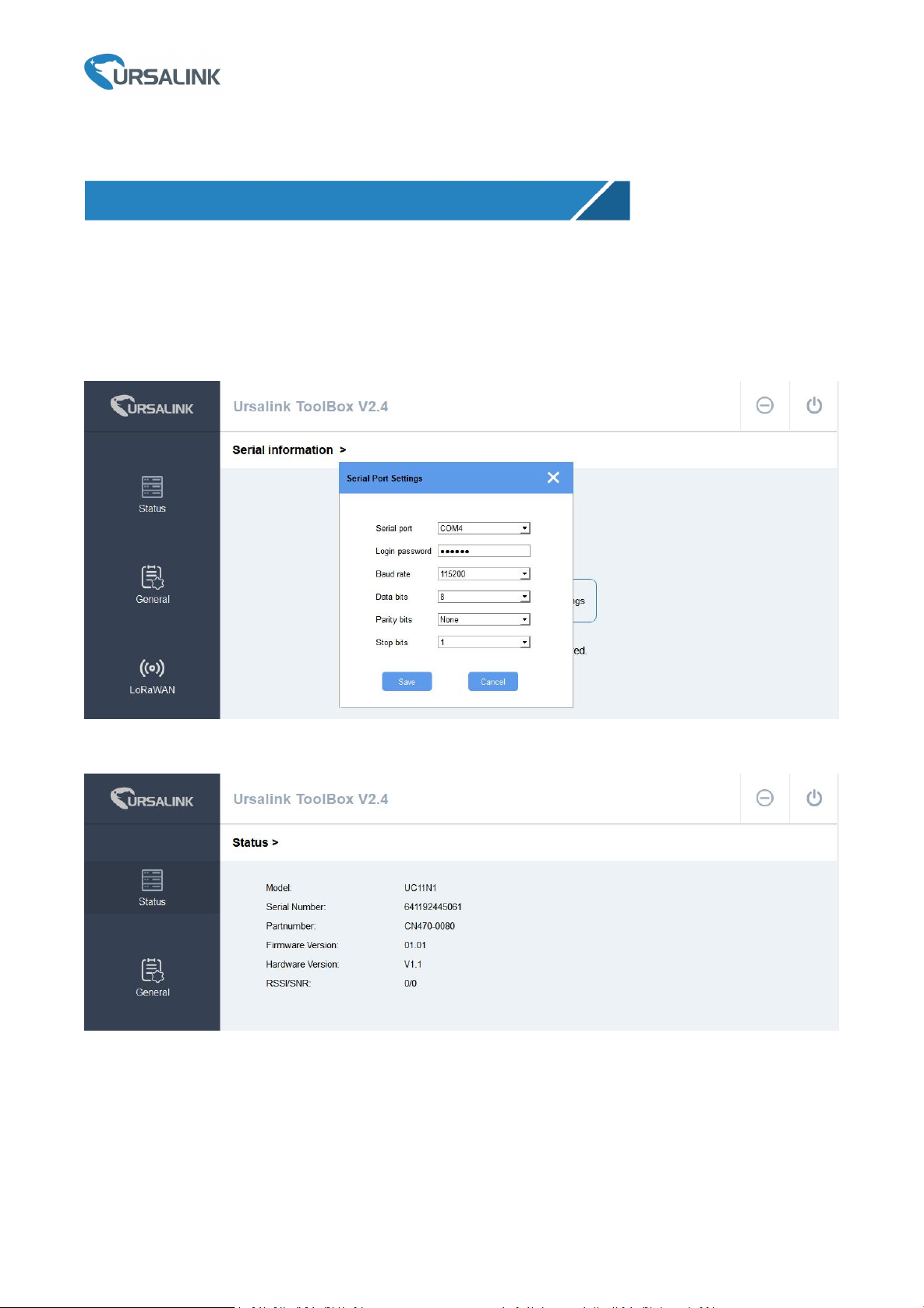

4.1 Configure UC11-T1 via Toolbox
Please connect PC USB port to micro USB port of UC3x series remote cellular I/O directly, PC Setup the
Toolbox.
4. Connect to Ursalink Cloud
①Select Serial port and fill in the login password, default “123456”, then click “Save”
②Click “Status” to check property of UC11-N1
③Click “General/Basic” configure the ”Reporting Interval”
Ursalink UC11-N1 Quick Start Guide
www.ursalink.com
5
④ Click “General/Serial” to configure RS485 property and channel
Ursalink UC11-N1 Quick Start Guide
www.ursalink.com
6
In this quick guide, UC11-T1 connect with two equipment (Light sensor and wind speed sensor), both of the two
sensors use Modbus RS485.
Sensor property
Sensor
Serial Port
Slave ID
Register
Type
Light Sensor
9600 8N1
1
6
Holding Register(INT16)
Wind speed sensor
9600 8N1
2
0
Holding Register(INT16)
Wiring
UC11-N1
Orange(12V/9V/5V
Brown (V+)
Sensors
Black (GND)
Brown (V-)
Green (A)
Green (A)
Yellow (B)
Blue(B)
Note: The two sensor is powered up by UC11-N1, need configure “power output before collect”, default 5
seconds.
⑤Click “General/GPIO” to configure digital input and output.
Ursalink UC11-N1 Quick Start Guide
www.ursalink.com
7
⑥Click “General/AI” to configure analog input.
Ursalink UC11-N1 Quick Start Guide
www.ursalink.com
8

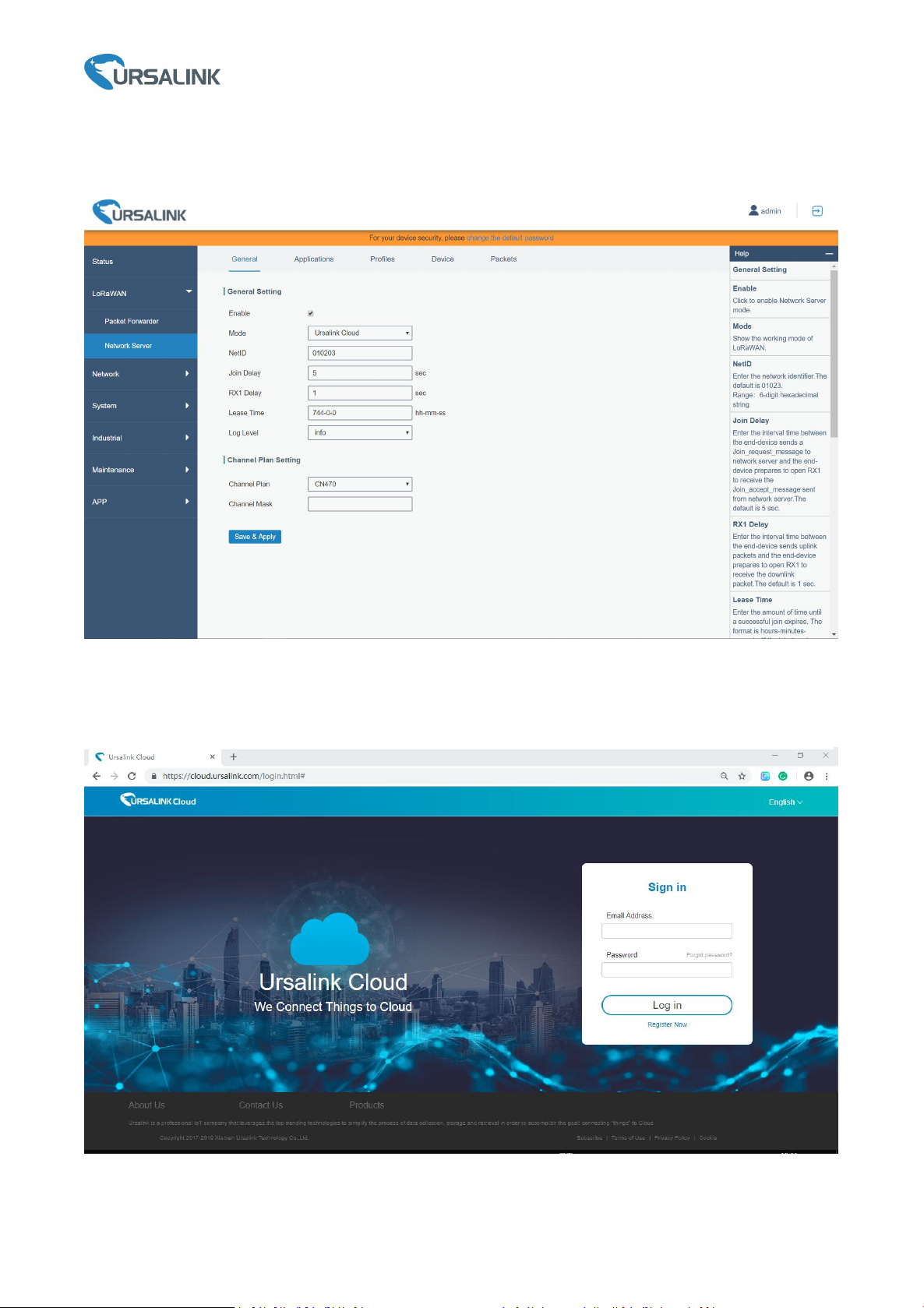

4.2 Ursalink Gateway Configuration
4.3 Ursalink Cloud Configuration
① Register an account of the Ursalink cloud
Enable network server and mode configure as “Ursalink Cloud”.
F
Ursalink UC11-N1 Quick Start Guide
www.ursalink.com
9
② Login Ursalink Cloud and go to “Gateway/Add” and fill in the gateway SN, click add.
③Go to “My Devices” click add. Fill in the SN of the UC11-N1 and select associated gateway.
