Urmet domus IPerCom 1160/3 Manuel du système

DS 1160-007 LBT 20493

Mod.

1160

CITOFONO VIVAVOCE IP

IP HAND-FREE DOOR PHONE

INTERPHONE MAINS-LIBRES IP

INTERFONO MANOS LIBRES IP

SPRECHANLAGE MIT FREISPRECHSYSTEM IP

IP HANDSFREE DEURTELEFOON

Sch./Ref.1160/3

LIBRETTO DI INSTALLAZIONE

INSTALLATION HANDBOOK

NOTICE D’INSTALLATION

MANUAL DE INSTALACIÓN

INSTALLATIONSANLEITUNG

INSTALLATIEHANDLEIDING

6DS1160-007

ENGLISH

The Ref. 1160/3 is an IP device dedicated to the Ipercom system.

For trouble-free operation, the device requires a LAN/POE-type connection.

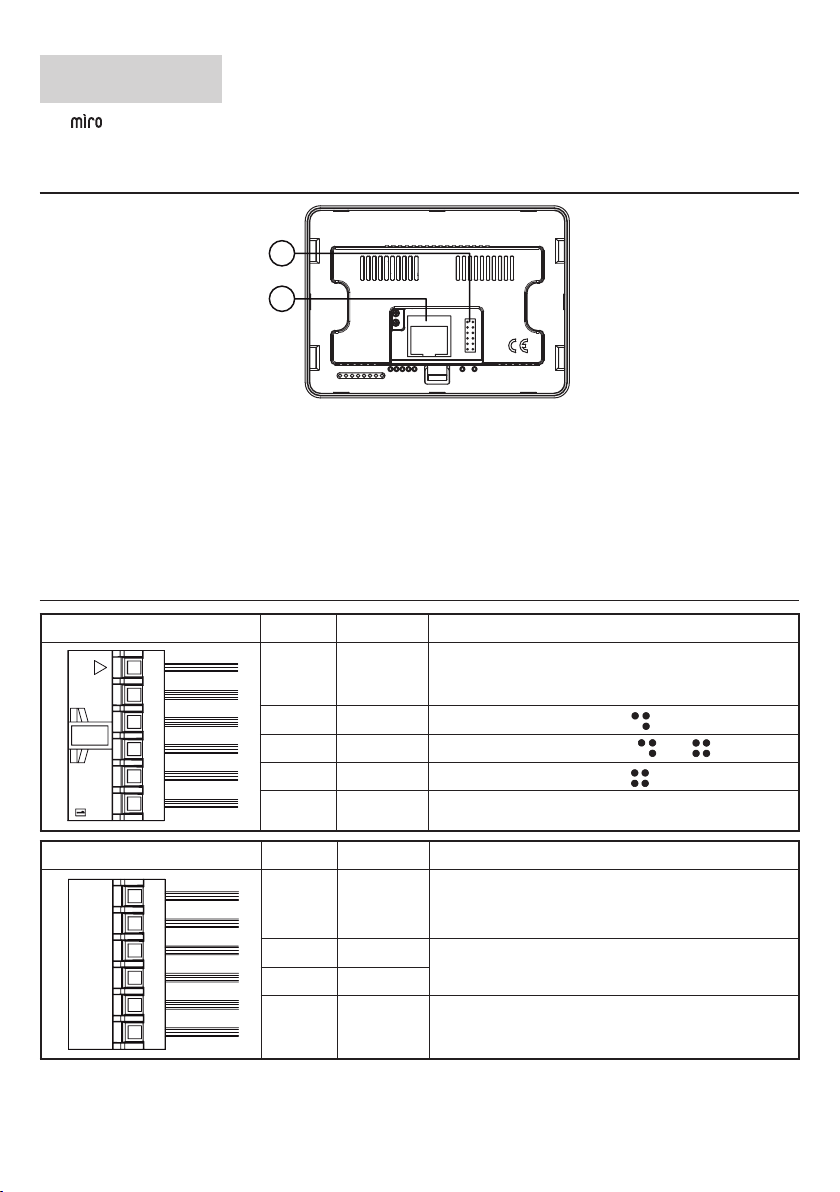

DESCRIPTION OF COMPONENTS

1. Ipercom LAN connector with POE power supply (DOORPHONE POE PORT)

2. 12-way connector for connecting the door phone to optional devices for obtaining the following

functions:

• panic alarm

• call repetition

• ﬂoor call

• Yokis device activation.

WIRE DESCRIPTION FOR SYSTEM CONNECTIONS

Colour Name Description

Yellow PANIC Panic alarm

Green X1 Button

Blue GT Button common and

White Y1 Button

Grey - Not used

Colour Name Description

Grey - Not used

Brown S- Call repetition

Orange S+

Purple FC Floor call

DS1160-007

WIRING INSTRUCTIONS

RJ45 Ethernet Cable

The Ipercom system has been designed to work with the EIA/TIA 568B standard.

Plug the cable into one of the RJ45 connectors with the Urmet logo.

Insert the wire in its guide, according to the provided colour code (Standard T568B).

Wire

No. Cable colour

1 White-Orange

2 Orange

3 White-Green

4 Blue

Wire

No. Cable colour

5 White-Blue

6 Green

7 White-Brown

8 Brown

Grey sheath

Cut the cables so that they protrude from the guide by about 5 mm, insert the guide in its plug and crimp

with the specially provided tool.

Plug

~ 5 mm

Make sure that the grey sheath stays inside the plug.

This type of connection will NOT guarantee double insulation.

INSTALLATION

WITH FLUSH-MOUNTED CASING MOD. 503

Install ﬂush-mounting box at the height indicated in the drawing below.

Fix the bracket to the mounting box.

Box Mod. 503

Metal bracket

1,55 m

n° 2 M3,5 x 19 mm

included

Connect.

Fix the door phone to the bracket.

•

8DS1160-007

WITH FLUSH-MOUNTED CASING Ø 60 MM

Install ﬂush-mounting box at the height indicated.

Remove the plastic base from the door phone unit and ﬁx the base to the wall as shown in the drawing here

below.

1,55 m

n° 1 2,9 x 13 mm

countersunk screw

Box Ø 60 mm

n° 1 screw and screw

anchor included

Connect.

Fix the door phone to its plastic base.

DISTANCES, SECTIONS CABLES AND TECH SPECS

Type of connection Max distance Min - max cross section

Call to ﬂoor level 30 m 0,5 - 1 mm2

Panic Alarm 30 m 0,5 - 1 mm2

Call repeating 30 m 0,5 - 1 mm2

Yokis devices 10 m 0,5 - 1 mm2

LAN 100 m CAT5e (#)

(#) To ensure longest-range door phone operation, the cable must be a class 5e device and the twisted

pairs’ cross section must be AWG24.

The maximum resistance of the individual wires must not exceed 10ohm/100m.

The cable must be up to the following standards:

- EIA/TIA 568-B.2 or EIA/TIA 568-C.2

- EN50288 3-1

- IEC 61156-5

The connection between the door phone and POE switch must be ensured by a single cable without any

extra patch cords.

POE input voltage: ......................................................................................................................... 48-54 V

Max consumption @ 48 V:....................................................................................................................125 mA

Operating Temperature: ...................................................................................................................-5 ÷ 45°C

Maximum current X1/GT or Y1/GT contacts: .........................................................................50 mA - 12 Vdc

DS1160-007

Connection of a E2BPP module to the door phone for the centralisation of lights and rollers

SD541-4004

MVR500ER

OFNLBP

Roller

MVR500ER

OFNLBP

ANTENNA

R1 R1

Roller

Max 10 m

After suitably programming the Yokis devices, it will be possible:

to activate the centralised closing of the rollers with a button (for example: );

a second button (for example: ) will activate the turning off of the lights.

For more information on YOKIS products, please visit www.yokis.com

–

DS 1160-007 LBT 20493

Area tecnica

servizio clienti +39 011.23.39.810

http://www.urmet.com

e-mail: [email protected]

MADE IN CHINA

URMET S.p.A.

10154 TORINO (ITALY)

VIA BOLOGNA 188/C

Telef. +39 011.24.00.000 (RIC. AUT.)

Fax +39 011.24.00.300 - 323
