Upstar P250WT Manuel utilisateur

25" LCD HDTV

Up star USA Group

1855 S.Vineyard Ave.Suite No.1 Ontario, CA 91761

Toll-free: 1-877-908-6777

Tel: 562-972-8098, Fax: 562-972-8068

E-mail: [email protected]m

www.Upstarusa.com

MODEL: P250WT

(Please read this manual carefully before operating the set

And retain it for future reference.)

Contents

Important Safety Instructions ................................................................................. 1

WARNING........................................................................................................................ ..............1

Caution........................................................................................................................ ..................1

Important......................................................................................................................................1

REGULATORY INFORMATION........................................................................................................1

GENERAL INFORMATION ........................................................................................ 3

Accessories....................................................................................................................................3

Viewing the Control Panel ............................................................................................................3

Remote Control........................................................................................................................ .....4

Batteries Installation of Remote-Control Unit..............................................................................5

Names of each part.......................................................................................................................5

CONNECTIONS........................................................................................................ 7

Installing an Antenna ....................................................................................................................7

Satellite/Cable TV Set-Top Box Connections ................................................................................8

Watching Cable TV........................................................................................................................8

DVD Connections ..........................................................................................................................9

Playing the DVD ............................................................................................................................9

PC Connections ...........................................................................................................................10

How to Use as PC monitor ..........................................................................................................10

Basic Use ...............................................................................................................11

Powering the LCD TV ..................................................................................................................11

Selecting Input Source ................................................................................................................11

Application ............................................................................................................12

Operating the Menu ...................................................................................................................12

PICTURE MENU...........................................................................................................................14

SOUND MENU.............................................................................................................................18

CHANNEL MENU.........................................................................................................................21

PARENTAL CONTROL MENU.......................................................................................................25

SETUP MENU ..............................................................................................................................32

OTHERS MENU............................................................................................................................35

PC Mode ................................................................................................................36

Trouble shooting....................................................................................................37

Speciﬁcations.........................................................................................................38

Important Safety Instructions

WARNING

TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR ELECTRIC SHOCK HAZARD, DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR MOISTRUE.

Caution

These servicing instructions are for use by qualified service personnel only.

To reduce the risk of electric shock, do not perform any servicing other than that contained in

The operating instructions unless you are qualified to do so.

Any changes or modifications not expressly approved by the party responsible for compliance

Could void the user’s authority to operate the equipment.

Important

One Federal Court has held that unauthorized recording of copyrighted TV programs is an

Infringement of U.S. copyright laws.

Certain Canadian programs may also be copyrighted and any unauthorized recording in whole or

In part may be in violation of these rights.

REGULATORY INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device,

Pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

Against harmful interference when the equipment is operated in a residential installation. This

Equipment generates, uses and can radiate radio frequency energy and, if not installed and used

In accordance with the instruction manual, may cause harmful interference to radio

Communications. However, there is no guarantee that interference will not occur in a particular

Installation. If this equipment does cause harmful interference to radio or television reception,

Which can be determined by turning the equipment off and on, the user is encouraged to try to

Correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is

Connected.

Consult the dealer or an experienced radio/TV technician for help.

1) Read these instructions.

English -1

10)

11)

12)

Keep these instructions.

Heed all instructions.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturers

Instructions.

Do not install near any heat sources such as radiators, heat registers, stoves, or other

Apparatus (including appliers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug

Have two blades with one wider than the other. A grounding type plug has two blades and

A third grounding prong. The wide blade or the third prong is provided for your safety. If

The provided plug does not eat into your outlet; consult an electrician for replacement of

The obsolete outlet.

Protect the power cord from being walked on or pinched particularly at Plugs,

Convenience receptacles and the point where they exit from the apparatus.

Only use attachments/accessories speciﬁed by the manufacturer.

Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or

Sold with the apparatus. When a cart is used caution when moving the cart/apparatus

Combination to avoid injury tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to quailed service personnel. Servicing is required when the apparatus

Has been damaged in any way, such as power-supply cord or ply is damaged, liquid has

Been spilled or objects have fallen into the apparatus. The apparatus has been exposed to

Rain or moisture, does not operate normally, or has been dropped.

15) The apparatus shall be disconnected from the mains by placing the power/standby switch

In the standby position and unplugging the power cord of the apparatus from the AC

Mains receptacle.

16) This product shall never be placed in a built-in installation such as a bookcase or rack

Unless proper ventilation is provided or the manufacturer's instructions have been

Adhered to.

17) Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect

Device shall remain readily operable.

18) The apparatus shall not be exposed to dripping or splashing and that no objects ﬁlled with

Liquids such as vases. Shall be placed on the apparatus.

English -2

GENERAL INFORMATION

Figures and illustrate

In this User Manual are provided for reference only and may different from

Actual product appearance. Product design and speciﬁcaorder to

enhance product performance.

Accessories

May be changed without n In

Remote Control

User Manual Warranty

Power Adapter

Power Cord

AV Cable

Please make sure the following items are included with your LCD TV. If any items are missing,

Contact your dealer.

The items color and shape may vary depending on the model.

Viewing the Control Panel

The product color and shape may vary depending on the model.

You can use a but

N by pressing the side panel but ones.

P250WT

English -3

Remote Control

1. POWER: Turns the TV on and oﬀ.

2. INFO: Press to display informal on to the TV screen.

3. Guide: Pres

Viewing a digital TV program.

4. MUTE: Press to temporarily cut oﬀ the sound.

5. MTS: Press to choose stereo, mono or Separate Audio

Program (SAP broadcast).

6. 0-9 /- : Pres

Channel, also can be used in teletext Page choosing.

Program channel, such as 2-1 act.

R: Press to switch between the current and the previous

Channel.

8. INPUT: Press to display and select the available video

Sources.

10.

11.

12.

13.

14.

15.

16.

17.

18.

MENU: Press to display the main on-screen menu.

SLEEP: Press to set up the TV auto turn oﬀ

EXIT: Press to exit the menu.

▲/▼/◄/►/ENTER: Use to select on-screen menu items

And change menu values.

VOL+/-: Press to increase or decrease the volume.

CH+/-: Press to change channels.

FREEZE: Press to freeze picture. It’s not available on DTV

Mode.

Aspect: Pres

Freeze: Freeze picture, press again to restore normal viewing.

Fav: Press to open the favorite channel list.

19.

20.

21.

22.

23.

24.

25.

Add/Del: Press Add/Del to add or delete Favorite channel.

Fav-: Press FAV- to change forward Fav channel for TV.

Fav+: Press FAV+ to change backward Fav channel for TV.

Picture: Press to select Dynamic, Standard, Movie, User mode.

Sound: Press to select Dynamic, Soft, Movie, User mode.

TV: Press to select the TV mode directly.

USB: Press to select the USB mode directly.

25.

CC:

Press to turn closed caption on or oﬀ, when your TV set

Is in TV, AV or S-Video source.

English -4

Batteries Installation

of Remote-Control Unit

1. Li the cover at the back of the remote control upward as shown in the ﬁgure.

2. Install two AAA size Eries.

Make sure to match the ‘+’ and ‘-’ ends of the be

Compartment.

3. Replace the cover.

Is with the diagram inside the

Remove the And store them in cool, dry place if you won’t be using the remote

Control for a long (Assuming typical TV usage, the Should last for about one

Year.)

If the remote control doesn’t work, check the following:

Is the TV power on?

Are the plus and minus ends of the Reversed?

Are the be Rise drained?

Is there a power outage or is the power cord unplugged?

Is there a special ﬂuorescent light or neon sign nearby?

Names of each part

P250WT

Screen

Remote control and

Intelligent sensors

English -5

DC12V

Speakers

VGA IN

Speakers

POWER IN USB

HDMI

L R AV IN

TUNER

PC AUDIO IN Earphone Out

Pr/Cr

BP/Cb

Y R L

1 2 3 4 5 6 7 8 9

Power input/DC12V

USB jack

COAX jack

AV IN VIDEO and AUDIO (R/L) jack

PC jack

TV jack

PC Audio in jack

Earphone Out

Y, Pb, Pr and AUDIO (R/L) jack

The product color and shape may vary depending on the model.

English -6

DC12V

CONNECTIONS

Installing an Antenna

For co

POWER IN

ng to ATSC or NTSC broadcasts

VGA IN

POWER IN

USB HDMI

L R AV IN

TUNER

PC AUDIO IN Earphone Out

Pr/Cr

Pb / C b

Y R L

Press SOURCE but on the remote control to select TV, then press

►

but on to contra.

Then you can receive the ATSC/NTSC signal.

English -7

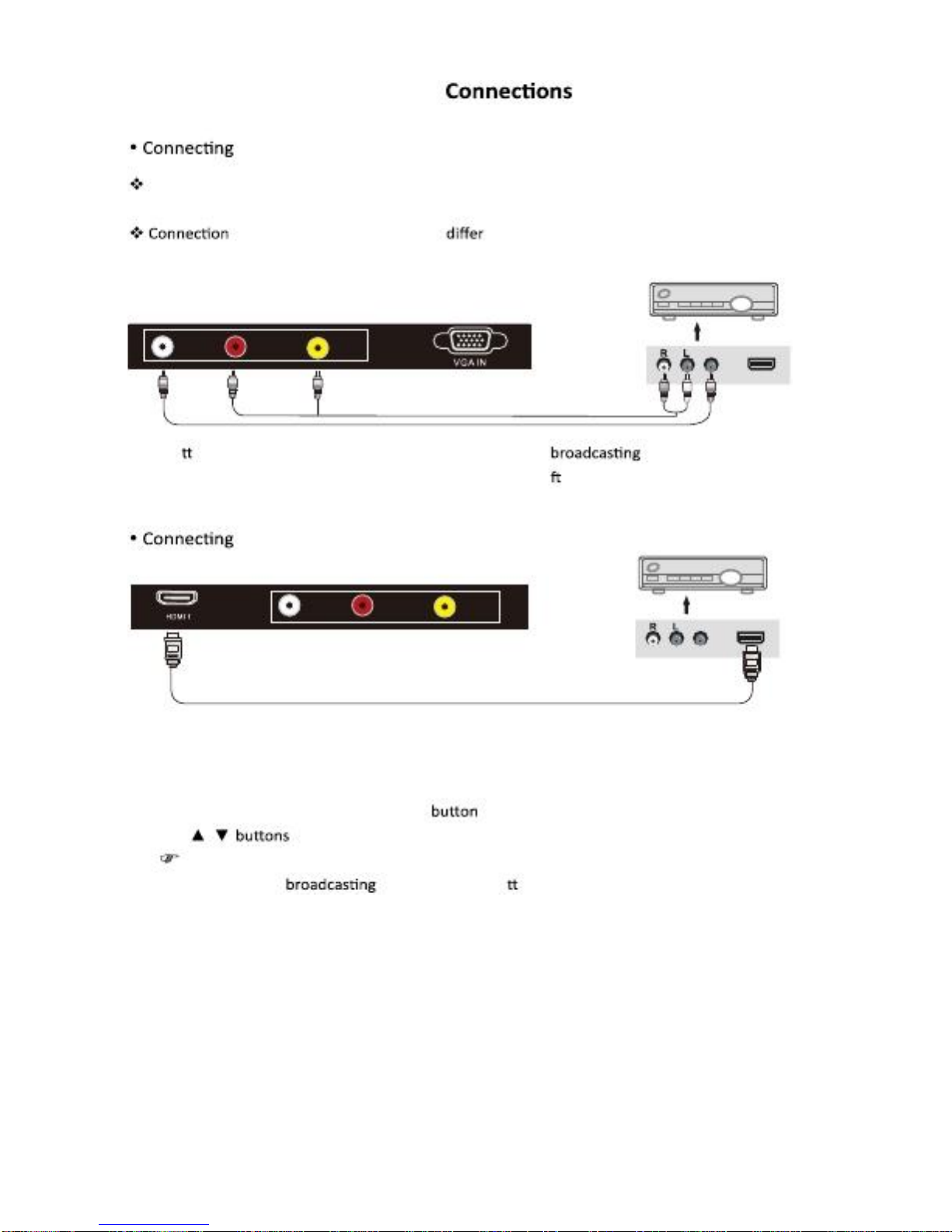

Satellite/Cable TV Set-Top Box

To the Composite terminal

In order to watch Cable TV, Subscribe to your local Cable TV company and install a separate

Receiver (SET-Top-Box)

Terminals of other equipment By manufacturer and model.

AV IN

AV Cable

Connect

His LCD TV’s Composite In terminal to the cable

Receiver Composite Out

Terming using the Composite cable. (Make sure the color o terminals and the color of cable are

The same.)

To the HDMI terminal

AV IN

HDMI Cable

Watching Cable TV

Turn on the LCD TV and press SOURCE

On the remote control.

Use / To move to “AV”.

If HDMI has been connected, select “HDMI”.

Turn on the cable Receiver and select he channel you wish to view.

English-8

Table des matières

Autres manuels Upstar Téléviseur LCD

Upstar

Upstar P32ETW Manuel utilisateur

Manuels Téléviseur LCD populaires d'autres marques

LG 32LC4R* Manuel utilisateur

ViewSonic

ViewSonic N4200w-1 VS10945-1M Manuel utilisateur

Salora

Salora 22LED1600 Manuel utilisateur

Samsung

Samsung LA32E420 Mode d’emploi

Dell

Dell W1900 19 Instructions d'utilisation

Samsung

Samsung LN40C670M1F Manuel utilisateur

Samsung

Samsung Series 4+ Manuel utilisateur

Samsung

Samsung 5 Series Manuel utilisateur

Grundig

Grundig 40 VLE 8230 BP Manuel utilisateur

Philips

Philips 43PFL4901/F7 Manuel utilisateur

Sony

Sony Bravia XBR-43X830C Manuel utilisateur

LG 32LS350 Manuel utilisateur

VIORE

VIORE LED32VF60 Manuel utilisateur

Toshiba

Toshiba Regza 42HL167 Manuel utilisateur

JVC

JVC LT-32A220 Manuel utilisateur

Philips

Philips 20TA1000/93 Manuel utilisateur

Philips

Philips 32PFL3158T/12 Manuel utilisateur

Sony

Sony Bravia KDL-V32XBR2 Manuel utilisateur
