Uplus Lighting LED PROFILE AZ Manuel utilisateur

User manual

LED PROFILE AZ

Please read the instructions carefully before use

TABLE OF CONTENTS

1. Safety Instructions……………………………………………………………………………3

2.Technical Specifications………………………………………………………………………4

3.Unpacking…………………………………………………………………………………………5

4.Control Menu ……………………………………………………………………………………6

5.DMX Channels ……………………………………………………………………………………7

6.Dimension …………………………………………………………………………………………8

7.Trouble Shooting…………………………………………………………………………………9

8.Fixture Cleaning………………………………………………………… ………………………9

STATEMENT

The product has well capability and intact packing when leave factory. All of the user should

comply with warning item and manual, any misuse cause of the damages are not included in our

guarantee, and also can not be responsible for any malfunction & problem owing to ignore the

manual.

1.Safety Instructions

Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also

receive this instruction booklet.

•Unpack and check carefully there is no transportation damage before using the unit.

•Before operating, ensure that the voltage and frequency of power supply match the power requirements of the

unit.

•It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.

•The unit is for indoor use only. Use only in a dry location.

•The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent surfaces. Be sure

that no ventilation slots are blocked.

•Disconnect main power before replacement or servicing.

•Make sure there are no flammable materials close to the unit while operating as it is fire hazard.

•Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but always by taking its

base.

•Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher than this Unit

surface temperature may reach up to 85℃. DO NOT touch the housing bare-hand during its operation. Turn off

the power and allow about 15 minutes for the unit to cool down before replacing or serving.

•the event of serious operating problem, stop using the unit immediately.Never try to repair the unit by yourself.

Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest

authorized technical assistance center. Always use the same type spare parts.

•DO NOT touch any wire during operation as high voltage might be causing electric shock.

Warning:

•To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.

•The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

Caution:

•There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any repairs yourself.

In the unlikely event your unit may require service, please contact your nearest dealer.

Installation:

•The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to

avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit

is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can

hold 12 times of the weight of the unit when installing the fixture.

•The equipment must be fixed by professionals. And it must be fixed at a place where is out of the touch of

people.

2.Technical Specifications

Feature：

1*200W COB LED (available for RGBW 4in1)

50,000 hours life time and low power consumption

Color Rendering Index(CRI): Ra≥90

High quality optical system and field uniformity

High contrast aspheric lens

Auto zoom system(Motorized zoom) from 15°-38°

Beam edge continually adjustable hard-to-soft

Aluminum alloy housing

Thermally insulated rear handle

High-strength single handle design

4 Metal spot cutting

Ultra smooth 16-bit dimming

Strobe :1-25times/sec

6/12 DMX channels

DMX512, Master/Slave mode, static mode

4-Button LCD display

POWRECON connector IN/OUT,3-Pin and 5-pin XLR connectors IN/OUT

Low noise fan with copper liquid cooling system

Working Temperature: -10℃~40℃

IP20 protection rating

Specifications：

Input Voltage:AC100-240V 50/60Hz

Max. Power:200W

Dimensions: 195(D)*720(W)*415(H)mm

Packing Size: 332(D)*832(W)*345(H)mm

Net Weight: 10.5kg

Gross Weight: 13kg

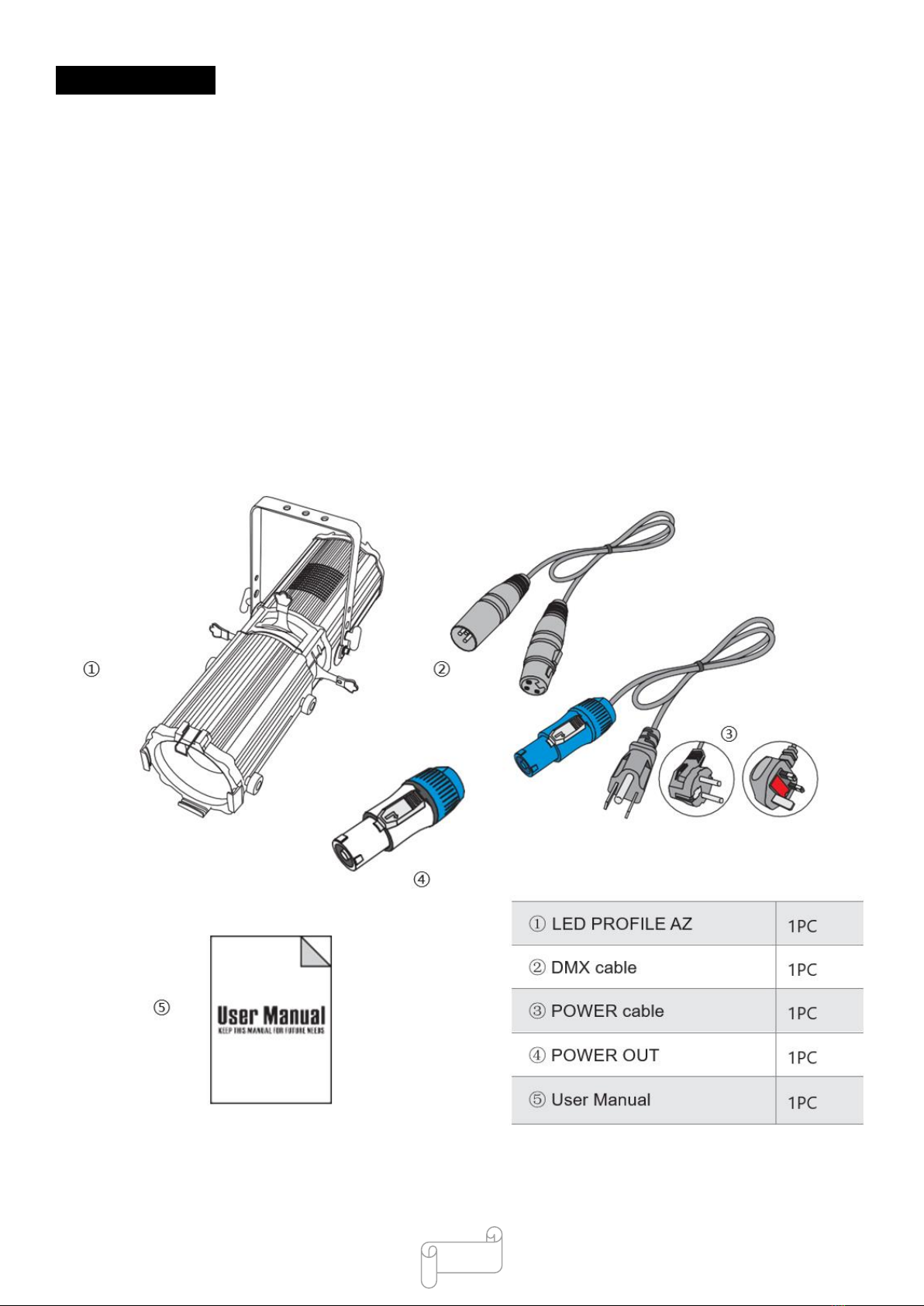

3.Unpacking

Thank you for choosing our LED PROFILE AZ. For your own safety, please read this manual before installing the

device. This manual covers the important information on installation and applications. Please install and operate

the fixture with following instructions. Meanwhile, please keep this manual well for future needs.

The LED PROFILE AZ is made of a high strength of aluminum alloy casing with nice outlook. The fixture is

designed and manufactured strictly following CE standards, complying with international standard DMX512

protocol. It's available independently controlled and linkable with each other for operation. And it is applicable for

large-scale live performances, theater, studio, nightclubs and discos.

The LED PROFILE AZ adopts 1PCS 200W COB LED (available for RGBW) which features high brightness and

stability. Please carefully unpack it when you receive the fixture and check whether it is damaged during the

transportation. And please check whether the following items are included inside the box:

4.Control Menu

MENU key: Change to the main menu (no more details in below sheet).

UP/DOWN key: Change the value of the current menu (see below sheet for details).

ENTER key: If there is a submenu, change the submenu (see below sheet for details).

Remark：

1、If the “>” symbol is displayed at the end of the first line of the menu, it means that there are

submenus that can be changed by pressing the ENTER key.

2、Password is“UP、DOWN、UP、DOWN”

Vice Menu

Display

•Keys Operation

Standard Channel

Mode（12 CH）

DMX

(12 CH)

Addr:001

UP/DOWN: Change the ID address

Basic channel

Mode （6 CH）

DMX

(6 CH)

Addr:001

UP/DOWN: Change the ID address

Static Model

Dimmer

Color 1 (Red)

Static >

R:000

UP/DOWN: Dimmer

ENTER: Change the vice menu

Dimmer

Color 2 (Green)

Static >

G:000

UP/DOWN: Dimmer

ENTER: Change the vice menu

Dimmer

Color 3 (Blue)

Static >

B:000

UP/DOWN: Dimmer

ENTER: Change the vice menu

Dimmer

Color 4 (White)

Static >

W:000

UP/DOWN: Dimmer

ENTER: Change the vice menu

Strobe

Static >

Strob:00

UP/DOWN: Strobe

ENTER: Change the vice menu

Zoom

Static >

Focu:000

UP/DOWN: Zoom Changing

ENTER: Change the vice menu

Control

Temperature

Current

temperature

Temp >

Curr: 0

ENTER: Change the vice menu

Set the

temperature

protection data

Temp >

Top :080

UP/DOWN: Set temperature data

ENTER: Change the vice menu

Restore the

default settings

Reset

Press “ENTER” key, type your password, as follows:

Reset

Pwd:

Press “ UP / DOWN” keys to enter a password, enter a

password will display a "*" sign. as follows:

Reset

Pwd:****

Press “ENTER” to confirm the password. The correct

password will restore the default settings. Otherwise,

clear all "*" in order to re-enter the password.

5.DMX Channels

Model – CH12

Channel

Data

Function

Notes

0~255

Dimmer

0~255

Color 1 (red)

0~255

Color 2 (green)

0~255

Color 3 (blue)

0~255

Color 4 (white)

0~30

No effect

31~200

Multi-color change

201~205

Color temperature 1

(default 3200K)

……

Color temperature 2~10（each 5 data

is a color temperature）

250~255

Color temperature 11

(default 10000K)

0~10

No Strobe

When you run the built-in program, this channel

control speed

11~255

Speed of strobe (data 255 is the

fastest)

0~20

Speed of dimmer 4

(the slowest and softest）

21~40

Speed of dimmer 3

41~60

Speed of dimmer 2

61~80

Speed of dimmer 1

81~99

Speed of dimmer OFF

(the fastest and no delay)

100~109

Built-in program 1

……

……（Each 10 data is a program)

190~199

Built-in program 10

200~240

Sound Model

241~255

Strobe by sound model

0~255

Focus 1

0~255

Focus 2

0~255

Speed of Focus 1

Data 0 is the fastest ，Data 255 is the Slowest.

0~255

Speed of Focus 2

Data 0 is the fastest ，Data 255 is the Slowest.

Model – CH6

Channel

Data

Function

0~255

Color 1（red）

0~255

Color 2（green）

0~255

Color 3（blue）

0~255

Color 4（white）

0~255

Focus 1

0~255

Focus 2

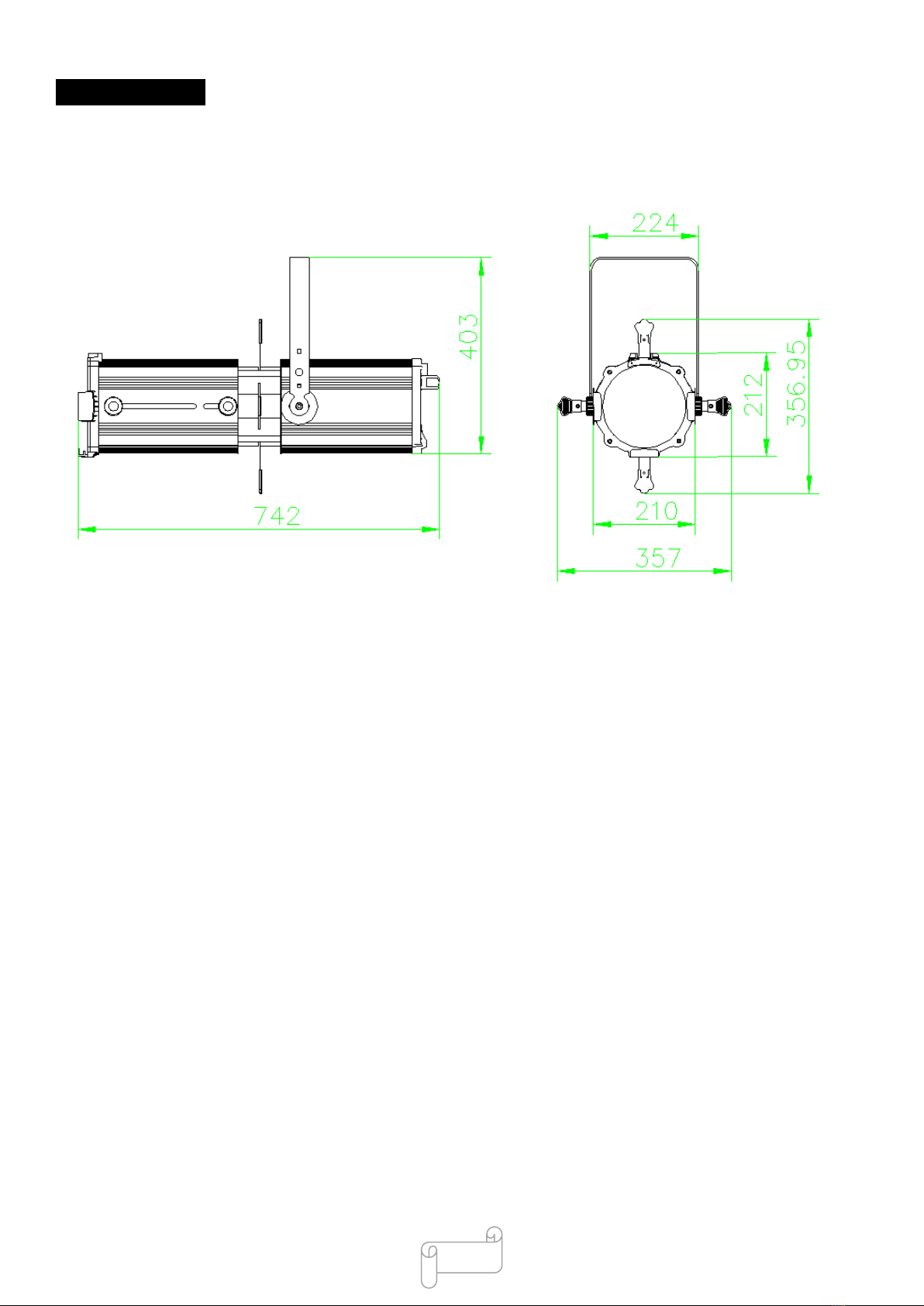

6.Dimension

Size of the fixture: 195(D)*720(W)*415(H)mm

8.Trouble Shooting

ollo

ing

few

oble

occu

uring

ope

tion

leshooting

The

does

work

ght

Check

nect

ion of p

owe

eas

ure

ins

volt

Check

pow

LED

responding

LED

on.

che

nectors,

link

ope

espons

el,

che

ess

etti

ity

nter

ittent

oble

che

ins

onn

ecto

PCB

nit

the

iou

ntroller

Check

or run

lon

volta

les

terfer

ence

inter

face

circui

One

the

cha

ing

tep

moto

dam

the

nect

PCB

oken.

oto

’

ive

PCB

ndition

9.Fixture Cleaning

The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to

optimize light output. Cleaning frequency depends on the environment in which the fixture operates:

damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.

Clean with soft cloth using normal glass cleaning fluid.

Always dry the parts carefully.

Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
