Univex MG22 Manuel utilisateur

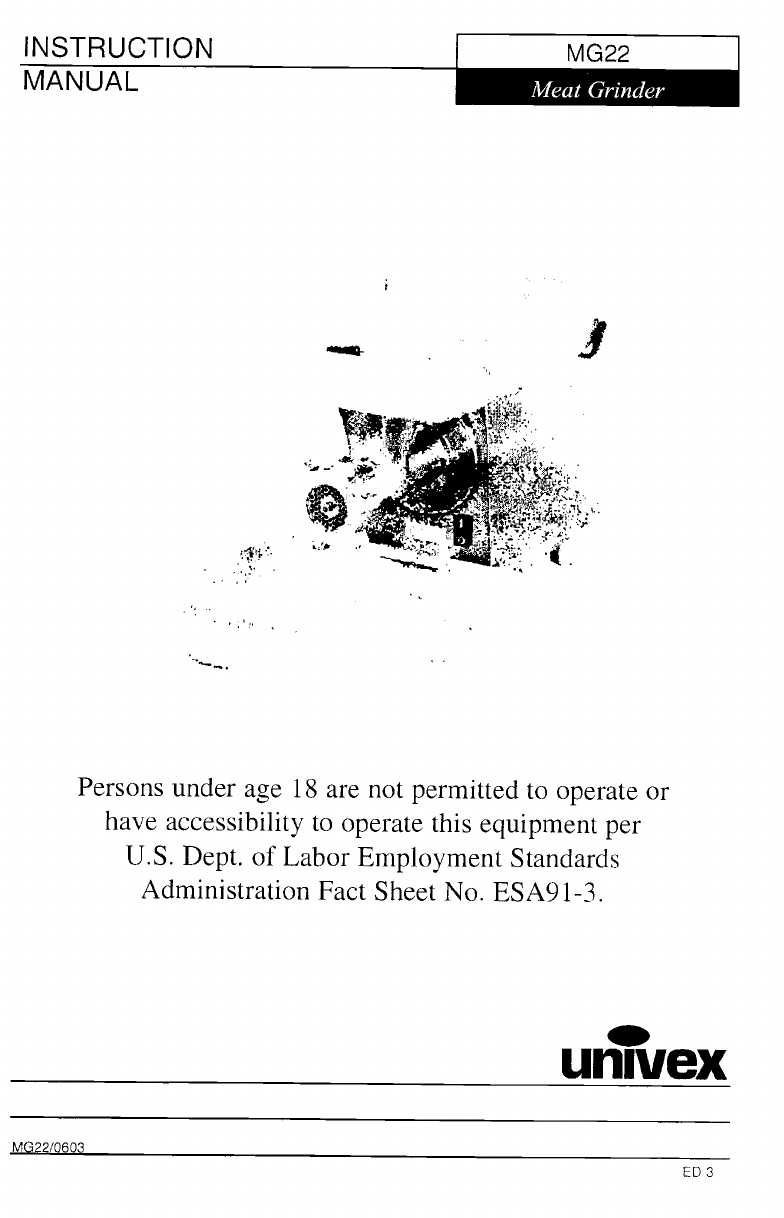

INSTRUCTION

MANUAL

MG22/0603

Meat Grinder

Persons under age 18 are not permitted to operate or

have accessibility to operate this equipment per

U.S. Dept. of Labor Employment Standards

Administration Fact Sheet No. ESA91-3.

univex

ED 3

PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

TO INSURE BOTH SAFE AND

TROUBLEFREE PERFORMANCE WE STRESS

THAT ALL PERSONNEL THAT WILL BE

INVOLVED WiTH YOUR NEW UNIVEX MEAT

GRINDER MUST READ AND UNDERSTAND

THESE INSTRUCTIONS BEFORE ATTEMPTING

TO OPERATE THIS UNIT.

WE APPRECIATE YOUR COOPERATION AND

YOUR BUSINESS. SHOULD THERE BE A

QUESTION OR IF WE CAN BE OF FURTHER

ASSISTANCE, PLEASE CALL US,

I 6O3-893-61 91.

PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

TABLE OF CONTENTS

DESCRIPTION PAGE

Table of Contents

Operator Safety

Installation 2

Assembly and Operating Instructions 2 -3

Cleaning 3

Parts List 4 - 5

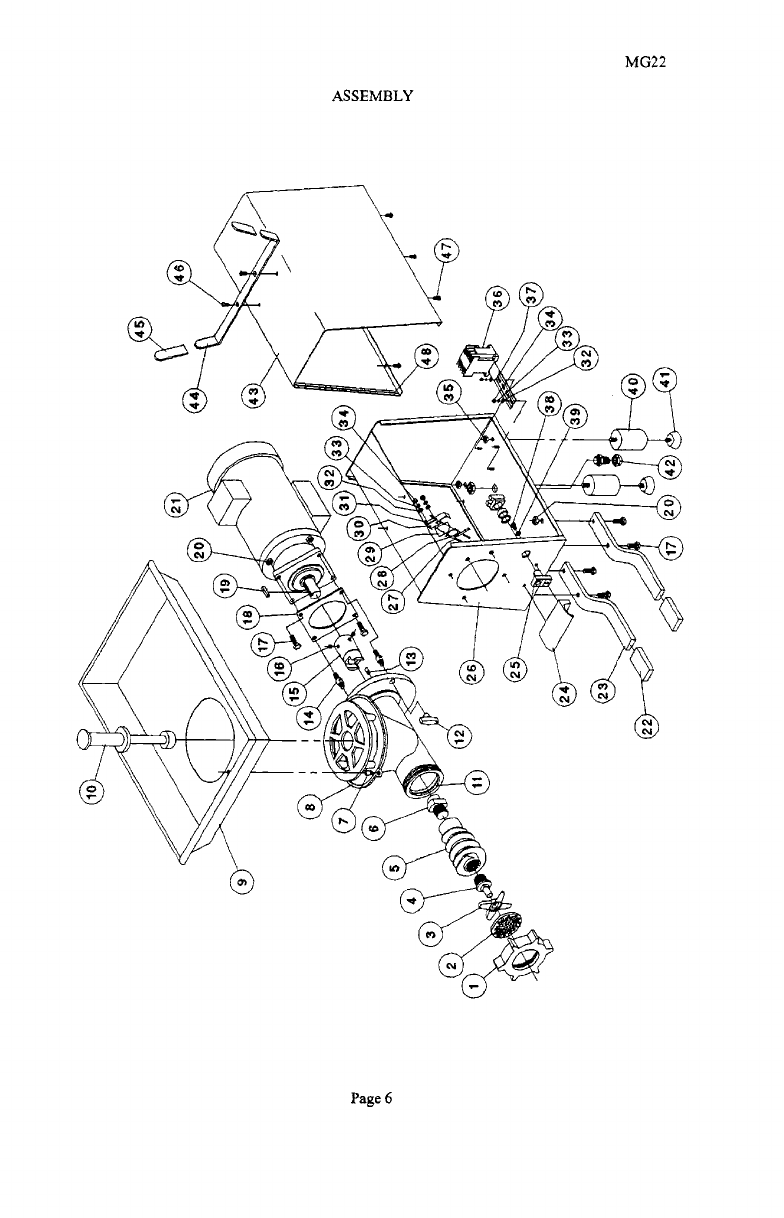

Assembly 6

Wiring Diagram 115/208-230V, 60HZ, IPH / 220-240V, 50HZ, IPH 7

Wiring Diagram, Canada, CE, 115/208-240V, 60HZ, IPH / 230V,50HZ, IPH 8

Warranty Information Back Cover

MG22 MEAT GRINDER

INSTRUCTION MANUAL

Inspection:

All Univex MG22's are inspected prior to packaging to assure both the machine quality, correct

inclusion of options, and proper voltage. However, upon unpacking, all items should be carefully

verified that they are correct, Any damage, imperfection, or shortages should be reported immediately

to your dealer or directly to Univex Customer Service, and/or shipment carrier.

Operator Safety:

It is a violation of the United States Department of Labor regulations to permit operation of

the MG22 by any person under the age of 18 years.

Read and understand all instructions and safety warnings prior to operating unit.

Never put fingers or any utensils (other than the stomper (Item 10) in the throat or entry of the

grinder, or in the kniíb and plate area of the grinder. This is a powerThl unit designed to grind

meat; use extreme caution and avoid exposing body parts to grinding and cutting areas of the unit.

Switch the power off and disconnect the electricpower supply prior to mounting and dismounting

the grinder, cleaning, or servicing.

Knife is sharp and can cut finger. Use caution when handling.

Always have chopper securely mounted, worm assembly fully coupled onto drive coupling, and the

knife, plate, and ring snugged on before switching the power on.

Always remove the grinder from the power drive beforecleaning; never rinse with hose while

mounted to power source, inviting electrical shock.

MG22

Page 1

PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

Installation;

This is a table-top unit. Unit may be secured to table top via the shipping bolt threaded holes on the

power drive housing bottom.

Insure the unit is located such that it is placed on a level and stable surfàce, and sufficient clearance

is provided all around the unit for safrty and ease of operation. Proper location includes space for

the feed pan and clip-on storage container,

Feed pan support bracket (Item 45) must be assembled onto the housing cover (Item 43) using the

screws (Item 46) provided.

ASSEMBLY AND OPERATING INSTRUCTIONS;

Introduction:

The Univex MG22 Meat Grinder consists of a I H.P. electric motor power base which drives a

bell-shaped meat grinder designed to utilize industry standard #22 knives and full range of #22 grinding

plates. Included as standard equipment is a carbon steel knife (Item 3), 3/16 grinding plate (Item 2),

aluminum meat stomper (Item 10), 16 x 24 aluminum feed pan (Item 9) for holding meat to be

processed, and t8.5 x 13.5 storage container with lid för collecting meat as it is processed.

The Univex MG22 has safety and ease of operation built into it. The permanent safety guard positioned

over the bell-shaped feed hopper prevents accidental entry of operator's fingers and hands into the

grinding zone, The readily removable feed pan and storage container provide for ease of processing and

cleaning.

Noise emissions below 70 db(A).

Assembly:

WARNING: Disconnect power supply prior to assembly.

Mount the housing-guard assembly (Item 8) to the housing weldment (Item 26) by firmly

tightening knobs (Item 12) onto mounting studs (Item 14).

Slide the worm assembly (Items 6,5,4) into the housing-guard assembly (Item 8) and mating into

the drive coupling (Item 15).

Slide the knife (Item 3), sharp edges toward the plate, onto the square of the worm assembly (Item

4). Slide the plate (Item 2) onto the worm assembly (Item 4). Screw the ring (Item 1) onto the

housing-guard assembly (Item 8) until it is just snug. Too much pressure can damage the unit.

WARNING: The knife is sharp and can cut fingers.

Guide the feed pan (Item 9) over the guard portion of the housing-guard assembly (Item 8) onto

the pan stud (Item 7) and the pan support (Item 44).

S. Locate the storage container under the clip (Item 24) and resting on the front legs (Item 23).

6. Connect power supply and actuate power switch (Item 25).

WARNING: Never put fingers or utensils in the throat of the grinder or the knife and

plate interface.

MG22

Page 2

PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

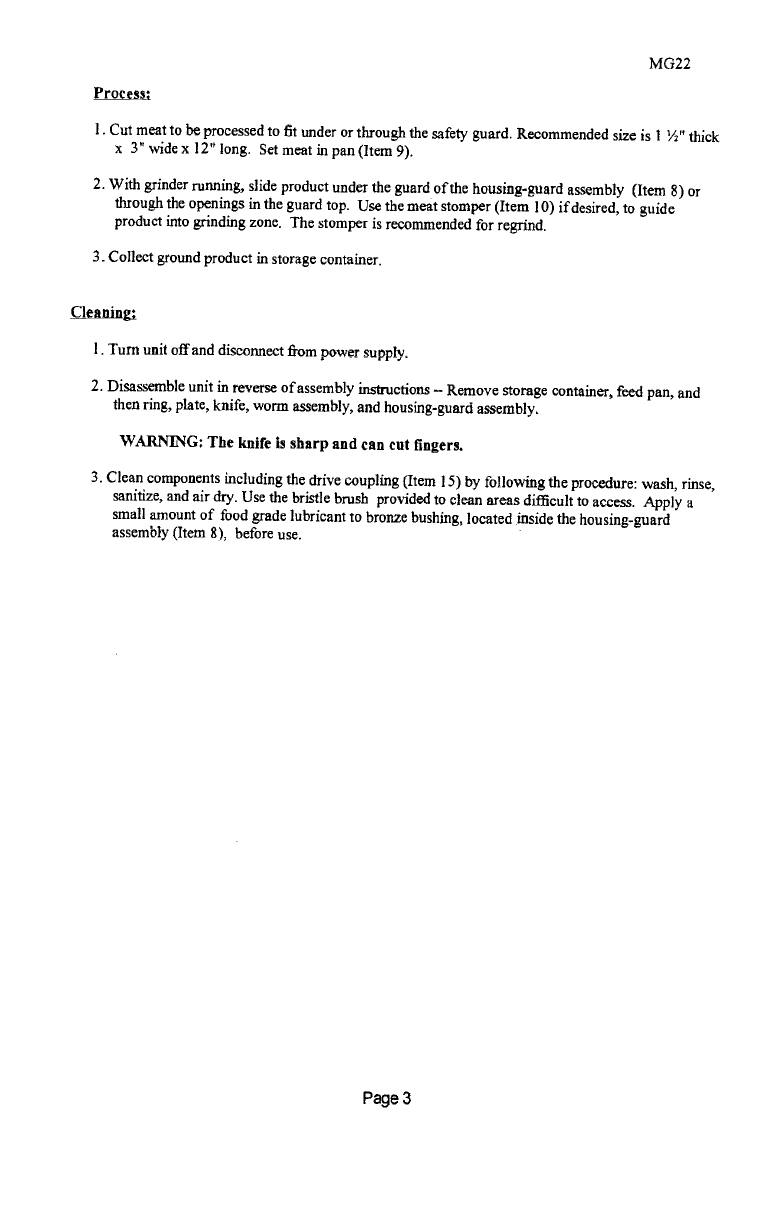

Process

Cut meat to be processed to fit under or through the safety guard. Recommended size is 1 '/2' thick

x 3" wide x 12" long. Set meat in pan (Item 9).

With grinder running, slide product under the guard of the housing-guard assembly (Item 8) or

through the openings in the guard top. Use the meat stomper (Item 10) if desired,to guide

product into grinding zone. The stomper is recommended for regrind.

Collect ground product in storage container,

Cleaning:

Turn unit off and disconnect from power supply.

Disassemble unit in reverse of assembly instructions- Remove storage container, feed pan, and

then ring, plate, knife, worm assembly, and housing-guard assembly.

WARNING: The knife is sharp and can cut fingers.

Clean components including the drive coupling (Item 15) by following the procedure: wash, rinse,

sanitize, and air dry. Use the bristle brush provided to clean areas diflicult to access, Apply a

small amount of food grade lubricant to bronze bushing, located inside the housing-guard

assembly (item 8), before use.

MG22

Page 3

PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

Page 4

ILLUS. PART NO. ASSEMBLY

DESCRIPTION

MG22

QTY.

11000719 RING,#22

21000727 PLATE, 3/16"

1000726 PLATE 1/8' (OPTIONAL)

1000728 PLATE 1/4' (OPTIONAL)

1000729 PLATE 3/8' (OPTIONAL)

1000730 PLATE 1/2' (OPTIONAL)

31000725 KNIFE, #22

41000715 ShAFT, FRONT

51000711 WORM, #22

61000717 COUPLING, WORM

71000731 * STUD, PAN

81000709 * ROUSING-GUARD ASSY

98700214 PAN

10 1000735 STOMPER

11 1000724 LOCK PIN, PLATE

12 8700222 KNOB 2

13 4400275 STUD - SWITCH ACTUATOR

14 1000718 STUD, MOUNTING 2

15 1000713 COUPLING, DRIVE

16 1200412 SETSCREW 1/4-20X1/4CUppT 2

17 1200359 SCREW HEX. RD. SS CAP 3/8-16 X 1 1/2" LOE 6

18 1000722 WASHER, MOTOR I

19 4400500 KEY 1/4SQ.X1 1/2

20 4400015 KEPNUT 3/8-16 8

21 8700219 GEAR MOTOR

22 8700220 SLEEVE, FRONT LEG 2

23 8700211 LEG, FRONT 2

24 8700216 CLIP, BUSS BOX I

25 8700218 SWITCH, START/ STOP

26 8700210 HOUSING, WELDMENT

27 1200432 SCREW HEX. RD. CAP 4-40 X 3/4 LOE 2

28 7100103 SWITCH, SAFETY 1

29 7100023 INSULATOR, SAFETY SWITCH

30 1024414 BRACKET, SAFETY SWITCH I

31 1200433 ELASTIC STOP NUT 4-40 2

32 1200076 WASHER 10 6

33 4400065 LOCK WASHER 10 6

34 1200060 HEXNUT1O-32 7

35 7510252 ELASTIC STOP NUT - MIO X 1.5 2

36 7100011 CONTACTOR 115V, 60HZ. 1

7100015 CONTACTOR 100V, 50-60HZ

7100012 CONTACTOR230V, 60HZ

7 100040 STARTER, 115V, 60HZ (CANADA ONLY)

7100116 STARTER, 230V, 60HZ, (CANADA ONLY)

7100108 STARTER, 230V, 50HZ, IPH (EUROPE ONLY)

37 7100016

7100010 CONTACTOR, 220-240V, 50HZ,

RAIL, DiN I

38 4400155 SCREW HEX. RD. CAP 1/4-20 X 1/2 LOE 2

39 4400005 LOCK WASHER 1/4 2

40 1814118** LEG,REAR 2

41 8512855 FEET, REAR 2

PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

* ILLUS. NO. 71S INCLUDED WITH ILLUS. NO 8

** ILLUS. 40 INCLUDES STUD M10-1.5 X 22MM

Page 5

MG22

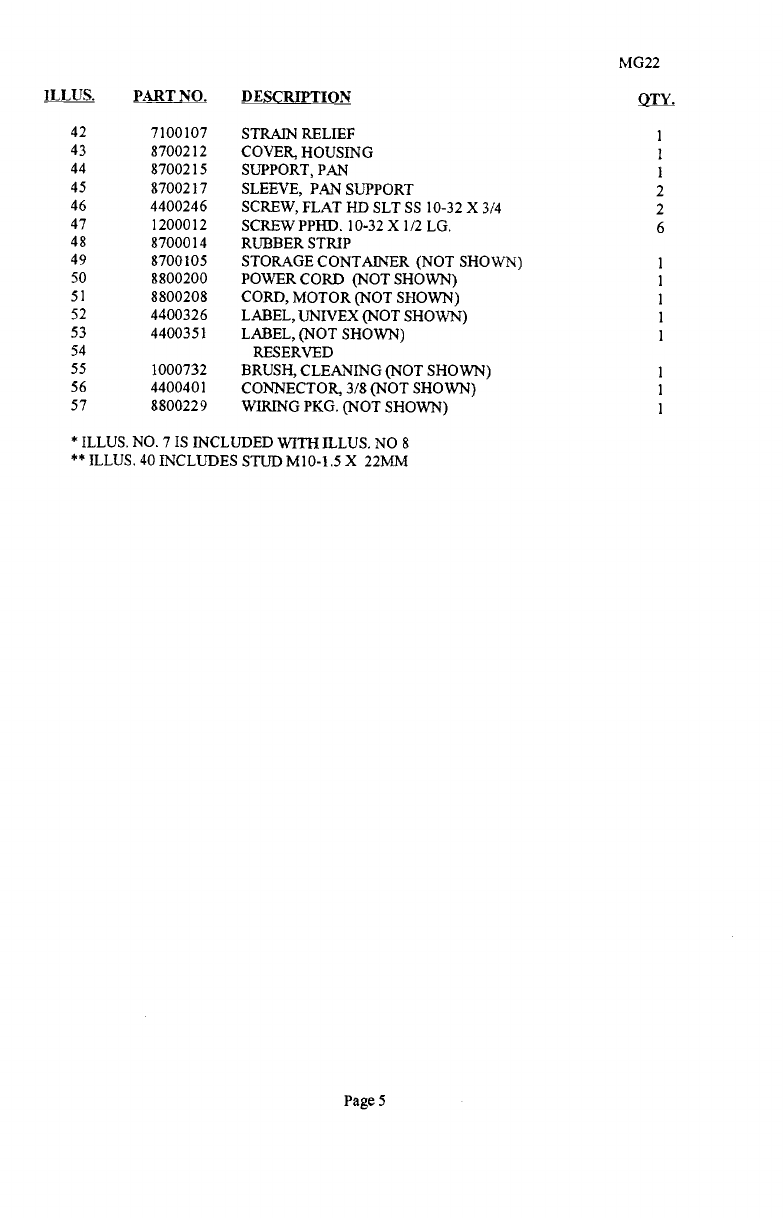

ILLUS. PART NO. DESCRIPTION QTY.

42 7100107 STRAIN RELIEF

43 8700212 COVER, HOUSING

44 8700215 SUPPORT, PAN 1

45 8700217 SLEEVE, PAN SUPPORT 2

46 4400246 SCREW, FLAT RD SLT SS 10-32 X 3/4 2

47 1200012 SCREWPPHD.10-32X1/2LG. 6

48 8700014 RUBBER STRIP

49 8700105 STORAGE CONTAINER (NOT SHOWN) 1

50 8800200 POWER CORD (NOT SHOWN)

51 8800208 CORD, MOTOR (NOT SHOWN)

52 4400326 LABEL, UNIVEX (NOT SHOWN) 1

53 4400351 LABEL, (NOT SHOWN)

54 RESERVED

55 1000732 BRUSH, CLEANING (NOT SHOWN)

56 4400401 CONNECTOR. 3/8 (NOT SHOWN)

57 8800229 WIRING PKG. (NOT SHOWN)

PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

SAFETY

SWITCH LJ. MAGNETIC

CONTACTOR

L,._ J

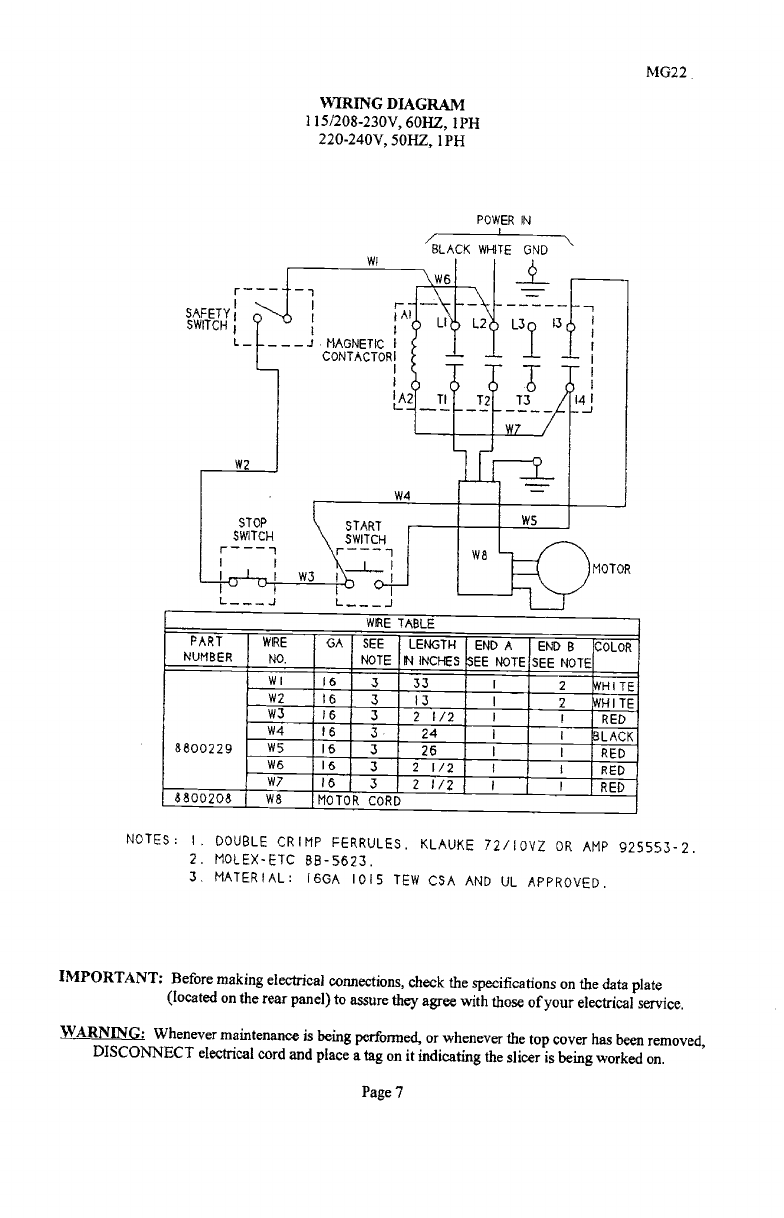

WIRING DIAGRAM

115/208-230V, 60HZ, IPH

220-240V, 50HZ, IPH

STOP START

PWTCH SWITCH

IILI

I,, ,I W3 I.. o-f----

Page 7

POWER N

/BLACK WI-tIE GND

L3cr

W8 MOTOR

I3h]

14 I-J

MG22

NOTES: I. DOUBLE CRIMP FERRULES, KLAUKE 72/IOVZ OR AMP 925553-2,

MOLEX-ETC BB-5623.

MATERIAL: I6GA 1015 TEW CSA AND UL APPROVED.

IMPORTANT; Before making electrical connections, check thespecifications on the data plate

(located on the rear panel) to assure they agree with those ofyour electrical service.

WA.RNJNG: Whenever maintenance is being performed, or whenever the top cover has been removed,

DISCONNECT electrical cord and place a tag on it indicating the slicer is being worked on.

WIRE ABLE

PART

NUMBER WIRE

NO. GA SEE

NOTE LENGTH

l4 INCHES END A

SEE NOTE END B

SEE NOTE COLOR

8800229

WI 5333 -I2WHITE

W2 16 313 I2WHITE

W3 IS 32(/2 1IRED

W4 6324 1IBLACK

W5 IS 325 IIRED

we IS 3 2 (/2 IIRED

W7 16 32 (/2 IIRED

8800208 W8 MOTOR CORD

PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

SAFETY

SWITCH L_ _..J

STARTER

W2 W4

WIRING DIAGRAM

CANADA & CE

115/208-240V, 60HZ, IPH

230V, 50HZ, 1PH

POWER IN

LI L2 L3 ONO9

W6 -OVERLOAD RELAY

SJD .-O _95

AI LI L2 L3 13

A2 TI T2°T3\,014

NOTES: I, DOUBLE CRIMP FERRULES. KLAUKE 72/IOVZ OR AMP 925553-2

MOLEX-ETC BB-5623.

MATERIAL: I6GA 1015 TEW OSA AND UL APPROVED.

IMPORTANT: Before making electrical connections, check the specifications on the data plate

(located on the rear panel) to assure they agree with those of your electrical service.

WARNING; Whenever maintenance is being performed, or whenever the top cover has been removed,

DISCONNECT electrical cord and place a tag on it indicating the slicer is being worked on.

Page 8

WIRE TABLE

PART

NUMBER WIRE

NO.

GA SEE

NOTE LENGTH

IN INCHES END A

SEE NOTE END B

SEE NOTE'COLOR

8800229

WI 16 333 I2WHITE

W2 6313 I2WHITE

W3 16 321/2 IIRED

W4 6324 I I BLACK

WS 6326 IIRED

PART

STARTER

W6 16 321/2 IIRED

W7 16 351/2 IIRED

WI 16 381/2 IIRED

8800208 WO MOTOR CORD

W9 MOTOR

STOP START

SWITCH \SWITCH

I I

H.. .1 W3 o

PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

Autres manuels pour MG22

Table des matières

Autres manuels Univex Hachoir à viande

Univex

Univex ALMFC12 Manuel utilisateur

Univex

Univex MG22 Manuel utilisateur

Univex

Univex MG8912 Manuel utilisateur

Univex

Univex MG8912 Manuel utilisateur

Univex

Univex MG0012 Manuel utilisateur

Univex

Univex MG0012 Manuel utilisateur

Univex

Univex MG89 Manuel utilisateur

Manuels Hachoir à viande populaires d'autres marques

Klarstein

Klarstein Mett Max Manuel utilisateur

Grizzly

Grizzly H7778 Manuel utilisateur

Hobart

Hobart 4822 Manuel utilisateur

Tasin

Tasin TS-108 Manuel utilisateur

Adler Europe

Adler Europe AD 48 Manuel utilisateur

camry

camry CR 4802 Manuel utilisateur

Bake Max

Bake Max BMMG001 Manuel utilisateur

Lumme

Lumme LU-MG2113A Manuel utilisateur

Weston

Weston 35-3201 Manuel utilisateur

Lumme

Lumme LU-2101 Manuel utilisateur

GoWISE USA

GoWISE USA GW88012 Manuel utilisateur

MPM

MPM MMM-07M Manuel utilisateur

Weston

Weston 82-0101-W Manuel utilisateur

BIRO

BIRO 3334SS Manuel de service

HOFFEN

HOFFEN MG-0440 Manuel utilisateur

Scarlett

Scarlett SC-MG45M18 Manuel utilisateur

Adcraft

Adcraft MG-1 Manuel utilisateur

Johnson

Johnson tomit Manuel utilisateur
