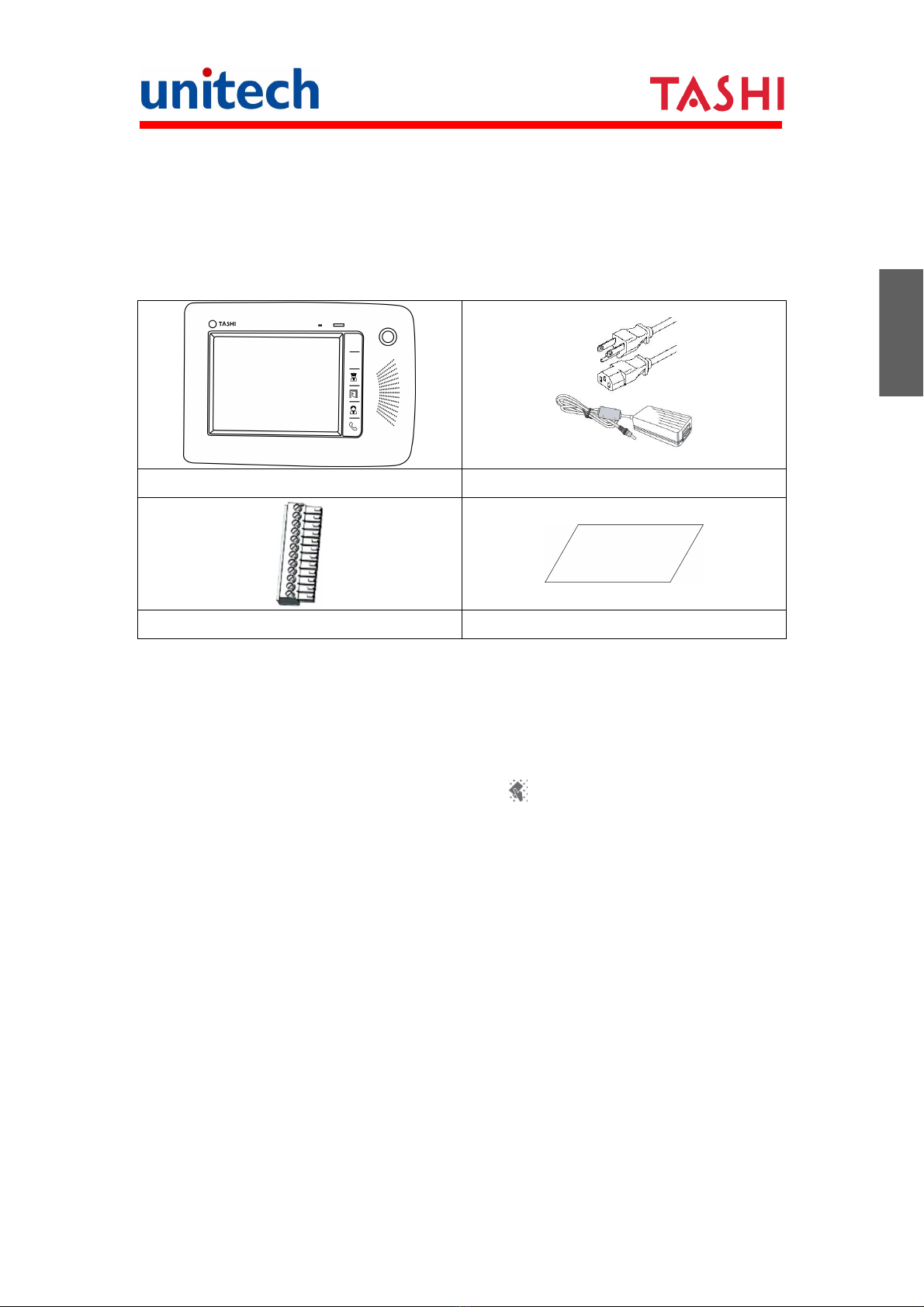

J3 Terminal Block Port
Pin Name Description
1 R1-C Relay 1 Common
2 R1-NO Relay 1 Normal Open
3 R1-NC Relay 1 Normal Close
4 R2-C Relay 2 Common
5 R2-NO Relay 2 Normal Open
6 R2-NC Relay 2 Normal Close
7 R3-C Relay 3 Common
8 R3-NO Relay 3 Normal Open
9 R3-NC Relay 3 Normal Close
10 R4-C Relay 4 Common
11 R4-NO Relay 4 Normal Open
12 R4-NC Relay 4 Normal Close
Relay Output
RL1-CTRL →High R1 (C & NO Linked)
RL1-CTRL →Low R1 (C & NC Linked)
RL2-CTRL →High R2 (C & NO Linked)
RL2-CTRL →Low R2 (C & NC Linked)
RL3-CTRL →High R3 (C & NO Linked)
RL3-CTRL →Low R3 (C & NC Linked)
RL4-CTRL →High R4 (C & NO Linked)
RL4-CTRL →Low R4 (C & NC Linked)
Digit Input
D1+ and D1- are the positive and negative nodes of the external signal inputs.
D1+ = 3V ~ 12V,
D1- = GND DIGIT-INPUT1 = High
D1+ = 0V ~ 2V,
D1- = GND DIGIT-INPUT1 = Low
D2+ and D2- are the positive and negative nodes of the external signal inputs.
D2+ = 3V ~ 12V,
D2- = GND DIGIT-INPUT2 = High
D2+ = 0V ~ 2V,
D2- = GND DIGIT-INPUT2 = Low
