RH767 RFID Handheld Reader

Quick Reference Guide

400558G Rev. B

English

Package Contents

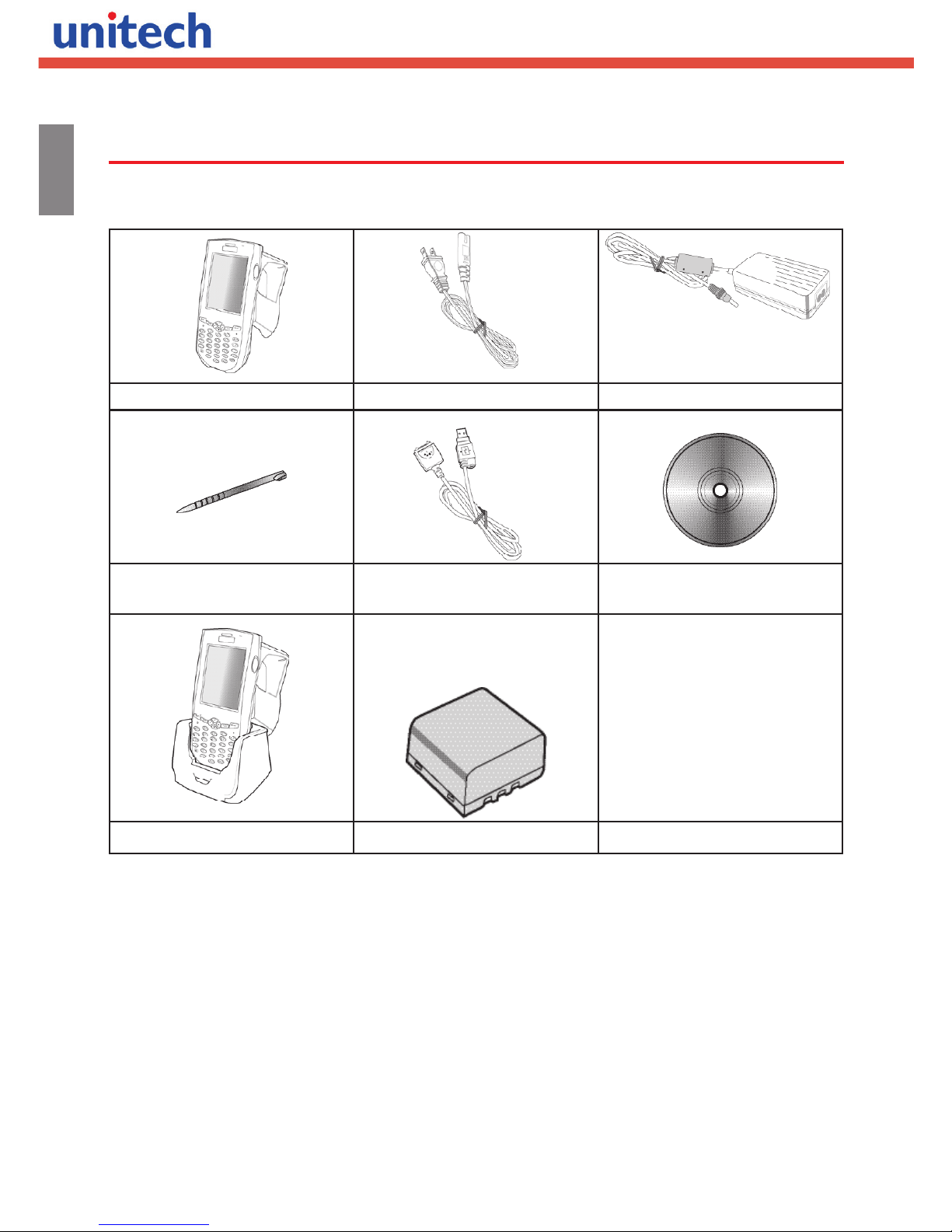

Make sure the following items are in the RH767 box:

RH767 Terminal AC Power Adapter Cable AC Power Adapter

Stylus S y n c h r o n i z a t i o n a n d

Power Cable

Unitech CD-ROM

Cradle (Optional) Battery Pack

If anything appears missing or damaged, please contact a regional Unitech

representative.

English

Front View

Status Indicator.

LCD Touch-screen.

Alpha Mode Indicator.

Keypad.

Power Button.

Microphone.

Right Scanner Trigger Button.

English

Back View

Stylus.

Bar Code Scanner Window.

Infrared (IR) Port.

Left Scanner Trigger Button.

Reset Button.

Bar Code Scanner Trigger.

Battery Compartment.

Strap Hook.

RFID Antenna.

Bottom View

Battery Pack.

Universal Connector.

PCMCIA Slot.

English

Installing the Battery

The RH767 is embedded with a Backup Battery cell to prevent data loss when the

main Battery diconnects from the device. However, the Backup Battery will only

store data for a maximum of 72 hours.

1. Open the Battery Compartment by sliding the tabs in the direction as shown

below:

2. Locate the Backup Battery Switch and turn it to the ON position as shown below:

3. Align the Battery Contacts with the Battery Compartment Contacts as shown

below:

Backup Battery & Grip Battery Switch

Battery Contacts

English

4. Place the Battery Pack into the Battery Compartment and press the battery

securely into place.

5. Replace the Battery Compartment cover, push down the tabs and slide them back

into the lock position as shown below:

Charging the Battery

1. Connect the Synchronization Power Cable connector to the RH767 (1).

2. Plug the AC Adapter cable into the USB Connector's power jack (2).

3. Connect the AC Adapter into an electrical outlet (3).

English

Keypads and Function Buttons

Key Main Function

Power button.

Escape key.

Backspace key.

Function key.

Tab key.

Enter key.

4 way cursor keys, brightness +-.

Alpha key, toggle between numeric and alphabetic entry

modes.

~Numbers keys, characters keys.

Punctuation key.

Using Function keys

Key Function

[FUNC]+ Toggle Display Backlight.

[FUNC]+ Toggle Keypad LED Backlight.

[FUNC]+ Increase screen brightness.

[FUNC]+ Decrease screen brightness.

English

Toggle to Alpha Mode and CAPS

Numeric Mode is the RH767's default function. In Alpha Mode, CAPS mode is the

default condition. Use alpha and Func to toggle into CAPS.

Key Alpha OFF Alpha ON

FUNC UP FUNC DOWN FUNC UP FUNC DOWN

ESC ESC ESC ESC ESC

Backspace Backspace Backspace Backspace Backspace

Enter Enter Enter Enter Enter

1/F1/a 1 F1 a A

2/F2/b 2 F2 b B

3/F3/c 3 F3 c C

TAB/d TAB ` d D

4/F4/e 4 F4 e E

5/F5/f 5 F5 f F

6/F6/g 6 F6 g G

+/^/h + ^ h H

%/BL/i % Backlight i I

7/F7/j 7 F7 j J

8/F8/k 8 F8 k K

9/F9/l 9 F9 l L

-/_/m - _ m M

./;/n . ; n N

@/!/o @ ! o O

0/$/p 0 $ p P

(/)/q ( ) q Q

*/#/r * # r R

SPACE/s SPACE SPACE s S

“/’/t “ ‘ t T

,/?/u , ? u U

[/]/v [ ] v V

//\/w / \ w W

</>/x < > x X

=/&/y = & y Y

DEL/z DEL ~ z Z

English

Turning the RH767 on for the First Time

Charge the RH767 for at least 16 hours before initial use. Once the RH767 starts,

it is time to adjust the screen brightness, calibrate the display and setup the system

time zone date and time.

1. Start the RH767 by pressing the power button on the front panel.

Using the Stylus

CAUTION!

Never use anything other than the RH767 Stylus

on the screen.

1. Remove the Stylus from its holder.

2. Hold the stylus like a pencil.

3. Lightly tap the tip of the Stylus to make a menu choice.

4.Double-tap to open programs.

5. Use the Stylus to print letters or numbers.

English

Calibrating the RH767 Screen

The calibration screen automatically appears when the unit powers on for the rst

time or after the system is reset.

Use a stylus to tap a sequence of target marks on the RH767’s screen. Firmly hold

the stylus on top of the target mark for a moment, and then remove. Continue to tap

the target mark as it stops along the corners of the screen.

Press Enter to confirm the calibration or press ESC to cancel.
