Unitech MS280 Manuel utilisateur

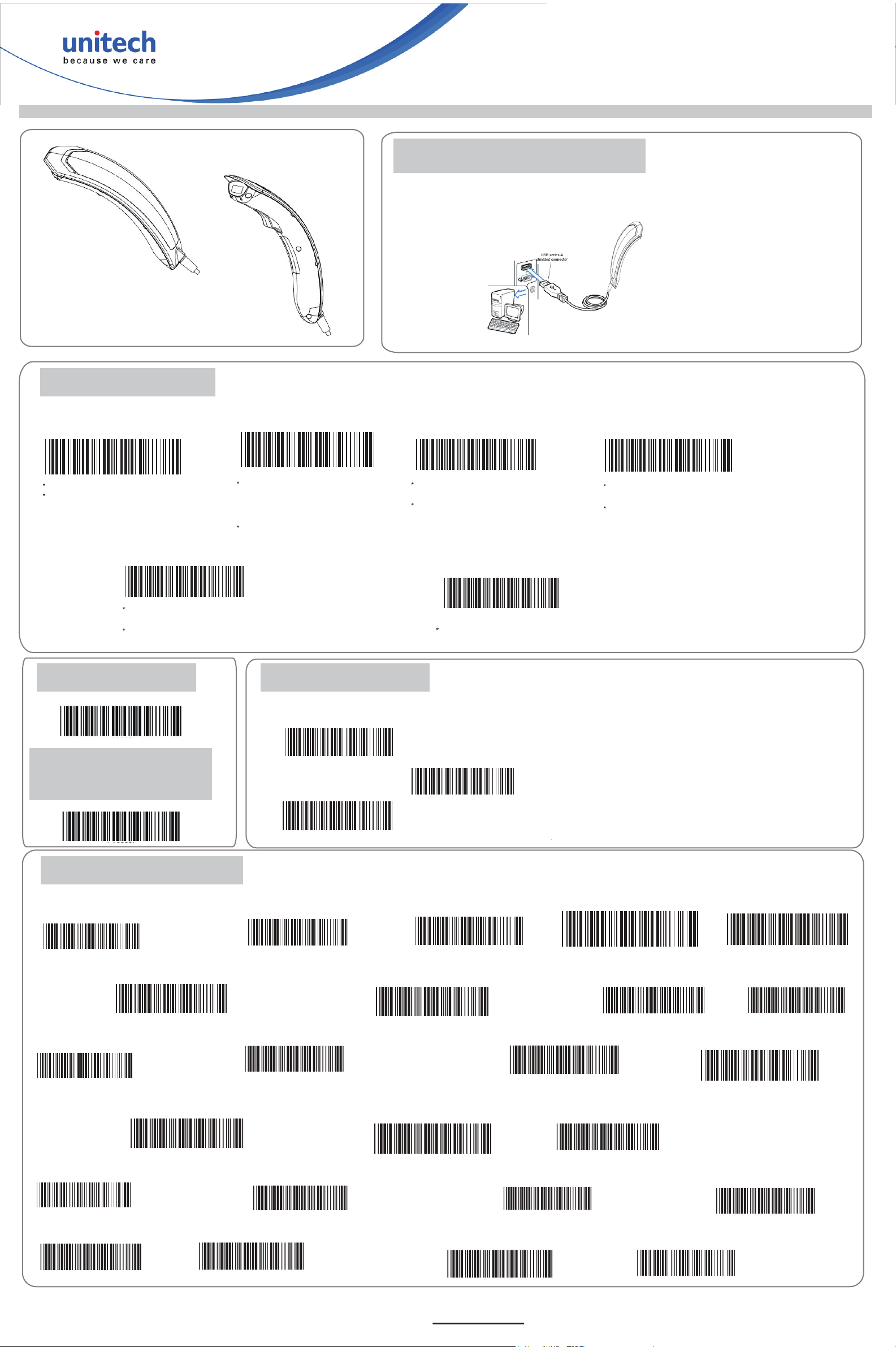

MS280 CCD Barcode Scanner

Quick Start Guide

Factory Default

Version 1.0

401371G

Connecting the Scanner

Connect USB cable to the USB port of a host PC.

* ：Default Option

For more detailed scanner setting, please go to www.ute.com to download the user manual and the

scanner configuration manager utility.

Reading Mode

Keyboard Layout

US English* UK English Italian Swiss (German)

Spanish Slovak French

German Swedish Brazilian ( Portuguese ) ALT Code

Hungarian (Qwertz) Hungarian (101 key) Danish

Japanese (106 Key) Belgian Portuguese Dutch

Canadian (French) CZECH (Qwertz)

Trigger Mode*

Prefix and Suffix

Preamble

Postamble

Clear pre/ postamble

LED is always on.

The trigger does not function in

Continuous Mode.

Flash Mode

The LED is on steady if a bar code is

close to the scanner, but starts ashing

if no bar code is detected after 60

seconds.

The trigger does not function in Flash

Mode.

The LED will light when the trigger is

pressed.

The LED will go o when the trigger is

released.

Continuous Auto Off

The LED is always on when the trigger

is pressed.

The LED will go o if no bar code has

been detected after 60 seconds.

Toggle Mode

The LED is always on when the trigger

is pressed.

The LED will go o if one bar code is read.

Test Mode

Factory Scanability Test Use Only

Continuous Mode

Example:

Setting Procedure:

Data Format:

[Preamble] [Symbology ID] [Barcode Length] [Barcode Data] [Postamble] [Terminator]

Set PREAMBLE String as “ ## ”

POSTAMBLE String as “ $$ ”

Step 1 : Scan : CLEAR PRE/ POSTAMBLE.

Step 2 : Scan : PREAMBLE.

Step 3 : Scan : “ # ” twice from FULL ASCII Table.

Step 4 : Scan : PREAMBLE.

Step 5 : Scan : POSTAMBLE.

Step 6 : Scan : “ $ ” twice from FULL ASCII Table.

Step 7 : Scan : POSTAMBLE.

*Please download user’s manual from unitech website for FULL ASCII Table.

Notes:

1. A PREAMBLE is a string of up to

16 characters added to the beginning

of a scanned barcode.

2. A POSTAMBLE is a string of up to

16 characters added to the end of a

scanned barcode.

3. Default value for both: None.

CZECH (Qwerty)

Swiss (French)

Canadian (Traditional)

Norwegian

Write to

Custom Defaults

Quick Start Guide

Beep Tone

* ：Default Option

For more detailed scanner setting, please go to www.ute.com to download the user manual and the

scanner configuration manager utility.

Version 1.0

401371G

MS280 CCD Barcode Scanner

Beep High

Beep Low

Beep Off

Beep Medium*

Terminator

None

CR+LF*

CR*

TAB

Space

ESC

1. For the USB interface the default terminator is CR.

2. For the RS232 interface the default terminator is CR+LF.

Send Data Length

Send Data Length On

Send Data Length Off *

Beeper Volume Control

Below is the position of Terminator among output data string:

[Preamble] [Symbology ID] [Barcode Length] [Barcode Data] [Postamble] [Terminator]

By default, with Preamble, Postamble, Barcode Length and Symbology ID

disabled, the scanner data output will be:

[Barcode Data] [Terminator]

Note:

Check Version

Low

High* Medium
