Uniden WNP1000 Manuel utilisateur

TABLE OF CONTENTS

Welcome....................................................................................3

Features .................................................................................3

Installation ................................................................................4

Package Contents ..................................................................4

Installing the Hardware...........................................................5

Physical Installation ............................................................5

Powering the AP .................................................................5

Connecting the Device to Computers and Network............6

LED Display........................................................................7

Setting up the Wireless AP.....................................................8

The Configuration Interface....................................................9

Logging In...............................................................................9

General Information..............................................................11

Wireless Statistics.................................................................13

Password Setup ...................................................................14

Saving the Configuration......................................................15

Access Point Configuration..................................................16

LAN Setup ............................................................................16

Reset Button.........................................................................18

WLAN Setup.........................................................................19

WEP Encryption................................................................21

WEP Key Configuration....................................................22

WLAN Access Control..........................................................26

Firmware Upgrade................................................................29

Troubleshooting.....................................................................35

Changing The IP Address......................................................36

Specifications.........................................................................40

Legal Notice............................................................................41

IC Notice:.................................................................................41

FCC Information.....................................................................41

Precautions! ...........................................................................43

One Year Limited Warranty ...................................................46

Glossary..................................................................................48

Welcome

Congratulations on your purchase of the

WNP1000 802.11b Wireless Access Point (AP).

This WNP1000 Wireless AP is designed and engineered to

exacting standards for reliability, long life and outstanding

performance.

With the WNP1000 Wireless Access Point, you can connect

your 802.11b compliant wireless computers or other clients to

establish a wireless network in your home or office.

Features

§Complies with the IEEE 802.11b Direct Sequence

Specification

§Complies with IEEE 802.3, IEEE 820.3u for Ethernet

connection

§Supports 1, 2, 5.5 and 11 Mbps Data Rate on the

wireless interface

§Supports 10/100Mbps, full/half duplex, Auto-negotiation

on the Ethernet interface

§Supports up to 32 wireless clients

§WEP 64/128-bit data encryption for security

§Layer 2 Roaming capability

§Remote management via SNMP protocol

§Supports MIB II and IEEE802.11b MIBs

§Remote management via web browser

§Firmware upgrade via HTTP using web-browser

interface

Uniden®is a registered trademark of Uniden America Corporation.

and Your Gateway To The Evolutionare a trademarks of Uniden America Corporation.

Windows®98/2000, Millennium, and XP are registered trademarks of Microsoft® in the United States and/or other countries.

Other brand and product names are trademarks or registered trademarks of their respective holders.

Information is subject to change without notice.

Installation

Package Contents

The following items are included in your package:

•One WNP1000 unit with stand

•One 7.5V DC 1A power adapter

•Two screws for wall mounting

•One Easy Start Guide

•CD containing the Owner’s Manual

Installing the Hardware

Physical Installation

Select a safe location for the WNP1000 Wireless AP. You may

install the WNP1000 Wireless AP either upright on a desk or

bookcase using the included stand, or mount the WNP1000

Wireless AP on a wall using the two screws as shown in the

figure below. Leave adequate room for the antennas to unfold

and allow adequate cable length for both the power and

Ethernet cables.

Powering the AP

Plug the power adapter into an AC power outlet and connect

the output of the power supply to the power jack on the rear of

the WNP1000 Wireless AP. The power LED should turn On

(Blue) immediately.

Connecting the Device to Computers and Network

When you connect the WNP1000 Wireless AP to a switch or

router, check the WNP1000 Wireless AP LAN LED.

Solid green indicates a link to a fast Ethernet Switch

(100Mbps). Solid amber indicates a link to a 10Base-T Switch.

Flashing indicates activity. A typical configuration is shown in

the figure below.

LED Display

The following table summarizes the operation of the LEDs on

the WNP1000 Wireless AP.

LED State Description

Power

On When the device is powered, this LED is

on.

Wireless

Blink

OFF

Indicates one or more wireless clients are

connected

Indicates that wireless data is being

transmitted and/or received

No wireless transmission occurring.

Blink

The LED will light up if the WNP1000

Wireless AP is connected to a hub or

computer (speed indicated by color).

Indicates that data is being

transmitted/received

Ethernet

Green

Amber

Indicates the LAN port isoperating at

100Mbps

Indicates the LAN port is operating at

10Mbps

Setting up the Wireless AP

The WNP1000 802.11b Access Point is configured to work with

your cable/dsl router, switch or hub and other 802.11b wireless

products directly out of the box. There is no need for you to

configure your Access Point, unless you want to enable

increased security (WEP), change the IP Address, or other

configuration options.

If you want to change the default configurations, you will need

to access the browser-based utility of the WNP1000 Wireless

AP, you need a computer with the TCP/IP protocol enabled and

web browser software (Microsoft’s Internet Explorer, Netscape,

etc.).

In order for your computer to communicate with the WNP1000,

both (your computer and the AP) will need to be on the same

Local Area Network, i.e. they must have similar IP Addresses.

The default IP address of the WNP1000 Wireless AP is

http://192.168.1.10. As a result, your PC’s IP Address should

be on the same network (i.e., at a LAN IP Address such as

192.168.1.2, 192.168.1.3, etc.)

Note: If you are having trouble communicating with your

Access Point, please see “Troubleshooting” on page

37.

You can connect to the browser based configuration screens

from any of the following three options:

a) Wirelessly connect through a wireless 802.11b client in

your PC or Laptop. (Uniden’s PCW300, PCW200 or

PCW100 802.11b clients.)

b) Connect both the WNP1000 Wireless AP and the

computer to a hub using “straight-through” Ethernet

cables.

c) Connect the computer directly to the WNP1000

Wireless AP using a “crossover” Ethernet cable.

If you wish to setup the WNP1000 Wireless AP by using an

802.11b enabled PC, make sure the 802.11b client is in

“Infrastructure” mode, and has an SSID of “UNIDEN” or blank.

The default IP address of the WNP1000 Wireless AP LAN

interface is 192.168.1.10 and the default network mask

255.255.255.0.

The Configuration Interface

The WNP1000 Wireless AP incorporates a browser-based

management/configuration interface. The following sections

guide you through configuring your WNP1000 Wireless AP and

detailing the information found within each section.

Logging In

Open a web browser on your computer configured for TCP/IP

networking. Make sure that the computer and the

WNP1000 Wireless AP are on the same local area

network, with similar IP addresses. (If you are having

trouble communicating with your Access Point, please

see “Troubleshooting” on page 37.)

1. Type “http://192.168.1.10/” into the Location field

(or the URL field) at the top of the browser window

and hit the Enter key. This is the same location were

you type in the web address such as

http://www.uniden.com. (192.168.1.10 is the default

IP address of the WNP1000 Wireless AP.)

Once you hit the Enter key, the “Enter Network

Password” window will appear.

2. Type “admin”(lower case) in the User Name field,

leave the Password field blank, and click OK.

The General Information web page will appear next.

3. After you are logged into the Access Point you can

change the User Name and Password.

General Information

You are now logged into the Configuration tool for the

WNP1000 Wireless AP. To navigate the tool, click on any

items located on the left side of the page.

The fields on the “General Information” page are described

below. To see the current status, click the Refresh button.

•Hardware Version: Displays the hardware version of your

WNP1000 Wireless AP.

•Software Version: Displays the version of the software

installed on the WNP1000 Wireless AP.This changes

whenever you install a software upgrade.

•Time since last boot: Displays the time that has elapsed

since the WNP1000 Wireless AP was last started.

•LAN MAC Address: Displays the Ethernet MAC address of

the LAN (Ethernet) interface of the WNP1000 Wireless AP.

AMAC address consists of six 2-digit number pairs that

uniquely identify an Ethernet device.

•Wireless MAC Address: Displays the MAC address of the

wireless interface of the WNP1000 Wireless AP.

•IP Address: Displays the IP address of the local LAN

interface of the WNP1000 Wireless AP.The default IP

address is 192.168.1.10.

•Subnet Mask: Displays the local subnet mask of the LAN

interface of the WNP1000 Wireless AP. The default subnet

mask is 255.255.255.0.

Wireless Statistics

This page shows the Wireless LAN MAC Address of the

WNP1000 Wireless AP, as illustrated in the figure below.

Password Setup

The “Password Setup” page is for changing the security

settings of the WNP1000 Wireless AP. If you wish to change

the User Name or Password, fill in the appropriate fields and

click the Apply button. Please note that the Password and

Confirm Password fields must contain the same value.

Also on this page, you can reset the unit to factory defaults.

Please be aware that the default LAN IP Address is

192.168.1.10, and the default User Name is “admin” (with a

blank password).

Saving the Configuration

The configuration changes that you make are automatically

saved into the flash memory of the WNP1000 Wireless AP

within a few seconds after you click the Apply button.

However, the WNP1000 Wireless AP will continue to use the

previous configuration values until you restart the WNP1000

Wireless AP by clicking the Reboot button on the left manual

page.

Each time you make a change, the WNP100 Wireless AP will

remind you by displaying a page such as the one shown below:

Access Point Configuration

Through the following procedure, you can enable the wireless

operation of the WNP1000 Wireless AP to allow

communication between wireless clients and devices on your

wired network such as a DSL/Cable modem, printers, file

servers, and e-mail servers.

LAN Setup

Click LAN Setup on the left menu. The following page will

appear.

MAC Address:

Displays the Ethernet MAC address of the LAN (Ethernet)

interface of the WNP1000 Wireless AP.You may not change

the MAC address of your WNP1000 Wireless AP.

Change the following fields as desired, and then click Apply.

Please remember that changes will not take effect until after the

WNP1000 Wireless AP is restarted.

LAN IP Address:

In this field, you enter the IP Address of the WNP1000

Wireless AP’s LAN port. If you change this address from the

factory default of 192.168.1.10, please remember the new

address, as you will need to use it to access the WNP1000

Wireless AP for configuration in the future. However, if you

forget the IP Address you can press the Reset button located

on the bottom of the WNP1000 Wireless AP. Push and

holding the Reset Button for three seconds restores all

settings to the factory default settings.

Subnet Mask:

In this field, you enter the Subnet Mask of the local network to

which the WNP1000 Wireless AP is attached. The default

Subnet Mask is 255.255.255.0.

Reset Button

If you change the IP address of the WNP1000 Wireless AP

and forget the IP address, you can reset the access point back

to the factory default settings, 192.168.1.10.

Press and hold the Reset Button for three seconds with the end

of a paper clip, while the access point is ON. The access point

will then restore the unit to the original factory settings. The

Reset Button is located on the bottom of the WNP1000

Wireless AP.

Note: All settings you entered for the SSID, WEP, User Name

and Password will be erased and you will need to re-

configure the unit to your settings.

Pressing the Reset Button once will is a soft boot and

will refresh the Access Points connections.

Reset Button

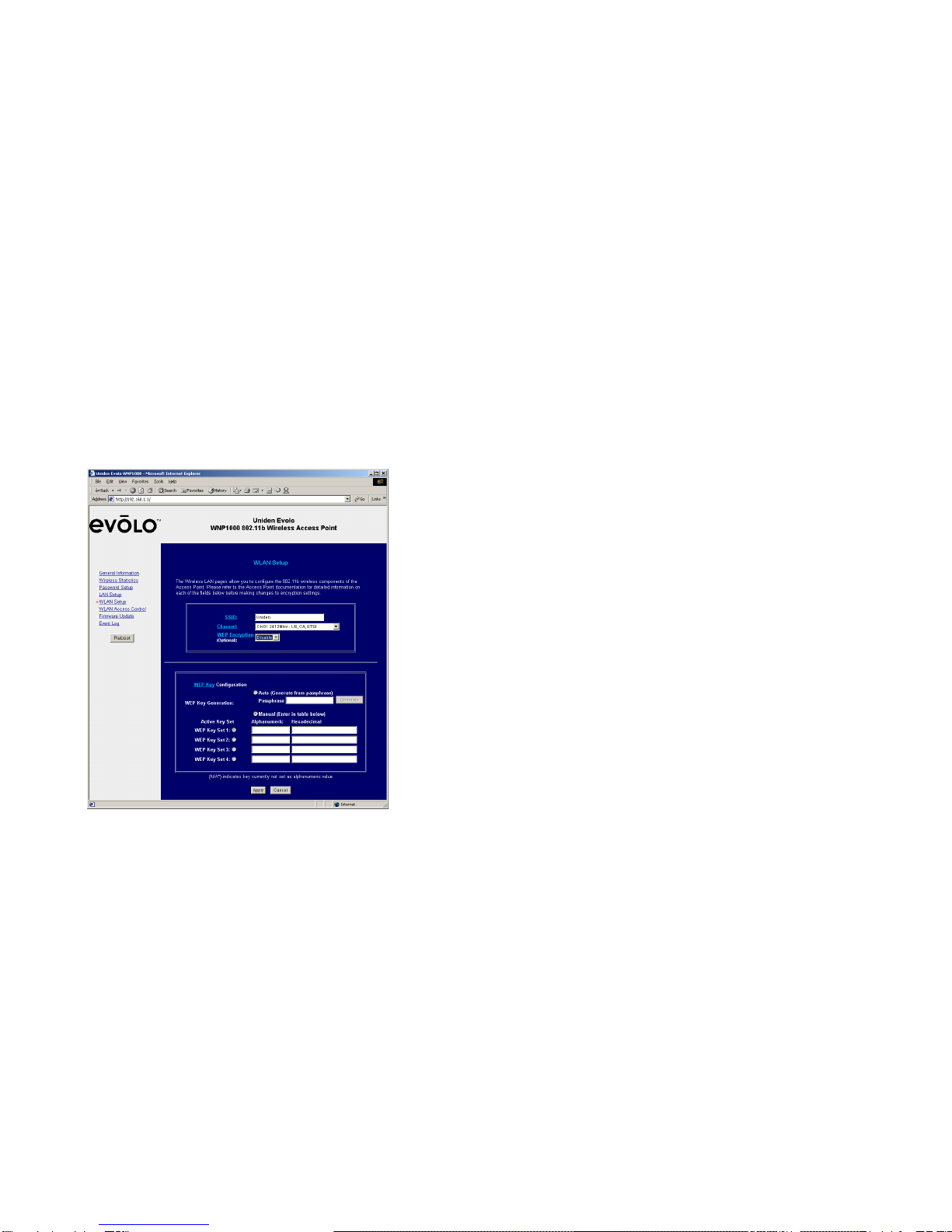

WLAN Setup

You are now ready to begin setting up the wireless portion of

your network. Click WLAN Setup on the menu, and the

following page will appear.

Set each of the parameters on this page as desired, and click

Apply. The parameters are described in more detail below

SSID:

The Service Set Identifier (SSID) is a 32-character, case-

sensitive field that identifies your WNP1000 Wireless AP and

wireless network to wireless clients that support the

IEEE802.11b wireless standard. You should use a unique SSID

to control access to your private network, and to prevent

conflicts with other wireless networks that may be nearby. The

WNP1000 Wireless AP is configured with a default SSID of

UNIDEN.

Note: All clients on the same wireless LAN must have the

same SSID. If you change the SSID on the WNP1000

Wireless AP, you must change the SSID for each

computer and/or device you are wanting to connect

using the 802.11b wireless network.

Channel:

Channels are the spectrum range where your wireless signals

are transmitted. The default is channel 1. However, to

maximize performance for your wireless network, another

channel may give you better performance. Select the channel

you wish to use from the pull-down menu.

Note: For better performance, avoid using channels occupied

by other AP’s in the area.

Table des matières

Autres manuels Uniden Point d'accès sans fil

Uniden

Uniden evolo WNR2004 Manuel utilisateur

Manuels Point d'accès sans fil populaires d'autres marques

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur

Ubiquiti

Ubiquiti NanoStation NSM2 Manuel utilisateur

Cisco

Cisco Aironet 1550 Series Manuel utilisateur

Aruba

Aruba IAP-335 Manuel utilisateur

Advantek Networks

Advantek Networks AWN-AP-54MR Manuel utilisateur

IP-COM

IP-COM AP355 Manuel utilisateur

Buffalo

Buffalo AirStation WLA-L11G Manuel utilisateur

EnGenius

EnGenius EnStationACv2 Manuel utilisateur

D-Link

D-Link DAP-3662 Manuel utilisateur

xG Technology

xG Technology xMax CN1300 Manuel utilisateur

Widelink

Widelink ezWave WAP-1100 Series Manuel utilisateur

Edimax

Edimax CAP1200 Manuel utilisateur

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuel utilisateur

Aruba

Aruba AP-203R Manuel utilisateur

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuel utilisateur

CreatComm

CreatComm TB5F Manuel utilisateur

SineDigital

SineDigital MW-1500AP(H) Manuel utilisateur

TP-Link

TP-Link AP9650 V1 Manuel utilisateur
