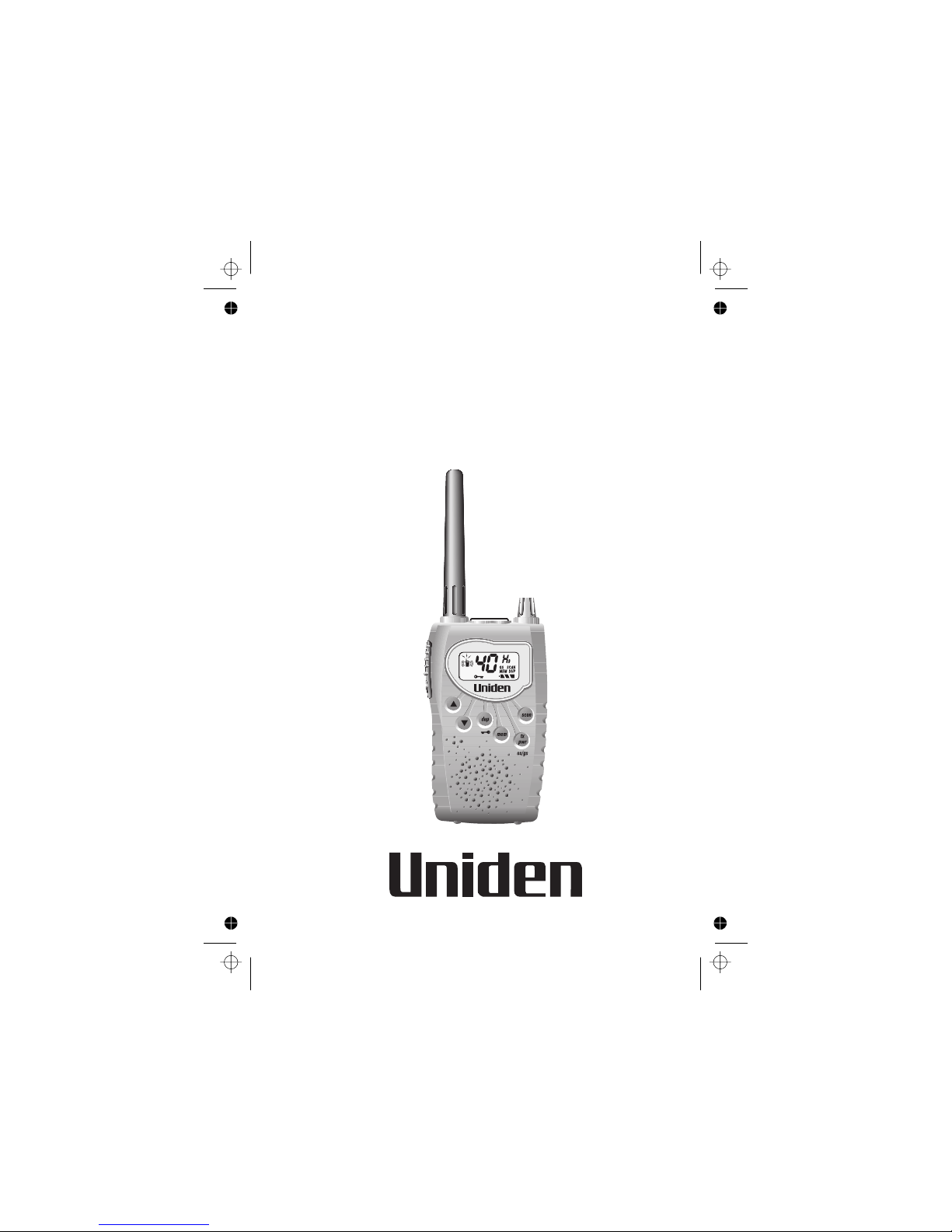

Uniden UH044DP Manuel utilisateur
UNIDEN Model UH044DP DELUXE PACK UHF CB Radio
Operating Guide
UH044DP
DELUXE PACK
UNIDEN Model UH044DP DELUXE PACK UHF CB Radio
WARNING!
1
The citizen band radio service is licenced in Australia by
ACMA Radio-communications (Citizen Band Radio Stations)
Class Licence and in New Zealand by MED General User
Licence for Citizen Band Radio and operation is subject to
conditions contained in those licenses.
UNIDEN Model UH044DP DELUXE PACK UHF CB Radio
CONTENTS
2
Introduction
Features 3
Controls & Indicators 4
Included in Your UH044DP DELUXE PACK 6
Getting Started
Battery Installation 7
Charging Batteries 8
Battery Level Display 9
Low Battery Alert 10
Wrist Strap 10
Operation
Power On/Off 11
Volume 11
Selecting a Channel 12
To Transmit and Receive 12
To Operate in Duplex Mode 13
Transmit Power Select 14
Scanning 15
1. Open Scan Mode 15
2. Group Scan Mode 16
Priority Channel 17
Programming Scan Channels 17
Drop-Out Delay 18
Keypad Confirmation Tone 18
Power Save 18
Back Lighting 19
Keypad Lock 19
Monitor 19
UHF CB Channels & Frequencies 20
Warranty 22
UNIDEN Model UH044DP DELUXE PACK UHF CB Radio
The UH044DP DELUXE PACK contains the UH044 portable
two-way UHF-CB radio. It is compact, rugged and fits easily in
your hand. This hand held UHF radio will give you consistent,
outstanding performance in virtually all conditions and situations.
To ensure that you get the most from the UHO44's features,
please read this operating guide carefully before using the unit.
40 Channels
Switchable Output Power 2W/0.5W/0.04W
Up to 8 km range*
LCD Display
Group Scan with Priority Channel Watch
Open Scan
Duplex Capability
Monitor
LCD Back Light (Auto On for 5 Sec)
Auto Power Save
Battery Level Indicator
Keypad Lock
Key Touch Tone On/Off
Auto Squelch Control
FEATURES
!
!
!
!
!
!
!
!
!
!
!
!
!
!
*Range varies depending on the environment. 8km range is
noted in a flat open environment.
INTRODUCTION
3
UNIDEN Model UH044DP DELUXE PACK UHF CB Radio
CONTROLS & INDICATORS
4
UNIDEN Model UH044DP DELUXE PACK UHF CB Radio
A. Transmit
B. Channel Numbers
C. Key Lock
D. Memory
E. Battery Level Indicator
F. Duplex Transmit
G. Scanning
H. Group Scanning
I. Receiving
J. Power Level Indicator
1. Speaker Jack
2. Microphone Jack
3. On/Off Volume
4. LCD Display
5. Up Button
6. Down Button
7. Microphone
8. Speaker
9. Scan Button
10. Transmit Power Select /
open/group scan
11. Memory On/Off Button
12. Duplex On/Off Button
13. PTT (Push-to-talk)
Button
14. Monitor Switch
15. Belt Clip
CONTROLS & INDICATORS
5
UNIDEN Model UH044DP DELUXE PACK UHF CB Radio
INCLUDED IN YOUR UH044DP DELUXE PACK
6
If any of these items are missing from the box,
contact your Uniden Dealer.
Speaker Microphone (SM-040)
Earpiece/Microphone (EM-044)
Additional AC Adaptor (AAD-044S)
Cigarette Charger (CL-040)
Headset Microphone (HM-040)
Optional Accessories
!
!
!
!
!
AC Adaptor
3x AA NiCd batteries
Operating Guide
UH044DP
DELUXE PACK
UNIDEN Model UH044DP DELUXE PACK UHF CB Radio
BATTERY INSTALLATION
Your Deluxe pack includes 3 AA rechargeable NiCd
batteries to power the UH044. You must install and then
charge the batteries for 15-20 hrs before use.
The UH044 can also use 3 AA Alkaline batteries.
1. Make sure your radio is off.
2. Release the battery cover clip,
then remove the battery cover.
3. Insert 3 AA rechargeable NiCd
batteries according to the
polarity symbols inside the
battery compartment.
4. Align the battery cover tabs
with the UH044 tab holes
then replace the cover.
Do not mix old and new batteries to avoid
damage to the unit.
To install the batteries:
GETTING STARTED
7
UNIDEN Model UH044DP DELUXE PACK UHF CB Radio
8
CHARGING BATTERIES
Warning Notice!
[ON/OFF VOLUME]
Use only
the supplied AAD-044S power
adaptor if rechargeable
batteries will be used in
the UH044.
Turn the UH044 knob
off and
connect the AC adaptor plug
to the mic jack.
Battery charging times vary.
A longer time is required to
charge higher capacity
batteries.
Rechargeable Batteries Charging Time
700mAH Ni-Cad 14-16 hrs
1000mAH Ni-Cad 24-27 hrs
1300mAH Ni-MH 31-35 hrs
Disconnect the AC adaptor from the unit when charging is
completed.
Alkaline TX High 15 Hours
TX Mid 25 Hours
TX Low 42 Hours
NiCAD (700mA) TX High 8 Hours
TX Mid 10 Hours
TX Low 15 Hours
NiMH (1700mA) TX High 11 Hours
TX Mid 18 Hours
TX Low 35 Hours
!
!
!
BATTERY LIFE
Battery Type Transmit Level Battery Life
GETTING STARTED
UNIDEN Model UH044DP DELUXE PACK UHF CB Radio
9
BATTERY LEVEL DISPLAY
The icon in the bottom right hand corner of the screen
indicates the UH044 current battery voltage level at all times.
The battery level is displayed in 3 levels:
Battery 100% full
Battery approx
30% capacity
Almost Empty
70% capacity
Battery approx
LEVEL 1
LEVEL 2
LEVEL 3
When SW is pressed at Level Empty, battery icon
and channel number will flash.
GETTING STARTED
