Uniden EXS 2010 Manuel utilisateur
Thank you for choosing the Uniden EXS 2010 cordless telephone.
This phone is designed for reliability, long life, and outstanding
performance utilizing the latest in 900 MHz Digital Spread Spectrum
technology.
Note: Some illustrations in this manual may differ from the
actual unit for explanation purposes.
• 900 MHz Digital Spread Spectrum Technology
• 10 Memory Dial Locations
• 32 Digit Redial
• Flash and Pause
• Pulse / Tone Dialing
• Page
• 6 Hour Talk Time
• 10 Day Standby Time
• Handset Earpiece and Ringer Volume Controls
• Hearing Aid Compatible
• Lighted Keypad
• Headset Compatible
Digital Spread Spectrum Technology utilizes a “wider
frequency band”vs. a “single narrow band”used in standard
digital transmissions. The result is a more secure conversation
with the clarity of digital sound, extended range, and minimal
interference from other cordless phone.
Random Code™ digital security automatically selects one of
over 65,000 codes for the handset and base.
These features enhance your phone’s security and also
prevent unauthorized calls as a result of your phone being
activated by other equipment.
The EXS 2010 features include AutoTalkTM and AutoStandbyTM
AutoTalk allows you to answer a call by just removing the
handset from the base so you don’t have to waste time
pushing buttons or flipping switches. AutoStandby allows you
hang up by simply returning the handset to the base.
Features
Introduction
INTRODUCTION
TO YOUR NEW PHONE
EXS 2010 6/28/00 4:36 PM Page 1
vol
DIGITAL SPREAD SPECTRUM
batttalk
mute redialmem
abc def
ghi mno
pqrs tuv wxyz
oper
channel pause tone ringer
jkl
12 3
45 6
78 9
0#
talk flash
page/find
power
status
5
10
12
11
6
7
8
9
13
15
16
17
20
18
19
14
1
2
3
4
27 28 29
25
23
24
26
21
22
1. Handset antenna
2. Headset jack cover
3. Handset battery compartment
4. Handset ring switch
5. Handset speaker
6. Talk/Batt LED
7. Talk key
8. Volume down key
9. Mute key
10. key
11. Channel key
12. Pause key
13. Handset microphone
14. Volume up key
15. Flash key
16. Redial key
17. Memory key
18. Ringer key
19. Tone key
20. Handset battery charging contacts
21. Handset retainer clip
22. Base charging contacts
23. Base antenna
24. Status LED
25. Power LED
26. Page/Find key
27. Pulse-Tone switch
28. DC power input
29. Phone jack
Controls and functions
EXS 2010 6/28/00 4:36 PM Page 3
Introduction / Features...............inside front cover
Controls and Functions ..............inside front cover
Getting Started
Read this first..........................................................2
Step 1: Checking the package contents...............3
Step 2: Setting up the base unit ...........................4
Mounting the base unit on a wall ...........7
Step 3: Installing the handset battery pack..........9
Automatic digital code security..............10
Basics
Making a call ........................................................11
Receiving a call ....................................................12
Ringer mute ..........................................................12
Flash and Call Waiting .........................................13
Adjusting the ringer and earpiece volume.........13
Redialing a call.....................................................14
Mute ......................................................................15
Using page feature...............................................16
Memory Dialing
Storing phone numbers .......................................17
Making calls with memory dialing......................18
Chain dialing.........................................................18
Erasing a stored phone number..........................19
Additional Information
Installing the beltclip............................................20
Headset installation..............................................20
Note on power sources .......................................21
Maintenance..........................................................21
Troubleshooting ................................................22
Index....................................................................24
Contents
Getting Started
Basics
Memory Dialing
Additional
Information
CONTENTS
OF YOUR OWNER’S MANUAL
EXS 2010 6/28/00 4:12 PM Page 5
2
This cordless telephone must be set up before use. Follow these steps;
Step 1 (page 3)
Unpack and check the telephone and accessories.
Step 2 (page 4 to 8)
Next, choose the best location to set
up the base unit.
Base unit
page/find
power
status
DIGITAL
SPREAD
SPECTRAM
900MHz
Step 3 (page 9 to 10)
Then, insert the battery pack into the handset.
You must charge the battery pack for 15 - 20
hours before using the phone. Handset
About the digital security code
This cordless telephone uses a digital security code to prevent
unauthorized access to your base unit. This security code prevents
other cordless handsets from making calls through your base unit.
A random security code will be assigned automatically between
your base unit and handset when you charge the battery pack for
the first time.
Read this first
GETTING STARTED
EXS 2010 6/28/00 4:12 PM Page 6
3

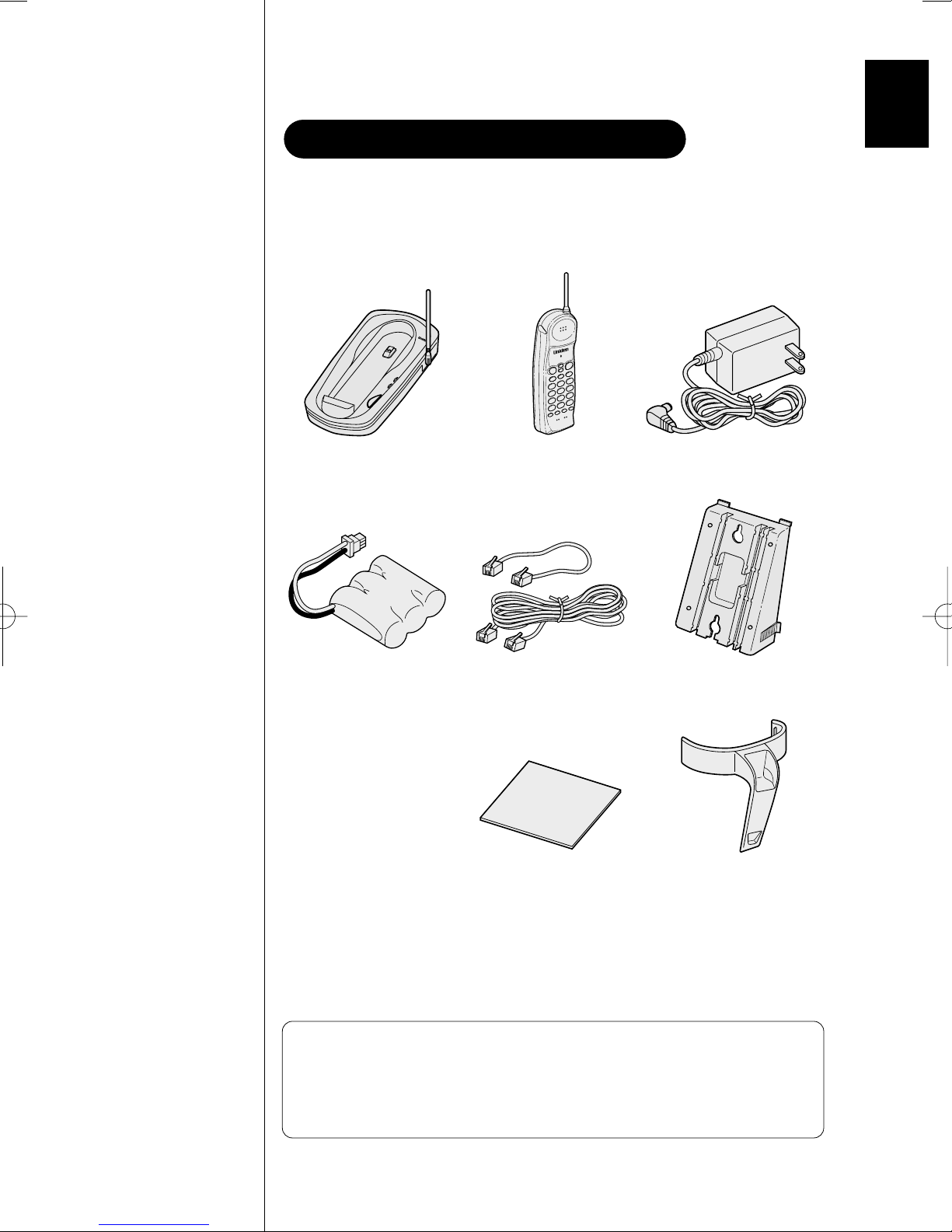

Make sure you have received the following items in the package.
If any of these items are missing or damaged, contact the Uniden
Parts Department (see below).
•Base unit •Handset •AC adapter (AD-310)
•Rechargeable
battery pack
(BT-905)
•Telephone line
cord (2) •Wall mount adapter
•Beltclip
•This Owner's Manual
•Precautions and Important Safety Instructions
•Registration Card
•Quick Reference Guide
Uniden Parts Department
(800) 554-3988
Hours: M-F 8:30 AM to 5:00 PM CST.
We can also be reached on the web at www.uniden.com.
page/find
power
status
DIGITAL
SPREAD
SPECTRAM
900MHz
Checking the package contents
•Memo sticker
EXS 2010 6/28/00 4:12 PM Page 7
4
Do the following steps.
•Choose the best location
•Connect the base unit
•Choose the dialing mode
Choose the best location
Before choosing a location for your new phone, read the
INSTALLATION CONSIDERATIONS included in the PRECAUTIONS
AND IMPORTANT SAFETY INSTRUCTIONS brochure. Here are some
important guidelines you should consider:
•You should charge your handset for 15 - 20 hours before using the
phone.
•The location should be close to both a phone jack and continuous
power outlet which is not switchable.
•Keep the base and handset away from sources of electrical noise
such as motors and fluorescent lighting.
•Be sure there is sufficient space to raise the base antenna
fully vertical.
•The base can be placed on a desk, tabletop or mounted on a
standard wall plate.

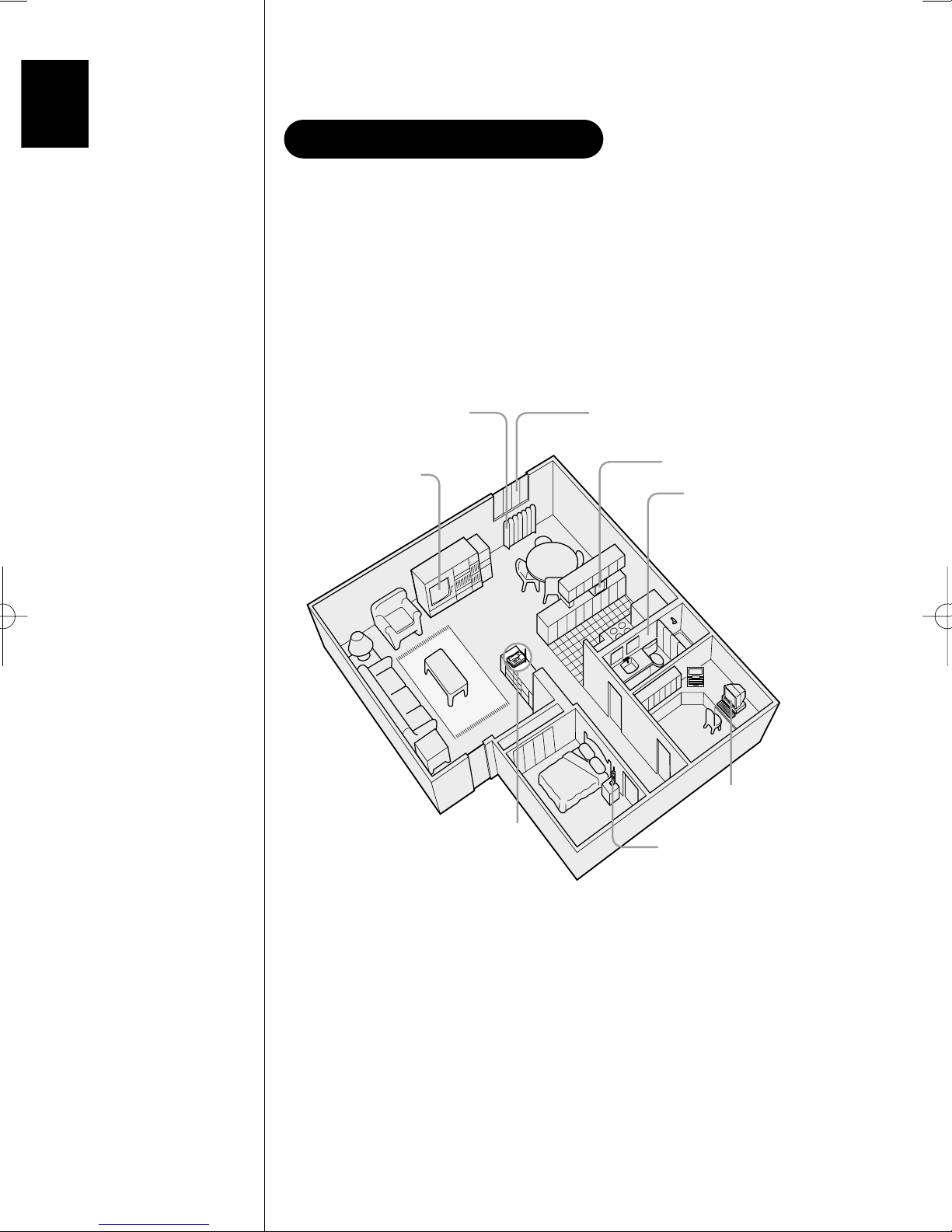

Avoid heat sources, such as
radiators, air ducts, and sunlight
Avoid television sets
and other electronic
equipment
Avoid noise sources such as a window
by a street with heavy traffic
Avoid microwave ovens
Avoid excessive
moisture, extremely low
temperatures, dust,
mechanical vibration, or
shock
Avoid personal
computers
Avoid other cordless
telephones
Choose a central location
Setting up the base unit
EXS 2010 6/28/00 4:12 PM Page 8
5

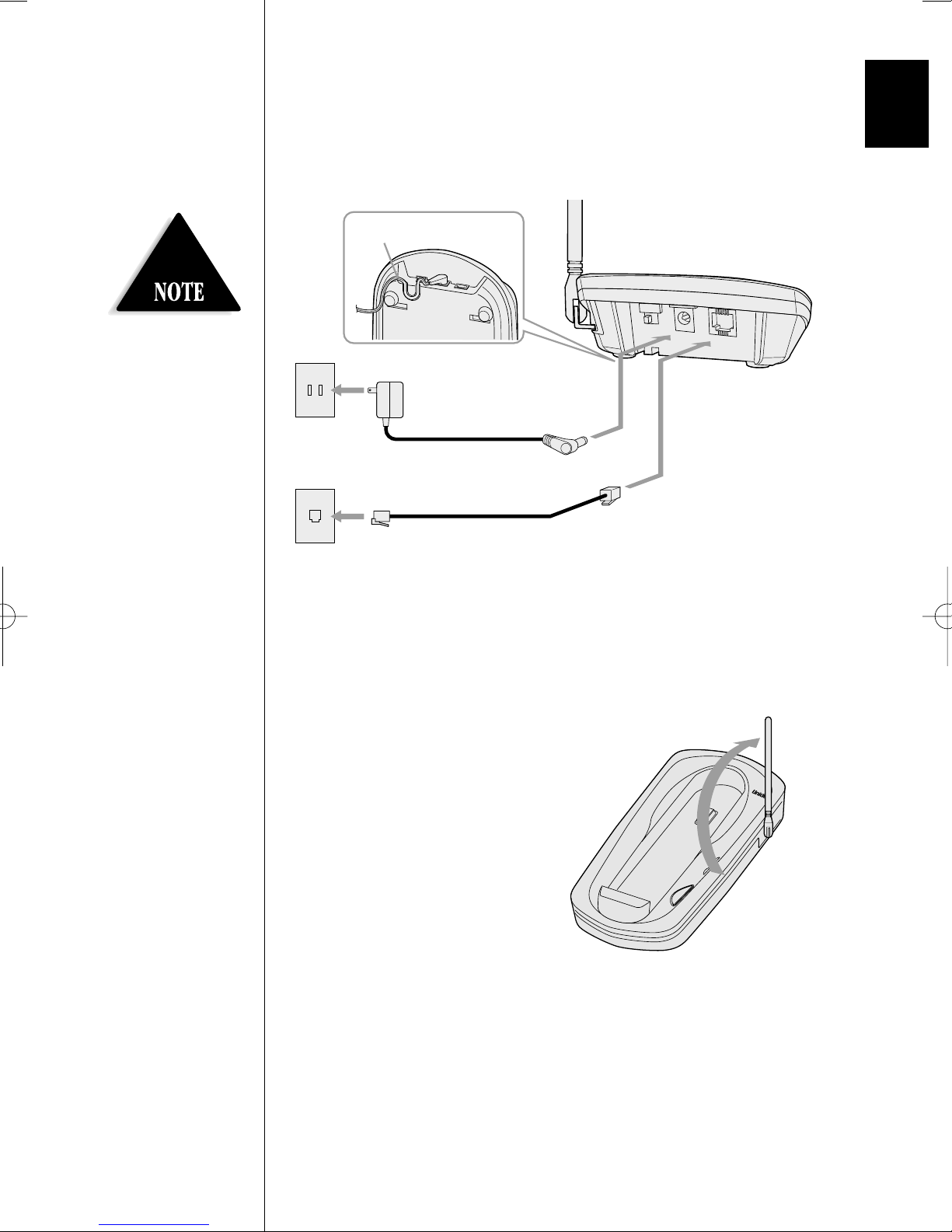

Connect the base unit
If you want to install the base unit on the wall, see page 7.
Route the cord.
To AC outlet
To telephone outlet To TEL LINE
To DC IN 9V
AC adapter
(supplied)
Telephone line cord
(supplied)
1
2
Place the power cord so it
does not create a trip
hazard, or where it could
become chafed and create
a fire or electrical hazard.
1Connect the telephone line cord to the TEL LINE jack and to
a telephone outlet.
2Connect the AC adapter to the DC IN 9V jack and to a
standard 120V AC wall outlet.
3Set the base unit on a desk or
tabletop and place the handset
on the base unit.
Then raise the antenna to a
vertical position.
page/find
message
status
DIGITAL
SPREAD
SPECTRAM
900MHz
EXS 2010 6/28/00 4:12 PM Page 9
6
Use only the supplied AD-310 AC
adapter. Do not use any other AC
adapter.
Connect the AC adapter to a
continuous power supply.
Place the base unit close to the
AC outlet so that you can unplug the
AC adapter easily.
If your telephone outlet isn't modular,
contact your telephone company for
assistance.
Polarity of the plug
Modular
Choose the dialing mode
Depending on your dialing system, set the PULSE-TONE switch as
follows:
If your dialing system is Set the switch to
Tone TONE
Pulse PULSE
If you aren't sure of your dialing system
Make a trial call with the PULSE-TONE switch set to TONE.
If the call connects, leave the switch as is; otherwise, set to PULSE.
PULSE TONE
EXS 2010 6/28/00 4:12 PM Page 10
7

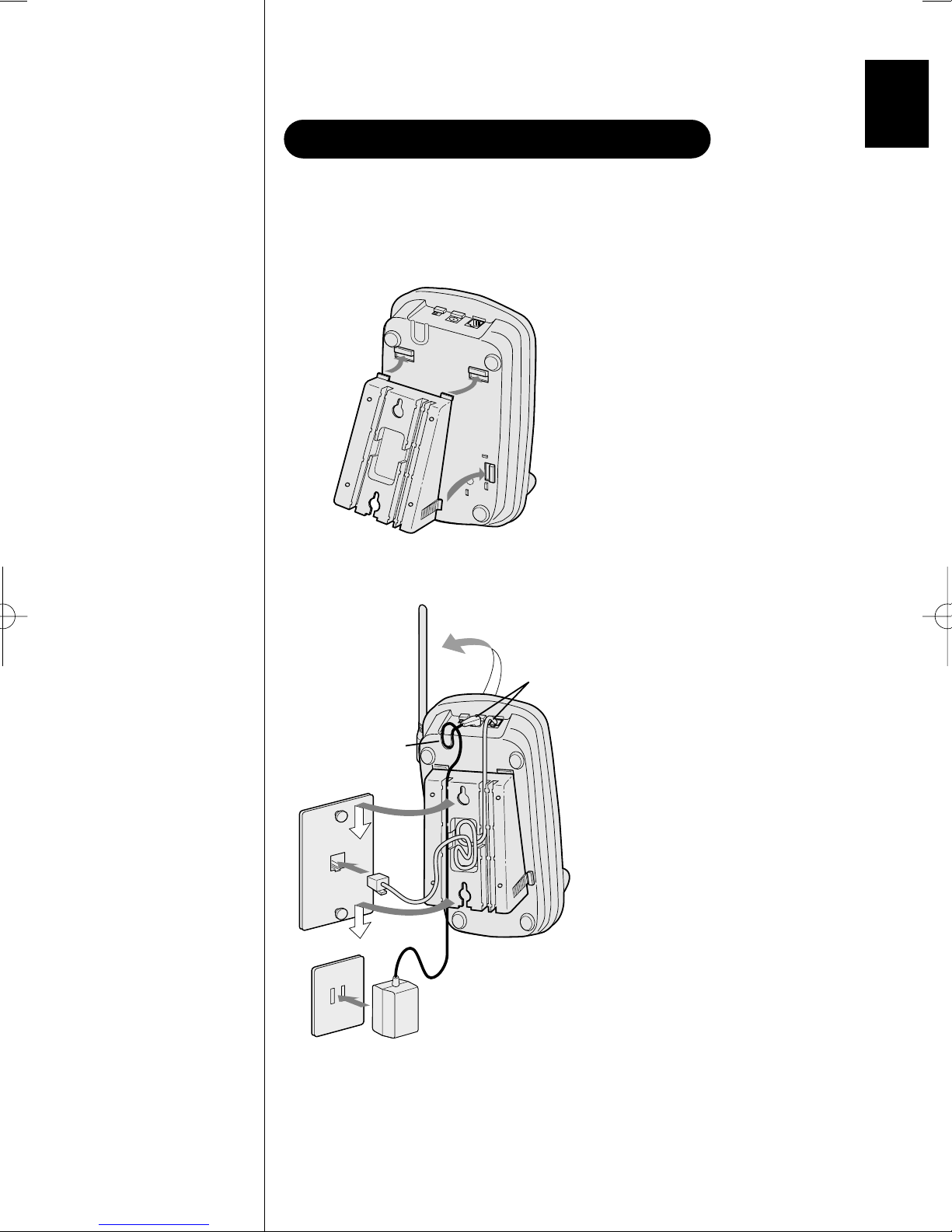

Standard wall plate mounting
This phone can be mounted on any standard telephone wall
plate. 1Snap the wall mount
adapter into the
notches on the base.
2Plug the telephone
line cord to the
TEL LINE jack and the
AC adapter to the
DC IN 9V jack.
3Plug the telephone
line cord into the
telephone outlet.
4Wrap the AC adapter
cord inside the
molded wiring
channel. Then wrap
the cord around the
strain relief notch.
5Plug the AC adapter
into a standard
120V AC wall outlet.
6Raise the antenna to a
vertical position.
7Align the mounting
slots on the base with
the mounting posts on
the wall. Push in and
down until the phone
is firmly seated.
1
2
6
4
7
7
3
5
AC adapter
Wall plate
AC outlet
2 - 7
Mounting the base unit on a wall
EXS 2010 6/28/00 4:12 PM Page 11
8
Direct wall plate mounting
If you don't have a standard wall plate, you can mount your phone
directly to the wall. Before doing this, consider the following:
•Avoid electrical cables, pipes, or other items behind the mounting
location, that could cause a hazard when inserting screws into
the wall.
•Try to mount your phone within 10 - 15 feet of a working phone
jack to avoid excessive cord lengths.
•Make sure the wall material is capable of supporting the weight of
the base and handset.
•Use #10 screws (minimum length of 1-3/8 inches) with anchoring
devices suitable for the wall material where the base unit will be
placed.

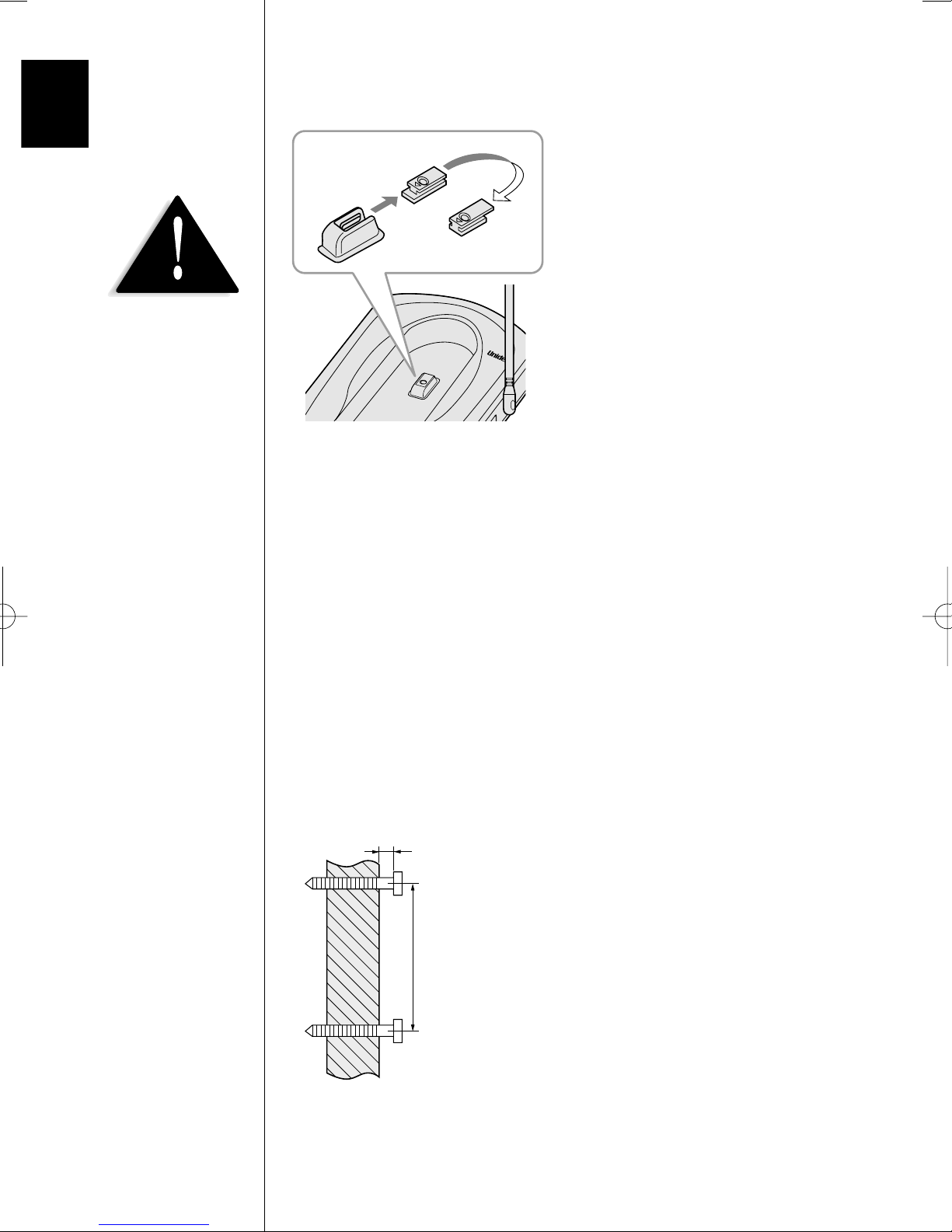

1Insert two mounting screws
into the wall, (with their
appropriate anchoring device),
3-15/16 inches apart. Allow
about 3/16 of an inch between
the wall and screwheads for
mounting the phone.
2Refer to steps 1 through 9 on
page 7 and 8 to mount the
telephone.
TOP
3/16 in.
3-15/16 in.
8On the base unit, pull the
handset retainer out of the slot.
Rotate it clockwise
180 degrees.
9Flip the retainer from front to
back. Slide it back into the slot
so that the lip of the retainer is
up and the oval is down. The
retainer holds the handset
in place.
DIGITAL
SPREAD
SPECTRAM
900MHz
Handset retainer
If the handset beltclip is
attached, you cannot
charge the handset facing
forward when the phone is
mounted on the wall (See
page 20).
EXS 2010 6/28/00 4:12 PM Page 12
Autres manuels pour EXS 2010
1
Table des matières
Autres manuels Uniden Téléphone
Uniden
Uniden UCIS 3000 Manuel utilisateur
Uniden
Uniden DECT1035 Manuel utilisateur
Uniden
Uniden D3288 Manuel utilisateur
Uniden
Uniden D1680 Manuel utilisateur
Uniden
Uniden FP105H Manuel utilisateur
Uniden
Uniden DECT2188-3 - DECT Cordless Phone Base... Manuel de service
Uniden
Uniden Slimline 1260 Manuel de service
Uniden
Uniden WDECT 2345+1 Manuel utilisateur
Uniden
Uniden Extend-A-Phone EX945 Manuel utilisateur
Uniden
Uniden DXAI4588-2 Manuel utilisateur
Uniden
Uniden XDECT SSE06 Manuel utilisateur
Uniden
Uniden AT4801 Manuel utilisateur
Uniden
Uniden FP1355 Manuel utilisateur
Uniden
Uniden DECT 1515 Manuel utilisateur
Uniden
Uniden 9035 Manuel utilisateur
Uniden
Uniden XS215 Manuel utilisateur
Uniden
Uniden CXAI5198 Manuel de service
Uniden
Uniden D1688 Manuel de service
Uniden
Uniden 1380BK Guide de démarrage rapide
Uniden
Uniden DECT4066 Manuel utilisateur
