Uniden EXP91 Manuel utilisateur

Important Safety Instructions

When using your telephone equipment, basic safety precautions

should always be followed to reduce the risk of fire, electrical

shock, and injury to persons, including the following:

1. Read and understand all instructions.

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Do not

use liquid cleaners or aerosol cleaners. Use a dry cloth for

cleaning.

4. Do not use this product near water; for example, near a sink or

in a wet area.

5. Do not place this product on an unstable cart, stand, or table.

The telephone may fall, causing serious damage to the unit.

6. To protect the product from overheating, do not block or cover

any slots or openings in the Base Unit. This product should

never be placed near or over a radiator or heat register. This

product should not be placed in a built-in installation unless

proper ventilation is provided.

7. This product should be operated only from the type of power

source indicated on the marking label.

8. Do not allow anything to rest on the power cord. Do not locate

this product where the cord will be damaged by persons walking

on it.

9. Do not overload wall outlets and extension cords, as this can

result in the risk of fire or electrical shock.

10. Never push objects of any kind into this product through the

Base Unit slots, as they may touch dangerous voltage points or

short out parts that could result in a risk of fire or electric shock.

Never spill liquid of any kind on the product.

11. To reduce the risk of electric shock, do not disassemble this

product. Contact qualified service personnel when some service

or repair work is required. Opening or removing covers may

expose you to dangerous voltages or other risks. Incorrect

reassembly can cause electric shock when the appliance is

subsequently used.

12. Unplug this product from the wall outlet and refer servicing to

qualified service personnel under the following conditions:

A. When the power supply cord is damaged or frayed.

B. If liquid has been spilled into the product.

C. If the product has been exposed to rain or water.

D. If the product does not operate normally when following

the operating instructions. Adjust only those controls

that are covered by the operating instructions. Improper

adjustment of other controls may result in damage and

will often require extensive work by a qualified

technician to restore the product to normal operation.

E. If the product has been dropped or the cabinet has

been damaged.

F. If the product exhibits a distinct change in performance.

13. Do not use the telephone to report a gas leak in the vicinity of

the leak. CAUTION

To reduce the risk of fire or injury to persons by the battery, read

and follow these instructions:

1. Use only the appropriate type and size Battery Pack specified in

this Operating Guide.

2. Do not dispose of the Battery Pack in a fire. The cell may

explode. Check the Battery Disposal information at the

beginning of this Guide for disposal instructions.

3. Do not open or mutilate the Battery Pack. Released electrolyte

is corrosive and may cause damage to the eyes or skin. It may

be toxic if swallowed.

4. Exercise care in handling the battery in order not to short out

the battery with conducting materials such as rings, bracelets,

and keys. The battery or conductor may overheat and cause

burns.

5. Charge the Battery Pack provided with or identified for use with

this product only in accordance with the instructions and

limitations specified in the instruction manual provided for this

product.

6. Observe proper polarity orientation between the Battery Pack

and battery charger.

SAVE THESE INSTRUCTIONS

Introduction

About the EXP91

The EXP91 is a 900 MHz Cordless Phone. It is designed and

engineered to exacting standards for reliability, long life, and

outstanding performance.

Features

•900 MHz operation •Extended range and clarity

•Any Key Answer •One-Way Page/Find

•10-Number Memory •AutoTalk

•Voice Scramble •AutoStandby

•Wall mountable •40 Channels

•Battery Saving Feature •Tone/Pulse Dialing

•Handset Volume Control •Ringer Volume Control

•Redial and Flash •Hearing aid compatible

•Automatic Digital Code

Security

The EXP91 features include

AutoTalk™

and

AutoStandby™.

AutoTalk™

allows you to answer a call by just removing the

Handset from the Base so you don’t have to waste time pushing

buttons or flipping switches.

AutoStandby™

allows you to hang up

by simply returning the Handset to the Base.

The

UltraClear Plus

true compander circuitry virtually eliminates

background noise. This innovative technology, together with 40

different channels, provides you with the best possible reception

during all your conversations.

To protect you against misbilled calls which might result from your

phone being activated by other equipment, the EXP91 has

Random

Code™

digital security which automatically selects one of over

65,000 digital security codes for the Handset and Base Unit. Also,

the

AutoSecure™

feature electronically locks your phone when the

Handset is in the Base. To get the most from your EXP91, please

read this Operating Guide thoroughly.

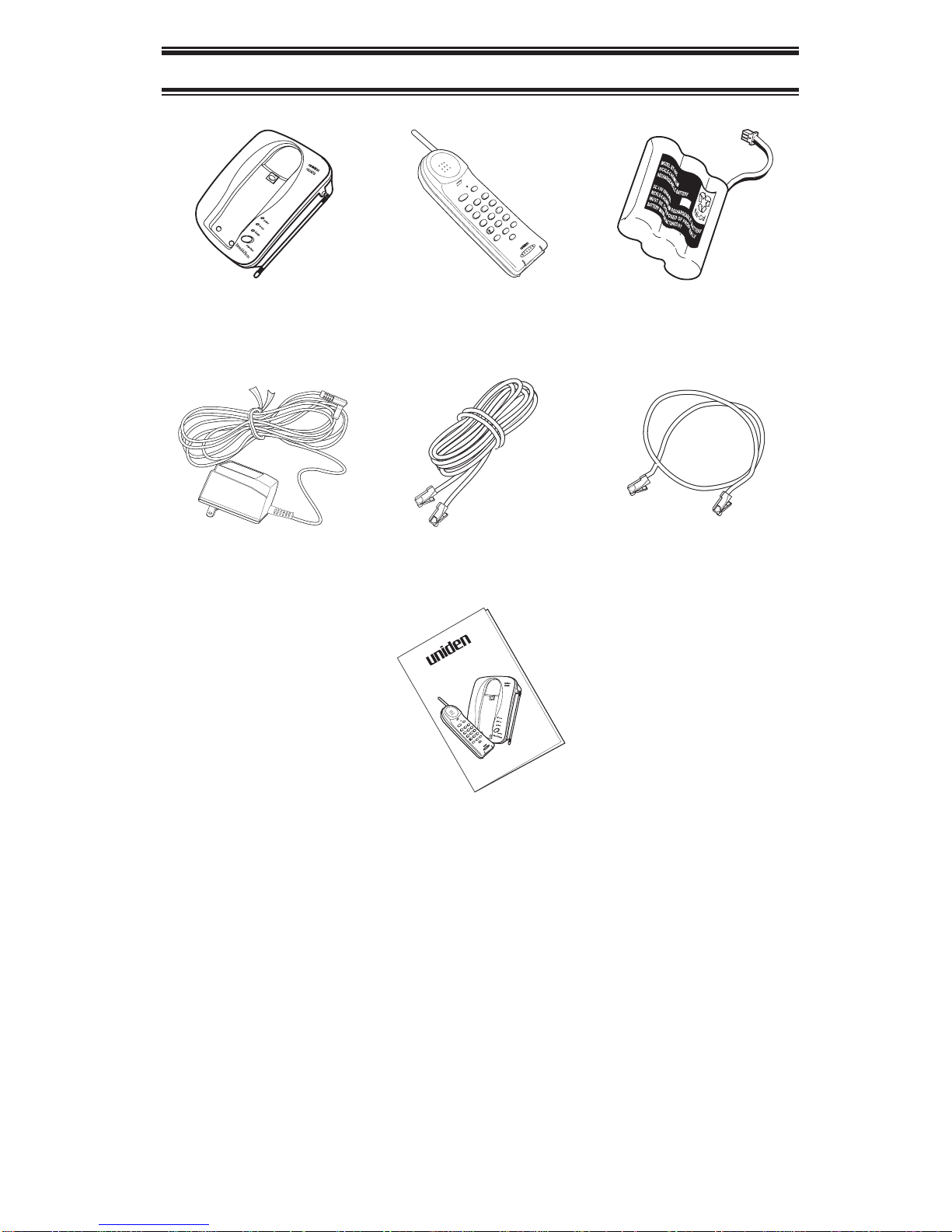

What’s Included with Your EXP91

If any of these items are missing or damaged, contact your place

of purchase.

EXP91 Base

talk

batt

chan

abc

def

ghi

jkl

mno

pqrs

tuv

wxyz

oper

tone

ringer

mem flash volume

redial/pause

EXP91 Handset Rechargeable Battery

AC Adapter Long Telephone Cord Short Telephone Cord

Operating Guide

talk

batt

chan

abc

def

ghi

jkl

mno

pqrs

tuv

wxyz

oper

tone

ringer

mem flash volume

redial/pause

Operating Guide

Installation

Installing Your EXP91

Selecting the Installation Location

Select a location for the EXP91 to avoid excessive heat or humidity

(as in a kitchen or bathroom). The Base Unit of your EXP91 can be

placed on a desk or tabletop near a standard 120V AC outlet and

telephone line jack, mounted on a standard AT&T or GTE wall

plate, or mounted directly on the wall. Keep the Base Unit and

Handset away from sources of electrical noise (motors, fluorescent

lighting, etc.). Be sure there is sufficient space to safely extend the

Base Unit antenna fully.

Connecting the Telephone Line

There are three types of phone outlets:

•Modular.

•4-prong jack.

•Hard-wired type.

Modular Jack

Plug the telephone line cord from the Base Unit into a standard

modular telephone jack. If you do not have a modular jack, contact

your local telephone company for information on the installation of

these jacks.

4-Prong Jack

An adapter (not included) is required. The adapter plugs into the

4-prong jack and the telephone line cord plugs into the adapter.

Hard-wired Jack

A modular jack converter (not included) is required. You may need

to rewire when connecting the converter (making color-coded

connections).

Your Uniden Cordless Telephone Dealer or a telephone supply

store can advise you on the proper adapter or converter.

CAUTION:

•Never install telephone wiring during a lightning storm.

•Never install telephone jacks in wet locations unless the jack

is specifically designed for wet locations.

•Never touch uninsulated telephone wires or terminals unless

the telephone line has been disconnected at the network

interface.

•Use caution when installing or modifying telephone lines.

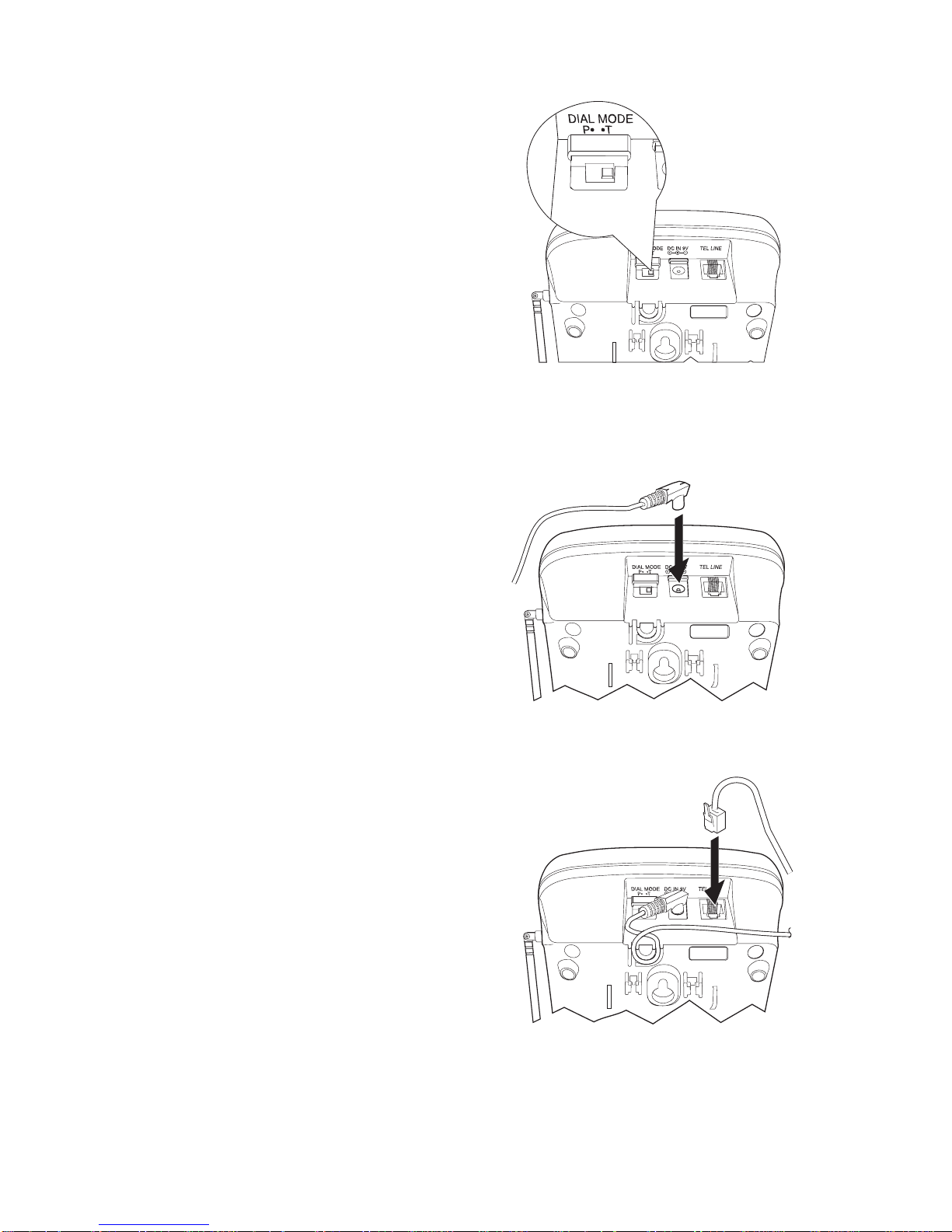

Setting the Dial Mode Switch

Place the switch in the

position for tone dialing, or the

position for pulse dialing.

93tnpls

Desk or Tabletop Installation

1. Plug the AC adapter cord into

the 9V DC input jack on the

Base Unit.

Note:

Place the AC adapter

cord inside the molded

strain-relief.

93dskt

2. Plug one end of the long

telephone cord into the

TEL LINE

jack on the Base Unit.

93dskt2

AC ADAPTOR

SEE OWNER'S MANUAL

AC ADAPTOR

SEE OWNER'S MANUAL

AC ADAPTOR

SEE OWNER'S MANUAL

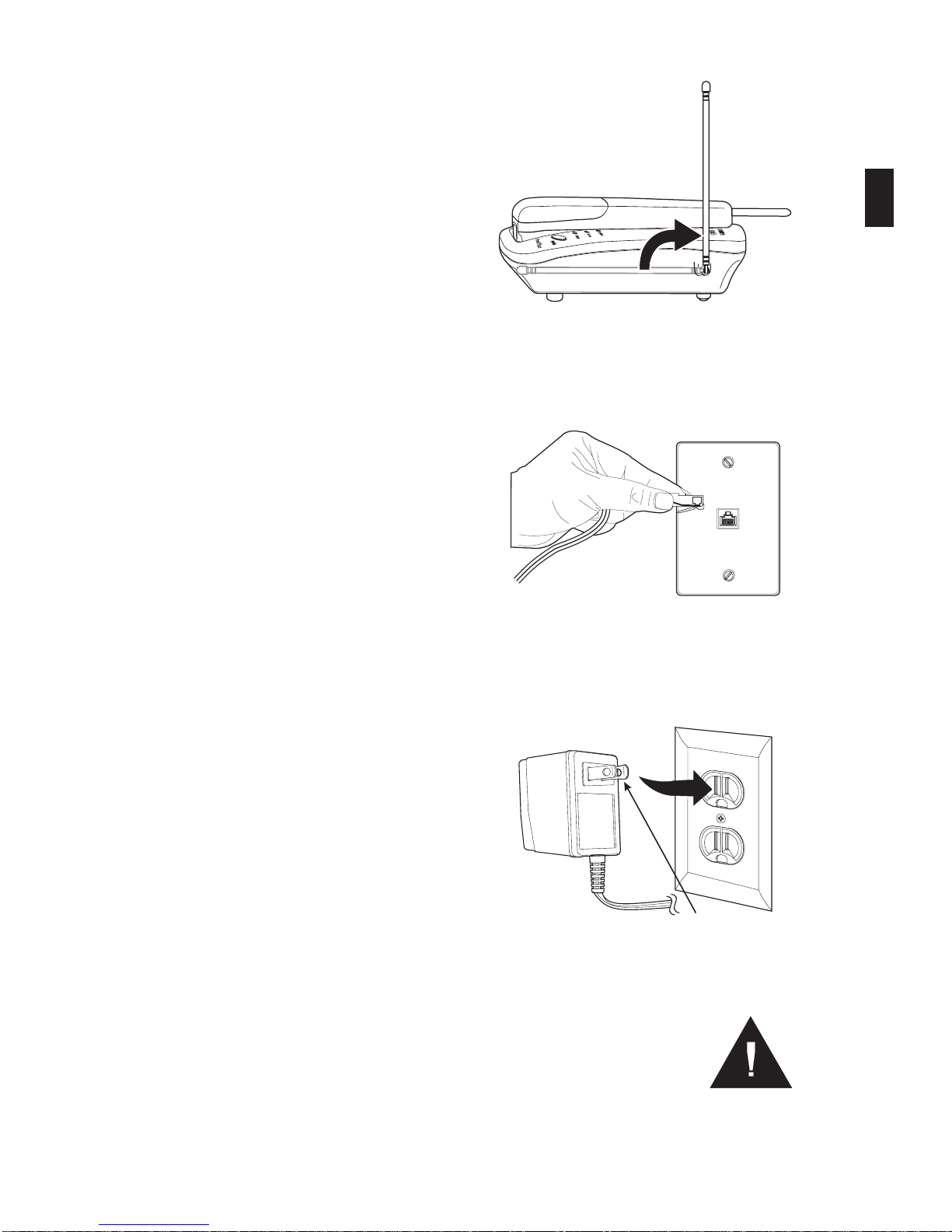

3. Raise the antenna on the Base

Unit.

93antup

4. Plug the other end of the

telephone cord into the

telephone wall jack.

tellnin2

5. Plug the AC Adapter into a

standard 120V AC wall outlet.

widblde1

Note:

Use only the AC Adapter supplied with the EXP91.

Place the telephone and power cords where they will not create a

trip hazard, or where they could become chafed and create a fire

or other electrical hazards.

ADAPTER

Wide

Blade

Wall Installation

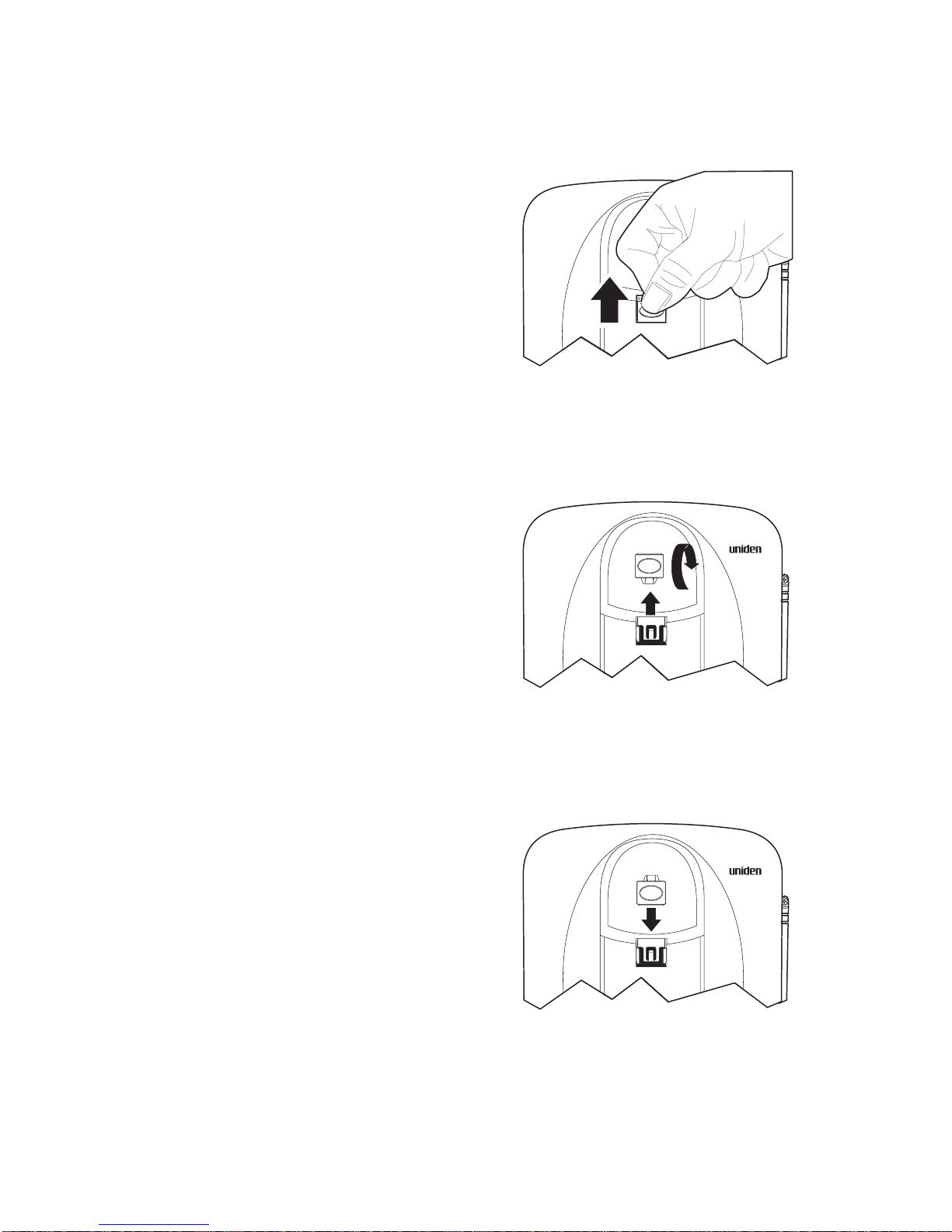

Setting the Handset Retainer

1. Remove the Handset Retainer

on the Base Unit by sliding it

upward.

93tab1

2. Flip the Retainer over so the tab

is facing up.

93tab2

3. Slide the Retainer back into the

Base Unit.

93tab3

900MHz

Mounting on a Standard Wall Plate

The EXP91 is designed to be mounted on a standard AT&T or GTE

wall plate.

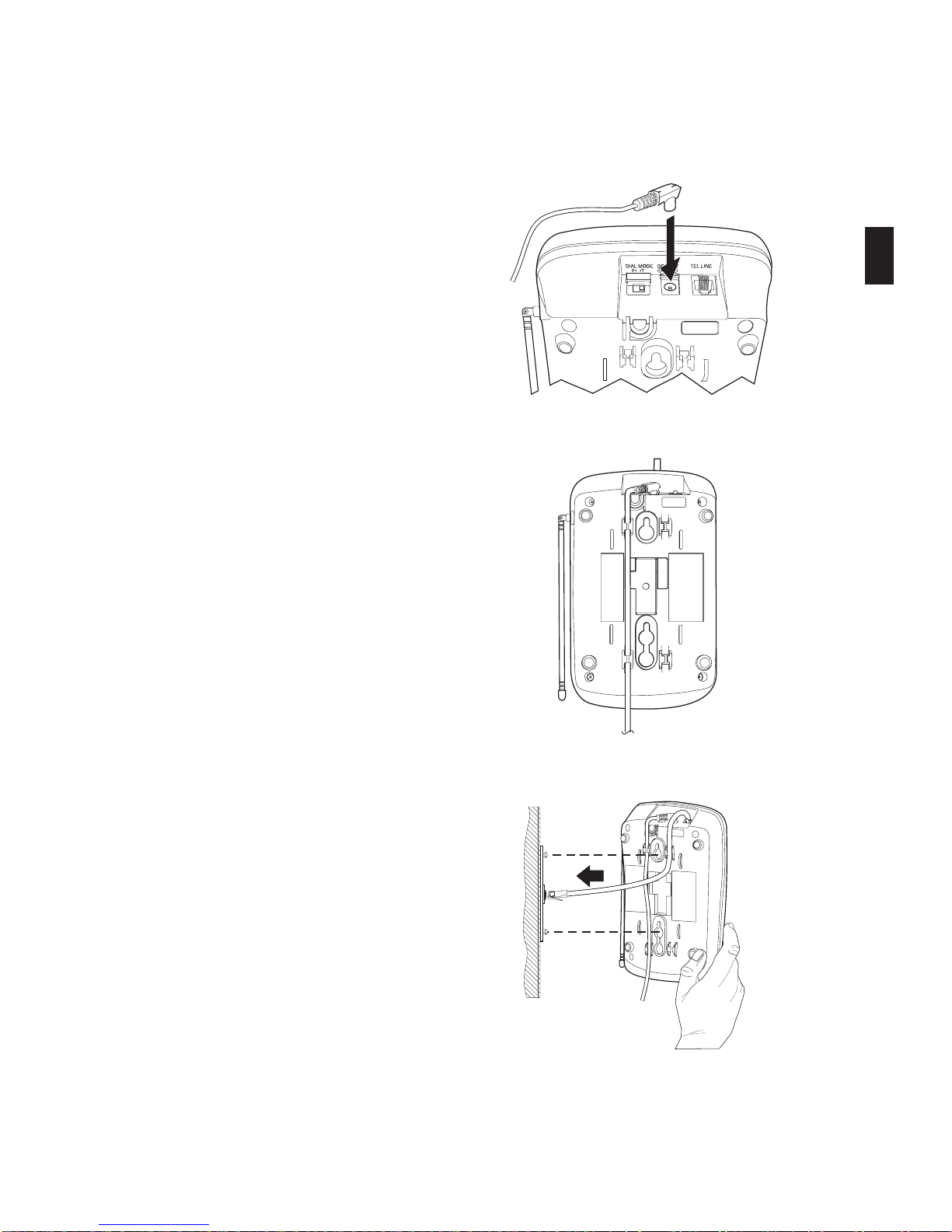

1. Plug the AC Adapter into the

Base Unit.

93dskt

2. Place the AC Adapter cord

inside the left channel cord

holder.

93pwrin

3. Plug the short telephone cord

into the phone and the wall

plate jack.

93plamt1

AC ADAPTOR

SEE OWNER'S MANUAL

AC ADAPTOR

SEE OWNER'S MANUAL

DIAL MODE

P• •T DC IN 9V TEL LINE

AC ADAPTOR

SEE OWNER'S MANUAL

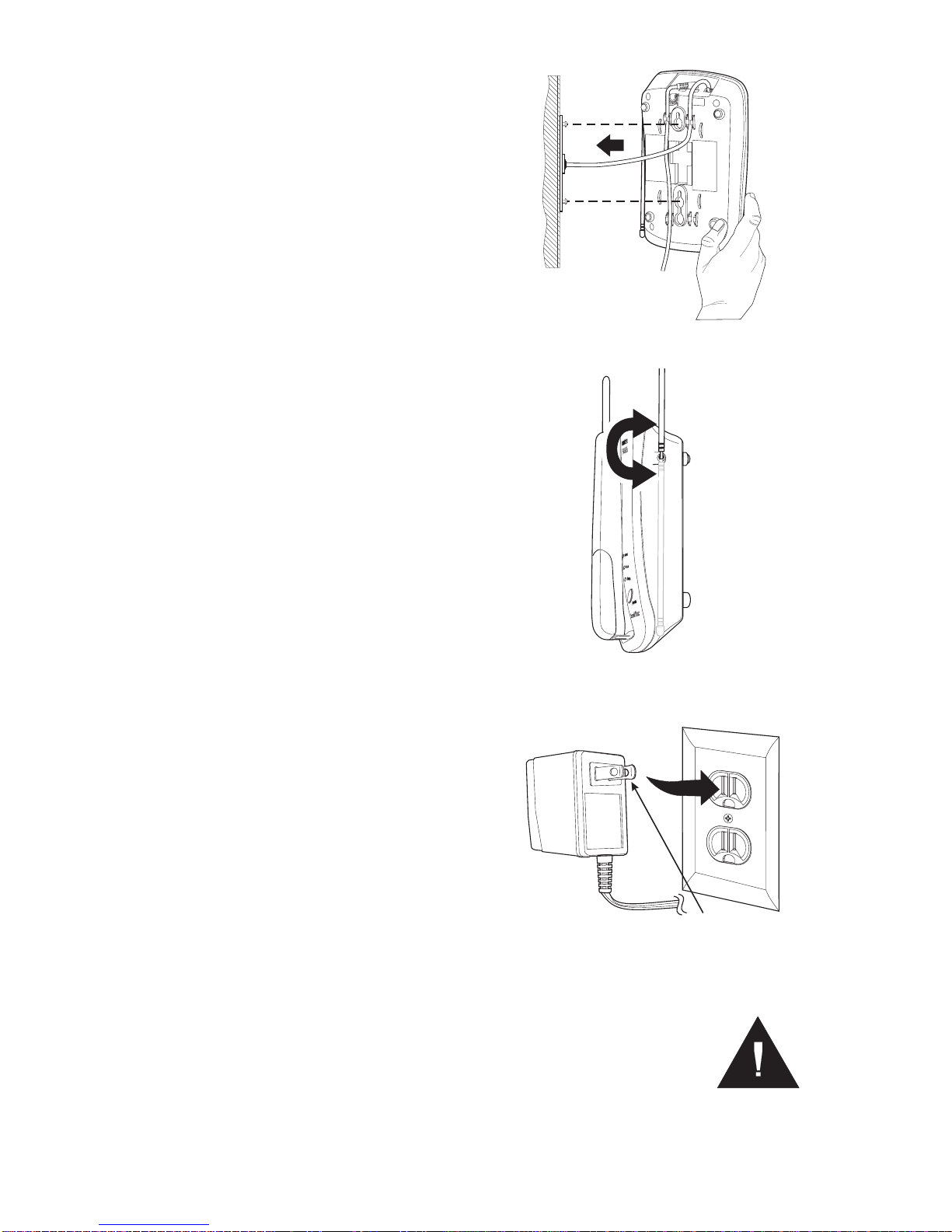

4. Place the Base Unit on the two

posts of the wall plate and slide

downward to secure.

93plamt2

5. Raise the antenna on the Base

Unit.

93ant2

6. Plug the AC Adapter into a

standard 120V AC wall outlet.

widblde1

Note:

Use only the AC Adapter supplied with the EXP91.

Route the power cord where it will not create a trip hazard, or

where it could become chafed and create a fire or other

electrical hazards.

AC ADAPTOR

SEE OWNER'S MANUAL

ADAPTER

Wide

Blade

Autres manuels pour EXP91

Table des matières

Autres manuels Uniden Téléphone sans fil

Uniden

Uniden TRU 5860 Series Fiche d'information produit

Uniden

Uniden EXR2460 Manuel utilisateur

Uniden

Uniden EX905 Manuel utilisateur

Uniden

Uniden TCX905 - Cordless Extension Handset Manuel utilisateur

Uniden

Uniden EXT 1760 Manuel utilisateur

Uniden

Uniden DECT3181-2 Manuel de service

Uniden

Uniden DCT736 Series Manuel de service

Uniden

Uniden EXT 176 SERIES guide Manuel utilisateur

Uniden

Uniden EXS 2050 Manuel utilisateur

Uniden

Uniden EXI976C - EXI 976C Cordless Phone Manuel de service

Uniden

Uniden TRU 8880 Series Manuel utilisateur

Uniden

Uniden D1780-4BT Manuel de service

Uniden

Uniden DSS7815 Series Manuel utilisateur

Uniden

Uniden D1660 Manuel utilisateur

Uniden

Uniden XS1210 Manuel utilisateur

Uniden

Uniden ANA 9320 Manuel utilisateur

Uniden

Uniden XDECT SSE05 Manuel utilisateur

Uniden

Uniden EXI5660 - EXI 5660 Cordless Phone Manuel utilisateur

Uniden

Uniden EXAI 5180 Manuel utilisateur

Uniden

Uniden EXP 6900 SERIES Manuel utilisateur

Uniden

Uniden X2.4GHz Manuel utilisateur

Uniden

Uniden TXC400 Manuel utilisateur

Uniden

Uniden EXT 1465 Manuel utilisateur

Uniden

Uniden AMWUP758 Manuel utilisateur

Manuels Téléphone sans fil populaires d'autres marques

3Com

3Com NBX Manuel utilisateur

Panasonic

Panasonic KX-TGK210HK Manuel utilisateur

Panasonic

Panasonic KX-TCA181EX Manuel utilisateur

BT FREESTYLE 3200 Manuel utilisateur

AT&T

AT&T CL84102 Manuel utilisateur

BREZZICNI

BREZZICNI CL-3622 Manuel utilisateur

Panasonic

Panasonic KX-TG1831NZ Manuel utilisateur

Panasonic

Panasonic KX-TG7301E Manuel utilisateur

Furuno

Furuno FM-4721 Manuel utilisateur

Sanyo

Sanyo CLT-J70 Manuel utilisateur

Amplicomms

Amplicomms BigTel 201 Manuel utilisateur

GE 26992 Manuel utilisateur

AT&T

AT&T E1812B Manuel utilisateur

Sanyo

Sanyo CLT-670 Manuel utilisateur

GE 15432970 Manuel utilisateur

Curtis

Curtis TC595 Manuel utilisateur

Gigaset

Gigaset Gigaset 3000 Micro Manuel utilisateur

Poly

Poly VVX D230 Guide de configuration
