Ultrafly Bae HAWK Manuel utilisateur
REQUIRED FOR OPERATION (not included)組裝飛機所需裝備
Battery
4~8channel receiver
2~3 micro servos.
(15A continuous capacity and battery eliminator circuit) (choose one that matches your battery)
Minimum 4~8 channel radio
48頻道的遙控器
23個微型伺服器
48頻道的接受器
Rechargable battery 充電電池
Electronic speed controller. 15安培的電子變速器 Charger 充電器
(9.6~12v, 1100mAh)
02
Motor
Speed Controller
Elevator Servo
Receiver
Battery Aileron Servo
Read and understand the radio system instructions to operate the transmitter correctly.
And check plane responds properly to control signals before flying.
Always set the serov at their natural position before installing the servos.
R
eceiver assembling 遙控系統的組裝
請先參考遙控系統說明書先完成接線測試並將伺服機中立點歸零，再行組裝。
在飛行前請先測試遙控信號是否正常反應。
Ⅰ.Aling the push rod at the thread side, then slide in the brass ring(even with the short push rod).
將推拉桿有螺紋那端對齊，穿過銅環(銅環對齊短桿頂)。
Ⅱ.Use pliers to press the brass ring tightly and hold the push rod together.
用鉗子夾緊銅環固定住拉桿。
Ⅲ.Use soldering at the brass ring to help secure that the the push rod are fixed.
利用鉻鐵焊接確定銅環和推拉桿間固定牢靠。
Ⅴ.Push the push rod throgh the plastic tube.
將推拉桿穿過機身內透明套管。
Ⅵ.Glue the wing connecter(female) to the fuselage.
將配件黏上機身。
Use paper tape to hold it when combining the fuselage.
Use CA glue to fix the M3 nut into the plastic part
(make sure CA glue will not flow through the thread).
利用少量快乾膠將M3螺帽固定入塑膠配件中
(注意不要讓膠流到螺絲孔內)。
Ⅰ.Use the knife to cut the part we marked(like picⅠ.), And leave the gap about 1mm wide.用美工刀在機身接合處(如圖Ⅰ.)劃出約1mm的寬口。
Ⅱ.Apply some foam glue to the plastic part(like pic Ⅱ.), "DO NOT USE IT ON THE THREAD AREA".在剛組合好的配件上塗上適量保麗龍膠(如圖Ⅱ.)，勿塗到螺釘處。
Ⅲ.Fix the plastic part into the fuselage(pic Ⅱ.Ⅲ&Ⅳ.).將配件插入機機身(圖Ⅱ.Ⅲ.&Ⅳ.)
Cut the rubber tube in to four equal pieces, then slide two rubber tubes into each aileron linkage wire.
Replace it with the depron aileron that comes with the kit.
Use the knife to cut a 1cm deep and wide line at where we marked
on aileron and wing(just like pics show), for sealing the hinge later.
remodel the aileron like the pic shows.
(It's to allow the aileron to work free and well.)
None thread/無螺紋 None thread/無螺紋
Apply some foam glue on black rubber tube.
(only on tube, otherwise your aileron may not function properly)
塗上適量保麗龍膠在黑色套管上將副翼拉桿固定上主翼。
(只塗膠在黑色套管上，不然的話你的副翼將無法使用)
Use pen mark where arrow points.
用筆在箭頭所指處作記號。
Remember to remove the extra glue that
floats out, it will damage or affect flying!
Measure and cut the wire(leave extra 5mm for hooking the servo).
測量並裁剪鐵桿(要預留5mm勾上伺服器用)。
Elevator/尾翼
Elevator/尾翼
ELEVATOR/尾翼
ELEVATOR CONTROL SURFACE/尾翼昇降翼

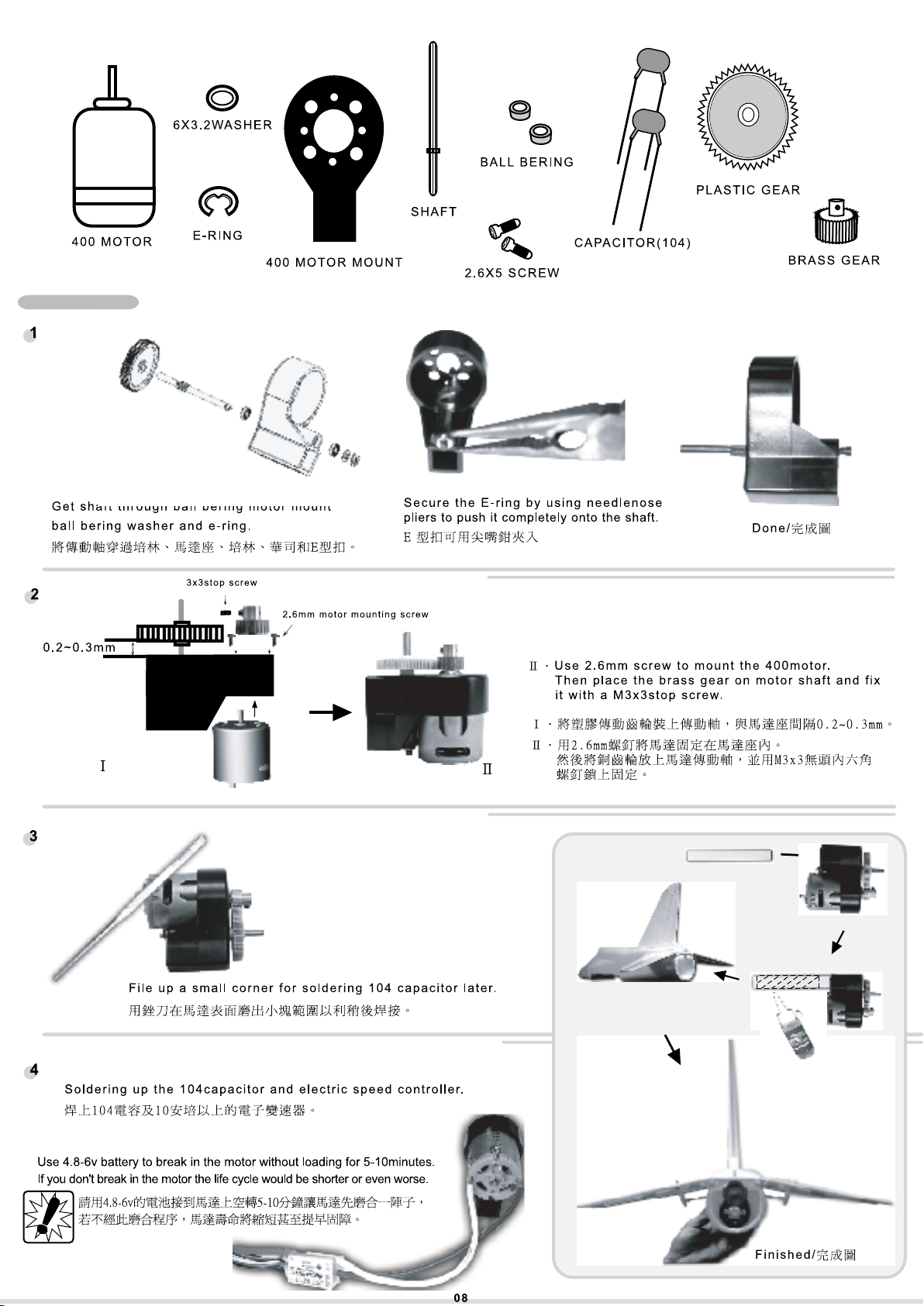

Ⅰ．Position the plastic gear with proper distance
(0.2~0.3mm) from motor mount.
p
ower system
