perfectMelt

Hot glue system

UES AG · Breuerhofstr. 48 · 4 80 Krefeld

Tel.: +49 (0) 2151- 2950 · Fax: +49 (0) 2151- 295 8 · [email protected]et · www.ues-

ag.net

Contents

ContentsContents

Contents

Introduction ............................................................................................................................................. 3

Safety Instructions ................................................................................................................................... 4

Example of a hot glue system .................................................................................................................. 6

Installation ............................................................................................................................................... 8

Checking the components ................................................................................................................... 8

Assembly and mounting of the tank system ....................................................................................... 8

Connection of the tank system ............................................................................................................... 9

Electrical connection ........................................................................................................................... 9

Air connection ..................................................................................................................................... 9

Hose connection .................................................................................................................................. 9

Application head connection............................................................................................................. 10

Add glue ............................................................................................................................................. 10

Service ................................................................................................................................................... 11

Commissioning .................................................................................................................................. 13

Setting the pump pressure ................................................................................................................ 14

Automatic pressure release .............................................................................................................. 14

Individual settings ............................................................................................................................. 15

Menu overview .................................................................................................................................. 16

Pump: ................................................................................................................................................ 16

Options: ............................................................................................................................................. 1

Service: .............................................................................................................................................. 18

Format: .............................................................................................................................................. 19

Standby (temperature reduction) ..................................................................................................... 20

Maintenance ......................................................................................................................................... 21

Bleeding the system .............................................................................................................................. 22

Changing the filter ................................................................................................................................. 23

Basic cleaning ........................................................................................................................................ 24

Mechanical malfunctions ...................................................................................................................... 25

Problems with the glue application....................................................................................................... 25

Socket assignment on UES systems, depending on the model ............................................................. 26

perfectMelt Replacement parts ............................................................................................................ 2

Recycling ................................................................................................................................................ 28

Electrical connections ............................................................................................................................ 29

Fuses ...................................................................................................................................................... 31

Technical data ....................................................................................................................................... 32

Electrical data ........................................................................................................................................ 34

Connection scheme ............................................................................................................................... 46

UES AG · Breuerhofstr. 48 · 4 80 Krefeld

Tel.: +49 (0) 2151- 2950 · Fax: +49 (0) 2151- 295 8 · [email protected]et · www.ues-

ag.net

Introduction

IntroductionIntroduction

Introduction

UES hot glue systems meet your highest expectations in terms of quality, labour and production

reliability as well as maintenance and user friendliness.

By combining cutting-edge control technology with comfortable and complete features, you have the

greatest possible benefit. An extremely compact design and the modular extension option assure

variable use for versatile applications.

The UES tank system "perfectMelt" is equipped with carefully selected components of very high

quality. When adhering to these Operating Instructions, a long-term and unlimited use of the device

is possible.

Along with a full range of standard applications of adhesive technology with tank systems, hose and

gun systems, we also offer individual solutions and system components for special applications in

various industrial sectors.

With the adhesive application systems of the "perfectMelt" series, the process is conducted in the

context of the hotmelt adhesive application. In other words, depending on the application, the

adhesive systems are incorporated into production or packaging machines, and, as such,are part of

the equipment.

In the operation of adhesive application systems for hotmelt, the adhesive is processed at high

temperatures and with high-pressure material. For this reason, safety precautions are to be taken

during installation, operation and maintenance.

In the description of the operation of the system, these safety precautions are marked by safety

symbols and, if applicable, further information.

The safety precautions described here refer exclusively to the handling of the adhesive system.

Before commissioning, the Operating Instructions are to be read in full in order to ensure safety and

proper operation. The device owner or operator is responsible for compliance with the safety

regulations.

All operating instructions and manuals of the company UES are copyrighted. Copying, reproduction

(or part thereof), translation, etc. is not allowed without permission by UES AG. Additional copies of

these Operating Instructions can be acquired directly from the factory. Furthermore, the

manufacturer is not responsible for the accuracy of the contents of this manual.

These Operating Instructions are subject to changes.

UES AG

Krefeld, February 2016

UES AG · Breuerhofstr. 48 · 4 80 Krefeld

Tel.: +49 (0) 2151- 2950 · Fax: +49 (0) 2151- 295 8 · [email protected]et · www.ues-

ag.net

Safety Instructions

Safety InstructionsSafety Instructions

Safety Instructions

The following Safety Instructions must be observed!

Caution:

Before any repair and adjustment work, unplug from the mains

Installation and maintenance work may only be performed by trained personnel.

Only those individuals shall be considered suitable who are qualified by specialised training and

experience in dealing with these or similar devices, who know the relevant safety and accident

prevention regulations, and who therefore can recognise and avoid hazards.

Work on the adhesive application system may generally only be conducted when the voltage has

been turned off and the compressed air has been blocked (depressurise the system).

The system must not be operated without the appropriate covers and safety panels. Be careful of

non-covered moving and rotating parts, such as motor and pump shafts, hub and swivelling

mechanisms!

Caution: Do not use the system for any purpose other than that for which it is intended

On many non-covered parts of the applicator device, the hot glue hoses and application guns consist

of high temperatures during operation. Hot and pressurised adhesive may cause severe skin burns.

Therefore, always wear protective clothing, gloves and safety goggles when working on the system,

such as when filling the melting tank or connecting and installing the hoses and valves. Some

adhesives produce toxic fumes that have to be extracted. The hot melt adhesive application

equipment may not be operated under the following circumstances:

- In the vicinity of volatile substances or explosive materials and gasses

- Without adequate protection

- At temperatures of less than 5 °C or more than 45 °C

Security measures with respect to the adhesive

Security measures with respect to the adhesiveSecurity measures with respect to the adhesive

Security measures with respect to the adhesive

When working with molten hot glue, always be extremely careful! These materials solidify very

quickly, even at high temperatures, so they can still be very hot even in their solid state and can

result in burns when in brought into contact with the skin. The safety precautions of the adhesive

manufacturer are to be observed. These can be found on the data sheet of the adhesive. Comply

with the processing temperatures recommended by the glue manufacturer!

When working with hot melt, wear gloves, safety glasses and long sleeves to prevent burns. In the

case of a burn, do not attempt to remove the glue from a person's skin; instead, hold the wounded

site under cold water until the glue has cooled and then contact a physician.

Safeguards with respect to the production machine

Safeguards with respect to the production machineSafeguards with respect to the production machine

Safeguards with respect to the production machine

For the safety regulations in dealing with the production or packaging machine, please refer to the

documentation supplied with these devices.

For installation and maintenance work, the Safety Instructions for the parent machine in which the

adhesive application system is installed must be observed.

UES AG · Breuerhofstr. 48 · 4 80 Krefeld

Tel.: +49 (0) 2151- 2950 · Fax: +49 (0) 2151- 295 8 · [email protected]et · www.ues-

ag.net

Safety symbols

Safety symbolsSafety symbols

Safety symbols

The safety symbols below highlight activities in this manual where increased caution is necessary.

The proposed safety precautions should be observed in any case.

Attention, general safety information:

Information regarding compliance with the Safety Information for adhesives

and other equipment. Special instructions may follow.

Warning about hot surfaces:

achine parts may have an operating temperature.

Danger – high voltage:

The work may only be performed by qualified personnel.

Warning of hand injury:

Unsafe handling may lead to crushing.

Warning – hot liquids may escape uncontrollably!

Unplug before opening!

Use protective clothing!

Unlock before starting work!

Wear eye protection!

Wear protective gloves!

Wear face protection!

UES AG · Breuerhofstr. 48 · 4 80 Krefeld

Tel.: +49 (0) 2151- 2950 · Fax: +49 (0) 2151- 295 8 · [email protected]et · www.ues-

ag.net

Example of a hot glue system

Example of a hot glue systemExample of a hot glue system

Example of a hot glue system

(Connecting parts are not supplied with the perfectMelt)

Tankdeckel

Tank cap

Pumpe

Pump

Tank

Heißleim

Hot glue

Inline Filter

line filter

Tankfilter

Tank filter

Heizschlauch

Heat tube

Versorgungsblock

Supply block

Düse

Valve

Modul

Module

The fuel tank cap closes the tank. After filling, please use the fuel tank cap to close the tank of your

perfectMelt system.

The hot glue is melted in the tank. Your perfectMelt has two adjustable heating zones: the tank "t1"

and the manifold block "t2" (distribution block to connect the hot glue hoses).

The pump places the melted glue under pressure. UES-pumps have a translation ratio of 14:1. In

other words, at a set air pressure of 2 bar, there is a material pressure of 28 bar.

To prevent contamination in the hoses and application guns, the perfectMelt has a (tank) glue filter.

The hot glue hoses are connected to the glue dispenser. They are heated electrically and are

connected with the perfectMelt by a plug.

As an option, an in-line filter can be installed between the hose end and the gun.

The supply block is supplied with hot glue via the tube. It is also heated and is connected to the hose

electrically.

UES AG · Breuerhofstr. 48 · 4 80 Krefeld

Tel.: +49 (0) 2151- 2950 · Fax: +49 (0) 2151- 295 8 · [email protected]et · www.ues-

ag.net

One or more modules are bolted onto the supply block. The modules open and close by air control

(via a solenoid valve).

For standard modules, screwable vents are necessary. Different nozzles are available for different

applications.

UES AG · Breuerhofstr. 48 · 4 80 Krefeld

Tel.: +49 (0) 2151- 2950 · Fax: +49 (0) 2151- 295 8 · [email protected]et · www.ues-

ag.net

Installation

InstallationInstallation

Installation

Checking the comp

Checking the compChecking the comp

Checking the components

onentsonents

onents

After unpacking, please check all the components of your perfectMelt and (if applicable) the hot glue

hoses and application heads for any damage.

If you notice any damage, please contact UES AG immediately.

perfectMelt parts list

•perfectMelt system

•Manual

•Filter wrench

Assembly and mounting of the tank system

Assembly and mounting of the tank systemAssembly and mounting of the tank system

Assembly and mounting of the tank system

Warning

To prevent injury caused by falling, the tank system has to be firmly screwed

together with the production machine in any case.

The tank system is equipped with two mounting brackets. These angles have 9 mm holes to secure

the tank system with M8 bolts to the production machine. For this purpose, holes that are about 9

mm in diameter have to be drilled in the seat for the tank system of the production machine.

The tank system should be positioned so that an operator is not ergonomically impaired. This

particularly applies to settings on the control panel, filling the tank and maintenance work, such as

filter changes.

Warning

Please make sure that, when drilling holes, no cables, pipes or other equipment installations are

damaged

UES AG · Breuerhofstr. 48 · 4 80 Krefeld

Tel.: +49 (0) 2151- 2950 · Fax: +49 (0) 2151- 295 8 · [email protected]et · www.ues-

ag.net

Connection of the tank system

Connection of the tank systemConnection of the tank system

Connection of the tank system

(necessary connections)

Electrical connection

Electrical connection Electrical connection

Electrical connection

Warning

The work may only be performed by qualified personnel.

The power supply has to be interrupted.

Necessary: 400-V-(3L/N/PE/50 Hz) plug/connection.

The fuse for each phase cannot be more than 16A.

As an option, the tank system can be factory fitted with a connection cable. The power supply is

connected directly in the control box

Please only use the provided and designated terminals.

Only use the lines with the appropriate wire size as a feed.

For the performance data, please refer to the technical data.

Air connection

Air connectionAir connection

Air connection

Compressed air supply 6 bar (oil and anhydrous)

Connection via PK 8* 1.25 pneumatic hose.

Hose connection

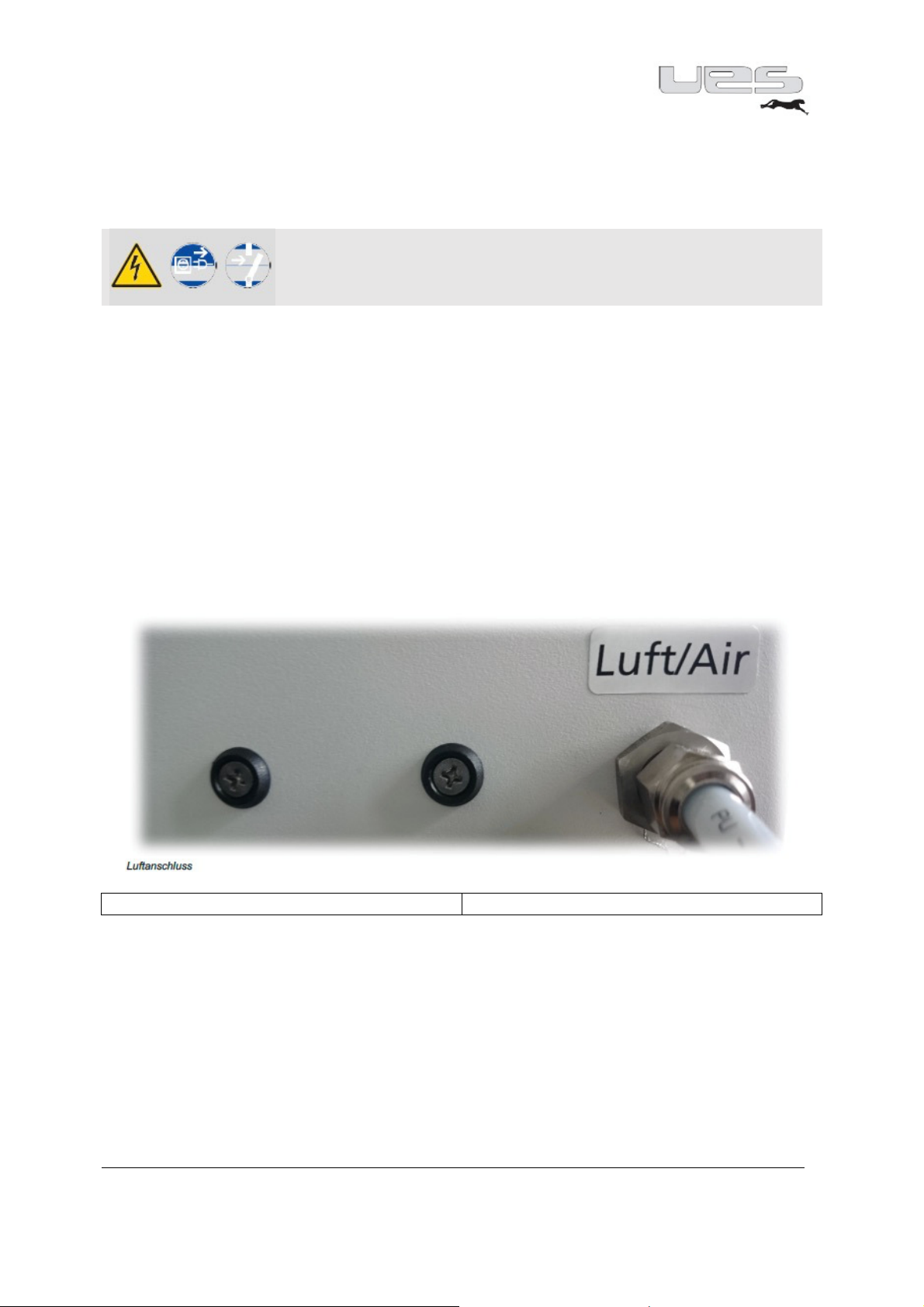

Luftanschluss

Air connection

Hose connection

Hose connectionHose connection

Hose connection

Hose connecting nipple (fittings)

The system is equipped with two glue nipples by the factory.

The corresponding electrical connections are labelled 1 & 2 accordingly.

To connect a hose, the end cap has to be placed under resistance with an SW 1 wrench.

The electrical connection is made by inserting the plug located on the hose into the socket located on

the system.

UES AG · Breuerhofstr. 48 · 4 80 Krefeld

Tel.: +49 (0) 2151- 2950 · Fax: +49 (0) 2151- 295 8 · [email protected]et · www.ues-

ag.net

Application head connection

Application head connectionApplication head connection

Application head connection

The glue connection nipple on the application head has to be connected to the hose connection

nipple on the hose. You will also need an SW 19 wrench.

The electrical connection is established by inserting the plug located on the application head into the

socket located on the glue hose.

Warni

Make sure that there is an absolutely tight connection between the system, the hoses and the

guns via the screwed glue nipple. Otherwise, any escaping glue can lead to severe burns.

Pneumatic components are designed and constructed according to the applicable standards and

calculations such that, under the intended conditions of use, rupture or failure due to fatigue or

wear is not expected to occur.

Add glue

Add glue Add glue

Add glue

Caution:

When refilling the glue, any spouting hot glue can cause injuries.

In any case, observe the safety regulations for handling melted adhesives.

•Do not leave the adhesive supply open; only store it in sealed containers.

•The fuel tank lid should be able to be opened without foreign bodies (such as scraps of paper)

being able to fall into it.

•Before filling, check to see whether the tank and the adhesive supply are clean and free of debris.

•Do not overfill your system. Add adhesive carefully to a max. 20 mm below the tank opening.

•Close the tank lid after filling. This prevents unwanted foreign matter from entering the tank or

hot adhesive vapours from escaping.

•The tank lid should be closed without it coming into direct contact with the adhesive.

•Do not run your device when it is completely empty. If there is too little adhesive in the tank,

localised overheating can result in

•glue burns and deposits in your system, leading to a malfunction.

•Refer to the data sheet of your adhesive supplier and set your device appropriately.

Autres manuels pour perfectMelt

Table des matières

Autres manuels UES Machine de fusion

UES

UES perfectMelt Manuel utilisateur

Manuels Machine de fusion populaires d'autres marques

Bibby Sterilin

Bibby Sterilin Stuart SMP10 Manuel utilisateur

Meler

Meler Cantho Manuel utilisateur

Buchi

Buchi M-565 Manuel utilisateur

Indutherm

Indutherm MU200 Manuel utilisateur

GOLDBRUNN THERM

GOLDBRUNN THERM Goldbrunn 1000 Manuel utilisateur

SCS

SCS Good COOKING Chocolate Melting Pot Manuel utilisateur

Nordson

Nordson EP 30 Manuel utilisateur

Cole Parmer

Cole Parmer MP-400 Series Manuel utilisateur

CIMLINE

CIMLINE MATRIX 1500 Manuel du propriétaire

Graco

Graco THERM-O-FLOW T7 Series Manuel utilisateur

Nordson

Nordson AltaBlueA4TP Guide de référence

VALCO MELTON

VALCO MELTON D4-L Manuel utilisateur

Meler

Meler MACRO 200 Manuel utilisateur

Viega

Viega ProRadiant Basic Digital Snow Melt Control... Feuille d'instructions

Nordson

Nordson ProBlue Flex Manuel utilisateur

Rapid

Rapid EG PEN Manuel utilisateur

Nordson

Nordson Mesa Fulfill Guide de référence

CIMLINE

CIMLINE MATRIX 1500 Manuel du propriétaire
