Ubiquiti UC-CK Manuel utilisateur
Model: UC-CK
RESET
Introduction
Thank you for purchasing the Ubiquiti Networks®
UniFi® Cloud Key. This Quick Start Guide is designed
to guide you through installation and also includes
warrantyterms.
Package Contents
UniFi Cloud Key Ethernet Cable
Model: UC-CK
RESET
microSD Card
(8 GB)
Quick Start Guide
System Requirement
Web Browser: Mozilla Firefox, Google Chrome,
Microsoft Edge, or Microsoft Internet Explorer 11
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is
the customer’s responsibility to follow local country regulations, including
operation within legal frequency channels, output power, indoor cabling
requirements, and Dynamic Frequency Selection (DFS) requirements.
Network Topology Requirement
A DHCP-enabled network (for the UniFi Cloud Key
to obtain an IP address)
UAP-AC Outdoor
UniFi Cloud Key
UniFi Switch
Internet
UAP-PRO
1G
UAP-AC-LR
UniFi Security
Gateway PRO
LAN
WAN
Sample Network Diagram
All UniFi devices also support off-site management
controllers. For setup details, see the User Guide on
the website: documentation.ubnt.com/unifi
Hardware Overview
Front Panel LED
LED Color Status
White Factory defaults.
Flashing White Initializing.
Alternating
White/Blue
Device is busy; do not touch or
unplug it. This usually indicates
that a process such as a firmware
upgrade is taking place.
Blue Device is working properly.
Top Panel
Ethernet Port
Ethernet This Gigabit Ethernet port is used to
connect the power and should be connected to the
LAN and DHCP server. Power can be provided by an
802.3af PoE switch, such as the Ubiquiti Networks
UniFi Switch.
Bottom Panel
Micro-USB Port
RESET
Reset Button
microSD Slot
Reset The Reset button serves two functions:
• Restart Press and release the Reset button
quickly.
• Restore to Factory Default Settings Press and
hold the Reset button for more than five seconds.
Micro-USB Optional power source (5V, minimum
1A) if PoE is not available.
microSD Reserved for future use.
Hardware Installation

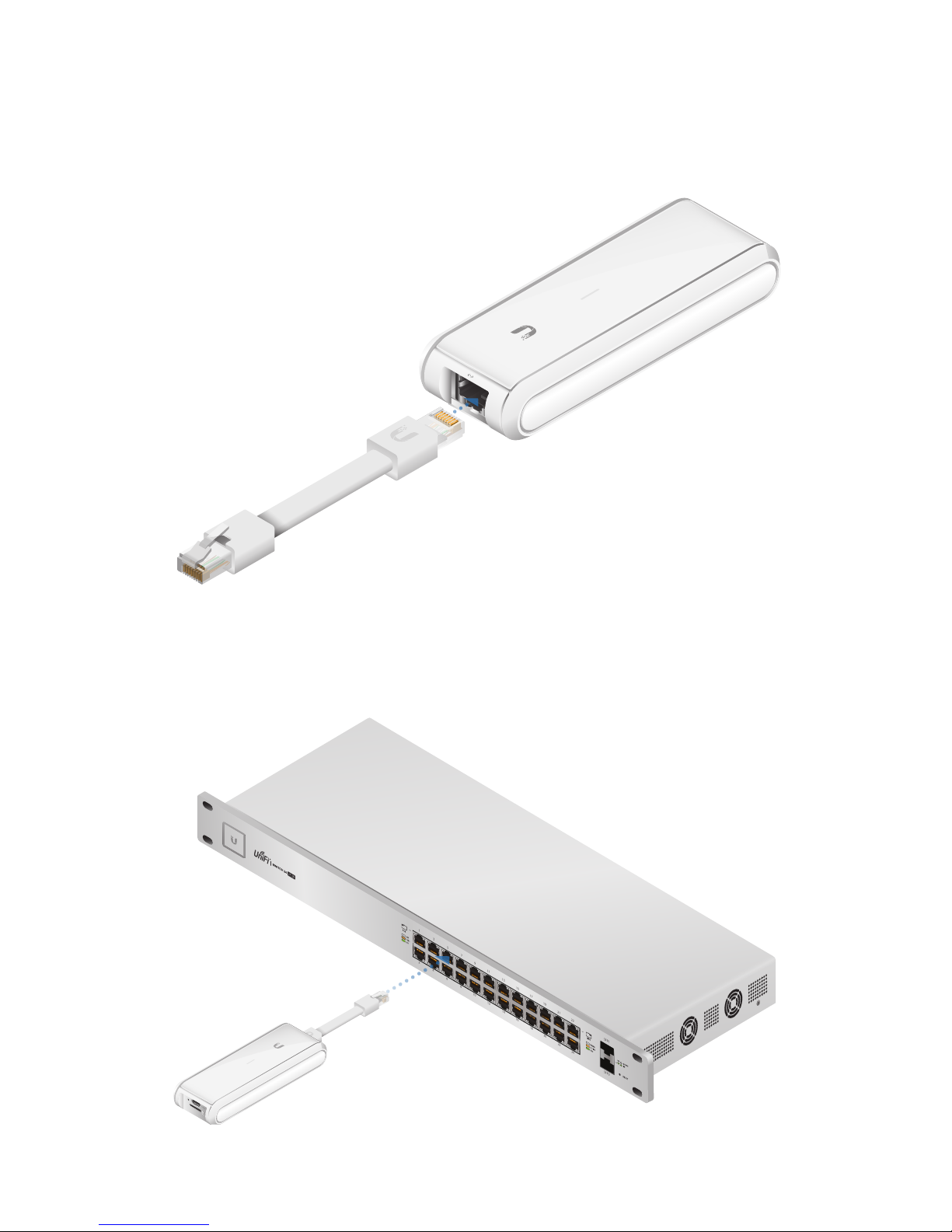

1. Connect the Ethernet Cable to the Ethernet port.
2. Connect the other end of the Ethernet Cable to a
port on a network switch, such as a UniFiSwitch.
1 3 5 7 9 11 13 15 17 19 21 22
2 4 6 8 10 12 14 16 18 20 22 24
SFP1
SFP2
RESET
Powering the UniFi Cloud Key
Use an 802.3af-compliant switch, such as a UniFi
Switch, or a USB power source (not included).
UniFi Switch
The UniFi Cloud Key can be powered by a UniFi
Switch or other 802.3af-compliant switch.
1 3 5 7 9 11 13 15 17 19 21 22
2 4 6 8 10 12 14 16 18 20 22 24
SFP1
SFP2
RESET
UniFi Switch Power Connection Diagram
USB Power Source
Connect the USB cable (not included) from the
UniFi Cloud Key directly to a USB power source
(5V, minimum 1A).
RESET
USB Power Connection Diagram
Software Installation
The UniFi Controller software is pre-installed on the
UniFi Cloud Key. Use one of the following methods
to launch the software:
• If you are using Chrome, go to the Chrome
Instructions section (recommended).
• If you are using a different web browser, go to the
Instructions for Other Web Browsers section.
Chrome Instructions
1. Ensure that your host system is on the same
Layer-2 network as the UniFi CloudKey.
2. Launch the Chrome web browser and type
https://unifi.ubnt.com in the address field.
Press enter (PC) or return (Mac).
https://unifi.ubnt.com
3. Enter the username and password for your
UBNT account. Click Sign In.
4. Click Find Cloud Key.
5. If the Ubiquiti® Device Discovery Tool is already
installed, proceed to step 7.
If the tool is not installed, you will be prompted
to add it. Proceed to step 6.
6. To install the tool:
a. Click Install.
b. Click Add app to confirm.
7. The Ubiquiti Device Discovery Tool will search
for the UniFi Cloud Key. Select it to continue.
