KING COBRA®310

120V

INFORMATION

OPERATING

INSTRUCTIONS

DO NOT OPERATE MACHINE UNTIL YOU HAVE READ

ALL SECTIONS OF THE INSTRUCTIONS

IMPROPER USE OF THE MACHINE WILL VOID THE WARRANTY

1. Always use a defoamer when foaming occurs to prevent vacuum motor damage.

2. Keep machine from rain and snow, extremes in temperatures, and store in a

heated location. Use the machine indoors. Do not use outdoors.

3. Do not let the pump run dry.

4. Use approved chemicals only. NO SOLVENTS.

5. Wear gloves or use rags when removing quick disconnects to prevent burns.

6.5.2007

IMPORTANT SAFETY INSTRUCTIONS

This machine is only suitable for commercial use, for example in hotels, schools,

hospitals, factories, shops and offices other than normal residential housekeeping

purposes.

When using any electrical appliance, basic precautions should always be followed,

including the following:

NOTE: Read all instructions before using this machine.

WARNING!

To reduce the risk of fire, electric shock, or injury:

•Do not leave the machine unattended when it is plugged in. Unplug the unit from

the outlet when not in use and before servicing.

•To avoid electric shock, do not expose to rain or snow. Store, and use, indoors.

•Do not allow to be used as a toy. Close attention is necessary when used near

children.

•Use only as described in this manual. Use only the manufacturer’s recommended

attachments.

•Never add water over 130º F/54º C to the solution tank.

•Do not use with damaged cord or plug. If the machine is not working as it

should, has been dropped, damaged, left outdoors or dropped into water, return it

to a service center.

•Do not pull by the cord, use the cord as a handle, close a door on the cord, or pull

the cord around sharp edges or corners. Do not run the machine over the cord.

Keep the cord away from heated surfaces. To unplug, grasp the plug, not the cord.

•Do not handle the plug, the cord or the machine with wet hands.

•Extension cords must be 12/3 and no longer than 50 feet. Replace the cord or

unplug immediately if the ground prong becomes damaged.

•Do not put any object into openings. Do not use with any opening blocked; keep

free of dust, lint, hair, and anything that may reduce air flow.

•Keep loose clothing, hair, fingers, and all parts of body away from openings and

moving parts.

•Do not pick up anything that is burning or smoking, such as cigarettes, matches,

or hot ashes, or any health endangering dusts. Do not use to pick up flammable

or combustible liquids such as gasoline or use in areas where they may be

present.

•Turn off all controls before unplugging.

•Use extra care when cleaning on stairs.

•Connect to a properly grounded outlet only.

•Liquid ejected at the spray nozzle could be dangerous as a result of its

temperature, pressure, or chemical content.

02/12/2003

INSPECTION:

Carefully unpack and inspect your KING COBRA-310 for shipping damage. Each machine is tested and

inspected before shipping. Any shipping damage incurred is the responsibility of the carrier. You should notify

the carrier immediately if you notice damage to the box or to the machine or parts.

CLEANING SOLUTIONS:

We recommend liquid cleaning chemicals, such as our Magic Fabric Cleaner. Powder chemicals may be used,

but unless mixed very thoroughly they could cause a build-up in the pump, lines, heat exchanger and/or

quick disconnects. Any problem caused by a chemical build-up is not covered by warranty. Use a neutral

cleaner with a pH between 6 and 9 to avoid premature wear of the pump, seals, and/or other components.

Damage caused by the use of strong chemicals is not covered by the warranty.

MAINTENANCE:

For optimum performance flush the machine with clear water at the end of each working day. Once a

month, minimum, run a flushing compound through the machine to break up any mineral or chemical build-

up that may have formed. U.S. Products “X-1500” is recommended. Lubricate the wheels, castors, and

quick disconnects with an all purpose silicone spray. The vacuum and the pump do not require any

maintenance. Clean the body with an all purpose detergent, and protect it with an automobile interior polish.

Recovery

Tank Lid Switch

Plate

Vacuum Hose

Connection

Solution Hose

Connection

Vacuum

Hose and

Solution

Hose on

Reel

Latch

10 Inch

Wheel

4 inch

Castor

Solution Tank

Lid

Pressure

Gauge

NOTE: This machine is only suitable for commercial use, for example in hotels, schools, hospitals,

factories, shops and offices other than normal residential housekeeping purposes.

SWITCH PLATE

CIRCUIT

LOCATOR

LIGHT BYPASS SWICH.

TURNS THE HEATER ON

WHEN GREEN LIGHT IS

NOT ON

123

VACUUM

ON/OFF

SWITCH

Record the serial number and model of your new extractor here:

(and be sure to mail your warranty card)

Serial Number: __________________ Model: KING COBRA-310 Purchase Date:_____________

Write the name and phone number of your distributor:

_____________________________________

PUMP

ON/OFF

SWITCH

RED LIGHT

INDICATES WHEN

THE HEATER IS

HEATING

SELECT CARPET

OR UPHOLSTERY

1 Inspect the machine, hoses, and cleaning tools for cleanliness and completeness.

2 Fill the solution tank with water. Using warm water may be a benefit in cleaning effectiveness, but

do not use hot water (above 140

F / 60

C) in the tank.

3 Plug in the power cords. Do not connect both cords to the same outlet; the green circuit locator

light (1) on the switch plate should light up. If the locator light does not come on, try different

outlets until it does. If you are certain the cords are on separate circuits, turn the bypass switch (4) on.

CAUTION: using the bypass switch (4) when the cords are on the same circuit may cause the

breaker in the wall to trip. NOTE: the red light (5) will turn on only when the heat exchanger is

actively heating.

OPERATION

4 Connect the priming hose to the machine, turn the pump ON (2) and prime the air out of the pump.

When the water is clear (no air in it) turn the pump off and remove the priming hose. NOTE: if priming

is difficult, place the open end of the priming hose into the vacuum inlet hose barb, and turn the vacuum

on (6). Use you hand to block the open area in the hose barb. This will allow the pump and the

vacuum to work together to get the water moving. Priming may take 20-60 seconds, and the solution

tank should be full. Once the pump is primed, turn the pump and the vacuum off. Remove the

priming hose.

5 Add liquid cleaning chemical, with a pH between 6 and 9, to the solution tank.

6 Attach the spray hose to the solution quick disconnect and the vacuum hose to the hose barb on

the recovery tank. Pull the hoses out of the reel. Attach the other ends of the hoses to the

cleaning tool.

6 Allow the heat exchanger two minutes to reach operating temperature. The red light (5) will go out

when the heater has reached operating temperature. NOTE: the red light will be on nearly all the

time as you clean.

7 Turn the pump on and set the pressure selection switch (3) to the desired spraying pressure 300 or

50 PSI). Turn the vacuum on (6).

8 Begin cleaning using the correct hoses and tool.

9 Use defoamer in the recovery tank any time foaming occurs.

10 Monitor the water level in the solution tank. Do not let the pump run dry.

11 When the solution tank gets low, turn the pump and the vacuum off, fill the solution tank, empty

and clean the recovery tank.

12 When finished with the job, remove any unused solution from the solution tank, and run a few

gallons of clean water through the system. Drain the recovery tank by placing the dump hose over

a drain, or into a bucket, and remove the hose cap. Disconnect the hoses from the cleaning tool,

and reel the hoses up onto the hose spool.

NOTE: to remove the reel, with the hoses, from the machine, pull the vacuum hose loose from the hose

barb on the front of the tank. Disconnect the solution hose quick coupling. Push the vacuum hose into the

center of the spool. Grasp the spool on both sides, and lift it off the machine. NOTE: before servicing any

component in the base cabinet, the hoses and spool must be removed from the machine before the tanks

can be lifted open.

This unique, patented system is operated by a solid state circuit. It will inform the operator when the two

cords are plugged into separate circuits by turning on the circuit locator light. This helps to prevent tripping

circuit breakers. NOTE: if the green, circuit locator light does not illuminate when the cords are plugged in,

then both cords are on the same circuit. Try other outlets with one of the cords until you get the locator

light to come on. NOTE: if the bypass switch is turned on when both cords are on the same circuit, the

breaker in the wall may trip.

REFER TO THE DIAGRAMS ON THE PREVIOUS PAGE

BALL FLOAT SHUT-OFF

When the recovery tank is full, the ball float will disable the vacuum suction. This will prevent water from

entering the vacuum motor. The float may not work properly if the vacuum inlet float filter is dirty or if

there is heavy foam in the tank

CAUTION: to avoid vacuum motor damage, always make sure the float filter is clean and that the

ball can travel freely before you operate the machine. Always use a defoamer any time foam is

present.

ELECTRIC CIRCUIT LOCATOR

8/30/2005

813

10 14

15A

54A

43 39

47 45 46

41 44

KC-310

120V/240V

18A

20A

35A

35B

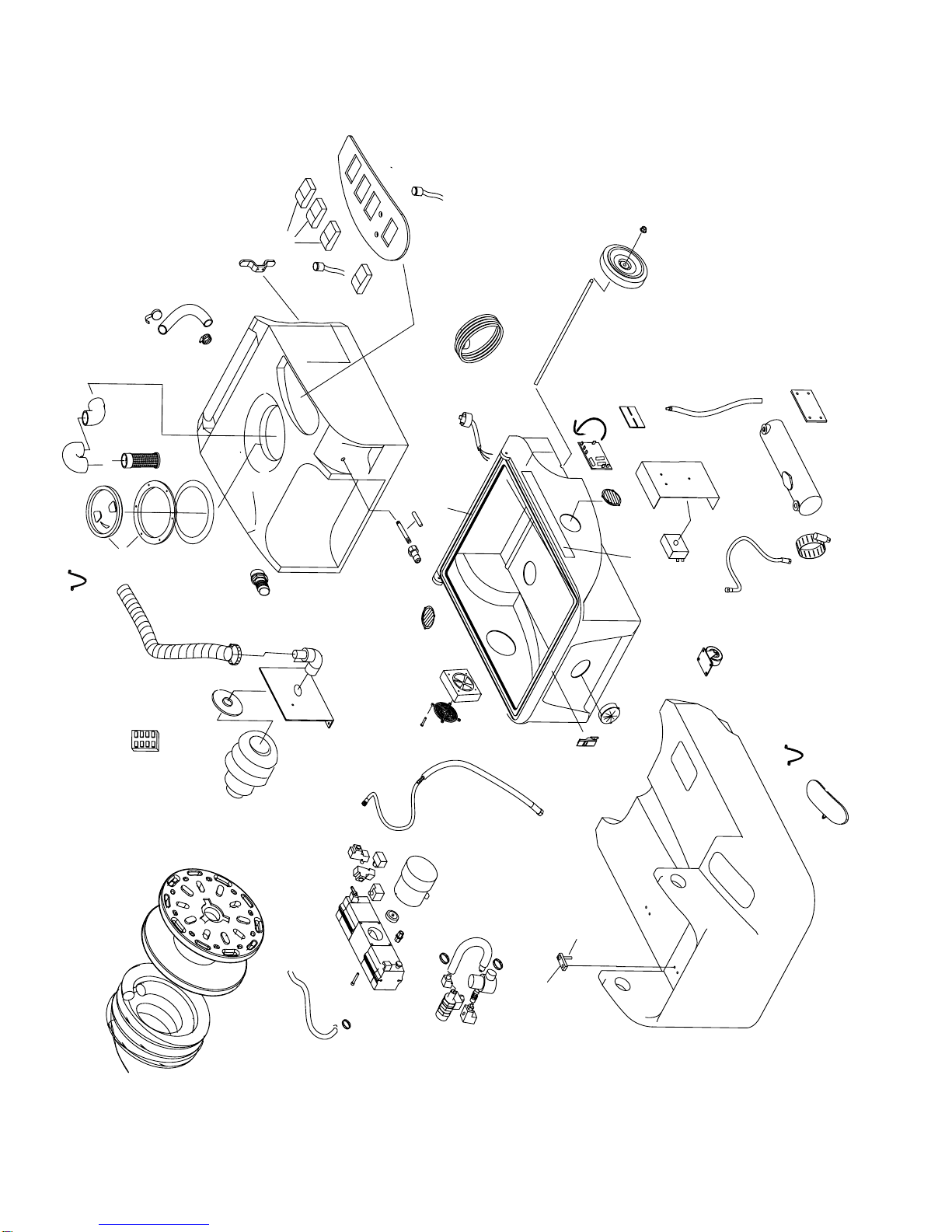

KING COBRA-310 EXTRACTOR

120V PART LIST 240V

1 805 Chain, lid, 8”

2 901B Lid, solution tank

3 HKCR1 Holding tank, white

4 1088 Glide, teflon

5 178 Screw, 6-32 X 1/2”

6 2062 Solenoid valve, 120V

2063 Solenoid valve,

240V

7 925 Hose, 3/8” X 20-1/2”

8 166 Hose clamp

9 945 Valve, pump, bypass

10 2060 Motor, pump, 120V

2064 Motor, pump,

240V

11 950A Cam/bearing assembly

12 FP363 Pump complete, no mtr or soleniod

13 1147 Cap screw, pump to motor

14 FP356 Hose assembly, pump to gauge

15 913 Vacuum motor, 3-stage, 120V

913A Vacuum motor, 3-stage,

240V

15A 959 Gasket, vacuum motor

16 4405A Relay, 120V/240V, vacuum

17 926 Manifold, vacuum motor mount

18 946 Hose, vacuum inlet, 1/2” X 22”

18A 156 Hose clamp

19 907 Hose barb, for vacuum hose

20 2086 Lid, vacuum with ring

20A 1074 Gasket, lid

23 FP364 Ball float Assembly

24 156 Hose clamp

25 1060B Hose, drain, 1-1/2” x 24”

26 1060C Plug, drain hose

27 CWKC-BLK Cord wrap, Black

28 FP345 Switch and acuator, motors

29 78 Light, green, 120V

30 FP346 Swtich and actuator, heat / bypass

31 78B Light, red, 120V

228 Light, red,

240V

32 2065C Switch plate, 120V

2065D Switch plate,

240V

33 1057B Cord, power, 25 ft, yellow

34 1062 Receptacle, power cord

35 45 Quick disconnect, male, 1/4 p.t.

35A 1146 Nipple, S/S

35B 1144 Tubing, 4-3/4”

36 910 Axle, cut to length, 21”

37 2084 Wheel, 10”

38 27A Axle cap

39 923B* Dual circuit sensor PCB. 120V only

40 FP336 PCB mount, snap track, 120V only

41 918 Heat sink plate

42 ------ See miscellaneous

43 928 Louver, 3”, includes screws

44 FP348C Hose, pump to heater

45 FP357 Heat exchanger, complete, 120V

FP359 Heat exchanger, complete,

240V

46 455 Mount, heat exchanger

47 76 Hose clamp

48 FP348A Hose, heater to outlet

49 905 Castor, 4”

50 966A Label, KC-310

51 BKCR-BLK Base, black

52 951A Pressure gauge

53 908A Latch, rubber

54 2014 Fan, 100 CFM, cooling, 120V

2018 Fan, 100CFM, cooling,

240V

54A 2B1 Screw, 6-32 X 2-1/4”

55 2015 Guard, cooling fan

56 FP351 Gasket, 84”

57 VKCR-1 Vacuum tank, white

58 FP350A Vacuum hose, complete

59 FP350B Pressure line, complete

ITEM PARTNo. DESCRIPTION ITEM PARTNo. DESCRIPTION

MISCELLANEOUS PARTS AND KITS

FP194C Heat repair kit includes probe, thermistor

control, thermal cutout and circuit

board 120V

FP194A Heat repair kit includes probe,thermistor

control and circuit board 120V

FP226C Heat repair kit includes probe, thermistor

control, thermal cutout,

240V

FP352 Pump & motor complete, 120V

FP353 Pump & motor complete,

240V

FP354 Pump with solenoid (no mtr), KC-310-120V

FP355 Pump with solenoind, (no mtr) KC-310-

240V

*923 Dual circuit sensor PCB. 120V only

(Machines made before 7/22/05)

FP350 Hose reel assembly, complete

FP350C Vacuum hose and pressure line, complete,

no reel

(parts in kits are not sold separately)

8/30/2005

Rotomolded Body:

Vacuum:

VAC Shutoff:

Pump:

Waterlift:

Heat:

Heater:

Wand:

Weight:

Lifetime Warranty

7.2” 3-stage

Ball float

Positive displacement, selectable

pressure setting

140”

Instant to 212 ºF

2000 Watts

Stainless steel, double bend, twin tip

129 lbs.

SPECIFICATIONS:

208-772-0573 • 800-257-7982 •FAX: 208-772-0577

Coeur d’Alene, Idaho

VISIT US AT: http://www.usproducts.com

KING COBRA®310

120V

Table des matières

Autres manuels U.S. Products Machine de plancher

U.S. Products

U.S. Products SPOTTER Manuel utilisateur

U.S. Products

U.S. Products KING COBRA 150 Mode d'emploi

U.S. Products

U.S. Products Kraken Neptune 500 Mode d'emploi

U.S. Products

U.S. Products HYDRAPORT 100SC Mode d'emploi

U.S. Products

U.S. Products KING COBRA 310-CSA Manuel utilisateur

U.S. Products

U.S. Products 100-041-016 Manuel utilisateur

U.S. Products

U.S. Products COBRA-300H Mode d'emploi

U.S. Products

U.S. Products ADVANTAGE-400H Series Mode d'emploi

U.S. Products

U.S. Products COBRA-300H Manuel utilisateur

U.S. Products

U.S. Products PB111-120 Manuel utilisateur

U.S. Products

U.S. Products PEX 500 Mode d'emploi

U.S. Products

U.S. Products ADVANTAGE-400H Series Mode d'emploi

U.S. Products

U.S. Products COBRA-H Manuel utilisateur

U.S. Products

U.S. Products Agitator 20 Mode d'emploi

U.S. Products

U.S. Products AGITATOR 16 Manuel utilisateur

U.S. Products

U.S. Products KING COBRA 1200 PRO Manuel utilisateur

U.S. Products

U.S. Products KING COBRA 300 Mode d'emploi

U.S. Products

U.S. Products HYDRAPORT 1200 Manuel utilisateur

U.S. Products

U.S. Products KING COBRA 1200 PRO Mode d'emploi

U.S. Products

U.S. Products King Cobra KC-500 Mode d'emploi

Manuels Machine de plancher populaires d'autres marques

Nilfisk-Advance

Nilfisk-Advance Advance SC370 17B Manuel utilisateur

Numatic

Numatic ET 4045 Manuel utilisateur

HAWK ENTERPRISES

HAWK ENTERPRISES HP1513-180BRUTE Manuel utilisateur

Mytee

Mytee 8070 Mytee-Lite Manuel utilisateur

Kärcher

Kärcher B 140 R Manuel utilisateur

Triple S

Triple S Ace 26T1 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance SW 750 Manuel utilisateur

Tornado

Tornado Marathon 2000 98190 Manuel

Windsor

Windsor ADMIRAL Admiral 8 Manuel utilisateur

Numatic

Numatic TTB 1117/100 Manuel utilisateur

Tennant

Tennant 8210D Manuel utilisateur

Nobles

Nobles Frontier Manuel du produit

lavina

lavina 21-X Manuel utilisateur

KENT

KENT Edge 28B Manuel utilisateur

Tennant

Tennant 215 Manuel du produit

Windsor

Windsor BDP 51/2000C Manuel utilisateur

CleanFreak

CleanFreak DURA-18HD Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance Warrior 34RST Guide de l'administrateur
