USER GUIDE & SERVICE MANUAL
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Modular 3000 Series •3018R •18" Solid Door Refrigerator
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Contents
Intro
Safety
Safety and Warning
RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE. SINCE 1962.
Disposal and Recycling
Installation
Environmental Requirements
Electrical
Cutout Dimensions
Product Dimensions
Side by Side Installation
Anti-Tip Bracket General
Installation
Integrated Panel Dimensions
Integrated Grille / Plinth
Dimensions
Integrated Panel Installation
Grille / Plinth Installation
Door Swing
Door Stop
Cleaning Condenser
Extended Non-Use
Service
Troubleshooting
Warranty
Service Extended
Wire Diagram
Product Liability
Warranty Claims
Parts
Ordering Replacement
Parts
System Diagnosis Guide
Compressor Specifications
Troubleshooting Extended
Control Quick Guide
Thermistor
Defrost
Remove Fan and Cover
Door Adjust
Operating Instructions
First Use
Control Operation
Sabbath Mode
Airflow and Product Loading
Refrigerator Bins / Crisper
Maintenance
Cleaning
WELCOME TO U-LINE
Congratulations on your U-Line purchase. Your product comes from a company with over five decades of premium
modular ice making, refrigeration, and wine preservation experience. U-Line continues to be the American leader,
delivering versatility and flexibility for multiple applications including residential, light commercial, outdoor and marine
USER
GUIDE
u-line.com
USER GUIDE
u-line.com
use. U-Line’s complete product collection includes Wine Captain®Models, Beverage Centers, Clear Ice Machines,
Crescent Ice Makers, Glass & Solid Door Refrigerators, Drawer Models, Freezers, Combo®Models, and more.
U-Line has captivated those with an appreciation for the finer things with exceptional functionality, style, inspired
innovations and attention to even the smallest details. We are known and respected for our unwavering dedication
to product design, quality and selection. U-Line is headquartered in Milwaukee, Wisconsin and has shipped product
to five continents for over two decades and is proud to have the opportunity to ship to you.
PRODUCT INFORMATION
Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance
Documentation, and Product Warranty information are all available for reference and download at u-line.com.
PROPERTY DAMAGE / INJURY CONCERNS
In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the
following steps:
1. U-Line Customer Care must be contacted immediately at +1.800.779.2547.
2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit
has been altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.
GENERAL INQUIRIES
U-Line Corporation
8900 N. 55th Street
Milwaukee, Wisconsin 53223 USA
Monday - Friday 8:00 am to 4:30 pm
CST
T: +1.414.354.0300
F: +1.414.354.7905
u-line.com
CONNECT WITH US
SERVICE & PARTS ASSISTANCE
Monday - Friday 8:00 am to 4:30 pm
CST
T: +1.800.779.2547
F: +1.414.354.5696
Service Email: onlineservice@u-
line.com
Designed, engineered and assembled in WI, USA
Introduction 1
u-line.com
USER GUIDE
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Safety and Warning
NOTICE
Please read all instructions before installing,
operating, or servicing the appliance.
Use this appliance for its intended purpose only and
follow these general precautions with those listed
throughout this guide:
SAFETY ALERT DEFINITIONS
Throughout this guide are safety items labeled with a
Danger, Warning or Caution based on the risk type:
DANGER
Danger means that failure to follow this safety
statement will result in severe personal injury or
death.
WARNING
Warning means that failure to follow this safety
statement could result in serious personal injury
or death.
CAUTION
Caution means that failure to follow this safety
statement may result in minor or moderate
personal injury, property or equipment damage.
DANGER
This unit contains R600a (Isobutane) which is a
flammable hydrocarbon. It is safe for regular
use. Do not use sharp objects to expedite
defrosting. Do not service without consulting the
“R600a specifications” section included in the
User Guide. Do not damage the refrigerant
circuit.
WARNING
Service must be done by factory authorized
service personnel. Any parts shall be replaced
with like components. Failure to comply could
increase the risk of possible ignition due to
incorrect parts or improper service.
Safety and Warning 1
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
Disposal and Recycling
DANGER
RISK OF CHILD ENTRAPMENT. Before you throw
away your old refrigerator or freezer, take off
the doors and leave shelves in place so children
may not easily climb inside.
If the unit is being removed from service for disposal,
check and obey all federal, state and local regulations
regarding the disposal and recycling of refrigeration
appliances, and follow these steps completely:
1. Remove all consumable contents from the unit.
2. Unplug the electrical cord from its socket.
3. Remove the door(s)/drawer(s).
Disposal and Recycling 1
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
Environmental Requirements
This model is intended for indoor/interior applications
only and is not to be used in installations that are
open/ exposed to natural elements.
This unit is designed to operate between 50°F (10°C)
and 100°F (38°C). Higher ambient temperatures may
reduce the unit’s ability to reach low temperatures
and/or reduce ice production on applicable models.
For best performance, keep the unit out of direct
sunlight and away from heat generating equipment.
In climates where high humidity and dew points are
present, condensation may appear on outside
surfaces. This is considered normal. The condensation
will evaporate when the humidity drops.
CAUTION
Damages caused by ambient temperatures of
40°F (4°C) or below are not covered by the
warranty.
Environmental Requirements 1
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
Electrical
WARNING
SHOCK HAZARD —Electrical Grounding
Required. Never attempt to repair or perform
maintenance on the unit until the electricity has
been disconnected.
Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
Altering, cutting or removing power cord,
removing power plug, or direct wiring can cause
serious injury, fire, loss of property and/or life,
and will void the warranty.
Never use an extension cord to connect power to
the unit.
Always keep your working area dry.
NOTICE
Electrical installation must observe all state and
local codes. This unit requires connection to a
grounded (three-prong), polarized receptacle
that has been placed by a qualified electrician.
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current).
An individual, properly grounded branch circuit or
circuit breaker is recommended. A GFCI (ground fault
circuit interrupter) is usually not required for fixed
location appliances and is not recommended for your
unit because it could be prone to nuisance tripping.
However, be sure to consult your local codes.
See CUTOUT DIMENSIONS for recommended
receptacle location.
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
Electrical 1
Cutout Dimensions
PREPARE SITE
Your U-Line product has been designed exclusively for
a built-in installation. When built-in, your unit does
not require additional air space for top, sides, or rear.
However, the front grille must NOT be obstructed.
The product is designed and manufactured for
seamless integration in the specified cutout opening
shown, which requires precise measurements. The
opening must be square and plumb front to back.
Although not required, you may choose to increase
the overall cutout width for ease of installation.
The Modular 3000 Series units are engineered with a
variety of adjustment features to help ensure a
seamless installation. Adjustable doors, leveling legs
and grille will assist in fine tuning the installation.
All 3000 Series models fully integrate into
overlay/face frame, inset or European/frameless
cabinet styles and install seamlessly into standard 24"
(610 mm) depth cabinet base.
CAUTION
Unit can NOT be installed behind a closed
cabinet door.
CUTOUT DIMENSIONS
Metric measurements rounded and optimized.
Cutout Dimensions 1
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com

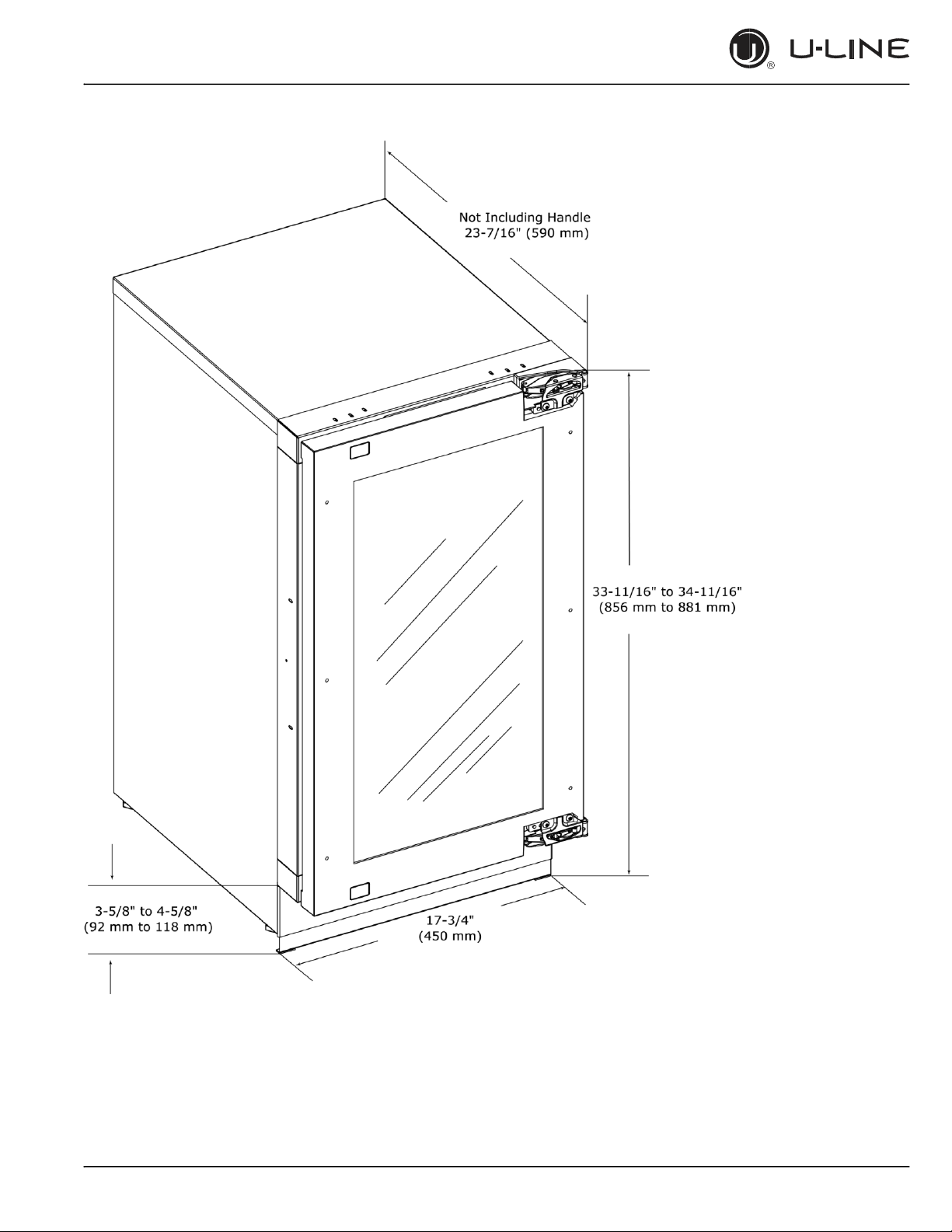

Product Dimensions
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
Product Dimensions 1
Side-by-Side Installation
OTHER SITE REQUIREMENTS
Side-by-Side Installation
Units must operate from separate, properly grounded
electrical receptacles placed according to each unit’s
electrical specifications requirements.
Cutout width for a side-by-side installation is the total
of the widths listed under Cutout Dimensions in each
unit’s Installation Guide. Each door can be opened
individually (one at a time) without interference.
However, to ensure unobstructed door swing
(opening both doors at the same time), 1/4" (6.4
mm) of space needs to be maintained between the
units.
Hinge-by-Hinge Installation (Mullion)
When installing two units hinge-by-hinge, 13/16" (22
mm) is required for integrated models. Additional
space may be needed for any knobs, pulls or handles
installed.
Stainless steel models which include the standard
stainless handle will require 4-9/16" (116 mm) to
allow both doors to open to 90° at the same time.
