USER GUIDE

Introduction 1

u-line.com

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over five decades of premium modular

ice making, refrigeration, and wine preservation experience. U-Line continues to be the American leader, delivering versatility

and flexibility for multiple applications including residential, light commercial, outdoor and marine use. U-Line’s complete

global product collection includes Wine Cellars, Drinks Cabinets, Clear Ice Machines, Glass & Solid Door Refrigerators, Drawer

Models, and Freezers.

U-Line has captivated those with an appreciation for the finer things with exceptional functionality, style, inspired innovations

and attention to even the smallest details. We are known and respected for our unwavering dedication to product design,

quality and selection. U-Line is headquartered in Milwaukee, Wisconsin and has shipped product to five continents for over

two decades and is proud to have the opportunity to ship to you.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation,

and Product Warranty information are all available for reference and download at u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm UTC/GMT - 5

T: +1.414.354.0300

F: +1.414.354.7905

Email: sales@u-line.com

u-line.com

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm UTC/GMT - 5

T: +1.414.354.0300

F: +1.414.354.5696

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

CONNECT WITH US

Designed, engineered and assembled in WI, USA

USER GUIDE

Safety and Warning 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Safety and Warning

NOTICE

PLEASE READ all instructions before installing,

operating, or servicing the appliance.

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning or Caution based on the risk type:

DANGER

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

WARNING

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

CAUTION

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property or equipment damage.

GENERAL PRECAUTIONS

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide.

This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience or knowledge,

unless they have been given supervision or instruction

concerning use of the appliance by a person responsible

for their safety. Children should be supervised to ensure

that they do not play with this appliance.

DANGER

This unit contains R600a (Isobutane) which is a

flammable hydrocarbon. It is safe for regular

use. Do not use sharp objects to expedite

defrosting. Do not service without consulting the

“R600a specifications” section included in the

User Guide. Do not damage the refrigerant

circuit.

DANGER

Do not use electrical appliances inside the food

storage compartment of this appliance.

WARNING

Keep ventilation openings in the appliance

enclosure or in the built in structure clear of

obstruction.

WARNING

Do not store explosive substances such as

aerosol cans with flammable propellant in this

appliance.

WARNING

Requirement for an external switch in the fixed

wiring is specified.

USER GUIDE

Safety and Warning 2

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

CAUTION

Use care when moving and handling the unit.

Use gloves to prevent personal injury from sharp

edges.

If your model requires defrosting, DO NOT use

medical devices or other means to accelerate the

defrosting process. DO NOT use an ice pick or

other sharp instrument to help speed up

defrosting. These instruments can puncture the

inner lining or damage the cooling unit. DO NOT

use any type of heater to defrost. Using a heater

to speed up defrosting can cause personal injury

and damage to the inner lining.

NOTICE

Do not lift unit by door handle.

Never install or operate the unit behind closed

doors. Be sure front grille (plinth strip/base

fascia) is free of obstruction. Obstructing free

airflow can cause the unit to malfunction and

will void the warranty.

Failure to clean the condenser every six months

can cause the unit to malfunction. This could

void the warranty.

Allow unit temperature to stabilize for 24 hours

before use.

Do not block any internal fans.

Use only genuine U-Line replacement parts.

Imitation parts can damage the unit, affect its

operation or performance and may void the

warranty.

This appliance is intended to be used in household and

similar applications such as:

• Staff kitchen areas in shops, office and other working

environments.

• Farm houses and by clients in hotels, motels and other

residential type environments.

• Bed and breakfast type environments.

• Catering and similar non-retail applications.

USER GUIDE

Disposal and Recycling 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Disposal and Recycling

DANGER

RISK OF CHILD ENTRAPMENT. Before you throw

away your old refrigerator or freezer, take off

the doors and leave shelves in place so children

may not easily climb inside.

If the unit is being removed from service for disposal,

check and obey all federal, state and local regulations

regarding the disposal and recycling of refrigeration

appliances, and follow these steps completely:

1. Remove all consumable contents from the unit.

2. Unplug the electrical cord from its socket.

3. Remove the door(s)/drawer(s).

USER GUIDE

Environmental Requirements 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Environmental Requirements

This model is intended for indoor/interior applications only

and is not to be used in installations that are open/

exposed to natural elements.

This unit is designed to operate between 50°F (10°C) and

90°F (32°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

USER GUIDE

Electrical 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

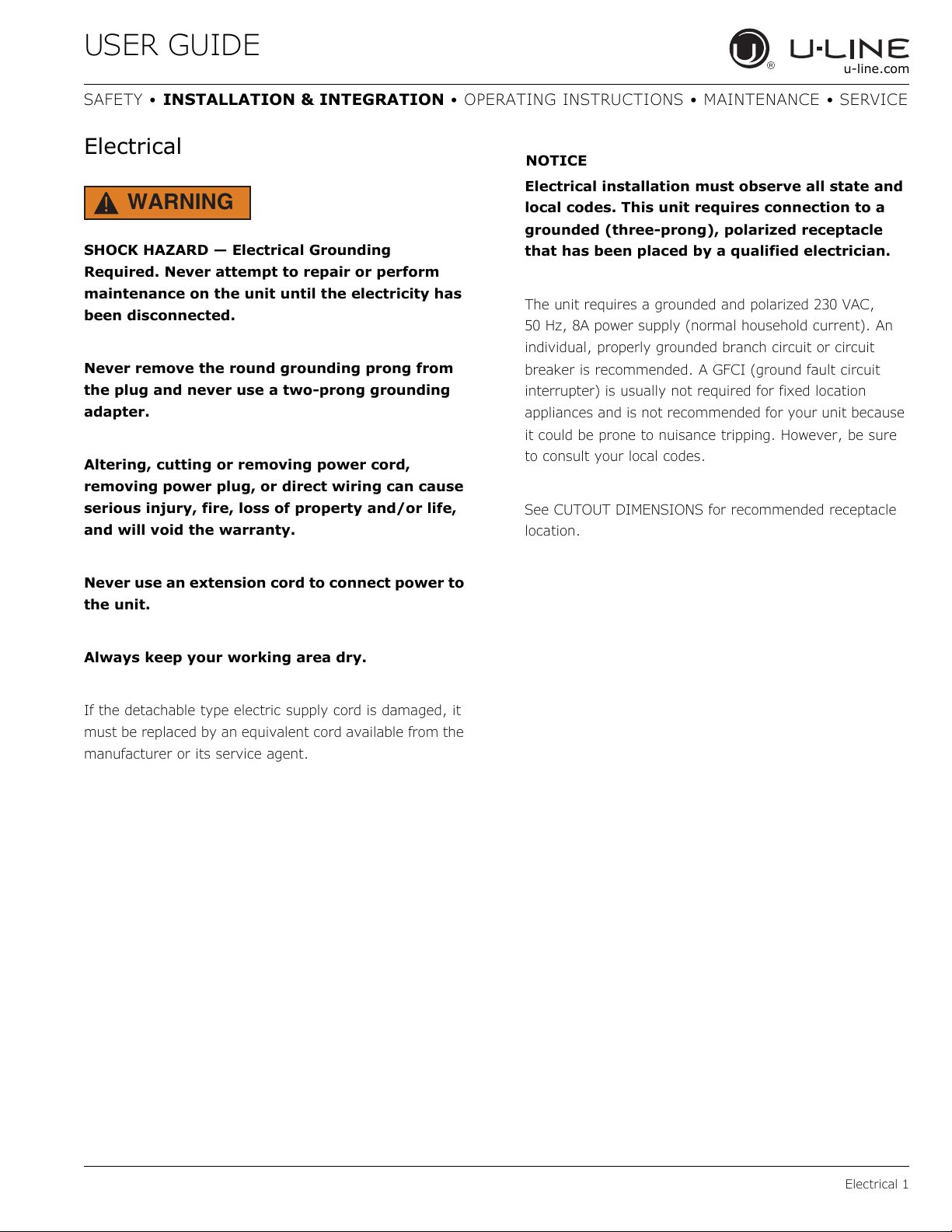

Electrical

WARNING

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

If the detachable type electric supply cord is damaged, it

must be replaced by an equivalent cord available from the

manufacturer or its service agent.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualified electrician.

The unit requires a grounded and polarized 230 VAC,

50 Hz, 8A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for fixed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure

to consult your local codes.

See CUTOUT DIMENSIONS for recommended receptacle

location.

USER GUIDE

Cutout Dimensions 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Cutout Dimensions

PREPARE SITE

Your U-Line product has been designed exclusively for a

built-in installation. When built-in, your unit does not

require additional air space for top, sides, or rear.

However, the front grille (plinth strip/base fascia) must

NOT be obstructed.

The product is designed and manufactured for seamless

integration in the specified cutout opening shown, which

requires precise measurements. The opening must be

square and plumb front to back. Although not required,

you may choose to increase the overall cutout width for

ease of installation.

The Modular 3000 Series units are engineered with a

variety of adjustment features to help ensure a seamless

installation. Adjustable doors, leveling legs and grille will

assist in fine tuning the installation.

All 3000 Series models fully integrate into overlay/face

frame, inset or European/frameless cabinet styles.

CAUTION

Unit can NOT be installed behind a closed cabinet

door.

CUTOUT DIMENSIONS

Metric measurements rounded and optimized.

(102 mm)

(178 mm)

33-7/8"

(860 mm)

34-7/8"

(886 mm)

23-3/4"

(605 mm)

Preferred location

for electrical outlet

is in adjacent

cabinet.

24"

(610 mm)

5/8"

(16 mm)

USER GUIDE

Product Dimensions 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Product Dimensions

3-5/8" to 4-5/8"

(92 mm to 118 mm)

33-11/16" to 34-11/16"

(856 mm to 881 mm)

23-7/16" (590 mm)*

23-5/8" (600 mm)

*Includes 3/4" (20 mm) integrated panel

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels U-Line Appareils de cuisine

U-Line

U-Line 515 Manuel utilisateur

U-Line

U-Line SUHBV115-SG01A Manuel d'installation

U-Line

U-Line UCDE215FSS03A Manuel d'installation

U-Line

U-Line Origins 1115WCS00 Manuel utilisateur

U-Line

U-Line Wine Captain 2000 Series Manuel utilisateur

U-Line

U-Line UCDE224DSS03A Manuel d'installation

U-Line

U-Line Wine Captain UHWC515IG01A Manuel d'installation

U-Line

U-Line 3036BVWCS00B Manuel utilisateur

U-Line

U-Line UCWC515 Manuel d'installation

U-Line

U-Line U-1215BEVS-00A Manuel d'installation

U-Line

U-Line Wine Captain UHWC524IG01A Manuel d'installation

U-Line

U-Line 5 Series Manuel utilisateur

U-Line

U-Line Wine Captain UHWC524 Manuel d'installation

U-Line

U-Line 1224U-1215BEVINT-60A Manuel d'installation

U-Line

U-Line U-1224WCB-00B Manuel d'installation

U-Line

U-Line U2224BEVS13B Manuel d'installation

U-Line

U-Line U-2224WCINT-00A Manuel d'installation

U-Line

U-Line Wine Captain U2218WCS00B Manuel d'installation

U-Line

U-Line 2218WCS00B Manuel utilisateur

U-Line

U-Line UHWC124 Manuel d'installation

U-Line

U-Line 2224BEVS-00B Manuel d'installation

U-Line

U-Line UHWC124 Manuel d'installation

U-Line

U-Line U-1215BEVINT-00A Manuel d'installation

U-Line

U-Line Wine Captain HWC518 Manuel d'installation

Manuels Appareils de cuisine populaires d'autres marques

Tayama

Tayama TYG-35AF Manuel utilisateur

AEG

AEG 43172V-MN Manuel utilisateur

REBER

REBER Professional 40 Guide de l'utilisateur

North American

North American BB12482G / TR-F-04-B-NCT-1 Manuel utilisateur

Presto

Presto fountain popper Manuel utilisateur

Westmark

Westmark 1035 2260 Manuel utilisateur

Zanussi

Zanussi ZCG64396XA Manuel utilisateur

HOFFEN

HOFFEN SM-9302M Manuel utilisateur

Philips

Philips HD3133 Manuel utilisateur

Ronco

Ronco Beef Jerky Manuel utilisateur

Hendi

Hendi 470411 Manuel utilisateur

Livoo

Livoo MEN386 Manuel utilisateur

Vogue

Vogue D446 Manuel utilisateur

croydon

croydon WR-10313-700 Manuel utilisateur

ADE

ADE AUTOMATIC-L Manuel utilisateur

Chefman

Chefman RJ43-SQ Series Manuel utilisateur

Vacmaster

Vacmaster VP680 Manuel utilisateur

Jetmaster

Jetmaster 900HG Manuel utilisateur
