U-Line UONP115SS01B Manuel d'installation

USER GUIDE & SERVICE MANUAL

Model: UONP115-SS01B

USER GUIDE & SERVICE MANUAL

Table of Contents

Click on any section below to jump directly there

Intro

Safety

Safety and Warning

Disposal And Recycling

Installation

Environmental Requirements

Electrical

Cutout & Product Dimensions

Side by Side Installation

Water Hookup

Drain

Anti-Tip Bracket

General Installation

Grille Installation

Door Swing

Door Adjust

Maintenance

Cleaning

Cleaning Condenser

Extended Non-Use

Operating Instructions

First Use

Control Operation

Ice

Airflow and Product Loading

Service

Troubleshooting

Wire Diagram

Product Liability

Parts

R600a Specifications

System Diagnosis Guide

Compressor Specifications

Troubleshooting Extended

Control Operation - Service

Thermistor

Warranty

USER GUIDE

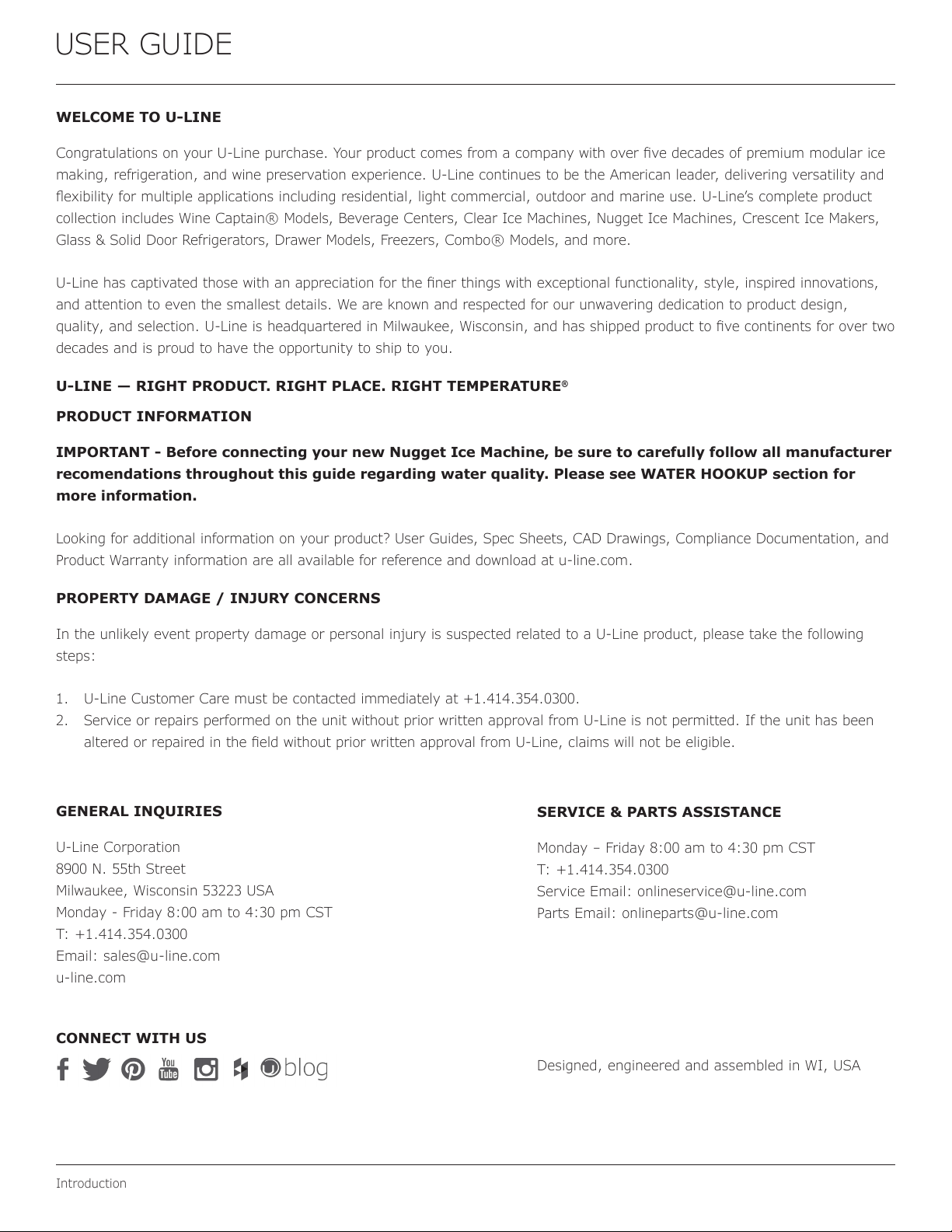

Introduction

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over ve decades of premium modular ice

making, refrigeration, and wine preservation experience. U-Line continues to be the American leader, delivering versatility and

exibility for multiple applications including residential, light commercial, outdoor and marine use. U-Line’s complete product

collection includes Wine Captain® Models, Beverage Centers, Clear Ice Machines, Nugget Ice Machines, Crescent Ice Makers,

Glass & Solid Door Refrigerators, Drawer Models, Freezers, Combo® Models, and more.

U-Line has captivated those with an appreciation for the ner things with exceptional functionality, style, inspired innovations,

and attention to even the smallest details. We are known and respected for our unwavering dedication to product design,

quality, and selection. U-Line is headquartered in Milwaukee, Wisconsin, and has shipped product to ve continents for over two

decades and is proud to have the opportunity to ship to you.

U-LINE — RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE

PRODUCT INFORMATION

IMPORTANT - Before connecting your new Nugget Ice Machine, be sure to carefully follow all manufacturer

recomendations throughout this guide regarding water quality. Please see WATER HOOKUP section for

more information.

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation, and

Product Warranty information are all available for reference and download at u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Email: sales@u-line.com

u-line.com

CONNECT WITH US

SERVICE & PARTS ASSISTANCE

Monday – Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

Designed, engineered and assembled in WI, USA

USER GUIDE

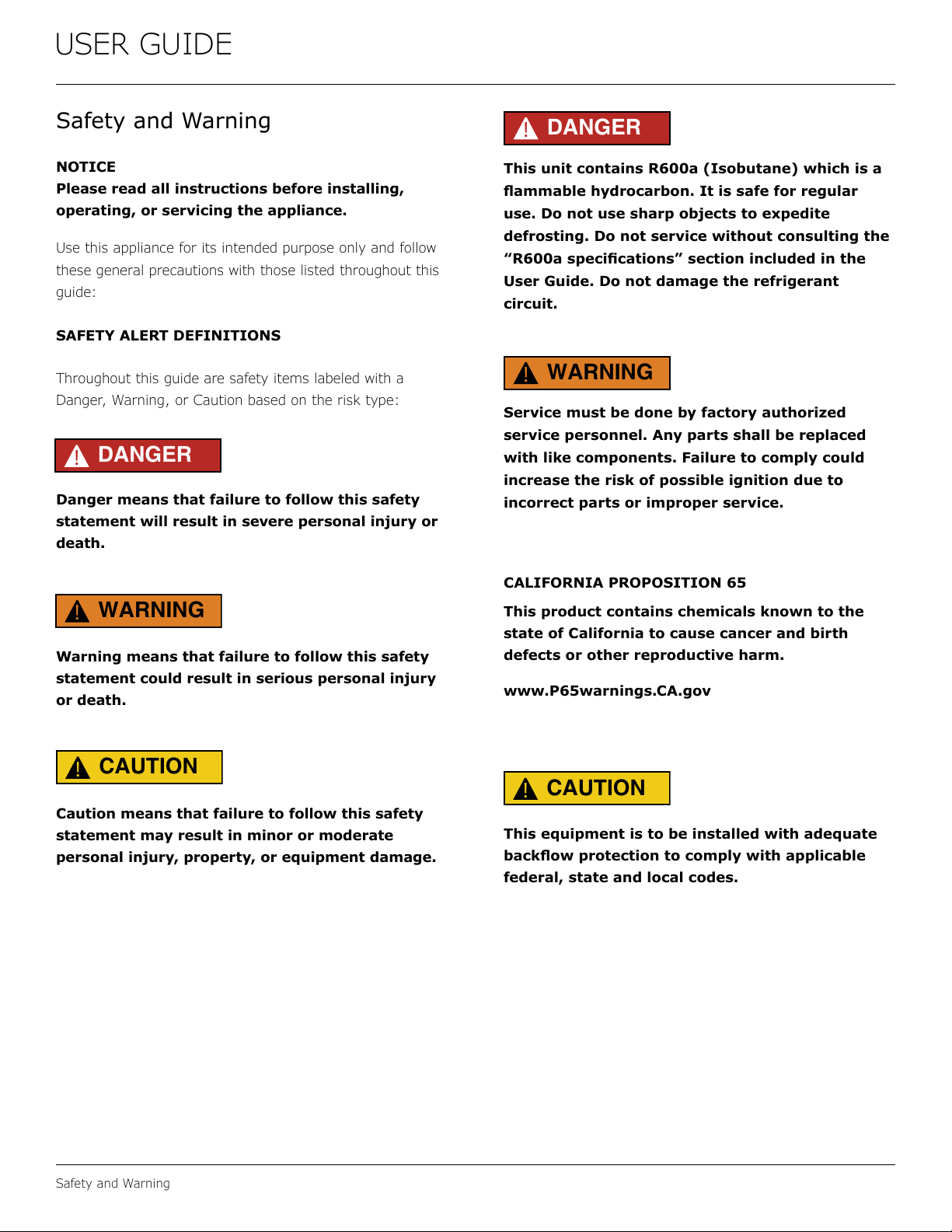

Safety and Warning

NOTICE

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning, or Caution based on the risk type:

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property, or equipment damage.

This unit contains R600a (Isobutane) which is a

ammable hydrocarbon. It is safe for regular

use. Do not use sharp objects to expedite

defrosting. Do not service without consulting the

“R600a specications” section included in the

User Guide. Do not damage the refrigerant

circuit.

Service must be done by factory authorized

service personnel. Any parts shall be replaced

with like components. Failure to comply could

increase the risk of possible ignition due to

incorrect parts or improper service.

CALIFORNIA PROPOSITION 65

This product contains chemicals known to the

state of California to cause cancer and birth

defects or other reproductive harm.

www.P65warnings.CA.gov

This equipment is to be installed with adequate

backow protection to comply with applicable

federal, state and local codes.

DANGER

WARNING

CAUTION

WARNING

USER GUIDE

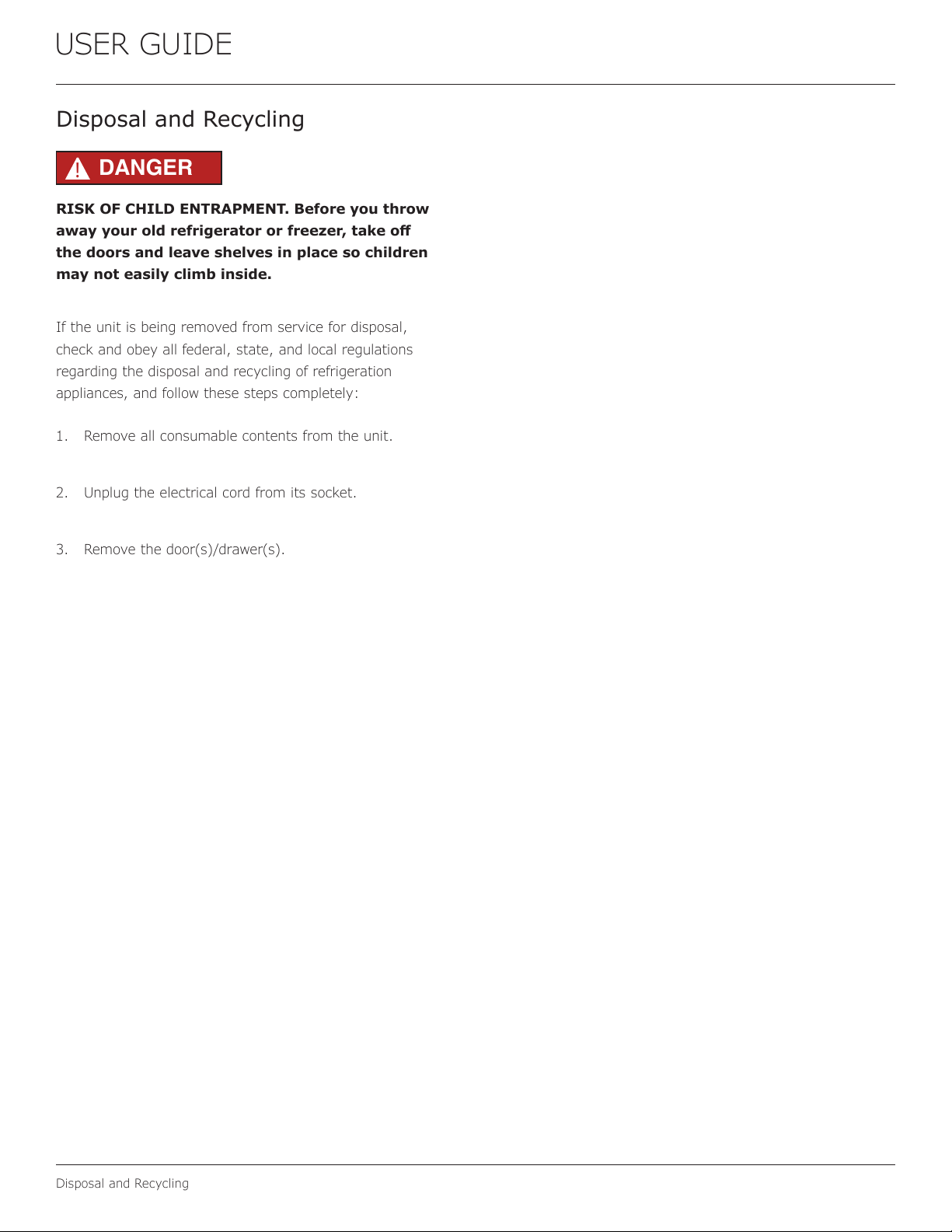

Disposal and Recycling

RISK OF CHILD ENTRAPMENT. Before you throw

away your old refrigerator or freezer, take o

the doors and leave shelves in place so children

may not easily climb inside.

If the unit is being removed from service for disposal,

check and obey all federal, state, and local regulations

regarding the disposal and recycling of refrigeration

appliances, and follow these steps completely:

1. Remove all consumable contents from the unit.

2. Unplug the electrical cord from its socket.

3. Remove the door(s)/drawer(s).

DANGER

USER GUIDE

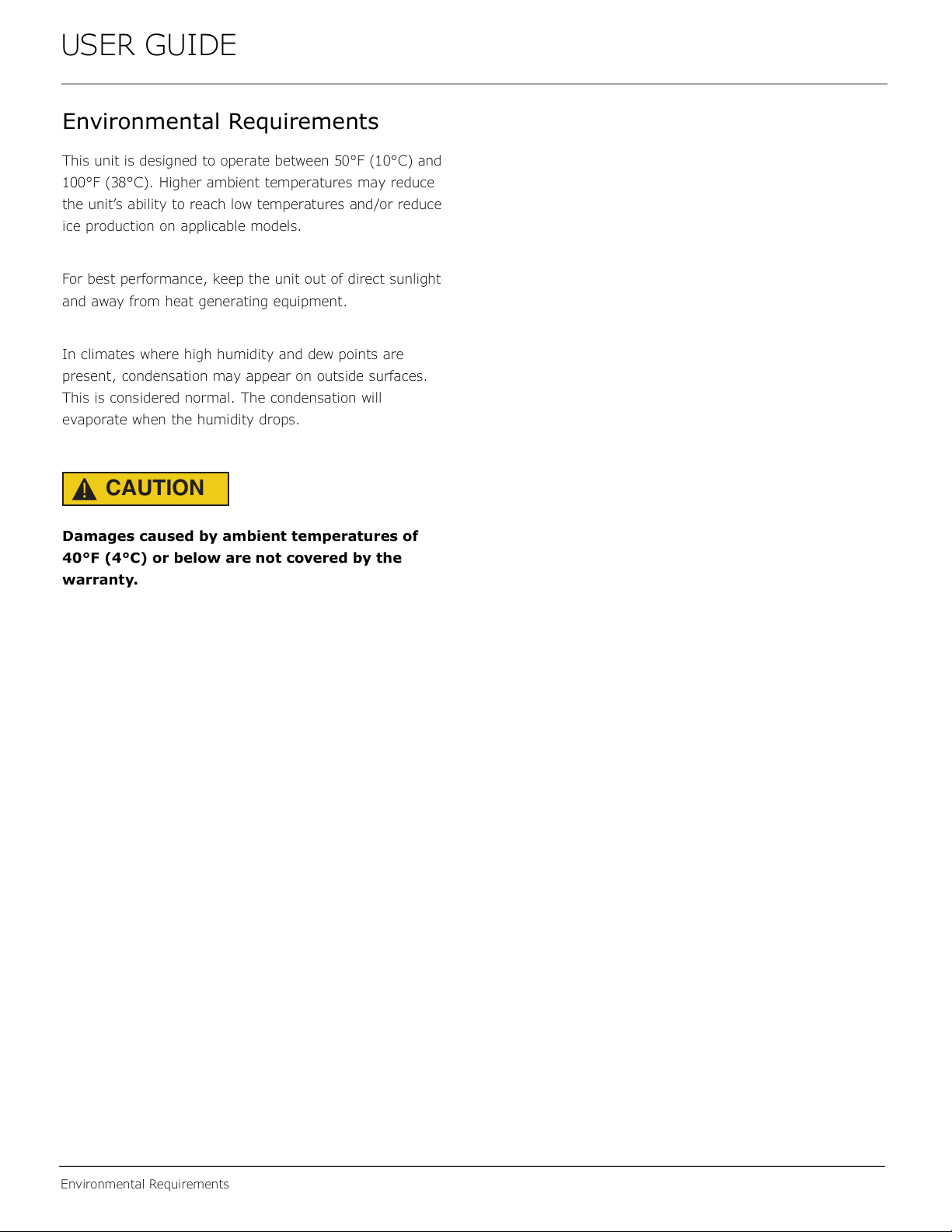

Environmental Requirements

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

USER GUIDE

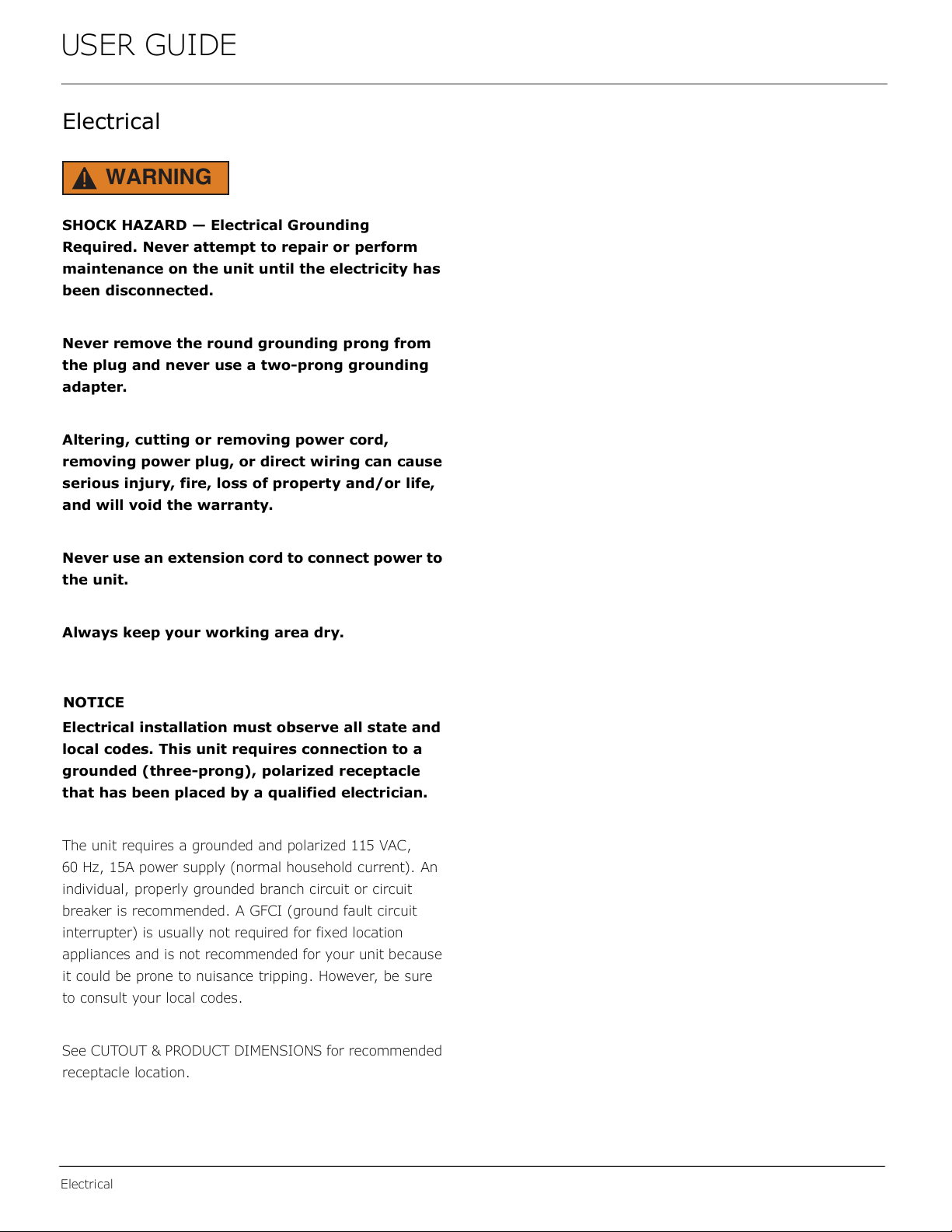

Electrical

WARNING

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for fixed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure

to consult your local codes.

See CUTOUT & PRODUCT DIMENSIONS for recommended

receptacle location.

USER GUIDE

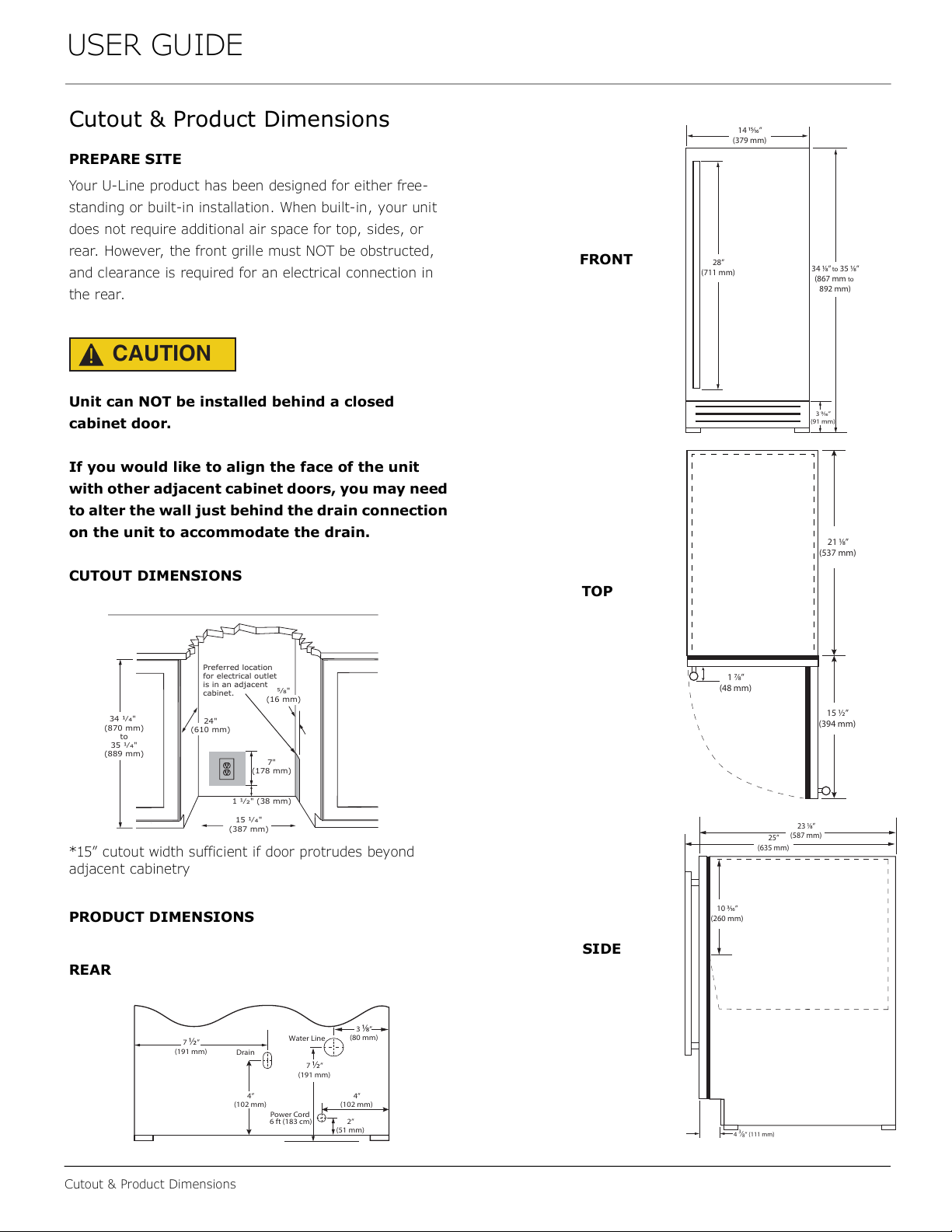

Cutout & Product Dimensions

PREPARE SITE

Your U-Line product has been designed for either free-

standing or built-in installation. When built-in, your unit

does not require additional air space for top, sides, or

rear. However, the front grille must NOT be obstructed,

and clearance is required for an electrical connection in

the rear.

CAUTION

Unit can NOT be installed behind a closed

cabinet door.

If you would like to align the face of the unit

with other adjacent cabinet doors, you may need

to alter the wall just behind the drain connection

on the unit to accommodate the drain.

CUTOUT DIMENSIONS

*15” cutout width sufficient if door protrudes beyond

adjacent cabinetry

PRODUCT DIMENSIONS

REAR

1 ΍ȟȭ" (38 mm)

(178 mm)

15 ΍ȟȯ"

(387 mm)

34 ΍ȟȯ"

(870 mm)

35 ΍ȟȯ"

(889 mm)

Preferred location

for electrical outlet

is in an adjacent

cabinet.

24"

(610 mm)

ΑȟΞ"

(16 mm)

14 ⁄”

(379 mm)

3 ⁄”

(91 mm)

28”

(711 mm) 34 ⁄” to 35 ⁄”

(867 mm to

892 mm)

TOP

FRONT

SIDE

10 ⁄”

(260 mm)

23 ⁄”

(587 mm)

25”

(635 mm)

3⁄8

“ (111 mm)

15 ½”

(394 mm)

1 ⁄”

(48 mm)

21 ⁄”

(537 mm)

2”

(51 mm)

4”

(102 mm)

Water Line

Drain

”

(191 mm)

⁄

”

(80 mm)

4”

(102 mm)

”

(191 mm)

Power Cord

6 ft (183 cm)

USER GUIDE

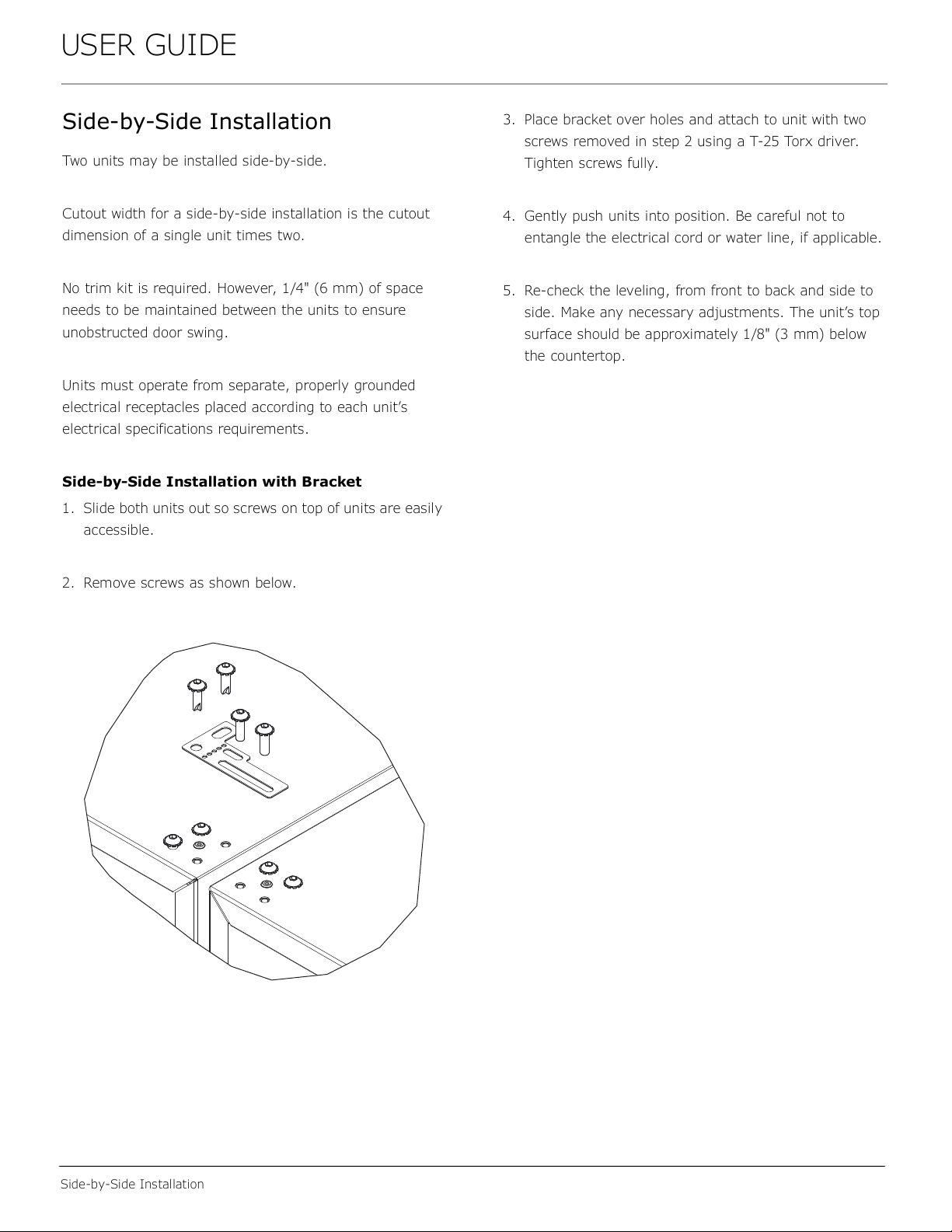

Side-by-Side Installation

Two units may be installed side-by-side.

Cutout width for a side-by-side installation is the cutout

dimension of a single unit times two.

No trim kit is required. However, 1/4" (6 mm) of space

needs to be maintained between the units to ensure

unobstructed door swing.

Units must operate from separate, properly grounded

electrical receptacles placed according to each unit’s

electrical specifications requirements.

Side-by-Side Installation with Bracket

1. Slide both units out so screws on top of units are easily

accessible.

2. Remove screws as shown below.

3. Place bracket over holes and attach to unit with two

screws removed in step 2 using a T-25 Torx driver.

Tighten screws fully.

4. Gently push units into position. Be careful not to

entangle the electrical cord or water line, if applicable.

5. Re-check the leveling, from front to back and side to

side. Make any necessary adjustments. The unit’s top

surface should be approximately 1/8" (3 mm) below

the countertop.

USER GUIDE

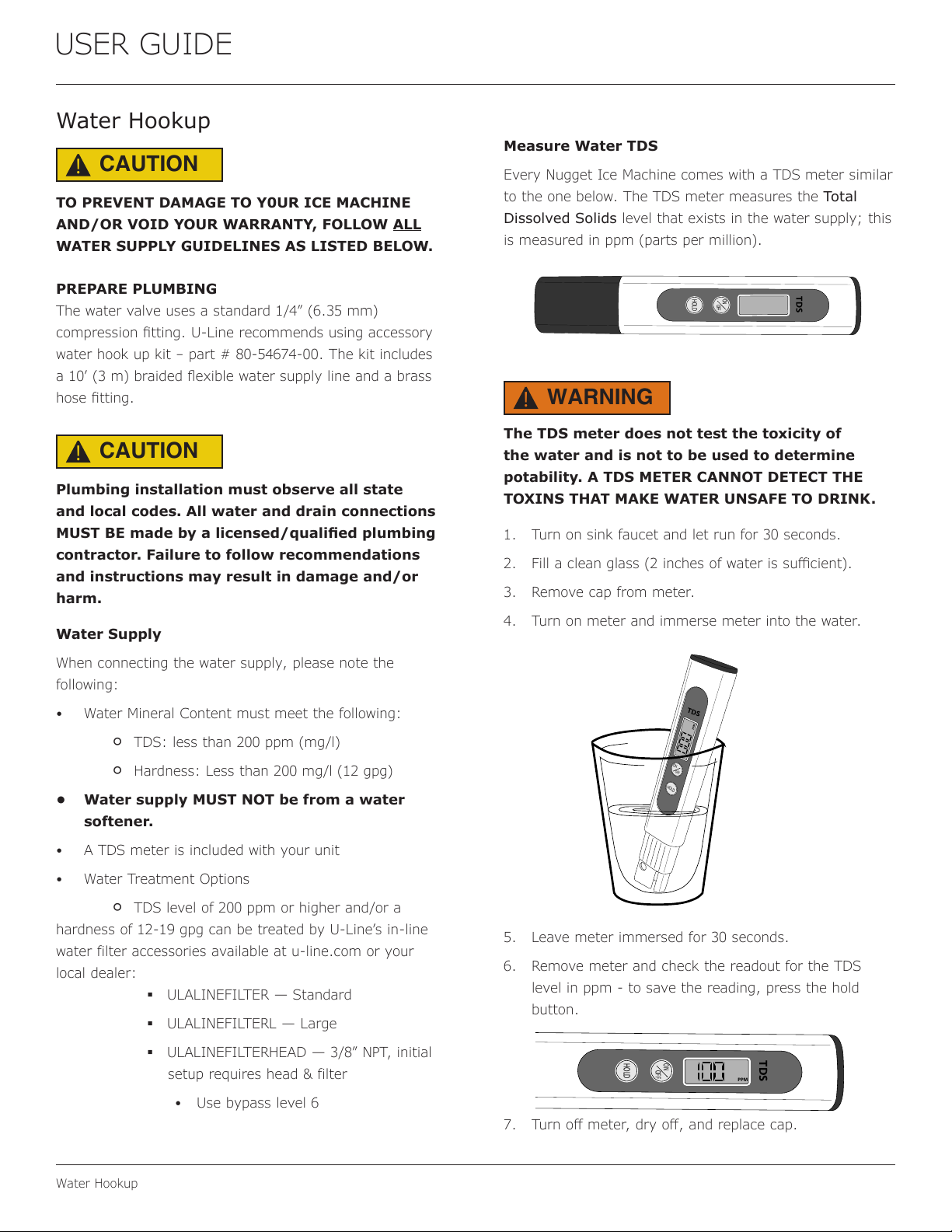

Water Hookup

TO PREVENT DAMAGE TO Y0UR ICE MACHINE

AND/OR VOID YOUR WARRANTY, FOLLOW ALL

WATER SUPPLY GUIDELINES AS LISTED BELOW.

PREPARE PLUMBING

The water valve uses a standard 1/4” (6.35 mm)

compression tting. U-Line recommends using accessory

water hook up kit – part # 80-54674-00. The kit includes

a 10’ (3 m) braided exible water supply line and a brass

hose tting.

Plumbing installation must observe all state

and local codes. All water and drain connections

MUST BE made by a licensed/qualied plumbing

contractor. Failure to follow recommendations

and instructions may result in damage and/or

harm.

Water Supply

When connecting the water supply, please note the

following:

• Water Mineral Content must meet the following:

◦TDS: less than 200 ppm (mg/l)

◦Hardness: Less than 200 mg/l (12 gpg)

• Water supply MUST NOT be from a water

softener.

• A TDS meter is included with your unit

• Water Treatment Options

◦TDS level of 200 ppm or higher and/or a

hardness of 12-19 gpg can be treated by U-Line’s in-line

water filter accessories available at u-line.com or your

local dealer:

 ULALINEFILTER — Standard

 ULALINEFILTERL — Large

 ULALINEFILTERHEAD — 3/8” NPT, initial

setup requires head & filter

• Use bypass level 6

Measure Water TDS

Every Nugget Ice Machine comes with a TDS meter similar

to the one below. The TDS meter measures the Total

Dissolved Solids level that exists in the water supply; this

is measured in ppm (parts per million).

The TDS meter does not test the toxicity of

the water and is not to be used to determine

potability. A TDS METER CANNOT DETECT THE

TOXINS THAT MAKE WATER UNSAFE TO DRINK.

1. Turn on sink faucet and let run for 30 seconds.

2. Fill a clean glass (2 inches of water is sucient).

3. Remove cap from meter.

4. Turn on meter and immerse meter into the water.

5. Leave meter immersed for 30 seconds.

6. Remove meter and check the readout for the TDS

level in ppm - to save the reading, press the hold

button.

7. Turn o meter, dry o, and replace cap.

CAUTION

TDS

OFF

HOLD

PPM

OFF

HOLD

TDS

WARNING

OFF

HOLD

TDS

PPM

Autres manuels pour UONP115SS01B

Autres manuels U-Line Machine à glaçons

U-Line

U-Line CLR2160SOD Manuel utilisateur

U-Line

U-Line Echelon BI-2115 Manuel utilisateur

U-Line

U-Line 3000 SERIES Manuel utilisateur

U-Line

U-Line SS-98 Manuel utilisateur

U-Line

U-Line UMCR015SS02A Manuel d'installation

U-Line

U-Line ADA151M Guide de configuration

U-Line

U-Line UOCR115-SS01B Manuel d'installation

U-Line

U-Line UACR014-BS01A Manuel d'installation

U-Line

U-Line U-3018CLRINT-00C Manuel d'installation

U-Line

U-Line Marine Combo Series Manuel d'installation

U-Line

U-Line Echelon BI-2115 Manuel utilisateur

U-Line

U-Line Outdoor Series Manuel d'installation

U-Line

U-Line UHCP115 Manuel d'installation

U-Line

U-Line 1000 SERIES Manuel utilisateur

U-Line

U-Line WH95TP Manuel utilisateur

U-Line

U-Line UACR015-S01A Manuel d'installation

U-Line

U-Line UOCL115-SS01B Manuel d'installation

U-Line

U-Line UMCR014-SC01A Manuel d'installation

U-Line

U-Line 1000 SERIES Manuel utilisateur

U-Line

U-Line UHNB315IS01A Manuel d'installation

U-Line

U-Line U-CLR1215W-40B Manuel d'installation

U-Line

U-Line UCNP115-SS01A Manuel utilisateur

U-Line

U-Line U-CO29B-00 Manuel utilisateur

U-Line

U-Line UOCR115 Manuel d'installation

Manuels Machine à glaçons populaires d'autres marques

Hoshizaki

Hoshizaki KMD-460MWJ Manuel utilisateur

Sub-Zero

Sub-Zero 315I Instructions d'utilisation

Unold

Unold 48945 Manuel utilisateur

Kenmore

Kenmore 2217402A Manuel utilisateur

Cornelius

Cornelius WM600 Mode d'emploi

GE XPIO43SCSS Manuel utilisateur

Hoshizaki

Hoshizaki KMD-901MAH Manuel utilisateur

Whynter

Whynter FIM-450HA Manuel utilisateur

Andrew James

Andrew James AJ000522 Manuel utilisateur

Scotsman

Scotsman CME1356 Manuel utilisateur

Scotsman

Scotsman ACM 25 Manuel utilisateur

Kärcher

Kärcher IP 120 Manuel utilisateur

Maytag

Maytag MIM1554WRS - Ice Maker Manuel utilisateur

Hoshizaki

Hoshizaki KM-630MAH Manuel utilisateur

Princess

Princess Yonanas Manuel utilisateur

Unold

Unold 48946 Manuel utilisateur

Electrolux

Electrolux E15IM60GP Manuel utilisateur

Cornelius

Cornelius UC150 ICE ONLY Manuel utilisateur
