USER GUIDE

Introduction

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over ve decades of premium modular ice

making, refrigeration, and wine preservation experience. U-Line continues to be the American leader, delivering versatility and

exibility for multiple applications including residential, light commercial, outdoor and marine use. U-Line’s complete product

collection includes Wine Captain® Models, Beverage Centers, Clear Ice Machines, Nugget Ice Machines, Crescent Ice Makers,

Glass & Solid Door Refrigerators, Drawer Models, Freezers, Combo® Models, and more.

U-Line has captivated those with an appreciation for the ner things with exceptional functionality, style, inspired innovations,

and attention to even the smallest details. We are known and respected for our unwavering dedication to product design,

quality, and selection. U-Line is headquartered in Milwaukee, Wisconsin, and has shipped product to ve continents for over two

decades and is proud to have the opportunity to ship to you.

U-LINE — RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE

PRODUCT INFORMATION

IMPORTANT - Before connecting your new Nugget Ice Machine, be sure to carefully follow all manufacturer

recomendations throughout this guide regarding water quality. Please see WATER HOOKUP section for

more information.

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation, and

Product Warranty information are all available for reference and download at u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Email: sales@u-line.com

u-line.com

CONNECT WITH US

SERVICE & PARTS ASSISTANCE

Monday – Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

Designed, engineered and assembled in WI, USA

USER GUIDE

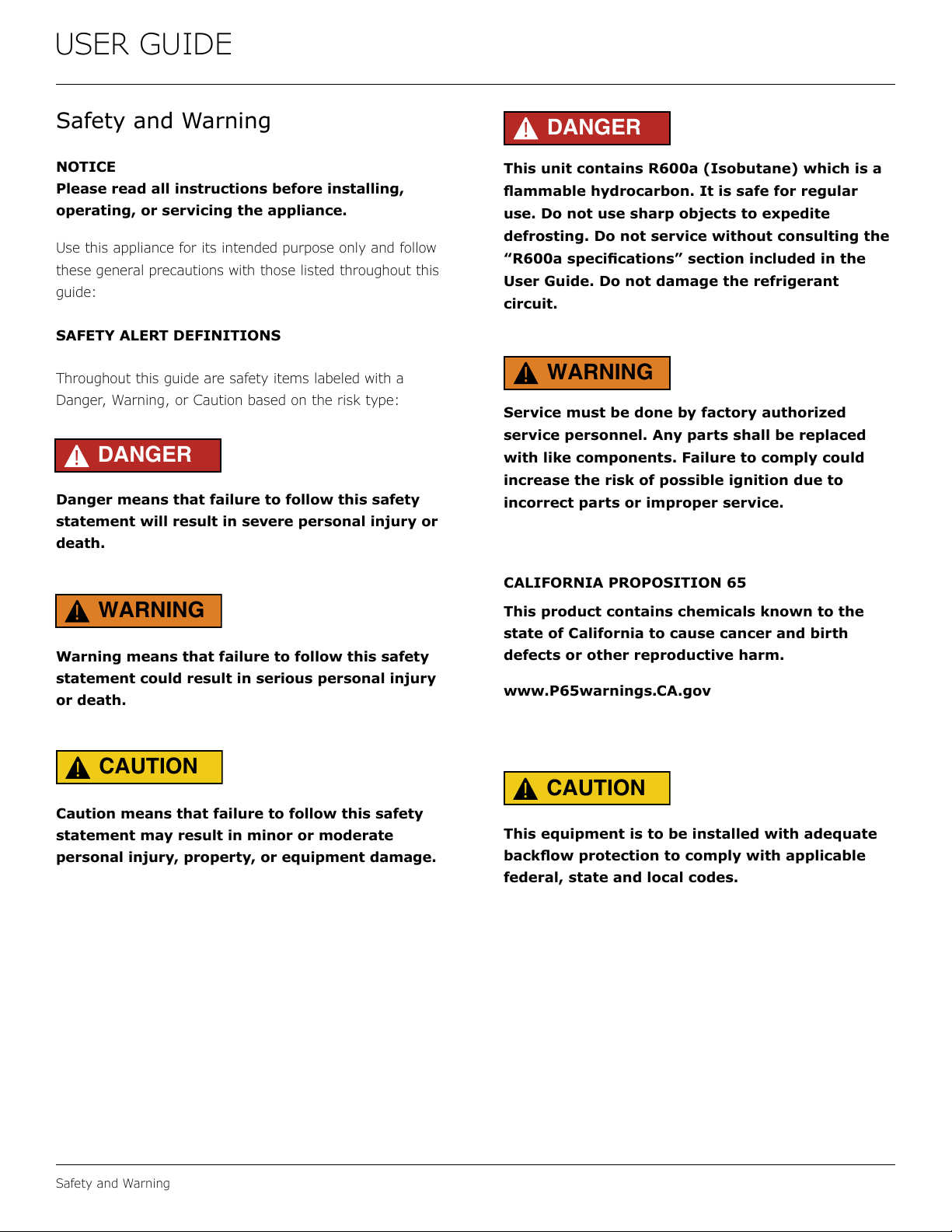

Safety and Warning

NOTICE

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning, or Caution based on the risk type:

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property, or equipment damage.

This unit contains R600a (Isobutane) which is a

ammable hydrocarbon. It is safe for regular

use. Do not use sharp objects to expedite

defrosting. Do not service without consulting the

“R600a specications” section included in the

User Guide. Do not damage the refrigerant

circuit.

Service must be done by factory authorized

service personnel. Any parts shall be replaced

with like components. Failure to comply could

increase the risk of possible ignition due to

incorrect parts or improper service.

CALIFORNIA PROPOSITION 65

This product contains chemicals known to the

state of California to cause cancer and birth

defects or other reproductive harm.

www.P65warnings.CA.gov

This equipment is to be installed with adequate

backow protection to comply with applicable

federal, state and local codes.

DANGER

WARNING

CAUTION

WARNING

USER GUIDE

Disposal and Recycling

RISK OF CHILD ENTRAPMENT. Before you throw

away your old refrigerator or freezer, take o

the doors and leave shelves in place so children

may not easily climb inside.

If the unit is being removed from service for disposal,

check and obey all federal, state, and local regulations

regarding the disposal and recycling of refrigeration

appliances, and follow these steps completely:

1. Remove all consumable contents from the unit.

2. Unplug the electrical cord from its socket.

3. Remove the door(s)/drawer(s).

DANGER

USER GUIDE

Environmental Requirements

This model is intended for indoor/interior applications only

and is not to be used in installations that are open/

exposed to natural elements.

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

USER GUIDE

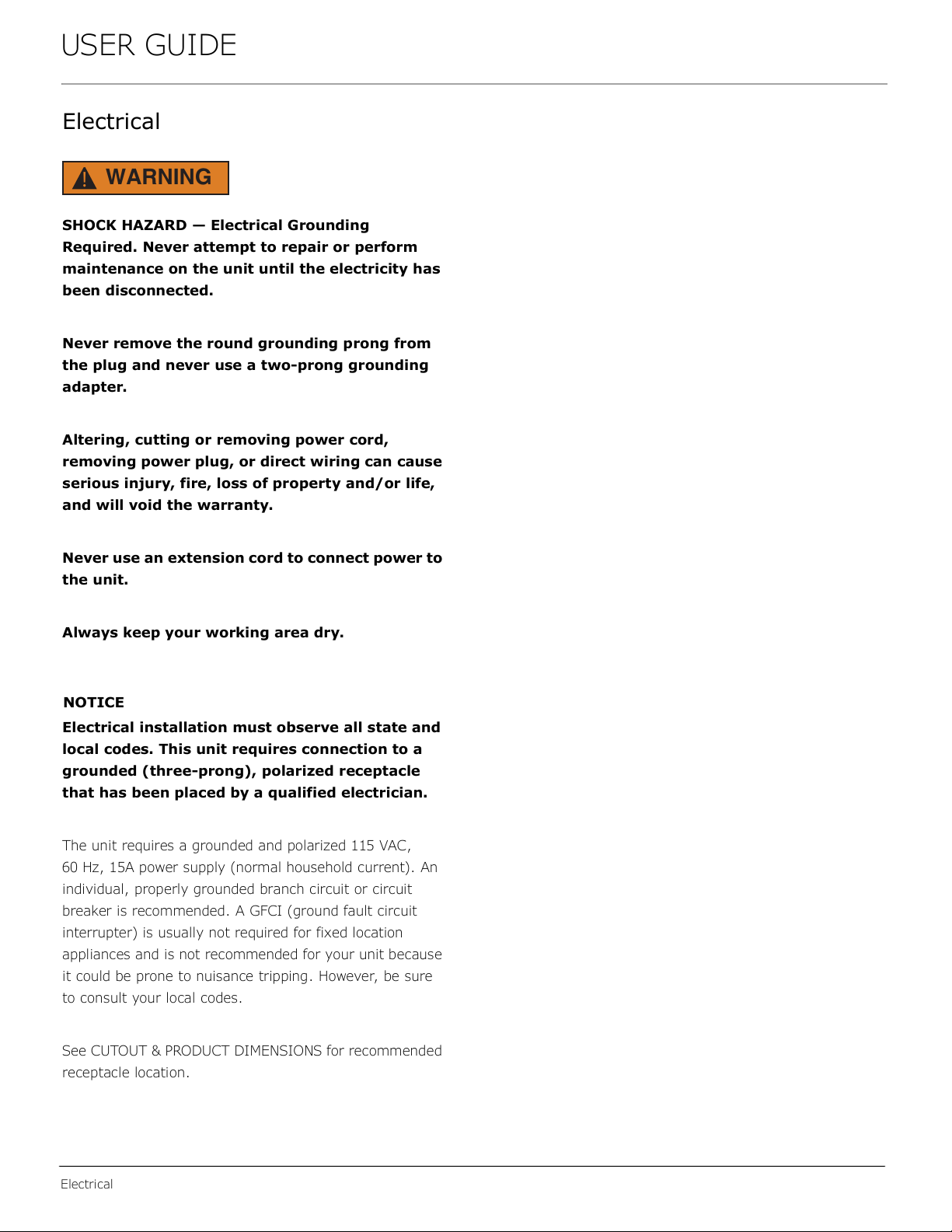

Electrical

WARNING

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for fixed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure

to consult your local codes.

See CUTOUT & PRODUCT DIMENSIONS for recommended

receptacle location.

USER GUIDE

Cutout & Product Dimensions

PREPARE SITE

Your U-Line product has been designed for either free-

standing or built-in installation. When built-in, your unit

does not require additional air space for top, sides, or

rear. However, the front grille must NOT be obstructed,

and clearance is required for an electrical connection in

the rear.

CAUTION

Unit can NOT be installed behind a closed cabinet

door.

If you would like to align the face of the unit with

other adjacent cabinet doors, you may need to

alter the wall just behind the drain connection on

the unit to accommodate the drain.

CUTOUT DIMENSIONS

PRODUCT DIMENSIONS

REAR

FRONT

TOP

SIDE

1 1⁄₂" (38 mm)

(178 mm)

15"

(381 mm)

34 1⁄₄"

(870 mm)

35 1⁄₄"

(889 mm)

Preferred location

for electrical outlet

is in an adjacent

cabinet.

24"

(610 mm)

5⁄8"

(16 mm)

2”

(51 mm)

4”

(102 mm)

Drain

Water Line

”

(191 mm)

⁄

”

(80 mm)

4”

(102 mm)

”

(191 mm)

Power Cord

6 ft (183 cm)

14 ⁄”

(379 mm)

3 ½”

(89 mm)

28”

(711 mm) 33 ⁄”

34 ⁄”

(855 mm

881 mm)

1 ⁄”

(48 mm)

17 ½”

(445 mm)

21 ⁄”

(535 mm)

10 ⁄”

(260 mm)

22 ⁄”

(583 mm)

24 ⁄”

(630 mm)

⁄

“ (111 mm)

*Add 1⁄2” for integrated models with 3⁄4” panel installed.

USER GUIDE

Side-by-Side Installation

OTHER SITE REQUIREMENTS

Side-by-Side Installation

Units must operate from separate, properly grounded

electrical receptacles placed according to each unit’s

electrical specifications requirements.

Cutout width for a side-by-side installation is the total of

the widths listed under Cutout Dimensions in each unit’s

Installation Guide. Each door can be opened individually

(one at a time) without interference.

However, to ensure unobstructed door swing (opening

both doors at the same time), 1/4" (6.4 mm) of space

needs to be maintained between the units.

Hinge-by-Hinge Installation (Mullion)

When installing two units hinge-by-hinge, 13/16" (22 mm)

is required for integrated models. Additional space may be

needed for any knobs, pulls or handles installed.

Stainless steel models which include the standard stainless

handle will require 4-9/16" (116 mm) to allow both doors

to open to 90° at the same time.

1/4" (6 mm)

13/16" (22 mm)

4-9/16" (116 mm)

USER GUIDE

Water Hookup

TO PREVENT DAMAGE TO Y0UR ICE MACHINE

AND/OR VOID YOUR WARRANTY, FOLLOW ALL

WATER SUPPLY GUIDELINES AS LISTED BELOW.

PREPARE PLUMBING

The water valve uses a standard 1/4” (6.35 mm)

compression tting. U-Line recommends using accessory

water hook up kit – part # 80-54674-00. The kit includes

a 10’ (3 m) braided exible water supply line and a brass

hose tting.

Plumbing installation must observe all state

and local codes. All water and drain connections

MUST BE made by a licensed/qualied plumbing

contractor. Failure to follow recommendations

and instructions may result in damage and/or

harm.

Water Supply

When connecting the water supply, please note the

following:

• Water Mineral Content must meet the following:

◦TDS: less than 200 ppm (mg/l)

◦Hardness: Less than 200 mg/l (12 gpg)

• Water supply MUST NOT be from a water

softener.

• A TDS meter is included with your unit

• Water Treatment Options

◦TDS level of 200 ppm or higher and/or a

hardness of 12-19 gpg can be treated by U-Line’s in-line

water filter accessories available at u-line.com or your

local dealer:

 ULALINEFILTER — Standard

 ULALINEFILTERL — Large

 ULALINEFILTERHEAD — 3/8” NPT, initial

setup requires head & filter

• Use bypass level 6

Measure Water TDS

Every Nugget Ice Machine comes with a TDS meter similar

to the one below. The TDS meter measures the Total

Dissolved Solids level that exists in the water supply; this

is measured in ppm (parts per million).

The TDS meter does not test the toxicity of

the water and is not to be used to determine

potability. A TDS METER CANNOT DETECT THE

TOXINS THAT MAKE WATER UNSAFE TO DRINK.

1. Turn on sink faucet and let run for 30 seconds.

2. Fill a clean glass (2 inches of water is sucient).

3. Remove cap from meter.

4. Turn on meter and immerse meter into the water.

5. Leave meter immersed for 30 seconds.

6. Remove meter and check the readout for the TDS

level in ppm - to save the reading, press the hold

button.

7. Turn o meter, dry o, and replace cap.

CAUTION

TDS

OFF

HOLD

PPM

OFF

HOLD

TDS

WARNING

OFF

HOLD

TDS

PPM

Ce manuel convient aux modèles suivants

Autres manuels U-Line Machine à glaçons

U-Line

U-Line UOCR115-SS01B Manuel d'installation

U-Line

U-Line Echelon BI 2015 Manuel utilisateur

U-Line

U-Line CLR1215 Manuel utilisateur

U-Line

U-Line U-BI1215B-00A Manuel utilisateur

U-Line

U-Line Refrigerator/Ice-Maker Combos Manuel utilisateur

U-Line

U-Line Marine Combo Series Manuel d'installation

U-Line

U-Line UCNP115 Manuel utilisateur

U-Line

U-Line U-CLR1215S-40B Manuel d'installation

U-Line

U-Line CLR2160 Manuel utilisateur

U-Line

U-Line U-CLR1215SOD-40B Manuel d'installation

U-Line

U-Line Echelon BI 2015 Manuel utilisateur

U-Line

U-Line UACP115-SS01A Manuel d'installation

U-Line

U-Line U-ADA15IMB-00 Manuel utilisateur

U-Line

U-Line UHNP115SS01B Manuel d'installation

U-Line

U-Line UACR015SS01A Manuel d'installation

U-Line

U-Line UMCR014-BC01A Manuel d'installation

U-Line

U-Line U-BI1215INT-00A Manuel utilisateur

U-Line

U-Line ECHELON CLR2060 Manuel utilisateur

U-Line

U-Line U-3018CLR Manuel d'installation

U-Line

U-Line ADA SERIES Manuel utilisateur

U-Line

U-Line UHNB115 Manuel d'installation

U-Line

U-Line ICEMAKER Series Manuel utilisateur

U-Line

U-Line SS1095 Manuel utilisateur

U-Line

U-Line UHCP115-SS01A Manuel d'installation

Manuels Machine à glaçons populaires d'autres marques

Hoshizaki

Hoshizaki KMD-460MWJ Manuel utilisateur

Sub-Zero

Sub-Zero 315I Instructions d'utilisation

Unold

Unold 48945 Manuel utilisateur

Kenmore

Kenmore 2217402A Manuel utilisateur

Cornelius

Cornelius WM600 Mode d'emploi

GE XPIO43SCSS Manuel utilisateur

Hoshizaki

Hoshizaki KMD-901MAH Manuel utilisateur

Whynter

Whynter FIM-450HA Manuel utilisateur

Andrew James

Andrew James AJ000522 Manuel utilisateur

Scotsman

Scotsman CME1356 Manuel utilisateur

Scotsman

Scotsman ACM 25 Manuel utilisateur

Kärcher

Kärcher IP 120 Manuel utilisateur

Maytag

Maytag MIM1554WRS - Ice Maker Manuel utilisateur

Hoshizaki

Hoshizaki KM-630MAH Manuel utilisateur

Princess

Princess Yonanas Manuel utilisateur

Unold

Unold 48946 Manuel utilisateur

Electrolux

Electrolux E15IM60GP Manuel utilisateur

Cornelius

Cornelius UC150 ICE ONLY Manuel utilisateur
