U-Line TORK H-7859 Manuel utilisateur
PAGE 1 OF 6 0422 IH-7859
H-7859
TORK®STAINLESS STEEL AUTOMATIC
FOAM SOAP DISPENSER
1-800 -295-5510
uline.com
• Do not allow children to play with the dispenser.
• The minimum and maximum ambient
temperatures for correct operation are 32-122ºF.
• Dispenser is not suitable for installation outdoors or
in wet environments. It is not water-resistant.
• Operating sound level of the dispenser is less than
70dBa.
• Damaged or malfunctioning product should be
disposed of immediately to avoid injury.
• Product should be disposed of in accordance with
applicable regulations.
PARTS
TOOLS NEEDED
LevelTape Measure1/4" Drill BitDrill Phillips Screwdriver
C-Cell Battery x 4 Screw x 4Dispenser x 1 Wall Anchor x 4Key x 1
NOTE: Install dispenser at least 6" above
counter or sink.
1. Tape included template to wall to use as guide.
Ensure template is level. (See Figure 1)
Figure 1
6"
SAFETY
INSTALLATION
PAGE 2 OF 6 0422 IH-7859
INSTALLATION CONTINUED
2. Drill four holes using 1/4" drill bit and remove
template from wall. (See Figure 2)
Figure 2
3. Insert anchors and screws. (See Figure 3)
NOTE: Do not tighten screws completely until
ste p 7.
Figure 3
4. Open dispenser and remove cartridge by pressing
top tab area and pulling outward. (See Figures 4-5)
Figure 4 Top Tab
Figure 5
Cartridge
5. Hold dispenser up to wall and align holes over
screws. (See Figure 6)
Figure 6
6. Lower dispenser onto screws. (See Figure 7)
Figure 7
7. Tighten screws. (See Figure 8)
Figure 8
PAGE 3 OF 6 0422 IH-7859

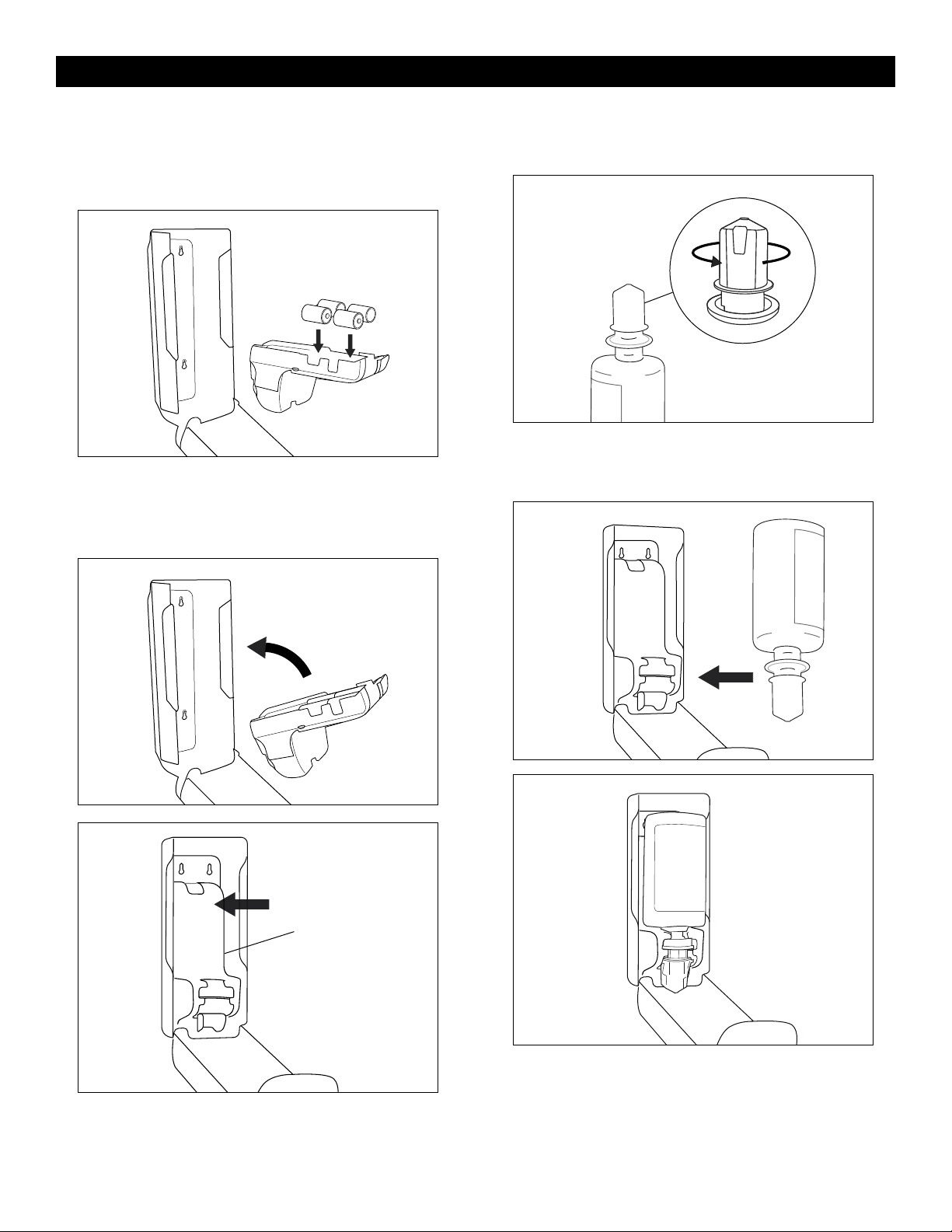

LOADING
1. Load four included batteries into back of cartridge.
(See Figure 9)
Figure 9
2. Replace cartridge into dispenser housing. Once
inserted correctly, cartridge should click into place.
(See Figures 10-11)
Figure 10
F i g u re 11
Cartridge
3. Before loading refill, twist nozzle in direction of
arrows until it clicks. (See Figure 12)
Figure 12
4. Flip refill upside down and load into cartridge with
nozzle down. (See Figures 13-14)
Figure 14
INSTRUCTIONS
Figure 13
PAGE 4 OF 6 0422 IH-7859

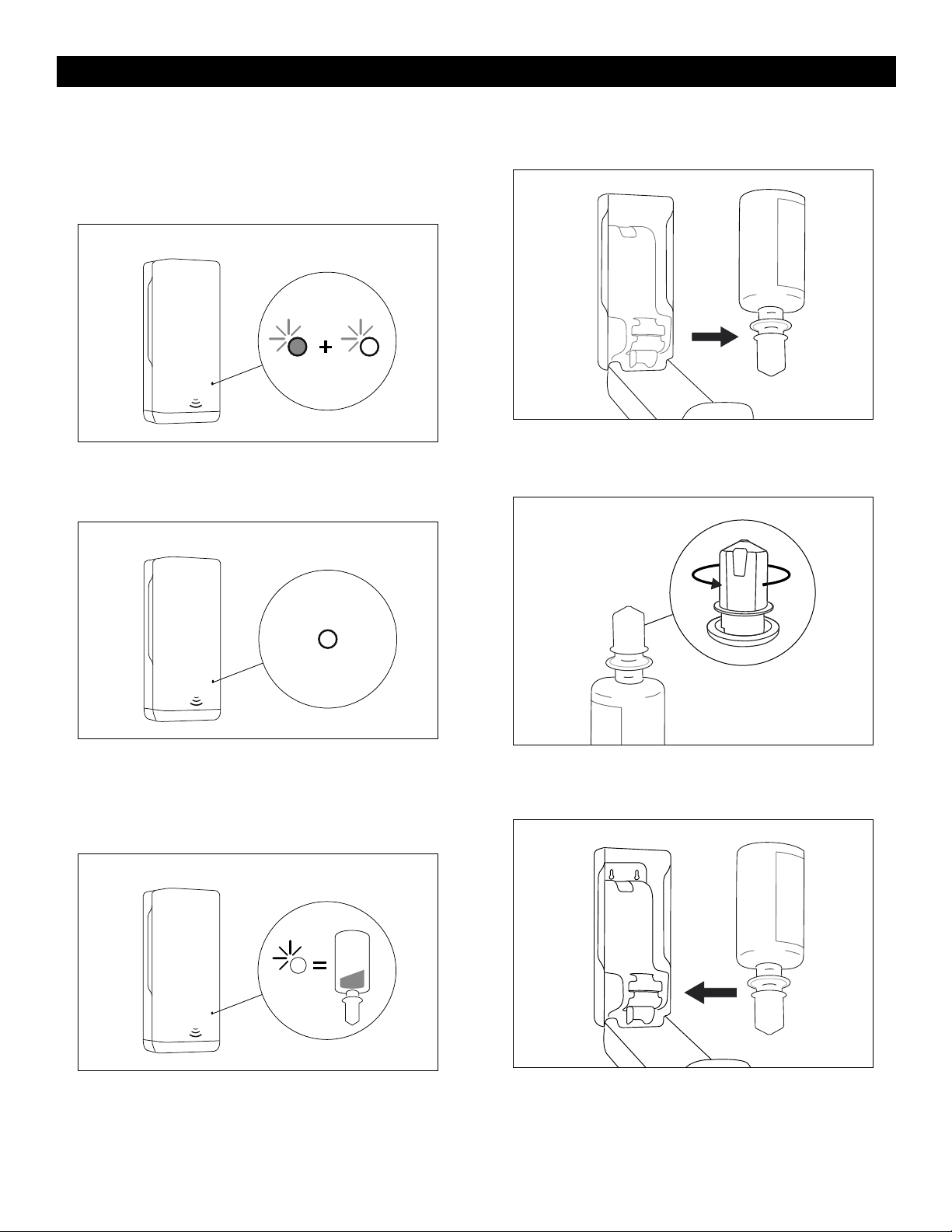

INSTRUCTIONS CONTINUED
INDICATOR LIGHTS
1. Light on front of dispenser will flash red when
batteries are low and green when soap refill is low.
(See Figure 15)
Figure 15
2. Solid light indicates dispenser is ready for use.
(See Figure 16)
Figure 16
REFILLING
1. Light will flash green when soap refill is low.
(See Figure 17)
F i g u re 17
2. Open dispenser cover and remove empty refill.
(See Figure 18)
Figure 18
3. Twist nozzle in direction of arrows on replacement
refill. (See Figure 19)
Figure 19
4. Flip replacement refill and load into cartridge.
(See Figure 20)
Figure 20
PAGE 5 OF 6 0422 IH-7859

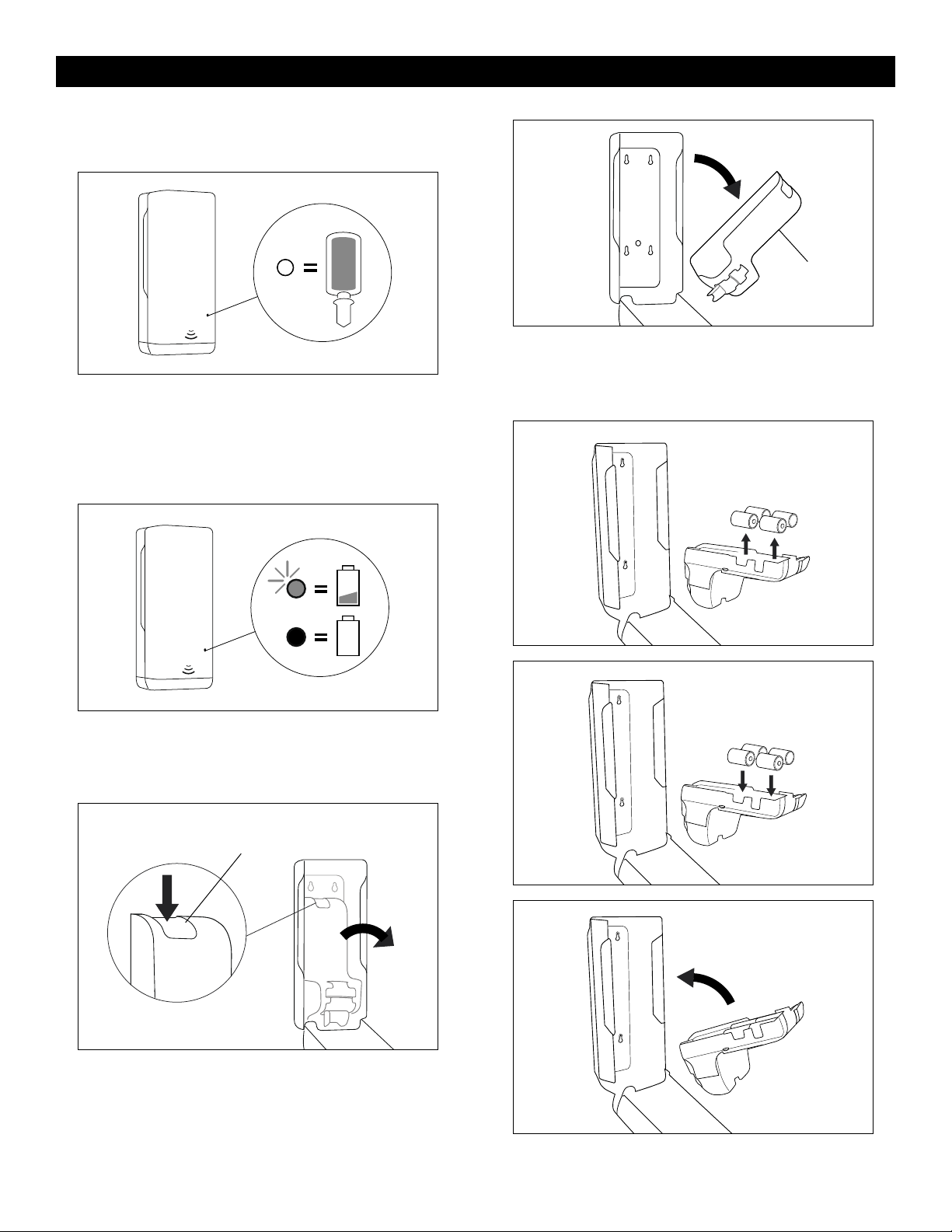

5. Solid light indicates dispenser is ready for use.
(See Figure 21)
Figure 21
REPLACING BATTERIES
1. Light on front will flash red when batteries are low.
Light will turn off when batteries are completely
drained. (See Figure 22)
Figure 22
0%
2. Open dispenser cover and push down on top of
cartridge. Pull outward to remove.
(See Figures 23-24)
Figure 23 Top Tab
Figure 24
Cartridge
3. Remove old batteries. Replace with four new
batteries. Click cartridge back into place.
(See Figures 25-27)
Figure 25
Figure 26
Figure 27
INSTRUCTIONS CONTINUED
PAGE 6 OF 6 0422 IH-7859

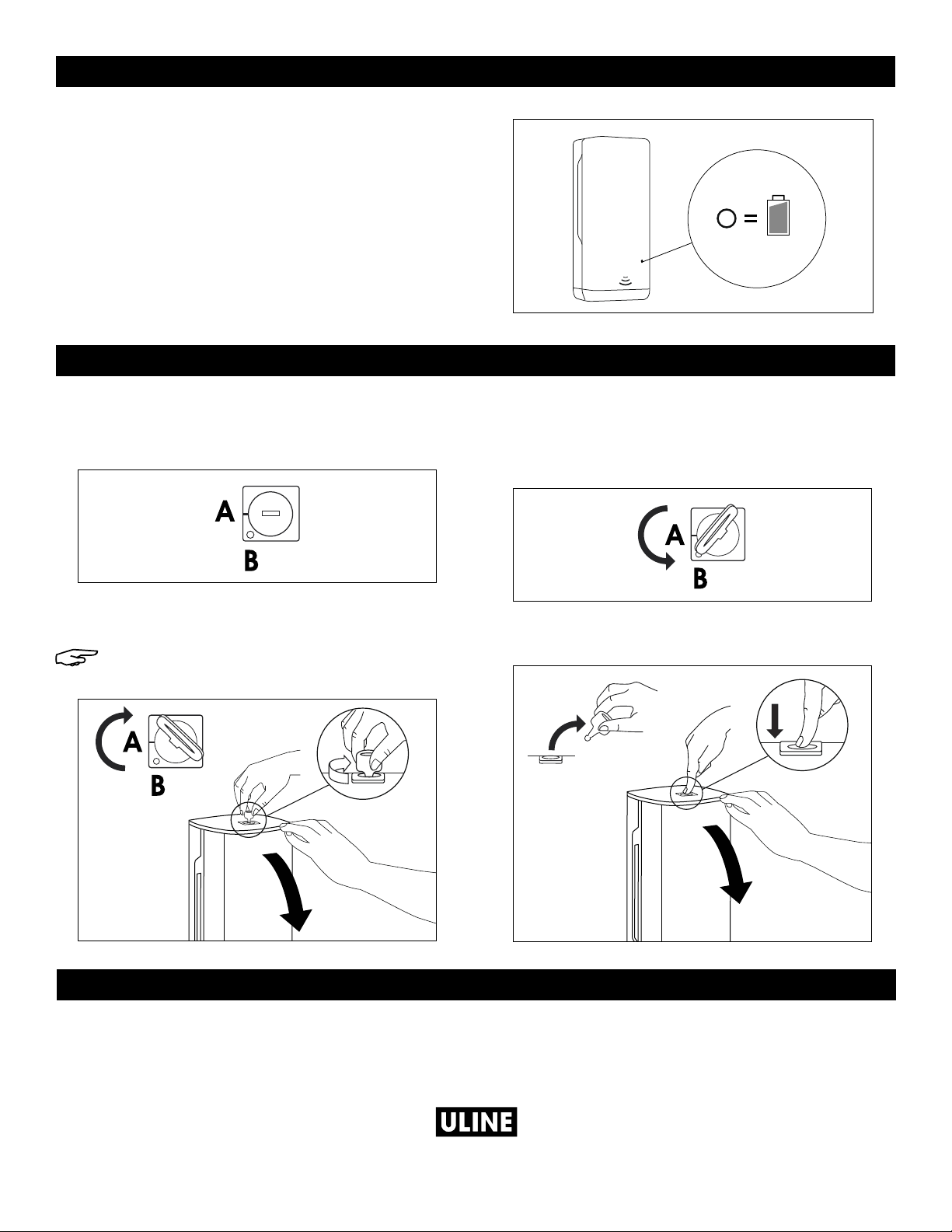

4. Solid light indicates dispenser is ready for use.
(See Figure 28) Figure 28
INSTRUCTIONS CONTINUED
OPENING
USING KEYED OPTION
1. Insert key at position A. (See Figure 29)
Figure 29
2. Turn and hold key clockwise to open dispenser.
(See Figure 30)
NOTE: Release key back to position A after
closing to lock dispenser.
Figure 30
USING NON-KEYED PUSH BUTTON OPTION
1. Insert key at position A and rotate counterclockwise
to position B. (See Figure 31)
Figure 31
2. Remove key and push button to open dispenser.
(See Figure 32)
Figure 32
MAINTENANCE
Clean dispenser with mild detergent and soft cloth.
1
-800-295-551
0
uline.com
