Tymetal Corp. TYM-VSA Mode d'emploi

TYM-VS2

Slide Gate Operator

Installation & Owner’s Manual

Tymetal Corp.

Greenwich NY • Pearland TX

Phone (800) 328-GATE

Fax (518)692-9404

Email gatekeeper@tymetal.com

www.tymetal.com

JDE Item # 41274 Revision 0 072012

Document PN 620-101409 REV X12 09/01/2016

TYM-VS2 Slide Gate Operator Installation Guide Revision 0 072012

Table of Contents

Pre-installation Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Before You Begin... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Always Check the Gate’s Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Approved Obstruction Detection Devices . . . . . . . . . . . . . . . . . . . . . 1

Safety Information and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Regulatory Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

AC Power Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

DC Control and Accessory Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Mounting Pad Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Gate Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Operator Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Vent Plug Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Gate Bracket and Chain ssembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Chain Supports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Operator Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Controller Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Manual Disconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

AC Power Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Earth Ground. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Open and Close Limit Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Limit Nuts Rough Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Limit Nuts Fine Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Setting Speeds using LSO-2 & LSC-2 . . . . . . . . . . . . . . . . . . . . . . . 6

Torque Limiter Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Controller Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Indicator Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Terminal Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Operator ccessory Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Basic Controller Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Programming Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Entering Programming Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Exiting Programming Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Programming Keystrokes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Left or Right Hand Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Dual Gate Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Auto Close Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Run Alarm and Pre-start Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Maximum Open Direction Current Setting. . . . . . . . . . . . . . . . . . . .13

Maximum Close Direction Current Setting . . . . . . . . . . . . . . . . . . .13

dvanced Controller Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Entering Advanced Programming Mode . . . . . . . . . . . . . . . . . . . . .14

Maximum Run Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Single Button Input Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Stagger Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Stagger Delay Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Auxiliary Relay Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Reverse Delay Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Brake Delay Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Constant Pressure Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Shadow Loop Open Prevention . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Reset Cycle Count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Maintenance Alert Trigger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Mid-travel Stop Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Anti-tailgate Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Radio Enable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Radio Transmitter Learn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Radio Transmitter Delete. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

MGT Obstacle Transmitter Learn . . . . . . . . . . . . . . . . . . . . . . . . . . 17

MGT Obstacle Transmitter Delete. . . . . . . . . . . . . . . . . . . . . . . . . .17

Motor Type Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Reset Controller to Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . 17

PeX v1.4 Gate Controller Quick Programming Guide . . . . . . . . . . .18

Loop Layout Illustration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Safety Edge Layout Illustration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Photoeye Installation Illustration . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Picket Gate Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Dual Gate Installations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Optional In-Cabinet Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Gate Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Open Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Close Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Single Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Fire Department Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Open Input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Open Obstruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Close Obstruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Reverse Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Open Loop. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Reverse Loop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Shadow/Reset Loop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Operation Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Power-up Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Idle Condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Last Gate Position/Condition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Pre-start Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Reverse Delay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Run Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Error Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Entrapment or Obstruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

COMM LINK Connection Failure. . . . . . . . . . . . . . . . . . . . . . . . . . . 26

MGT Obstacle Transmitter Trouble . . . . . . . . . . . . . . . . . . . . . . . . .26

Maximum Run Time Exceeded . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Contacting Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Operator fails to start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Motor operates but gate does not move. . . . . . . . . . . . . . . . . . . . . 27

Motor sounds like it is working harder than normal. . . . . . . . . . . . .27

Limit switch getting out of time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Gate stopping part way open or closed. . . . . . . . . . . . . . . . . . . . . . 27

Gate staying open with automatic system. . . . . . . . . . . . . . . . . . . . 27

How to Order Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Model TYM-VS2 Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Controller Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Preventative Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Lubrication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

6-Month Preventative Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . 31

FCC Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Variable Speed Drive Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Programming the Hitachi Inverter . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Gate Operator Installation Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . 34

TYM-VS2 Slide Gate Operator Installation Guide - 1 - Revision 0 072012

- 1 -

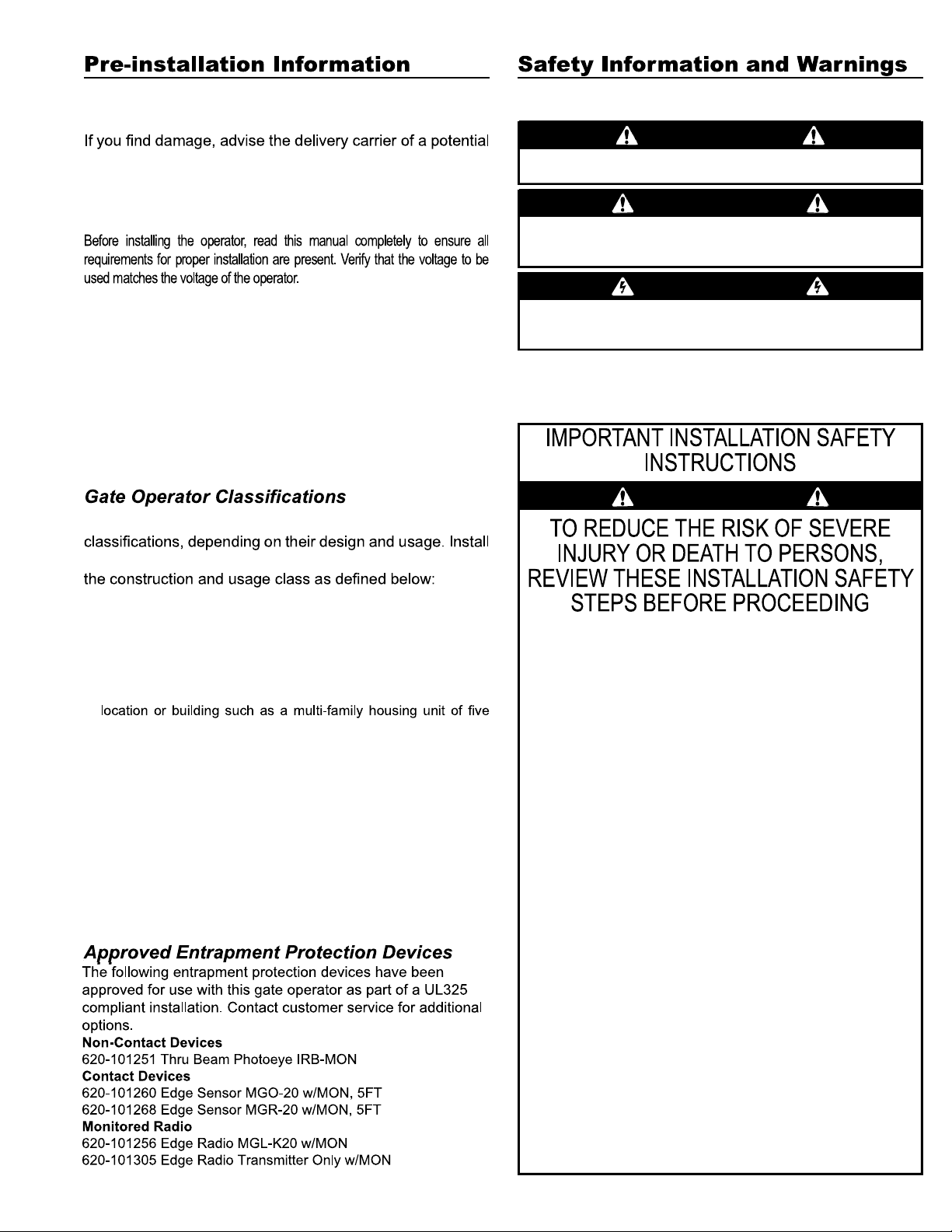

Before You Begin...

Before unpacking inspect the carton for exterior damage.

claim. Inspect your package carefully. You can check your

accessory box parts with the enclosed packing slip for your

convenience. Claims for shortages will be honored for only

30 days from the date of shipment.

If you have any questions about the requirements for proper

installation of this gate operator contact technical support at

800-328-4283.

Always Check the Gate’s Action

It’s very important before installing the gate operator

to make sure the gate slide is free and level throughout

the entire opening distance. If the gate does not seem to

operate properly, it may affect the operator performance

or greatly shorten the life of the unit.

All gate operators can be divided into one of four different

this gate operator only when the operator is appropriate for

• Class I Residential Vehicular Gate Operator

A vehicular gate operator intended for use in a home or for one

to four single family dwellings with a common garage or parking

area associated with these dwellings.

• Class II Commercial / General Access Vehicular Gate Operator

A vehicular gate operator intended for use in a commercial

or more single family units hotel retail store or other building

servicing the general public.

• Class III Industrial / Limited Access Vehicular Gate Operator

A vehicular gate operator intended for use in an industrial

location or building such as a factory or loading dock area or

other location not intended to service the general public.

• Class IV Restricted Access Vehicular Gate Operator

A vehicular gate operator intended for use in a guarded industrial

location or building such as an airport security area or other

restricted access locations not servicing the general public

in which unauthorized access is prevented via supervision by

security personnel.

Approved Obstruction Detection Devices

The following contact or non-contact obstruction detection

devices have been approved for use with this slide gate

operator as part of a UL325 compliant installation:

• Contact Edges

Miller Edge Models MGO20 MGR20 MGS20 ME120

• Photoeyes

MMTC Model IR-55 (165’ range - P/N 2520-441)

MMTC Model E3K (28’ range - P/N 2520-031)

Regulatory Warnings

Read the following before beginning to install this slide gate

operator:

THE FOLLOWING FORM TS RE USED FOR S FETY

NOTES IN THESE INSTRUCTIONS.

W RNING

This type of warning note is used to indicate possible

mechanical hazards that may cause serious injuries or

death.

C UTION

This type of warning note is used to indicate the possibility

of damage to the gate or gate operator.

W RNING

This type of warning note is used to indicate possible

electrical shock hazards that may cause serious injuries or

death.

W RNING

1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.

2. Read the yellow “Safety Instructions” brochure enclosed

with the packet of information. If any pages are missing or

are unreadable or you do not have the safety instructions

please call Tymetal at 1-800-328-4283 to request additional

copies.

3. ALL ELECTRICAL CONNECTIONS TO THE POWER

SUPPLY MUST BE MADE BY A LICENSED ELECTRICIAN

AND MUST OBSERVE ALL NATIONAL AND LOCAL

ELECTRICAL CODES.

4. A separate power-disconnect switch should be located near

the operator so that primary power can be turned off when

necessary.

5. Install the enclosed warning signs on both sides of the gate.

A minimum of two (2) WARNING SIGNS shall be installed

one on each side of the gate where easily visible.

6. Never reach between through or around the fence to

operate the gate.

7. Never connect a button station within reach of the gate or on

the side of the gate operator.

8. Do not adjust the operator controller’s current sensing

feature too high. It should be adjusted high enough to keep

the gate from falsely triggering the sensing but no higher

than necessary for the gate to operate. DO NOT DEFEAT

THE PURPOSE OF THIS FUNCTION!

9. You must install all required safety equipment.

10. UL325 Compliance requires the use of contact edges or

photoelectric controls on all automatic or remotely-controlled

gate operators.

11. The operator is intended for installation only on gates used

for vehicles. Pedestrians must be supplied with a separate

access opening. The pedestrian access opening shall be

designed to promote pedestrian usage. Locate the gate such

that persons will not come into contact with the vehicular

gate during the entire path of travel of the vehicular gate.

TYM-VS2 Slide Gate Operator Installation Guide - 2 - Revision 0 072012

Refer to the following steps for details on power and

accessory wiring for the operator.

C Power Wiring

DO NOT EXCEED THE M XIMUM

DIST NCE.

The green

ground wire must be properly connected.

7. LOC L E RTH GROUND REQUIRED

DC Control and ccessory Wiring

Note:

The shield wire should be connected in both the

operators.

W RNING

LL C ELECTRIC L CONNECTIONS TO THE POWER

SOURCE ND THE OPER TOR MUST BE M DE BY

LICENSED ELECTRICI N ND MUST OBSERVE LL

N TION L ND LOC L ELECTRIC L CODES.

MODEL TYM-VS2 SINGLE PH SE POWER WIRING

VOLTS, HP &

MPER GE

M XIMUM DIST NCE

(FEET) WIRE

G UGE

SINGLE DU L

MODEL TYM-VS2 THREE PH SE POWER WIRING

VOLTS, HP &

MPER GE

M XIMUM DIST NCE

(FEET) WIRE

G UGE

SINGLE DU L

Figure 1. Earth Ground

TYM-VS2 Slide Gate Operator Installation Guide - 3 - Revision 0 072012

The gate operator mounts to posts secured in concrete

footings. The posts support the operator and prevent it from

moving during operation as shown in Figure 2.

Gate Preparation

Before installing make sure the gate rolls or slides freely

and that all exposed rollers are properly covered. The gate

must be covered with fabric with openings no larger than

2-1/4” in size to a minimum height of 72” above ground

level. On picket-style gates if pickets are spaced less than

2-1/4” apart mesh is optional.

Use two 4” OD galvanized posts and secure with concrete

footings as shown length to be determined by local codes

frost line depth and soil conditions.

Attach the operator with the hardware provided.

To assemble the drive chain and chain support brackets

refer to Pages 4 and 5. Make sure that the chain sag does

not exceed recommended dimensions and that the chain

does not come into contact with the moving parts of the gate

or ground.

W RNING

The operator is intended for installation only on gates

used for vehicles. Pedestrians must be supplied with

a separate access opening. The pedestrian access

opening shall be designed to promote pedestrian

usage. Locate the gate such that persons will not

come into contact with the vehicular gate during the

entire path of travel of the vehicular gate.

W RNING

The gate must be installed in a location so that enough

clearance is supplied between the gate and adjacent

structures when opening and closing to reduce the

risk of entrapment.

Vent Plug Installation

In order to keep gear oil from spilling out during shipping

gear reducers used in gate operators have either a solid

plug or a sealed vent plug installed at the factory.

For operators with a solid plug replace the solid plug with

the vent plug provided (see Figure 3).

With the vent plug installed remove the vent plug’s breather

pin to allow the gear box to vent (see Figure 3)

Figure 3. Vent Plug Installation

Figure 2. Operator Elevations and Dimensions

TYM-VS2 Slide Gate Operator Installation Guide - 4 - Revision 0 072012

Figure 4a. Chain Path

Figure 4. Chain to Bracket Assembly

Figure 5. Standard

Figure 5a. Ornamental

Figure 3. Mounting Gate Bracket to Gate

5/16”-18 HEX LOCK NUT JDE# 3580

5/16”-18 x 3” HEX BOLT

JDE# 3618

GATE FRAME

CHAIN MOUNTING BRACKET

JDE# 3439

5/16” FLAT WASHER

JDE# 3582

DRILL 11/32” THROUGH

BOTH SIDES 2 PLACES

NOTE: The item numbers shown in these illustrations

are for reference only. For the actual part numbers refer

to the parts lists in the rear of this manual.

Your gate should be hung level and move freely by hand in

both directions before attaching the operator drive chain.

Slide the gate to the fully open position. Line up the slot

in the chain mounting bracket with the bottom of the idler

wheel on the operator. Mark the leading edge of the gate

frame using the chain mounting bracket as a template. Drill

Slide the gate to the fully closed position and mount the

other chain mounting bracket to the rear edge of the gate

frame in the same way.

Attach the chain to both chain mounting brackets as shown

5a. Brackets should support the chain but must not hit the

between the chain supports as shown in Figure 6.

TYM-VS2 Slide Gate Operator Installation Guide - 5 - Revision 0 072012

Figure 6. Operator Placement

Controller ccess

The Controller is protected by a plastic dust cover. To

remove the dust cover loosen the cover’s wing-screw and

lift the cover off (see Figure 7).

C Power Connection

All Tymetal gate operators are supplied with a power

disconnect switch to turn on and off the power available

incoming power should be brought into the operator and

connected to the labeled pigtails from the disconnect box.

A wiring connections print can also be found on the label

inside the cover of the operator. See Figure 8.

Proper thermal protection is supplied with the operator. The

motor contains a thermal overload protector to guard from

overheating the motor due to overload or high-frequency

Figure 7. Controller Access

operation. This overload protector will reset automatically

after the motor cools down.

Earth Ground

Install a ground rod and connect it to the operator’s frame

in every gate operator installation. A good earth ground

is necessary to allow the Controller’s built-in surge and

lightning protection circuitry to work effectively. The physical

bolting of the operator to the mounting posts is not

for a good earth ground. See Figure 1.

NOTE:

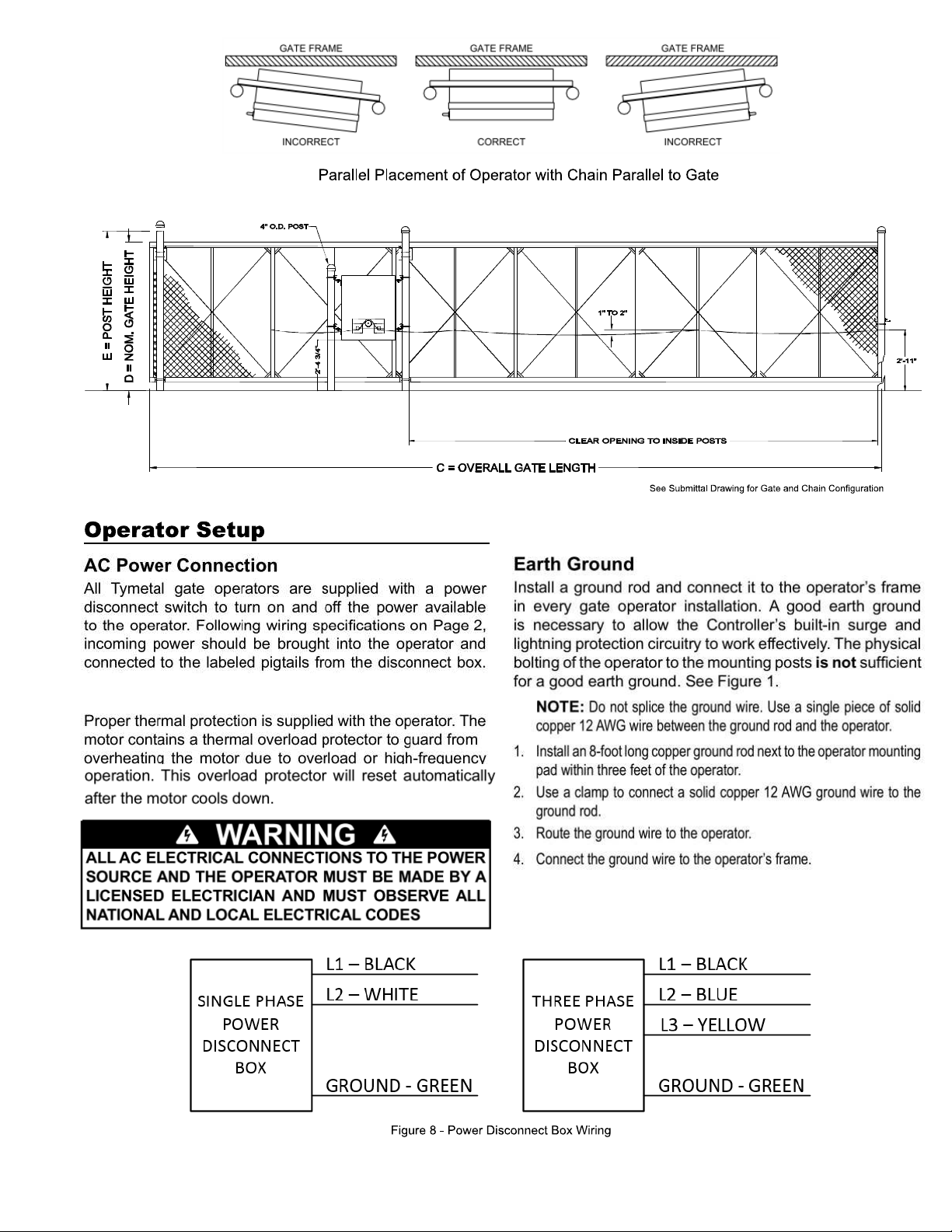

Figure 8. Power Disconnect Box Wiring

TYM-VS2 Slide Gate Operator Installation Guide - 6 - Revision 0 072012

Open and Close Limit djustment

The limit nuts are NOT PRESET at the factory and must be

adjusted for the gate in each installation. The limit switches

are activated by two threaded nylon rotary limit nuts which

are attached to a threaded limit shaft driven by a chain

and sprockets from the main drive shaft. REMOVE THE

C RDBO RD FILLER BEFORE DJUSTING THE LIMIT

NUTS.

The Controller is factory setup for right-hand installations.

The OPEN limit switches are the ones closer to the front

of the operator. In left-hand installations the CLOSE limit

switches are the ones closer to the front of the operator (see

Figures 10 & 11).

Limit Nuts Rough djustment

Before running the operator set the limit nuts as follows:

OFF

OPEN

C UTION

If the operator is installed in a left-hand installation.

Set the Controller to left-hand operation BEFORE

cams. Failure to do so will result in over-shooting the

limit switches, and may cause damage to the operator

and/or gate. Refer to programming on Page 12.

Manual Disconnect

The manual disconnect shifter lever and the locking lever is

illustrated in Figure 9. They can be found at the center and

to the left inside the operator cabinet. (The handle of each

To disconnect the unit for manual operation grasp the

handle of the spring-loaded shifter lever and pull it directly

toward you until the spring-loaded locking lever snaps into

place behind it. This action disengages the pinned shifter

block from the drive mechanism and holds the block in the

disengaged position.

To re-engage the operator move the locking lever to the

right releasing the spring-loaded shifter lever to snap back

into the engaged position.

Manual Hand Crank

TYM-VS2 is equipped with a manual hand crank to operate

the gate as an emergency means when no utility power is

present.

1. Turn off Power

2. Put operator in manual mode using the disconnect shift

lever.

3. Remove hand crank from safety switch/holder assembly

located in the upper right corner of the operator cabinet

and unfold handle. See Figure 9a.

4. Place hand crank over hex clutch disc.

5. Turn the handle in the desired direction for gate

movement.

6. Reverse these steps to return operator to normal

operation.

NOTE: Removal of the crank handle from the safety

switch holder will disable the gate operator. The crank

handle must be properly placed in the safety switch

holder to allow gate operator function.

Figure 9. Manual Disconnect Lever

W RNING

LL C ELECTRIC L CONNECTIONS TO THE POWER

SOURCE ND THE OPER TOR MUST BE M DE BY

LICENSED ELECTRICI N ND MUST OBSERVE LL

N TION L ND LOC L ELECTRIC L CODES

Figure 9a. Manual Hand Crank

TYM-VS2 Slide Gate Operator Installation Guide - 7 - Revision 0 072012

Limit Nuts Fine djustment

OPEN

Setting Speeds using LSO-2 & LSC-2

Limit switches LSO-2 and LSC-2 control when the operator

accelerates to maximum speed and decelerates to

minimum speed. It is recommended that LSO-2 and LSC-2

hitting LSO-1 or LSC-1 as these will apply the brake upon

activation.

Adjust LSO-2 and LSC-2 by slightly loosening the two

screws which hold them in place and sliding toward or away

from the center of the limit box. Care must be taken not to

adjust too close to the center as the limit nut may travel past

the switch and start accelerating at the end of the cycle.

Torque Limiter djustment

Before adjusting the torque limiter make sure the gate is

in good working condition. With the gate operator in the

disconnected position one person should be able to move

the gate by hand. Be certain the gate moves freely and

without binding throughout its travel.

Torque limiters are SET LIGHT T THE F CTORY. They

must be adjusted during installation preferably after limit

cams have been manually set. With the gate operator

engaged to the gate adjust the torque limiter tight enough

to keep it from slipping during normal operation. The

inherent entrapment protection (current sensing) feature

must activate prior to any slipping of the torque limiter.

NOTE:

To adjust the torque limiter in a Model TYM-VS2:

TURN THE OPER TOR POWER DISCONNECT

SWITCH OFF BEFORE M KING NY DJUSTMENTS

Figure 12. Setting the Limits

Figure 10. Limit Box Assembly (Right-hand Installation)

Figure 11. Limit Box Assembly (Left-hand Installation)

Figure 13. Torque Limiter Adjustment

TYM-VS2 Slide Gate Operator Installation Guide - 8 - Revision 0 072012

Figure 14. Controller Features

Table des matières

Autres manuels Tymetal Corp. ouvre-porte

Tymetal Corp.

Tymetal Corp. TYM 1000 Manuel utilisateur

Manuels ouvre-porte populaires d'autres marques

Elite

Elite CSW200UL Manuel utilisateur

CAME

CAME FROG-PM4 Manuel utilisateur

SOMFY

SOMFY FX230 Manuel utilisateur

Aprimatic

Aprimatic ONDA 500 Manuel utilisateur

Turnstiles

Turnstiles FSW 900 Manuel utilisateur

Erreka

Erreka BUL BL33 Mode d'emploi

Erreka

Erreka VULCAN S Manuel utilisateur

Beninca

Beninca R1-2 WBV Manuel utilisateur

Erreka

Erreka VULCAN D Manuel utilisateur

Motorline professional

Motorline professional FORT Mode d’emploi

Beninca

Beninca BOB5024 Manuel utilisateur

AGA

AGA GATEMASTER 900 HD Manuel utilisateur

Chamberlain

Chamberlain MotorLift HC280ML Manuel utilisateur

SOMFY

SOMFY Dexxo RTS Pro Manuel utilisateur

Cardin

Cardin BL Series Manuel utilisateur

Westfalia

Westfalia 85 27 06 Manuel utilisateur

CAME

CAME F500 Manuel utilisateur

Extel

Extel VERA Manuel utilisateur
