TYAN Thunder n3600QE S4980 Manuel utilisateur

http://www.tyan.com

Thunder n3600QE /// S4980

Version1.0

this manual may be reproduced or translated without prior written consent from

TYAN Computer Corp.

Trademark

All registered and unregistered trademarks and company names contained in

this manual are property of their respective owners including, but not limited to

the following.

TYAN, Thunder n3600QEare trademarks of TYAN Computer Corporation.

AMD, Opteron, and combinations thereof are trademarks ofAMD Corporation.

AMI, AMIBIOS are trademarks of AMI Software Incorporated.

Microsoft, Windows are trademarks of Microsoft Corporation.

Nvidia and nForce are trademarks of Nvidia Corporation

Microsoft, Windows are trademarksof Microsoft Corporation.

SuSE,is a trademark ofSuSE AG.

Linux is a trademark of Linus Torvalds

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Winbond is a trademark of Winbond Electronics Corporation.

Notice

Information contained in this document is furnished by TYAN Computer

Corporation and has been reviewed for accuracy and reliability prior to printing.

TYAN assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN products includingliability or

warranties relating to fitness for a particular purpose or merchantability. TYAN

retains the right to make changes to product descriptions and/or specifications

at any time, without notice. In no event will TYAN be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

http://www.tyan.com

Table of Contents

Check the box contents! 3

Chapter 1: Introduction

1.1 Congratulations 5

1.2 Hardware Specifications 5

Chapter 2: Board Installation

2.1 Board Image 8

2.2 Block Diagram 9

2.3 Board Parts, Jumpers and Connectors 10

2.4 Tips on Installing Motherboard in Chassis 18

2.5 Installing the Processor(s) 19

2.6 Installing the Memory 24

2.7 Attaching Drive Cables 26

2.8 Installing Add-in Cards 28

2.9 Connecting External Devices 29

2.10Installing the Power Supply 30

2.11Finishing up31

Chapter 3: BIOS Setup

3.1 About the BIOS 33

3.2 BIOS Menu Bar 33

3.3 Setup Basics 34

3.4 Getting Help 34

3.5 In Case of Problems 34

3.6 BIOS Main Menu 35

3.7 Advanced Menu 36

3.8 PCI/PnP Menu 57

3.9 Boot Menu 59

3.10 Security Menu 64

3.11 Chipset Menu 65

3.11 Exit Menu 73

Chapter 4: Diagnostics

4.1 Beep Codes 75

4.2 Flash Utility 75

4.3 BIOS Post Code 76

Appendix I: SMDC Information 78

Appendix II: How to Make a Driver Diskette 80

Glossary 82

Technical Support 89

http://www.tyan.com

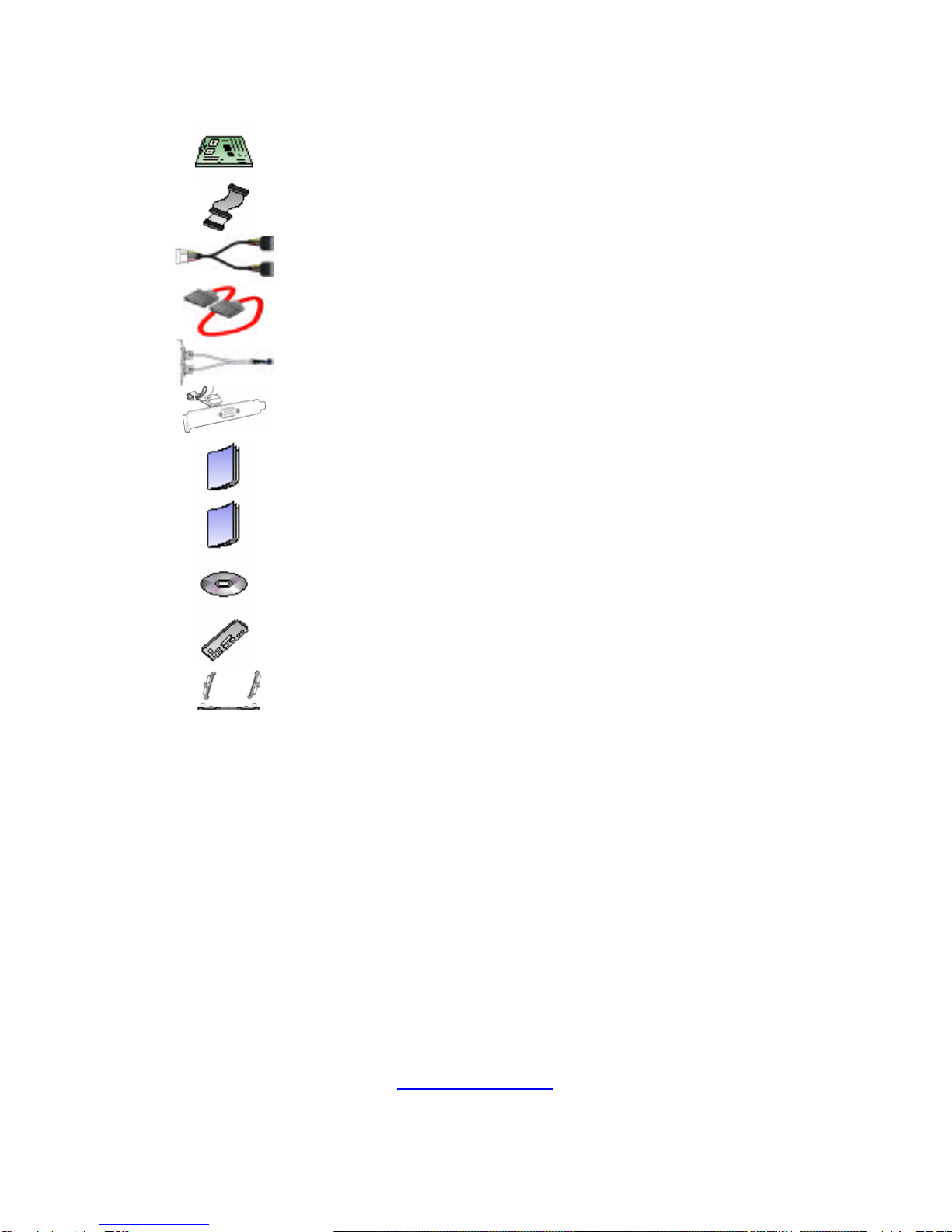

Check the box contents!

1x Thunder n3600QEmotherboard

1x Ultra-DMA-133/100/66/33 IDE cable

3x Serial ATA power cable

6x Serial ATA Cable

1x USB2.0 cable

1 x COM Port Cable

1x Thunder n3600QE user’s manual

1x Thunder n3600QE Quick Reference guide

1x TYAN driver CD

1x I/O shield

4x CPU Retention Frame and Back Plate (pre-installed)

If any of these items are missing, please contact your vendor/dealer for

replacement before continuing with the installation process.

http://www.tyan.com

NOTE

http://www.tyan.com

Chapter 1: Introduction

1.1 -Congratulations

You have purchased the high performanceserver with four processors (can

expand to eight). The Thunder n3600QE (S4980) is a flexible AMD®platform

for multiple applications, based on NVIDIA®NFP3600 and SMSC SCH5017

chipsets.

Designed to support four AMD®Rev. F OpteronTM 8000 series processors and

max 64GB DDR2-667/533/400 memory, and featured with integrated RJ-45

LANconnectors, one PCI-Express x16 slotplus six serial ATA ports, the S4980

offers exceptional performance and versatile solution for your server platform.

Remember to visit TYAN’s Website at http://www.TYAN.com. There you can

find information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

1.2 -Hardware Specifications

Processors

•Quad 1207-pin ZIF sockets

•Supports up to four AMD®Rev. F

OpteronTM 8000 series CPU

•Up to 1.0GHz Hyper-Thansport

link support

Chipset

•NVIDIA NFP3600 (MCP55 Pro)

•SMSC SCH5017

Memory

•Dual memory channels

•Supports up to sixteen DDR2

667/533/400 DIMMs

•Supports up to 64GB of registered,

ECC memory

•Supports 4-rank memory

Integrated PCI IDE

•Single channel master mode

supports up to two IDE devices

•Supports for ATA-133/100/66/33

IDE drives and ATAPI compliant

devices

Integrated 2D/3D PCI Graphics

•XGI Volari Z7 (XG20)

16MB frame buffer memory

Integrated LANControllers

•Two(2) NFP3600 integrated MA C

with two Marvell 88E1116 single

port Gigabit Ethernet PHY

-Integrated TCP offload Engine

(TOE)

-IEEE802.3 compliant, WOL/PXE

support

-Front panel LAN LED support

(TYFP2 header)

Server Management

•M3291, IPMI 2.0 Remote System

Mgmt card

•Renesas H8S2167 BMC

controller

•BT, KCS, Logging support

•IPMI-over-LAN

•Remote power on/off and reset

•2-pin warning LED

http://www.tyan.com

Integrated Serial ATA II

•Three Serial ATA II Host

controllers embedded

•Supports up to six serial ports

running at 3.0Gb/s per direction

per channel

•Serial ATA II specification

compliant

•nVIDIA MediaShieldTM supports

for RAID 0, 1,0+1, 5, JBOD

•HDD LED support (TYFP header)

Back Panel I/O Ports

•Stacked PS/2 Mouse & Keyboard

ports

•One double-decked USB 2.0 port

•COM1 connector

•One 15-pin VGA port

•Two side-by-side RJ45

10/100/1000 Base-T port with

link/activity LED

Integrated I/O Interfaces

•One IDE connector

•TwoUSB 2.0 ports (via cable)

•One COM port (via cable)

•Tyan 2x9pinfan header (for Tyan

barebone)

•Tyan 2x6 pin front panel header

•Tyan 2x25 pin SMDC header

•ID LED

•SMDC Warning LED header

BIOS

•AMI BIOS 8Mbit Flash

•Supports ACPI 2.0

•PnP, DMI2.0, WfM2.0 Power

Management

•ACPI S1, S4, S5 supported

Power

•EPS 12V power with 24+8+8/4

power connectors

•One extra 2x2 power connector to

support next-generation SSI

PSU

•On board 5-phase digital VRD

Form Factor

•E-ATX footprint, 12”x13”

(304.8mm x 330.2mm)

Regulatory

•FCC Class B (Declaration of

Conformity)

•CE (Declaration of conformity)

http://www.tyan.com

Chapter 2: Board Installation

You are now ready to install your motherboard. The mounting hole pattern of

the Thunder n3600QE S4980matches the E-ATX specification. Before

continuing with installation, confirm that your chassis supports anE-ATX

motherboard.

How to install our products right… the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the

antistatic bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well asinstalling the processor, memory, disk drives and cables.

NOTE

DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED

http://www.tyan.com

2.1-Board Image

This picture is representative of the latest board revision available at

the time of publishing. The board you receive may or may not look

exactly like the above picture.

http://www.tyan.com

2.2 -Block Diagram

Thunder n3600QE S4980Block Diagram

http://www.tyan.com

2.3 -Board Parts, Jumpers and Connectors

This diagram is representative of the latest board revision available at the time of

publishing. The board you receive may not look exactly like the above diagram.

Jumper Legend

©© OPEN -Jumper OFF, without jumper cover

©© CLOSED –Jumper ON, with jumper cover
