VERA S32i
Operation manual VERA S32i
2
Introduction
Thank you for choosing a high-quality product “MADE IN GERMANY” from TW AUDiO.
The VERA S32i is a compact, flyable subwoofer belonging to the VERA20i series. It is equip-
ped with an 18” driver in the front and a 14” driver rearwards. Both long throw high-perfor-
mance drivers are optimally aligned. Various operating modes and the resulting coverage
variations allow for extremely flexible solutions. Depending on the selected preset, it can be
used in Cardioid, Endfire or Omni mode.
Cardioid mode is optimized for maximum attenuation of the rearward sound dispersion,
achieving attenuation greater than 15dB over the entire frequency range. The end-fire mode
is optimized for maximum sound pressure at the front while also providing partial rearward
sound dispersion.
The advantages are obvious: Thanks to directivity control, subwoofer performance is more
solid and musical, especially in environments with significant natural reverb. Performers on
stage and those behind the stage are spared from excessive bass levels.
The compact and appealing design of the enclosure allows a subtle presentation of the
VERA S32i. Especially when sightlines have to be considered or an array needs to be fitted
unobstrusively within the architectural surrounding.
The fully integrated, nearly invisible installation four-point rigging hardware support the discreet
optical aspect. A special feature is the logarithmic scaling of the intermediate angles between
angles. It enables angles smaller than one degree to achieve a more accurate directivity of
the upper array elements over a longer distance. In addition costs for expensive pins and
additional frames between subwoofer and tops do not apply.
If you lend your product to another party, inform that party of the safety-related operating pro-
cedures and hand over this assembly guide. If you require additional copies of this manual,
you can obtain them free of charge from TWAUDiO or download them from www.twaudio.de
Instructions in this user manual
Strictly adhere to the instructions contained in this operating manual that are marked as
follows:
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to serious injury or even death.
WARNING
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation for persons with a pacemaker. Failure to comply with this safety instruction can lead
to serious injury or even death.
WARNING
Operation manual VERA S32i
3
This symbol in combination with the signal word “Caution” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to light or moderate injury.
This symbol in combination with the signal word “Note” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to product damage.
This symbol in combination with the signal word “Tip” identifies additional information or
notes that will simplify working with TWAUDiO products on the basis of practical experience.
NOTE
TIP
CAUTION
Notes on the products
Read manual
before use! Before using the device, carefully read the operating manual and keep it with the
VERA S32i loudspeaker.
General information
Operation manual: OM-VERA S32i
Version 1.0 en, 07/2020
© by TW AUDiO 2020; all rights reserved.
All information contained in this operating manual was correct to the best of our knowledge
at the time of printing.
Quality warranties or assurance of suitability for a certain type of use based on the technical
specifications, dimensions and weights are not granted by TWAUDiO.
TW AUDiO also shall not assume liability for any secondary damage (property damage and/or
personal injury) nor for the failure to comply with this operating manual!
TW AUDiO reserves the right to update this document based on recent developments.
TW AUDiO GmbH
Osterholzallee 140
71636 Ludwigsburg
Germany
Phone : + 49 (0) 71 41-48 89 89 0
Fax: + 49 (0) 71 41-48 89 89 99
WWW: www.twaudio.de
Operation manual VERA S32i
4
Content
1. Safety | Intended use...................................................................................................... 5
2. Overview ........................................................................................................................ 7
2.1 Components ........................................................................................................... 7
2.2 Operation modes..................................................................................................... 8
2.2.1 Cardiod .............................................................................................................. 8
2.2.2 Endfire................................................................................................................ 8
3. Technical specifications .................................................................................................. 9
3.1 Data sheet............................................................................................................... 9
3.2 Connection diagram ................................................................................................ 9
4. Commissioning............................................................................................................. 10
4.1 Setup .................................................................................................................... 10
4.2 Rigging.................................................................................................................. 11
4.3 Connection options ............................................................................................... 13
4.4 Operation .............................................................................................................. 13
4.5 Connecting the cable............................................................................................. 14
5. Transport and Storage.................................................................................................. 15
6. CE Conformity Declaration............................................................................................ 16
7. Disposal ....................................................................................................................... 17
Operation manual VERA S32i
5
1. Safety | Intended use
Please adhere to the following safety instructions to avoid risks when operating loudspeakers.
The VERA S32i loudspeaker was developed for use in professional sound systems. The
loudspeaker may only be used by trained and qualified personnel.
Note the operating modes described in this operating manual. Other uses are not permis-
sible.
Damage caused by improper use is not covered by TW AUDiO.
Loudspeakers generate an electromagnetic field. Persons with pacemakers are not permit-
ted to remain in the immediate vicinity of loudspeakers as the electromagnetic fields can
cause pacemakers to malfunction.
When working with heavy loads exceeding 20 kg (44 lbs.), use suitable aids (dollies, hoisting
slings, etc.). Multiple persons may be required depending on the situation.
Ensure that the units are in a stable position and are firmly attached. A falling loudspeaker can
result in serious personal injury and property damage.
When using and assembling TW AUDiO loudspeakers, only use materials specified by
TW AUDiO. These tasks must be performed by qualified personnel. Adhere to the applicable
safety regulations.
WARNING
When setting up loudspeakers, ensure that they are not exposed to the following ambient
conditions:
• Direct sunlight
• Humidity
• Jolting
• Dust
Keep away from the immediate vicinity of loudspeakers that are operated at high sound pres-
sure levels. These loudspeaker systems are capable of endangering your health. Sound levels
beginning as low as approximately 90dBSPL can lead to long-term hearing impairment.
WARNING
Avoid:
• Feedback
• Distorted signals (clipping) and
• Peaks resulting from switching on devices, plugging in devices or unplugging devices during
operation.
Such signals can lead to loudspeaker overload and ultimately to loudspeaker failure.
WARNING
NOTE
NOTE
Operation manual VERA S32i
6
Ensure that the loudspeaker is not exposed to permanent thermal overloads. Thermal over-
loads may cause a fire and result in serious personal injury and property damage.
WARNING
Note that TW AUDiO does not provide a warranty for damage that can be attributed to this
type of overload and therefore cannot be held liable for any secondary damage.
A permanent magnetic field is present in the immediate vicinity of loudspeakers. Ensure that
objects which react sensitively to magnetic fields are not located in the immediate vicinity of
the loudspeaker. In particular, this applies to magnetic storage media, magnetic stripe cards
such as debit cards and CRT displays. A distance of approximately one meter is sufficient to
avoid damage.
Check loudspeakers and accessory parts regularly for visible wear. This is essential to ensure
continuing fault-free operation. Worn parts should be replaced immediately. Spare parts are
available from TWAUDiO.
NOTE
NOTE
Operation manual VERA S32i
7
2. Overview
2.1 Components

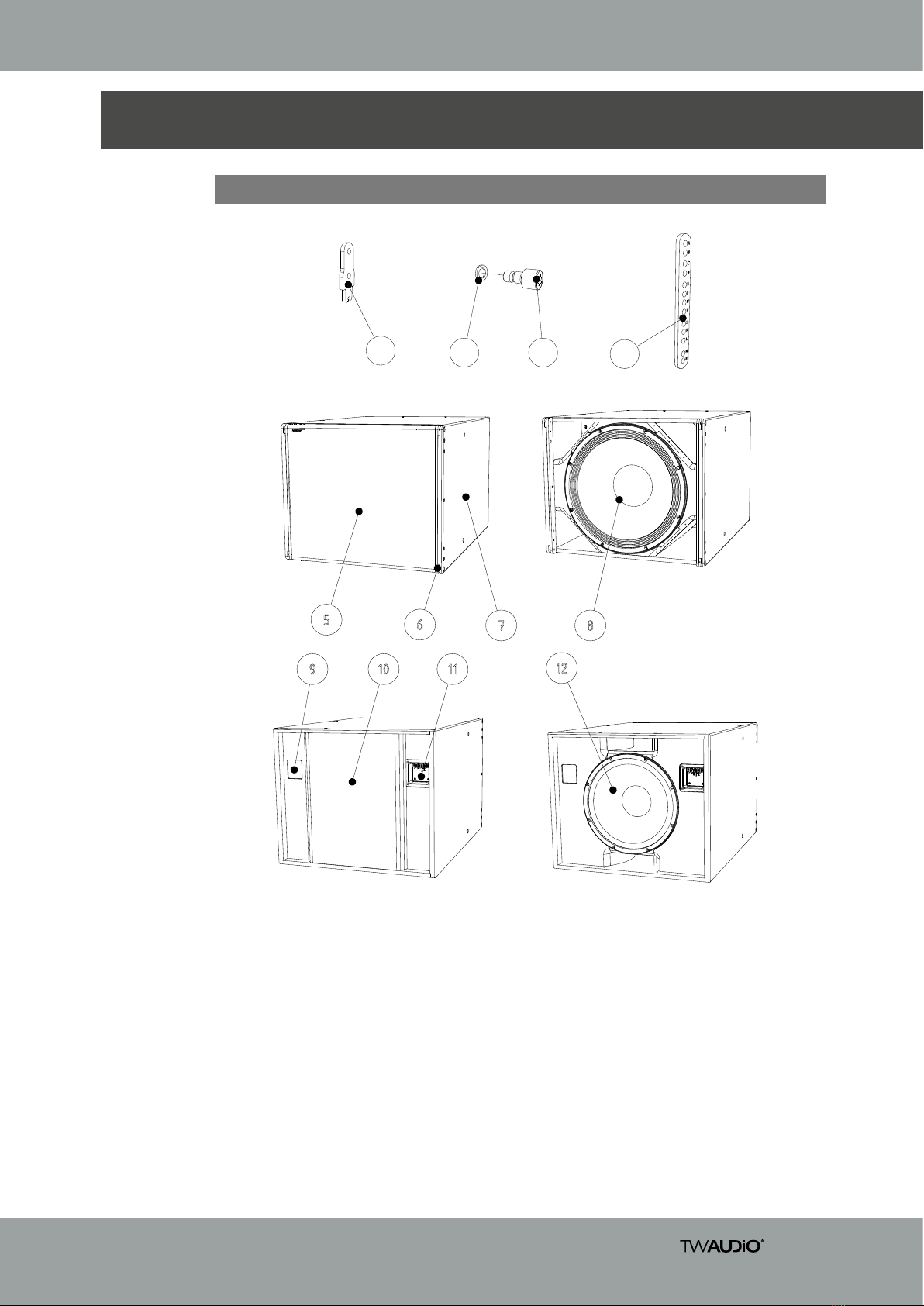

Figure 2.1 - Overview
1. Splay link (2 pieces) – enclosed separately
2. Hexagon socket head cap screw M8x16-12.9 (9 pieces) – enclosed separately
3. Lock washer VS-8-1.4301 (9 pieces) – enclosed separately
4. Bracket (2 pieces) – enclosed separately
5. Front grill
6. Rigging tracks (2 pieces)
7. 15 mm Multiplex enclosure - Warnex textured paint surface
8. 18“ cone driver (front)
9. Type label
10. Rear grill
11. Standard i-series screw terminal
12. 14“ cone driver (rear)
123 4
567 8
9 10 11 12
Operation manual VERA S32i
8
In Cardioid mode, the focus is on maximum sound pressure reduction behind the loudspeaker
setup, with partial forward-facing level addition.
The rear speaker produces an inverted signal to cancel out sound components on the back.
This results in a sound pressure level reduction of about 20 dB over a wide frequency range.
Depending on the distance between the loudspeakers and their transit time difference, there
will be a frequency-dependent sound pressure level addition of up to 3 dB in front of the
loudspeaker arrangement. By adjusting the transit time difference between the two individual
drivers, a different dispersion pattern – e.g. hypercardioid – can be achieved.
2.2 Operation modes
The VERA S32i can be operated in one of two modes. The operating mode is selected by
choosing the preset in the system amplifier.
2.2.1 Cardiod
In Endfire mode, the focus is on maximum forward-facing sound pressure level addition, with
partial reduction to the rear.
To achieve this, the front loudspeaker’s signal is delayed so that its signal is in phase with the
rear loudspeaker in the direction of sound. This results in a sound pressure level addition of
about 6 dB over a wide frequency range. Depending on the speaker distance, there is a fre-
quency-dependent sound pressure level reduction on the rear side. The strongest cancellation
is to be expected at the frequency whose wavelength corresponds to four times the driver
spacing.
2.2.2 Endfire
Never change the preset during active operation. Operating with an incorrect preset can
damage parts of the loudspeaker.
NOTE
Operation manual VERA S32i
9
3. Technical specifications
3.1 Data sheet
Drivers 1x 18“ LF front / 1x 14“ LF rear
Frequency response 38 - 120 Hz
Power handling (program/Peak) 2400 / 4800 W 18“
1400 / 2800 W 14“
Impedance 8 Ω 18“ / 8Ω 14“
Max. SPL / 1 m 134 dB
Dimensions (h x w x d) 500 × 600 × 800 mm [19.69 x 23.62 x 31.5in]
Weight 55,6 kg [122,6 lbs]
Surface Warnex textured paint

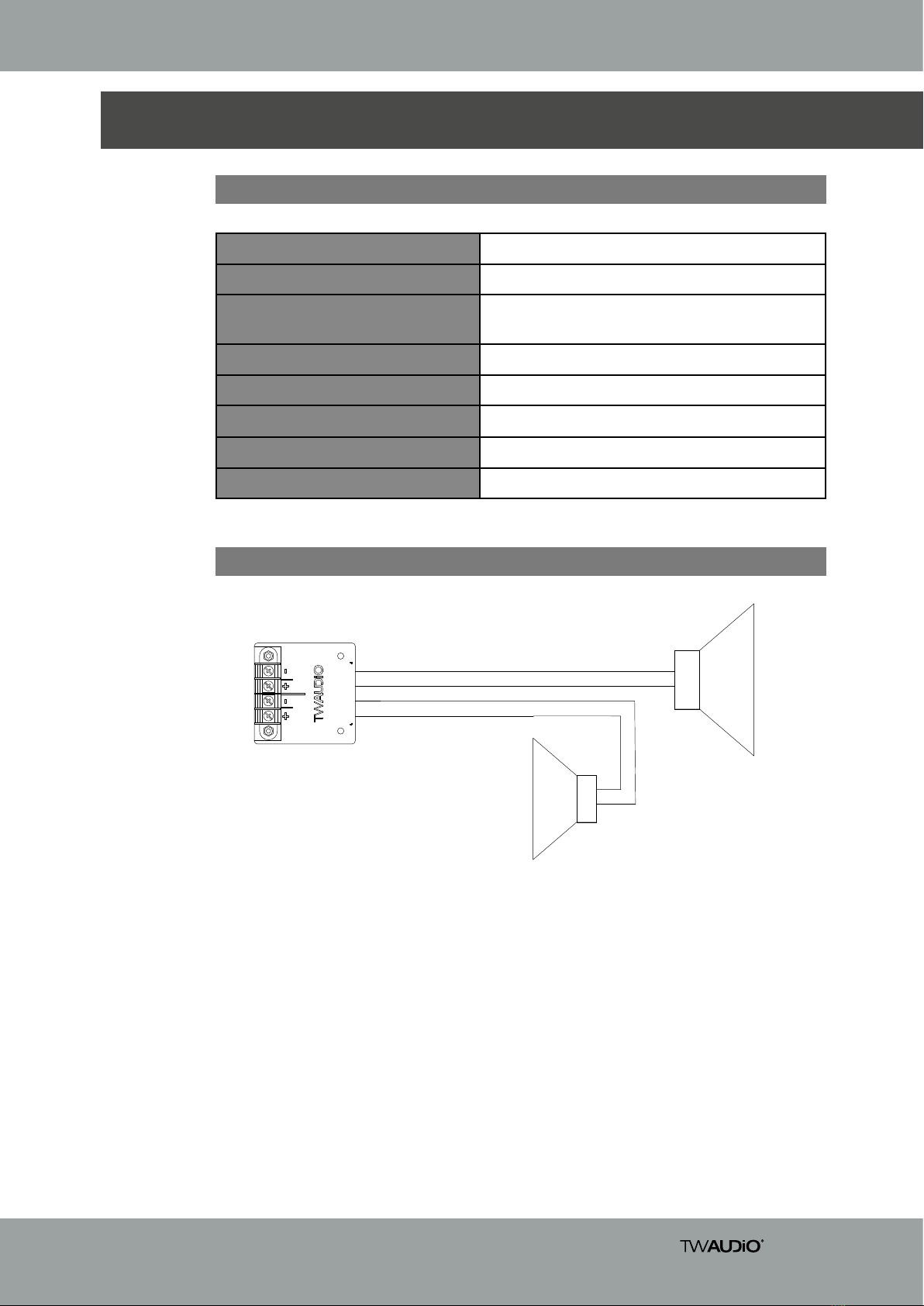

3.2 Connection diagram
Figure 3.2 - Connection diagram
+
-
+
-
REAR
14"
FRONT
18"
12
blue
white
black
red
Operation manual VERA S32i
10
4.1 Setup
The VERA S32i loudspeaker is designed for array operation.
TW AUDiO recommends using only the accessories specified by TWAUDiO for securing and
mounting loudspeakers.
NOTE
Make sure the speakers are securely fastened to prevent personal injury and property damage.
WARNING
4. Commissioning
Make sure that all system structures are located on a firm, level surface and that the surface
can bear the total weight!
WARNING
