TV Logic LVM-170A Manuel utilisateur

Multi Format Broadcast

LCD Monitor

OperationManual_v1.6

LVM-170A

LVM-171A

Multi Format LCD Monitor 3

Contents

1. Caution

2. Main Features

3. Controls & Functions

4. Menu Organization & Adjustment

5. Menu Operations

[1] PICTURE

[2] COLOR

[3] MARKER

[4] GPI/UMD

[5] WAVEFORM

[6] AUDIO

[7] DISPLAY & SET

6. Firmware Upgrage

7. Button Functions

8. Other Functions

9. DVI / HDMI Support Resolution

10. Product Speciﬁcations

11. Optional Accessories

FCC(FederalCommunicationsCommission)

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforclassAdigitaldevice,pursuanttopart15

oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterfacewhenthe

equipmentisoperatedinacommercialenvironment.

Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyandifnotinstalledandusedin

accordancewiththeinstructionmanual,maycauseharmfulinterferencetoradiocommunications.Operationof

thisequipmentinaresidentialtocorrecttheinterferenceathisownexpense

CAUTION:Changeormodificationsnotexpresslyapprovedbythemanufacturerresponsibleforcompliance

couldvoidtheuser’sauthoritytooperatetheequipment.

DisposalofOldElectrical&ElectronicEquipment

(ApplicableintheEuropeanUnionandotherEuropeancountrieswithseparatecollectionsystems)

Thissymbolontheproductoronitspackingindicatesthatthisproductshallnotbetreatedashousehold

waste.Insteaditshallbehandedovertotheapplicablecollectionpointfortherecyclingofelectricaland

electronicequipment.Byensuringthisproductisdisposedofcorrectly,youwillhelppreventpotentialnegative

consequencefortheenvironmentandhumanhealth,whichcouldotherwisebecausedbyinappropriatewaste

handlingofthisproduct.Therecyclingofmaterialswillhelptoconservenaturalresources.

.......................................................................................

..............................................................................

....................................................................

.................................................

.........................................................................

.................................................................................

...................................................................................

.................................................................................

...............................................................................

.............................................................................

....................................................................................

........................................................................

..........................................................................

............................................................................

....................................................

...............................................................

.................................................................

4 Multi Format LCD Monitor

1. Caution

●Always use set voltage.

●AC 100 ~ 240V (1.6A/50~60Hz)

●DC 12/24V(MAX 6A)

•

• All operating instructions must be read and

understood before the product is operated.

•

• These safety and operating instructions must

be kept in safe place for future reference.

•

• All warnings on the product and in the

instructions must be observed closely.

•

• All operating instructions must be followed.

•

• Do not use attachments not recommended

by the manufacturer. Use of inadequate

attachments can result in accidents.

•

• This product must be operated on a power

source specied on the specication label.

If you are not sure of the type of power supply

used in your home, consult your dealer or local

power company. For units designed to operate

on batteries or another power source, refer to

the operating instructions.

•

• The power cords must be routed properly

to prevent people from stepping on them or

objects from resting on them. Check the cords

at the plugs and product.

•

• In case of using other DC 12V/24V adapters

instead of the standard adapter provided by

the manufacturer, please check the proper load

capacity (or current capacity) and use an

adapter with stable voltage.

•

• Do not overload AC outlets or extension cords.

Overloading can cause re or electric shock.

•

• Never insert an object into the product

through vents or openings. High voltage ows

in the product, and inserting an object can

cause electric shock and/or short internal parts.

For the same reason, do not spill water or liquid

on the product.

•

• Do not attempt to service the product yourself.

Removing covers can expose you to high

voltage and other dangerous conditions.

Request a qualied service person to perform

servicing.

•

• If any of the following conditions occurs,

unplug the power cord from the AC outlet, and

request a qualied service person to perform

repairs.

a. When the power cord or plug in damaged.

b. When a liquid was spilled on the product or

when objects have fallen into the product.

c. When the product has been exposed to rain

or water.

d. When the product does not operate properly

as described in the operating instructions. Do

not touch the controls other than those

described in the operating instructions.

Improper adjustment of controls not described

in the instructions can cause damage, which

often requires extensive adjustment work by a

qualied technician.

e. When the product has been dropped or

damaged.

f. When the product displays an abnormal

condition. Any noticeable abnormality in

the product indicates that the product needs

servicing.

•

• In case the product needs replacement parts,

make sure that the service person uses

replacement parts specied by the

manufacturer, or those with the same

characteristics and performance as the original

parts. Use of unauthorized parts can result in

re, electric shock and/or other danger.

•

• Upon completion of service or repair work,

request the service technician to perform safety

checks to ensure that the product is in proper

operating condition.

Multi Format LCD Monitor 5

1. Caution

•

• When mounting the product on a wall or

ceiling, be sure to install the product

according to the method recommended by the

manufacturer.

•

• Unplug the power cord from the AC outlet

before cleaning the product. Use a damp cloth

to clean the product. Do not use liquid cleaners

or aerosol cleaners.

•

• Unplug the power cord from the AC outlet if

you do not use the product for considerably

long time.

•

• Do not use the product near water, such as

bathtub, washbasin, kitchen sink and laundry

tub, swimming pool and in a wet basement.

•

• Keep the product away from direct rays of the

Sun-light.

•

• Do not place the product on an unstable cart,

stand, tripod or table. Placing the product on

an unstable base can cause the product to fall,

resulting in serious personal injuries as well as

damage to the product. Use only a cart, stand,

tripod, bracket or table recommended by the

manufacturer or sold with the product. When

mounting the product on a wall, be sure to

follow the manufacturer’s instruction. Use only

the mounting hardware recommended by the

manufacturer.

•

• When relocating the product placed on a cart,

it must be moved with the utmost care.

Sudden stops, excessive force and uneven oor

surface can cause the product to fall from the

cart.

•

• The vents and other openings in the cabinet

are designed for ventilation. Do not cover or

block these vents and openings since

insucient ventilation can cause overheating

and/or shorten the life of the product. Do not

place the product on a bed, sofa, rug or other

similar surface, since they can block ventilation

openings. This product is not designed for

built-in installation; do not place the product

in an enclosed place such as a bookcase or

rack, unless proper ventilation is provided or

the manufacturer’s instructions are followed.

•

• The LCD panel used in this product is made of

glass. Therefore, it can break when the product

is dropped or applied with impact. Be careful

not to be injured by broken glass pieces in case

the LCD panel breaks.

•

• Keep the product away from heat sources

such as radiators, heaters, stoves and other heat

generating products (including ampliers).

6 Multi Format LCD Monitor

●Compatible with varied SDI signals

- The product is compatible with varied

SD/HD/3G(A/B)-SDI 480i,576i,720p,1080i/p,

1080psf.

●Compatible with analog signals

- The product is compatible with analog

signals - CVBS

●HDMI/DVI Digital(HDCP) / Analog input

support

- HDMI, DVI digital/analog(VGA) input is

available without any other accessories.

●All-in-one type system

- Slim and all-in-one type monitor that

requires no other accessories and optimized

for space utilization.

●Waveform/Vector Scope/Luma(Y’) zone

check/Audio Level Meter support

- Waveform & Vector Scope support

- Luma(Y’) zone check support(False color)

- Embedded Audio Level Meter support

●Luma(Y’) zone check(Color/Zebra type)/

Range error function

●Audio in & out

- built-in internal speaker (Embedded audio &

External audio in)

- Stereo audio out using phone jack & external

audio in.

●Knob Control

- Easy to adjust user conguration using the

control knobs.

●BLUE ONLY/MONO/Focus-Assist/H/V delay

●Internal pattern generator(0~100% Gray/

Colorbar+Pluge)

●Varied Markers & Safety Areas

- Center Marker, Safety Area Marker, Aspect

Marker, Display Size(Scan)

●Wide screen compatible

- Wide screen for 16:9 aspect monitoring.

●AC/DC Compatible

- Basically, this product is powered by a

normal AC source, and is also compatible

with DC.

●Remote control function

- The product can be remotely controlled

using external switch or RS-422

communication.

●RS422/UMD feature support

- This product supports protocols provided by

TVLogic or a TSL protocol.

●Additional Features

- Wide Viewing Angle, Loop Through (SDI/

Analog), VESA mounting, Easy to operate

OSD user interface, Rack Mountable Design.

- LVM-170A : 700:1 contrast, 300cd/㎡

Brightness

- LVM-171A : 1500:1 contrast, 450cd/㎡

Brightness

LVM-170A/171A Monitors contain the following features :

2. Main Features

Multi Format LCD Monitor 7

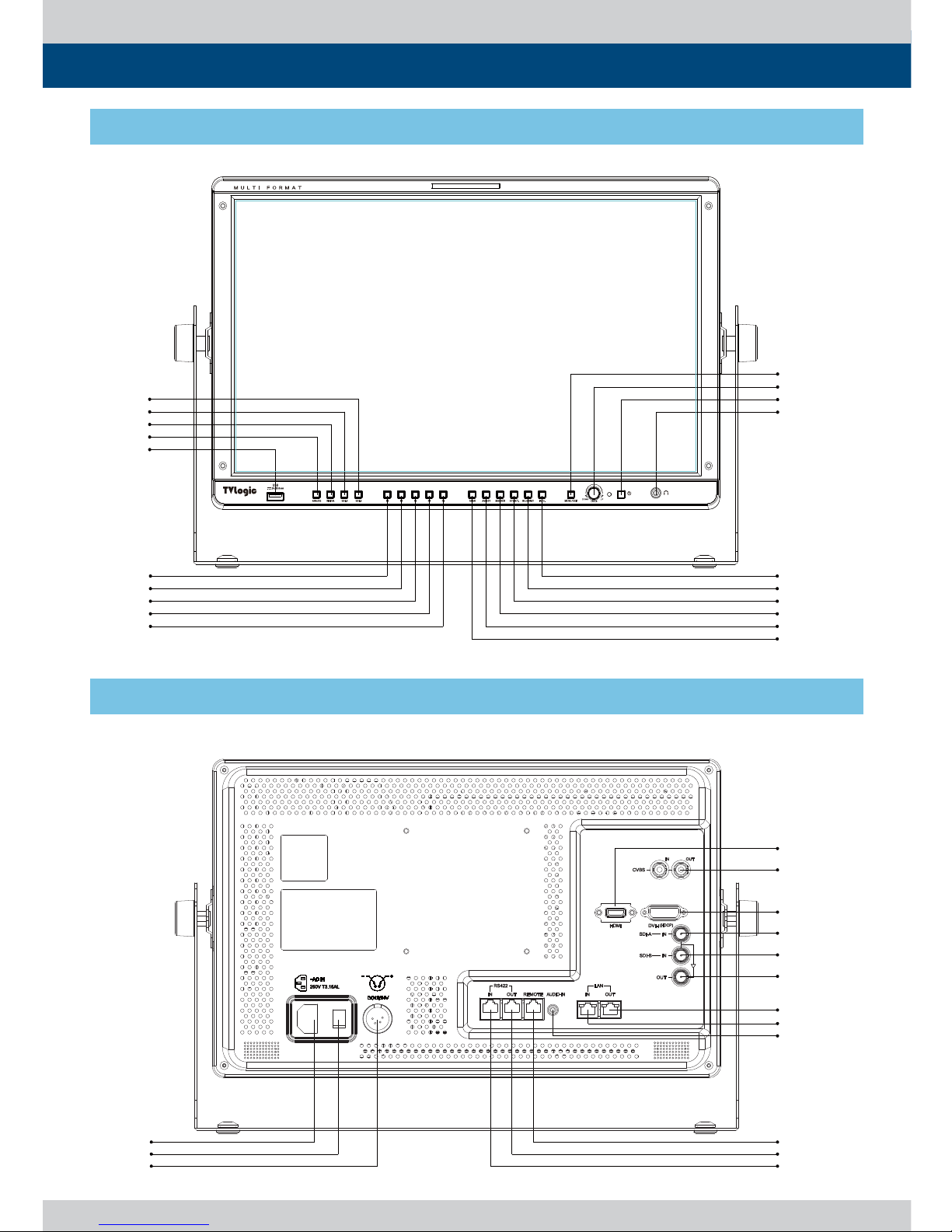

LVM-170A : FRONT

LVM-170A : REAR

3. Controls & Functions

SDI-B

SDI-A

DIGITAL

NALOG

USB

INFO.

BLUE ONLY

H/V DELAY

MARKER

ASPECT

SCAN

ENTER/UP/DOWN

POWER

PHONE JACK

MENU/EXIT

HDMI

CVBS

DVI-I

SDI-A IN

SDI-B IN

SDI OUT

LAN OUT

LAN IN

AUDIO IN

REMOTE

RS-422 OUT

RS-422 IN

AC IN

POWER S/W

DC IN

8 Multi Format LCD Monitor

3. Controls & Functions

LVM-170A : FRONT

●[USB]

- Updates new rmware and color calibration.

●[ANALOG] Button/Lamp

- Used to select desired Analog input.

- Press the button to activate the analog

input menu-selection, then use UP

and DOWN button to select desired input.

* Please refer to “7. Button Functions [1]

ANALOG Button” for more information.

●[DIGITAL] Button/Lamp

- Used to select desired Digital input. (HDMI,

DVI Digital)

- Press the Digital Button to activate the

Digital input menu-selection, then use the

Knob to select desired input.

*Please refer to “7. Button Functions [2]

DIGITAL” for more information.

●[SDI-A] Button/Lamp

- Used to select SDI-A input.

●[SDI-B] Button/Lamp

- Used to select SDI-B input.

●[F1 ~ F5] Button/Lamp

- Performs the function that the user set as

hot-keys.

- The selectable the hot-key menu comes up

when you hold the keys. You can select the

hot-key functions from it.

●[SCAN] Button/Lamp

- Used to change the scan mode.

*Please refer to “8. Other Functions [1]SCAN”

for more information.

●[ASPECT] Button/Lamp

- Used to change the display ratio between

4:3 and 16:9.

- Activates in the order of [16:9]-[4:3]-[2.35:1]-

[1.85:1]-[15:9]-[16:10] -[AUTO]-[16:9].

Multi Format LCD Monitor 9

3. Controls & Functions

LVM-170A : FRONT

●[MARKER] Button/Lamp

- Used to activate/deactivate the Marker.

- The Marker is normally displayed when you

select Aspect ratio you want in OSD Menu.

●[H/V DELAY] Button/Lamp

- Used to check horizontal sync. and vertical

sync. simultaneously.

●[BLUE ONLY/MONO] Button/Lamp

- Press the button to remove red and green

from the input signal and display the screen

only under a blue signal. Press the button

again to activate mono mode.

- This function is not activated in the RGB, DVI

ANALOG, DVI DIGITAL, HDMI modes.

●[INFO.] Button

- Displays the current function and setting of

the monitor.

●[MENU/EXIT] Button/Lamp

- Activates OSD menu.

●[ENTER/UP/DOWN] Knob

- Used to conrm a chosen value.

- Used to move the cursor in OSD menu.

●[POWER] Button/Lamp

- Turns on or o the monitor power.

●[OPERATE] Lamp

- Indicates the status of power connection and

monitor operation.

- The LED is o with power o.

- The LED is red when the monitor is in waiting

mode with power on.

- The LED is green when the monitor is

operating.

●[AUDIO OUT] (Phone jack)

- Outputs dis-embedded audio signal, HDMI

audio signal or stereo signal from outside

through internal speaker or phone jack.

●[TALLY] Lamp

- Tally lamp that can be toggled in green or

red using the REMOTE(RJ-45) port.

10 Multi Format LCD Monitor

LVM-170A : REAR

3. Controls & Functions

●[HDMI(HDCP)] (HDMI)

- Signal input terminal for HDMI signal.

●[CVBS] (BNC)

- Signal input terminal for COMPOSITE signal.

●[SDI-IN A] (BNC)

- Signal input terminal for 3G/HD/SD SDI

signal.

●[SDI-IN B] (BNC)

- Signal input terminal for 3G/HD/SD SDI

signal.

●[SDI-OUT] (BNC)

- Signal output terminal for 3G/HD/SD SDI

input signal through SDI-IN.

●[LAN]

- Supports TVLogic’s control program.

●[Audio in] (PHONE JACK)

- Inputs external audio.

●[RS422 IN/OUT] (RJ-45)

- Controls the monitor by a protocol provided

by TVLogic or supports TSL protocol.

●~ AC IN

- 100 ~ 240V AC 50/60Hz

●DC 12V/24 IN

- 12V /24V DC

<WARNING!!>

When using the product make sure to ground,

whenever possible, before connecting the

input signal cable in order to prevent any

possible damage to the product or connected

devices. The damage may include signal noise,

malfunction of main board or display panel.

And the connected devices such as camera

or video source player may also be inuenced

through signal cable. Please check if the AC

power source and the power extender or

power distributor is grounded.

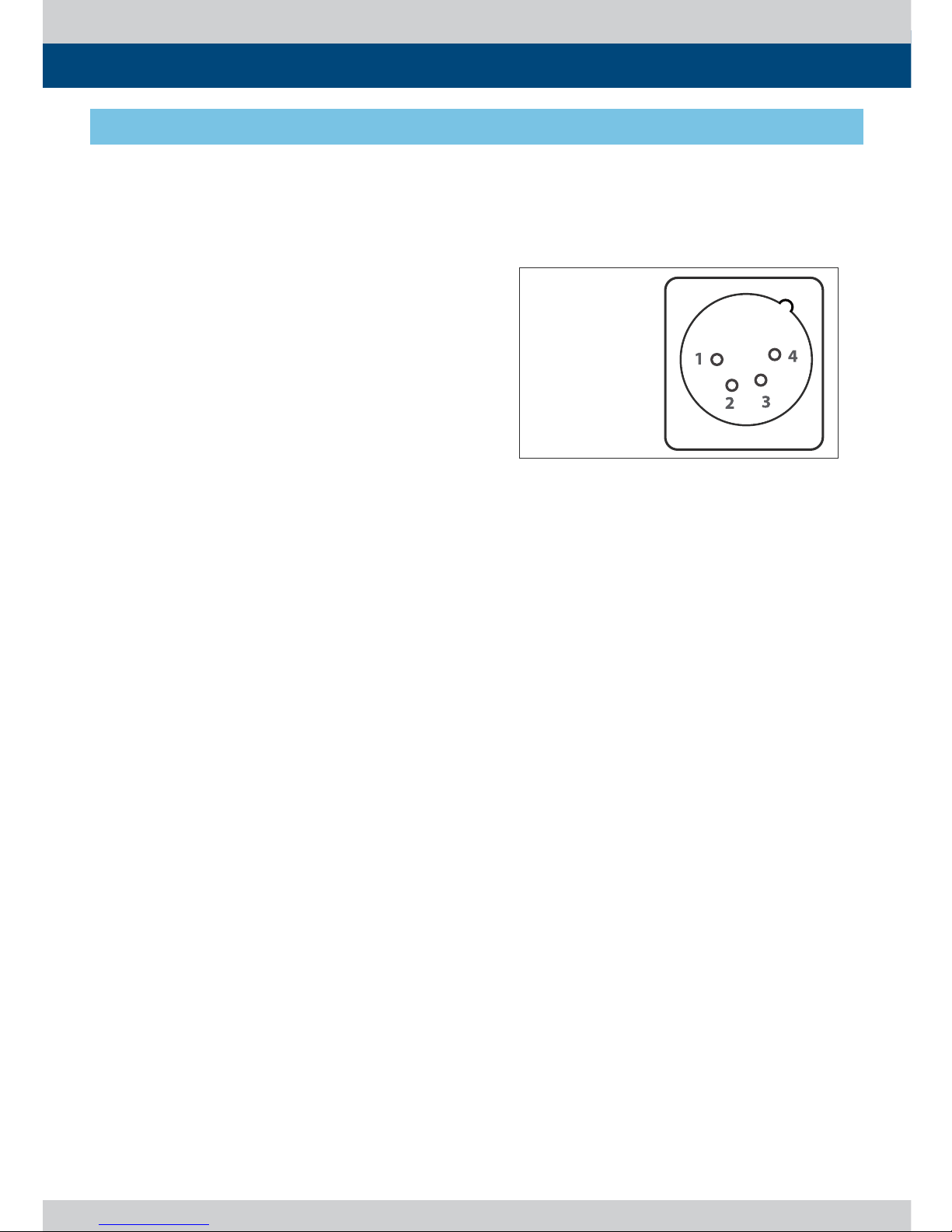

DC IN socket

1,2 : GND

3,4 : +12V / +24V

Autres manuels pour LVM-170A

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels TV Logic Moniteur

TV Logic

TV Logic LQM-071W Manuel utilisateur

TV Logic

TV Logic LUM-550M Manuel utilisateur

TV Logic

TV Logic LUM-310A Manuel utilisateur

TV Logic

TV Logic LVM-070C Manuel utilisateur

TV Logic

TV Logic LVM-420A Manuel utilisateur

TV Logic

TV Logic S-32P Manuel utilisateur

TV Logic

TV Logic LQM-071W Manuel utilisateur

TV Logic

TV Logic LVM-173W-3G Manuel utilisateur

TV Logic

TV Logic LVM-173W-3G Manuel utilisateur

TV Logic

TV Logic LVM-240W Manuel utilisateur

TV Logic

TV Logic LUM-181H Manuel utilisateur

TV Logic

TV Logic LVM-245W Manuel utilisateur

TV Logic

TV Logic LQM-071W Manuel utilisateur

TV Logic

TV Logic LVM-246W Manuel utilisateur

TV Logic

TV Logic SWM Series Manuel utilisateur

TV Logic

TV Logic LUM-310R Manuel utilisateur

TV Logic

TV Logic LEM-150 Manuel utilisateur

TV Logic

TV Logic LEM-550R Manuel utilisateur

TV Logic

TV Logic LVM-171WP Manuel utilisateur

TV Logic

TV Logic VFM-058W Manuel utilisateur

TV Logic

TV Logic LVM-171W Manuel utilisateur

TV Logic

TV Logic LVM-170A Manuel utilisateur

TV Logic

TV Logic LVM-247W Manuel utilisateur

TV Logic

TV Logic LUM-240G Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
