TUYA PIR 323-Z-TY Manuel utilisateur

PIR 323-Z-TY

Tuya ZigBee Multi-Sensor

Quick Start Guide

WARNING: Failure to follow these safety notices could

result in 󽘀re,electric shock, injuries, or other damage to the

your property. Please read all the safety notices below

before using the sensor.

•Avoid high humidity or extreme temperatures.

•Avoid long exposure to direct sunlight or strong ultraviolet

light.

•Do not drop or expose the unit to intense vibration.

•Do not disassemble or try to repair the unit yourself.

•Do not expose the unit or its accessories to 󽘁ammable

liquids, gases or other explosives.

Safety Notice

Technical Speci󽘀cations

Wireless Connectivity

ZigBee • 2.4GHz IEEE 802.15.4

ZigBee Pro󽘀le • ZigBee 3.0

RF Characteristics

• Operating frequency: 2.4GHz

• Range outdoor/indoor: 100m / 30m (Open area)

• Internal PCB Antenna

Physical Speci󽘀cations

Battery • DC 3V (Two pcs AAA batteries)

Indicator • One color LED (Green)

Temp humid range • Temperature Range：-10℃ ~ 50℃

• Humidity Range： 0 ~ 90% RH (±4%RH)

Operating Environment • Temperature：-10℃ ~ +55℃

• Humidity: ≤ 85% non-condensing

Detecting Range(PIR) • Distance: 5m

• Angle：Up/Down 100° , Left/Right 120°

Dimension • 62(L)*62(W)*15.5(H)mm

Mounting Type • Tabletop stand or wall mounting

PIR323-TY is a Tuya Zigbee multi-sensor with built-in

temperature, humidity sensor and PIR sensor which can be

equipped with Tuya gateway and Tuya APP .

This guide will provide you with an overview of the product

and help you get through the initial setup.

Welcome

• ZigBee 3.0

• PIR motion detector

• Enviromental temperature and humidity measuring

• Low-power consumption

Features:

Installation

You can mount the multi-sensor to the wall, ceiling or keep

your multi-sensor on a bookshelf or table.

• Please ensure that the surface is clean and secure.

• You can peel o󽗿 the tape on the back or lock it with screws.

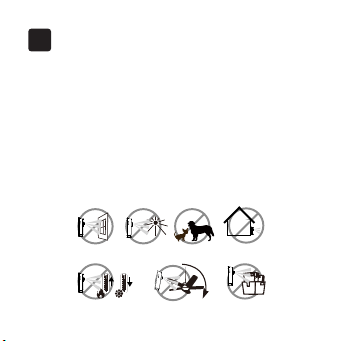

1. Avoid mounting the Multi-sensor close to pets, air

conditioners, heaters, sunshine or places where the

temperature varies.

2. You need to pay attention to the distance and range of the

sensor when installing.

2.1m

1m 3m 5m

100˚

120˚

Get to Know Your Device

LED Status What it means

Green light 󽘁ashes once Motion detected

Green light keeps 󽘁ashing Enter network con󽘀guration

mode

LED Indicator

LED Indicator Reset Button

Reset Button

Reset: Press and hold the reset button for 5 seconds, green

light will start 󽘁ashing, and then the device will automatically

enter the network con󽘀guration mode.

4.1 To get started, you will need:

• A Tuya Zigbee Gateway

• A mobile phone with the speci󽘀ed APP installed.

4.2 Adding to the gateway's network

1. Set your gateway to permit joining (see your gateway's

manual).

2. Ensure that the sensor is within the signal range of the

gateway, and install the sensor with two pcs AAA battery,

then press reset button for 5 seconds, and green light will

start flashing which means the device will automatically

enter the network con󽘀guration mode.

3. Wait for the sensor to be automatically added to the

gateway. If the green light stops blinking, the gateway is

successfully added.

NOTE: If the adding is failed, please reset the sensor and try

again.

Con󽘀gure Network
