Turnigy EDGE-540 26 Instructions de fonctionnement

CAUTION : this plane is not a toy!

Before use , please carefully read this manual.

●First-time builders should seek advice from people having building

experience in order to assemble the model correctly and to produce its

●Assemble this kit only in places out of children’s reach!

●Take enough safety percautions prior to operating this model.

You are responsible for this model’s assembly and safe operation!

●Always keep this instruction manual ready at hand for quick

reference,even after completing the assembly.

performance to full extent .

Radio:6channels 5-6servos;

Flying Weight:3800g;Wing Span:70.8in/1800mm;

Wing Area:62sq.dm;

Engine:26-30CC GAS;Length:66.1in/1680mm;

All manuals and user guides at all-guides.com

all-guides.com

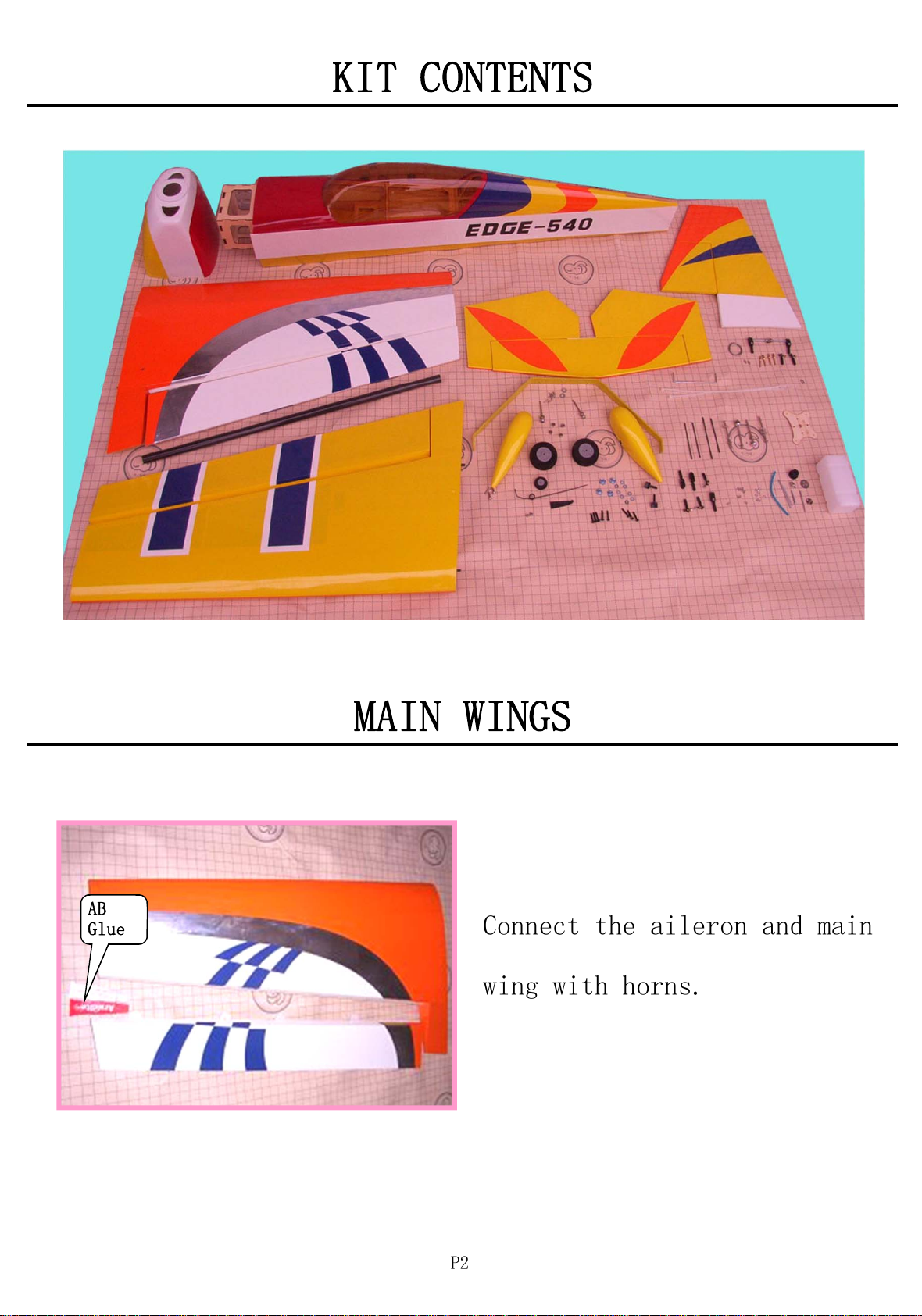

Connect the aileron and main

wing with horns.

KIT CONTENTS

MAIN WINGS

Glue

All manuals and user guides at all-guides.com

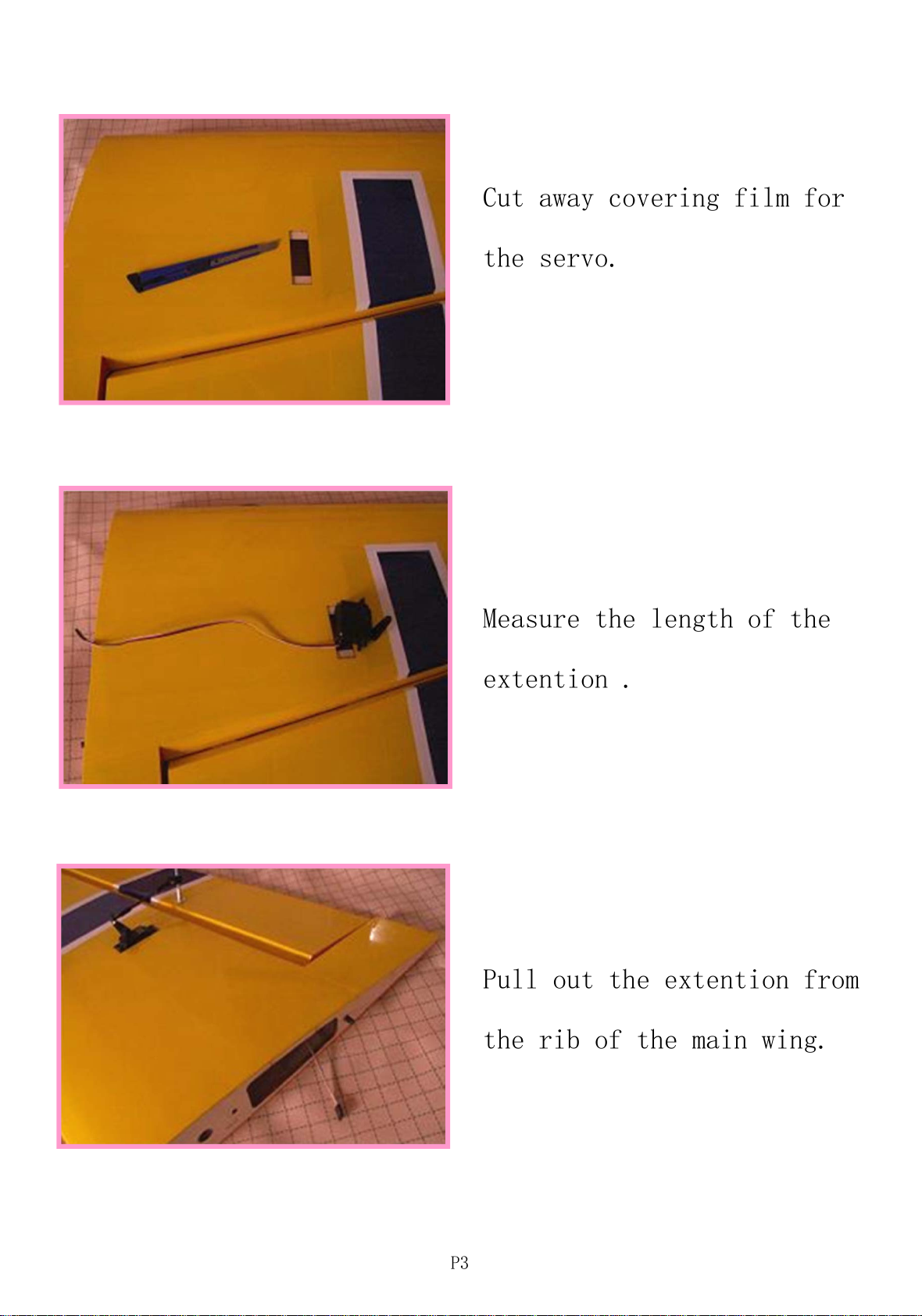

Cut away covering film for

the servo.

Measure the length of the

extention .

Pull out the extention from

the rib of the main wing.

All manuals and user guides at all-guides.com

Install the tri-horn and serv

arm with pushrod as shown.

Find out the holes in

each sides of fuselage,

then cut the film.

Pull out the servo extention

as shown.

Nylon

Screw

All manuals and user guides at all-guides.com

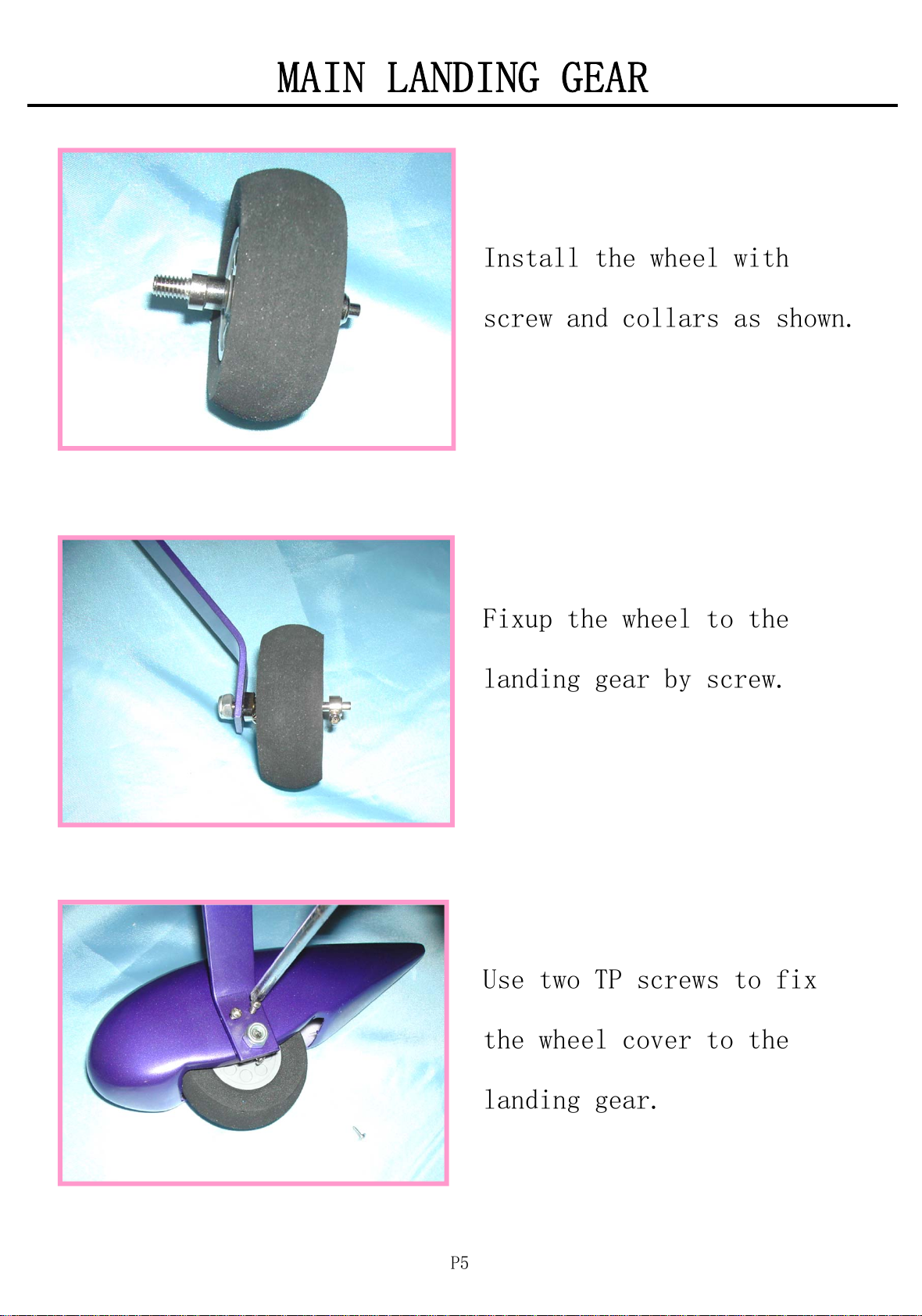

Install the wheel with

screw and collars as shown.

Fixup the wheel to the

landing gear by screw.

Use two TP screws to fix

the wheel cover to the

landing gear.

MAIN LANDING GEAR

All manuals and user guides at all-guides.com

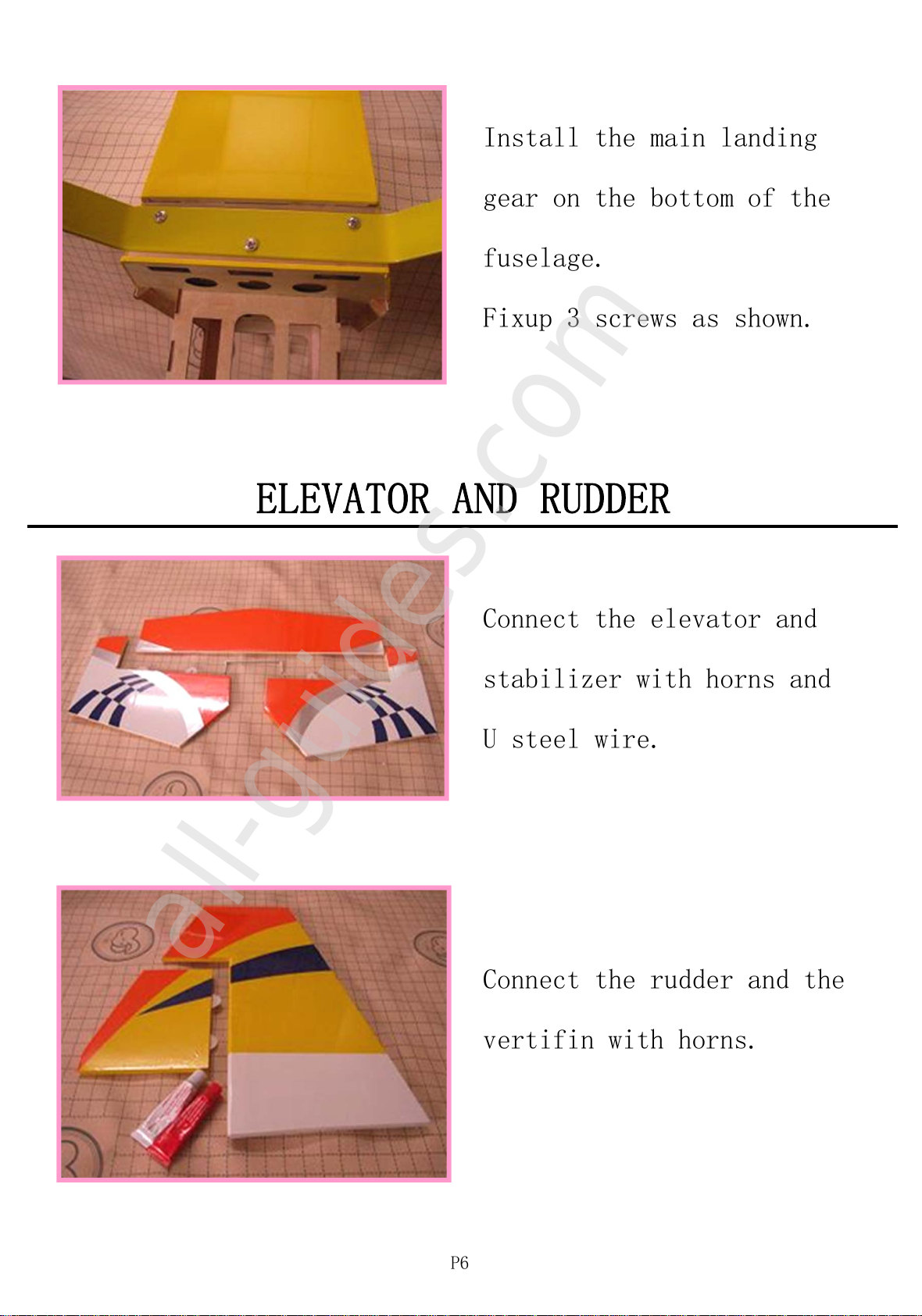

Install the main landing

gear on the bottom of the

fuselage.

Fixup 3 screws as shown.

Connect the elevator and

stabilizer with horns and

U steel wire.

Connect the rudder and the

vertifin with horns.

ELEVATOR AND RUDDER

All manuals and user guides at all-guides.com

all-guides.com

Find and cut the hole for

elevator and also the

servo holes.

Cut away the film along

the edges, and glow the

stabilizer to the fuselage.

Cut the rudder film along

the edges, and glue the

rudder to the fuselage.

All manuals and user guides at all-guides.com

Securely glue up and

soaked up the hinge with

AB glue.

Glue the rudder to the

fuselage.

Install the elevator servo

as shown.

All manuals and user guides at all-guides.com

Tighten the second loop

through the brass swage

tube.

Crimp the brass tube with

a crimping tool or pliers.

Connect the parts as shown.

All manuals and user guides at all-guides.com

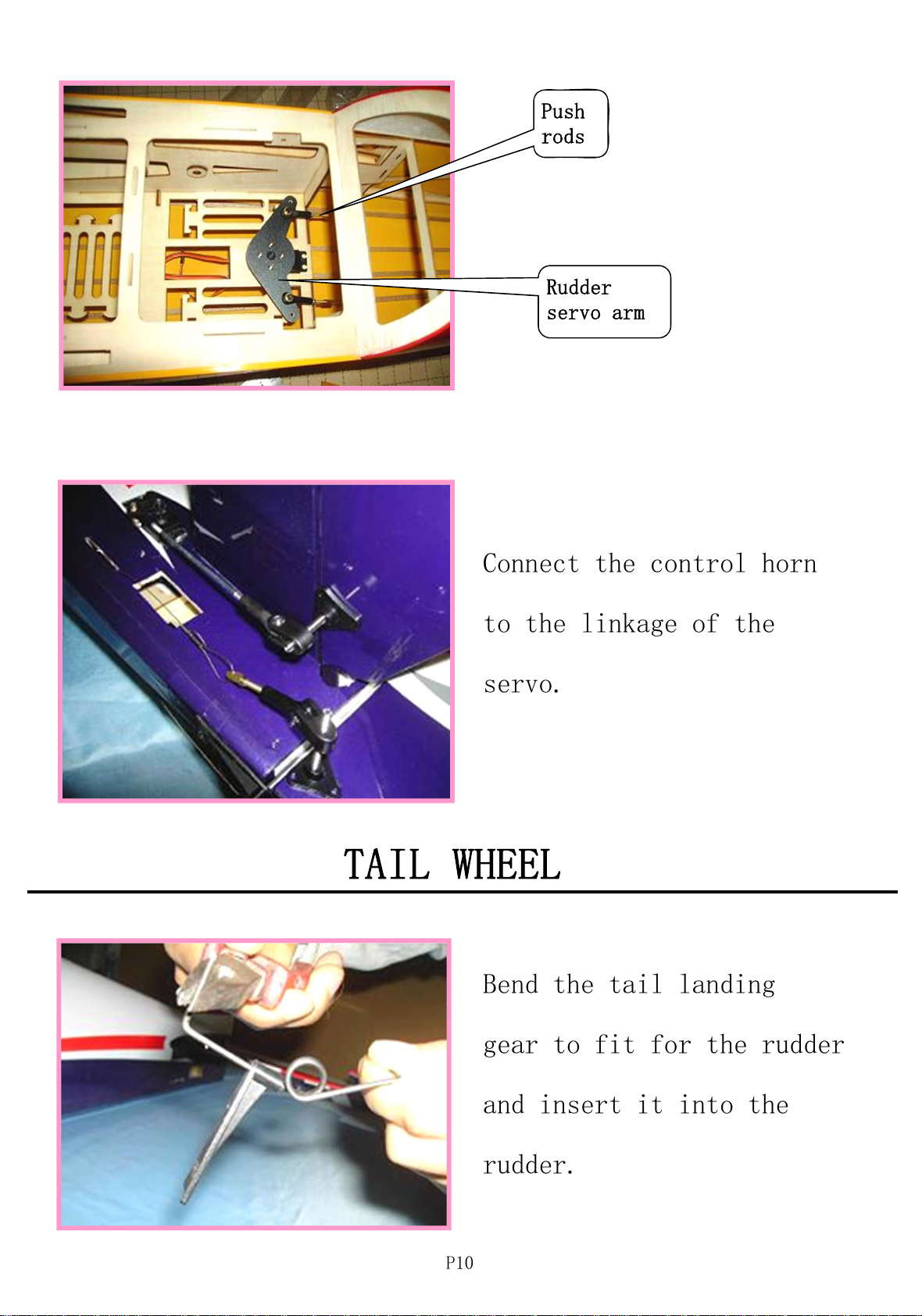

Connect the control horn

to the linkage of the

servo.

Bend the tail landing

gear to fit for the rudder

and insert it into the

rudder.

TAIL WHEEL

Rudder

servo arm

Push

rods

P10
