3.0.0 General information
3.1.0 Introduction
This user manual contains technical information about installation, operation and
maintenance of the unit.
3.2.0 Fields of application
TX Comfort is designed for comfort ventilation in institutions, offices, dining spaces,
conference rooms and indoor spaces occupied by people.
3.3.0 Misuse
TX Comfort is designed for the living spaces described above in section 3.2.0. The system
is not designed for the purpose of local exhaust ventilation.
3.4.0 Contents of delivery
The TX Comfort unit is delivered with the following main components:
1. Turbovex TX Comfort unit
2. Suspension bracket
3. TX electronic controller
Figure 1 Contents of delivery
1.
2.
3.
Page 4 of 24
Turbovex A/S
Industrivej 45, DK – 9600 Aars
Telefon: +45 96 98 14 62 – Fax: +45 98 96 42 24
e-mail: [email protected] – www.turbovex.dk
3.4.0 Operating principle
Turbovex TX Comfort is a decentralized ventilation system with built-in heat recovery for
ventilation of comfort rooms in particular in indoor living spaces.
TX Comfort operates with an aluminium counter flow heat exchanger (5) to ensure
maximum heat recovery. The unit utilizes warm indoor air to heat up inflowing fresh
outdoor air. The counter flow heat exchanger’s sole function is for heat retention.
Airflow:
The air supply ventilator (6) (Figure 2) creates inflow of fresh outdoor air through the filter
(10), leading the inflow through the heat exchanger (5), and further through the air supply
grate (4) and out into the room.
At the same time the air exhaust ventilator (7) creates outflow of indoor air leading it
through the exhaust pipe (2) and further out to the open air outside.
The desired temperature of the air supply is regulated on the control panel. A sensor
records the actual temperature of the flowing air supply. If the temperature is lower than
the setpoint, the control system reduces the flow of the air supply warming it as it flows
through the heat exchanger.
Page 5 of 24
Turbovex A/S
Industrivej 45, DK – 9600 Aars
Telefon: +45 96 98 14 62 – Fax: +45 98 96 42 24
e-mail: [email protected] – www.turbovex.dk
3.5.0 Main components:
Figure 2 Main components
Page 6 of 24
Turbovex A/S
Industrivej 45, DK – 9600 Aars
Telefon: +45 96 98 14 62 – Fax: +45 98 96 42 24
e-mail: [email protected] – www.turbovex.dk
4.0.0 Installation
4.1.0 Scale illustration
Figure 3 Dimension Drawing
Dimension [mm] TX 250A TX 500A TX 750A TX 1000
A
A 595.00 828.00 895.00 1050.00
B 403.00 493.00 565.00 665.00
C 500.00 710.00 766.00 917.00
D 313.00 382.00 442.00 542.00
E 1155.50 1505.50 1766.50 2066.50
F 1141.00 1491.00 1750.00 2050.00
G 1200.00 1550.00 1800.00 2100.00
H 906.00 1156.00 1355.00 1630.00
I 134.50 189.00 210.00 235.00
J 159.50 205.00 235.00 235.00
K 136.60 186.60 202.50 252.50
L 280,00 350,00 390,00 465,00
M 185,00 245,00 280,00 310,00
Page 7 of 24
Turbovex A/S
Industrivej 45, DK – 9600 Aars
Telefon: +45 96 98 14 62 – Fax: +45 98 96 42 24
e-mail: [email protected] – www.turbovex.dk
4.2.0 Location
The unit is generally placed on a wall directly under the ceiling. This location best exploits
the coanda effect as it leads the air further into the room along the surface of the ceiling. In
this way inflowing air can mix with the room’s existing air for a longer period of time and
thereby prevent draught. This location, as the point for supply and exhaust airflow,
provides optimal circulation within a room.
Figure 4 Location, conventional
The TX Comfort series also has the possibility of locating the unit in false ceilings. In this
way, the unit is less visible. Figure 5 Location in a false ceiling
Page 8 of 24
Turbovex A/S
Industrivej 45, DK – 9600 Aars
Telefon: +45 96 98 14 62 – Fax: +45 98 96 42 24
e-mail: [email protected] – www.turbovex.dk
The TX Comfort series offer the possibility of installing ducts through the wall or the roof.
Fresh air can also flow in through a wall duct while exhaust air flows out through the roof.
This results in optimal conditions in comparison to a set up with close proximity between
the air supply and the air exhaust.
Page 9 of 24
Turbovex A/S
Industrivej 45, DK – 9600 Aars
Telefon: +45 96 98 14 62 – Fax: +45 98 96 42 24
e-mail: [email protected] – www.turbovex.dk
4.2.1 Minimum distance
Minimum allowed distance between the unit and walls, cupboards or other surfaces.
Figure 6 Minimum distance
It is important to check that there is sufficient space for the sides of the unit to be fully
opened during installation. The minimum distance must be the length L as indicated in the
illustration above.
4.2.2 Wall- or ceiling mounted unit
When the unit is wall- or ceiling mounted, the required outward free space from the centre
of each of the two ducts must be the distance M (see Figure 7 and 8.)
The location of the suspension bracket and the measurements for mounting the bracket
are indicated in the illustrations below.
Mål TX 250A TX 500A TX 750A TX 1000A
E 1155.50 1505.50 1766.50 2066.50
L 600.00 850.00 950.00 1100.00
Page 10 of 24
Turbovex A/S
Industrivej 45, DK – 9600 Aars
Telefon: +45 96 98 14 62 – Fax: +45 98 96 42 24
e-mail: [email protected] – www.turbovex.dk
Figure 7 Wall-mounted with wall ducts Figure 8 Ceiling-mounted with ceiling ducts

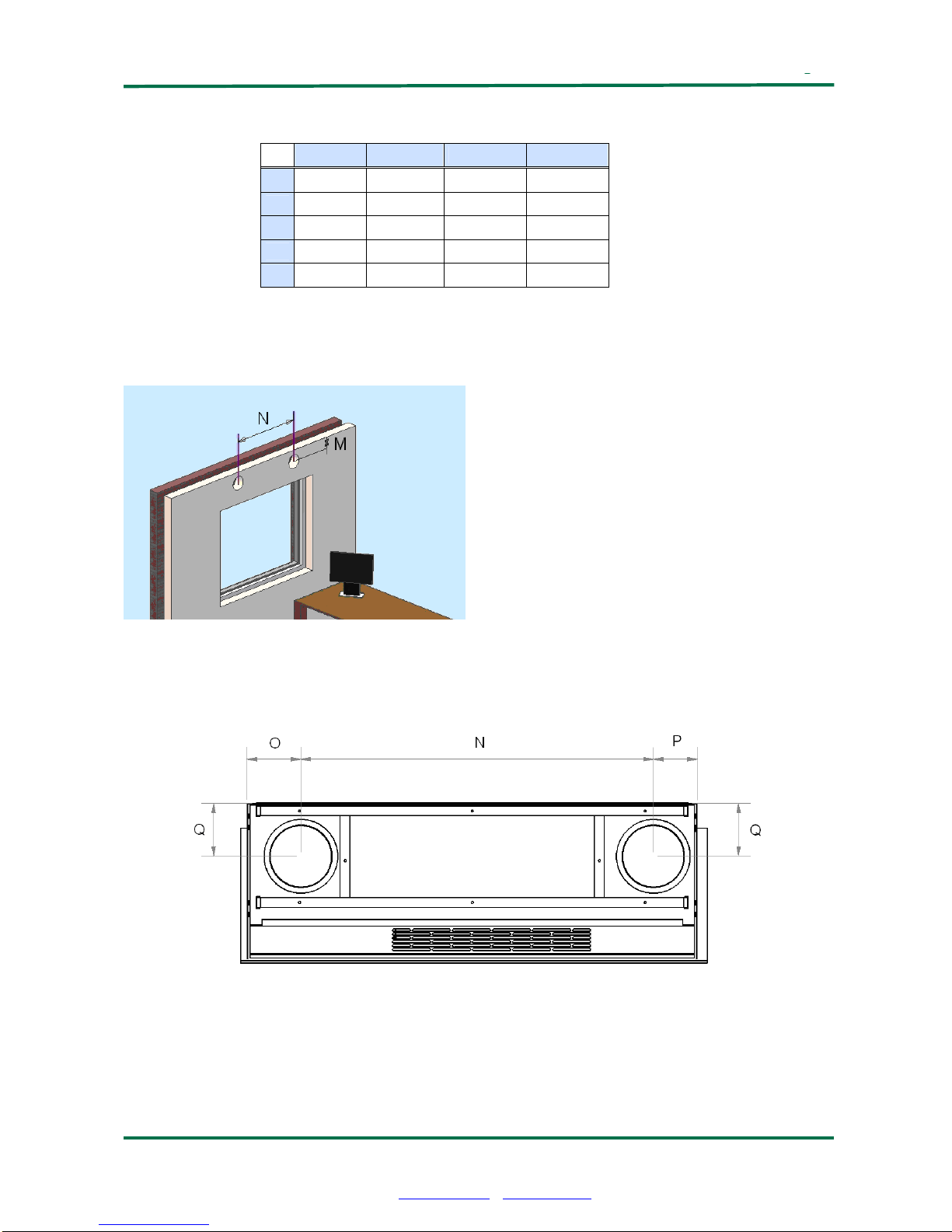

The location of the unit in relation to the ducts (Please note that the unit is viewed from the
rear in the figure below). Figure 9 Location of ducts
Mål TX 250A TX 500A TX 750A TX 1000A
M 142.00 192.00 209.00 259.00
N 906.00 1156.00 1355.00 1630.00
O 137.25 187.25 218.25 218.25
P 112.25 162.25 193.25 218.25
Q 136.60 186.60 202.50 252.50
