TTL Air curtain systems - control and automation panel type Touch
6
3.Technical data
3.1 Technical data control and automation panel Touch
Electrical connection data line, factory ready-made with plugs in several lengths,
6-wire, lengths 6, 10, 20, 30, 50 m
Power supply by data wire voltage supply two-core, backup battery CR 2032
Bus system CAN bus, 6-wire, 2-pole, supply 2-pole, 2 wires dubbled
Interface / bus system CAN bus, 6-wire with Western-MODULAR 6/6 -plugs (1x),
USB socket for data transfer and update
Connections 2x clambs, 3-core, max. 1,0 mm² (room sensor, outside sensor)
Display LCD display, coloured
Schutzart IP 40
Operation temperature 0°C to +45°C
Storage temperature -10°C to +60°C
Installation type wall mounting, cable insertion from the rear side
(mounting over a blind junction box)
Cover plastic, white

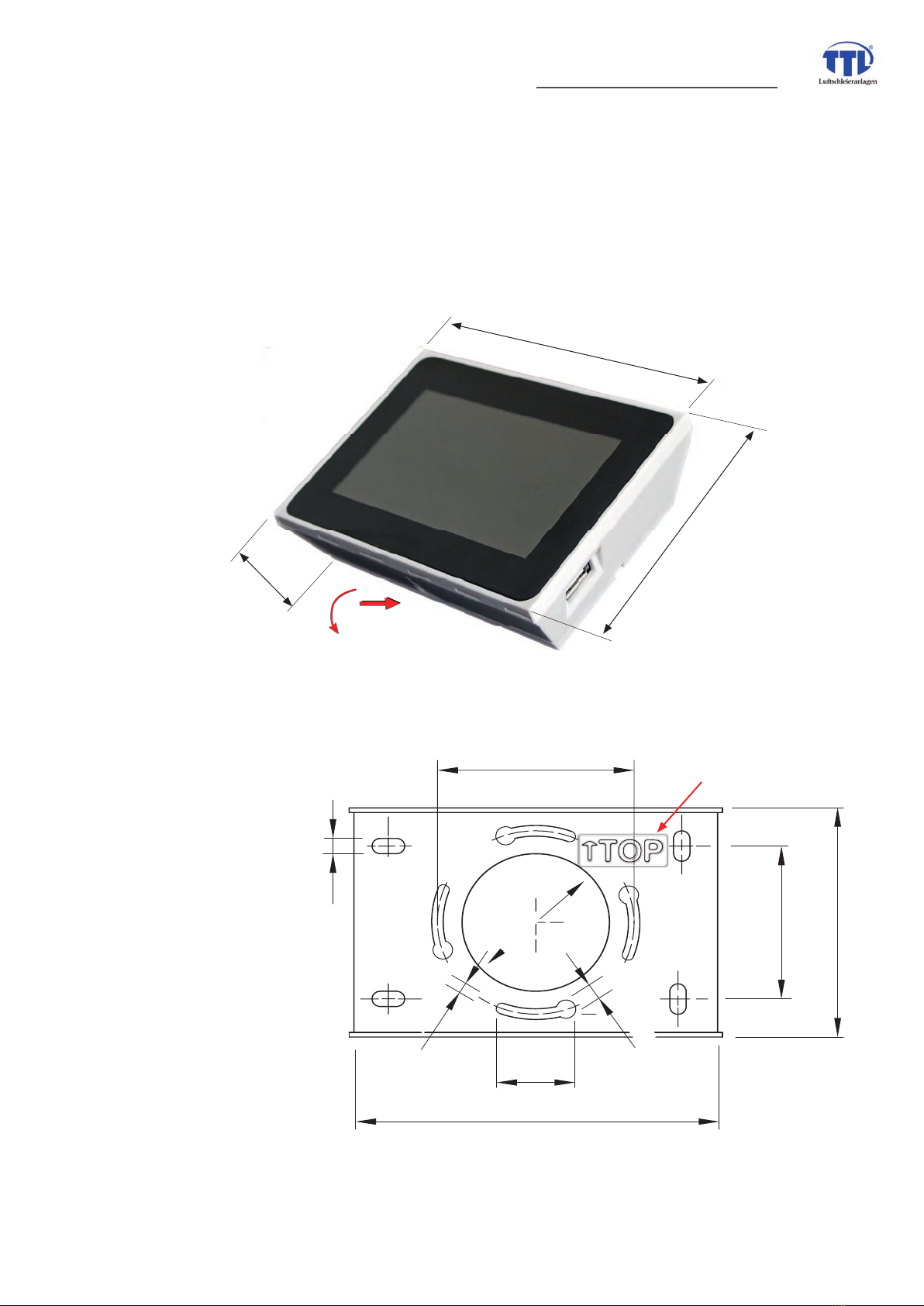

Dimensions (l x h x d) 126,0 x 88,0 x 35,0 mm
Weight 185 g
Conformity
(controller and internal
connection board)
In accordance to Low Voltage Directive 2006/95/EG
EMC (Electromagnetic compatibility) -compatible to
EMC Directives 2014/30/EU
In accordance to directives
DIN EN 60335-1 (Safety of electrical units)
DIN EN 60204-1 (Electr. equipment of machinery)
3.2 Technical data internal connecting board(s) ECP-T (PCB)
Connection (power supply). 230 V AC, 50 Hz with clambs L, N, PE, max 2,5 mm²
Fuse microfuse 630 mA
Interface / bus system CAN bus, 6-wire with Western-MODULAR 6/6 -plugs (2x)
Connections, at control side clambs (numbers see wiring diagram), max. 1,0 mm²
Output selenoid valve clambs MV, N, PE, 230 V, 50 Hz -activ
Output messages operation (NO, COM), failure (NO, NC, COM)
Analog input 0-10 V (input rotational speed), temperature sensor NTC 5K
Digital input 5x (1x internal occ.), connect potential free
Addressing rotary switch, addressing by position 1 - A
