TScale TN-M Series Manuel utilisateur

Crane Scales

V1.13-V1.10

08/18/2020

TN-M Series Crane Scales Technical Manual

CONTENTS

1. PRECAUTIONS..............................................................................................................- 1 -

2. PRODUCT DESCRIPTION.............................................................................................. - 2 -

2.1 General.............................................................................................................. - 2 -

2.2 Overview........................................................................................................... - 2 -

3. INSTALLATION............................................................................................................. - 3 -

3.1 Unpacking..........................................................................................................- 3 -

3.2 Installation.........................................................................................................- 3 -

3.3 Power Connection............................................................................................. - 3 -

3.4 Rechargeable battery operation....................................................................... - 3 -

3.4.1 Charging the battery.............................................................................. - 3 -

3.4.2 Battery maintenance..............................................................................- 4 -

4. DISPLAY&KEYS FUNTION............................................................................................. - 5 -

4.1 Key Board.......................................................................................................... - 5 -

4.2 Indication Description....................................................................................... - 5 -

4.3 Remote controller............................................................................................. - 6 -

5. OPERATION..................................................................................................................- 7 -

5.1 Switching on/off................................................................................................ - 7 -

5.2 Zeroing...............................................................................................................- 7 -

5.3 Using Tare..........................................................................................................- 7 -

5.4 Select Weighing Units....................................................................................... - 7 -

5.5 Overload Warning............................................................................................. - 7 -

5.6 Sleep Mode........................................................................................................- 8 -

5.7 Auto Power Off Setting.................................................................................... - 8 -

5.8 Back Light Setting.............................................................................................. - 8 -

5.9 Remote Controller.............................................................................................- 8 -

5.10 Overload Records............................................................................................ - 9 -

5.11 Bluetooth Operation (optional)...................................................................... - 9 -

5.12 APP Software Operation In Android Mobile Operating System (optional).. - 10 -

5.13 WIFI Operation (optional)............................................................................. - 14 -

6. PARAMETERS.............................................................................................................- 17 -

6.1 PARAMETER SETTING......................................................................................- 17 -

6.2 Menu Block......................................................................................................- 18 -

7. CALIBRATION.............................................................................................................- 19 -

8. BLUETOOTH _WIFI PROTOCOL..................................................................................- 20 -

9. TECHNICAL DATA.......................................................................................................- 21 -

9.1 General Specification...................................................................................... - 21 -

9.2 Battery Specification....................................................................................... - 22 -

9.3 Overall Dimension........................................................................................... - 23 -

10. ERROR CODES..........................................................................................................- 24 -

11. EXPLODER DRAWING.............................................................................................. - 25 -

TN-M Series Crane Scales Technical Manual

12. HANDLING INSTRUCTIONS..................................................................................... - 27 -

TN-M series crane scale technical manual

- 1 -

1. PRECAUTIONS

WARNING

DISCONNECT ALL POWER TO THIS UNIT BEFORE

INSTALLING, CLEANING, OR SERVICING. FAILURE TO

DO SO COULD RESULT IN BODILY HARM OR DAMAGE

THE UNIT.

CAUTION

Permit only qualified persons to service the instrument

Before connecting or disconnecting any components, remove the power.

Failure to observe these precautions bodily harm or damage to or

destruction of the equipment.

The crane scale is a precision electronic instrument, handle it carefully.

Use the crane scales only for lifting and weighing of freely movable loads.

Do not stand or go under suspended loads.

Do not use on building site.

Keep an eye on suspended.

Do not exceed nominal load of crane scales.

Do not install the scale in direct sunlight.

Verify the local voltage and receptacle type are correct for the scale.

Only use original adaptor, other could cause damage to the scale.

Pluggable equipment must be installed near an easily accessible socket outlet.

Avoid unstable power sources. Do not use near large users of electricity such as

welding equipment or large motors.

Avoid sudden temperature changes, vibration, wind and water.

Avoid heavy RF noise.

Keep the scale clean.

When working with the crane and crane scales wear personal safety

equipment (helmet, safety shoes etc.).

TN-M series crane scale technical manual

- 2 -

2. PRODUCT DESCRIPTION

2.1 General

The crane scales has Die-Casting Aluminum housing ,that are a multi-purpose

and cost-saving solution for overhead weighing applications .

30mm digits LCD display with LED back light.

Rechargeable Li-battery operation.

Sleep function.

With remote controller for controlling, easy to operate.

IP65 waterproof technology

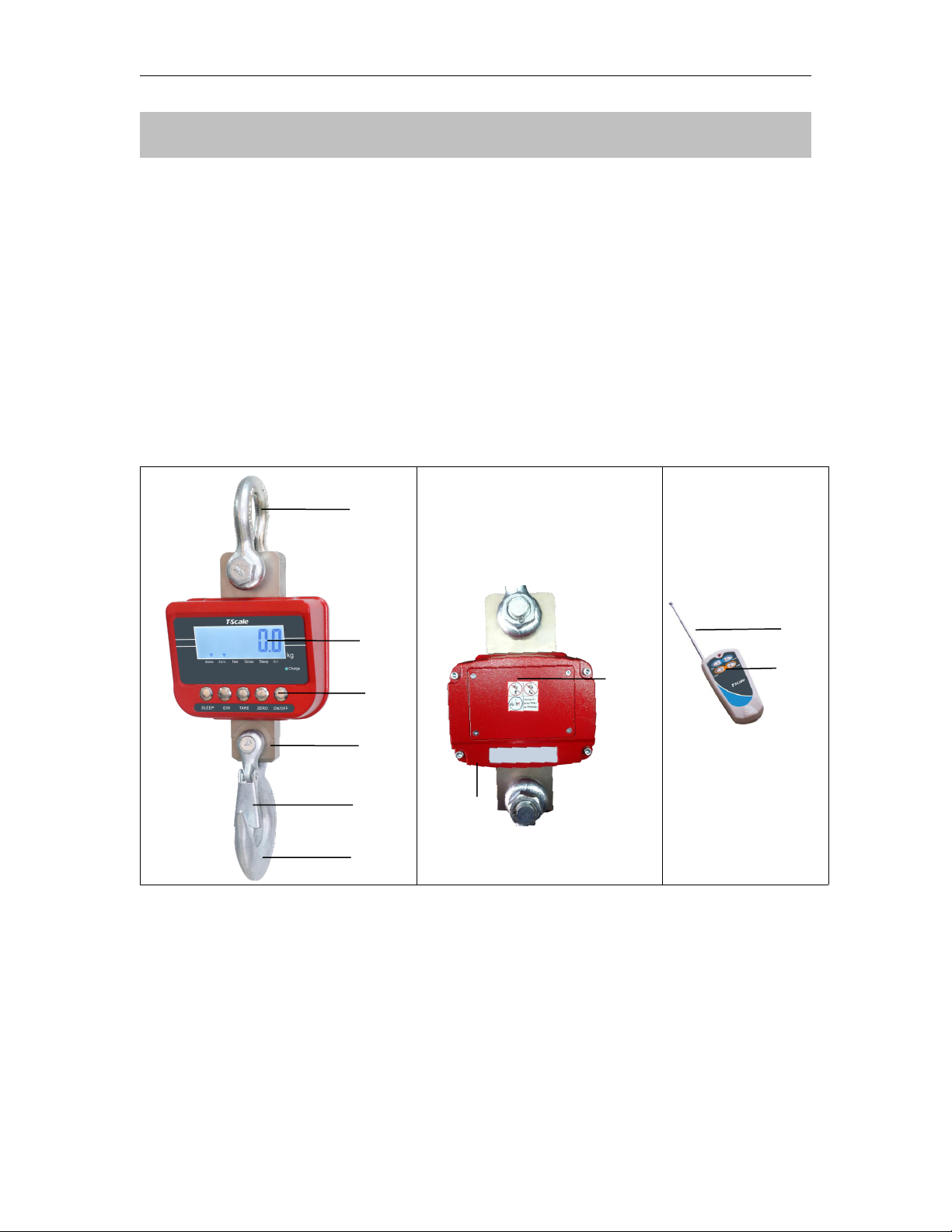

2.2 Overview

1. Loop

2. Weight display

3. Keyboard

4. Load housing

5. Safety bracket

6. Hook

7. Battery cover

8. AC adapter jack

9. Antenna

10. Controller keyboard

TN-M series crane scale technical manual

- 3 -

3. INSTALLATION

3.1 Unpacking

When you receive the scale, inspect it to make sure that it is not damaged and that all

are parts are included:

Remove the scale from the carton.

Remove the protective covering. Store the packaging and to use if you need to

transport the scale later.

Inspect the scale for damage.

Make sure all components are included.

Crane Scale 2.Remote control 3. Adaptor 4. Manual

3.2 Installation

The location must be such that the instrument is not subject to excessive vibrations,

heat or humidity.

Avoid direct sunlight on the front of the instrument.

The unit has to be installed at the right height to allow an easy reading of the display

and convenient keyboard operation.

The loads which hang on the hook should be a vertical load.

3.3 Power Connection

Connect the adaptor pin in to the indicator adaptor jack.

Adaptor jack is locating below the scale.

Adaptor connects into your AC power socket. Plugable

equipment must be installed near an easily accessible

socket outlet with a protective ground/ earth contact.

3.4 Rechargeable battery operation

Note: Please charge the battery before using the scale for the first time.

The [] indicator above indicator appears indicates that the battery is getting

low. It’s time to charge the battery with the AC power. If scale goes on being used

without proper charging, <LO-BAT> words will flicker on the display.

Approximately 30 minutes of instrument usage are left; afterwards it will shut off

automatically.

Please use the supplied battery charger for charging the battery immediately,or scale

cannot be used.

3.4.1 Charging the battery

Before the first use, the battery should be charged by connecting it to the mains

power supply for at least 5 hours.

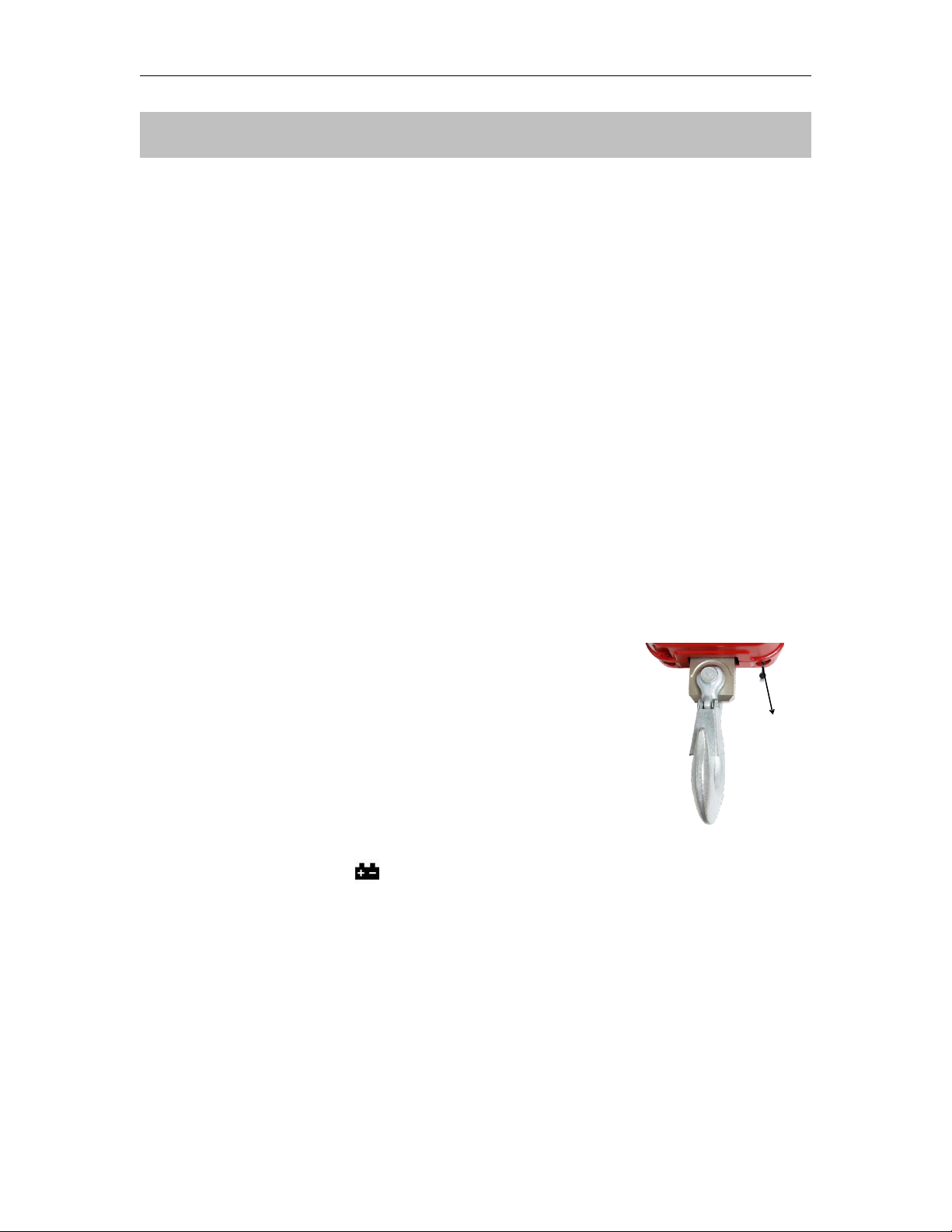

Adapter jack

TN-M series crane scale technical manual

- 4 -

When the scale is plugged into the mains power the internal battery will be

recharged.

Verify that the AC power socket outlet is properly protected.

Under right side of the weight display there is an charging LED to indicate the status

of battery charging

Charge status of rechargeable battery is indicated by the LED display.

Yellow:The battery is being charged

Red: The battery is nearly discharged

Green: Rechargeable battery is completely charged

3.4.2 Battery maintenance

Do not use any other type of power adaptor than the one supplied with the scale.

Recharge battery should be changed in every three months when not in use.

If the scale is not used for an extended period of time,remove the battery from the

battery compartment to avoid leakage.

Store the battery in a sealed bag or box in a dry, temperate environment.

Do not throw away as rubbish of daily life.

TN-M series crane scale technical manual

- 5 -

4. DISPLAY&KEYS FUNTION

4.1 Key Board

4.2 Indication Description

Display

Description

NET

Net indicator. Indicates scale is displaying the net weight.

STABLE

Stable indicator. Indicates the scale weight is stable.

ZERO

Zero indicator.Indicates the scale is at zero.

SLEEP

Sleep mode indicator, when this indicator on, scale will be into the sleep mode

GROSS

Gross indicator. Indicates scale is displaying the gross weight.

Battery indicator. The battery should be charged when the symbol is on.

CHARGE

Charging indicator.Indicates the battery charging status.

Bluetooth or WIFI indicator.Indicates scale is in Bluetooth or WIFI communication

mode,the indicator depends on the option selected in sub-menu

Keys

Description

ON/OFF

ON/OFF key ,turn the scale on / off.

ZERO

1)Zero key,Used to clear and zero the display.

2)Enter key. Used to enter the selected menu,sub-menu and setting .

TARE

1)Tare key,Used to perform a tare function, Subtracts weights.

2)Setup menu key.Used to enter the setup menu during self-checking.

3)To change the menu option in menu setting.

G/N

1)Used to shift the gross weight and net weight.

2)Right arrow key. Used to move the digit to the right.

3)Escape key ,Used to escape from menu setting.

SLEEP

1)Sleep mode key ,Used to enter sleep mode in normal weighing mode.

2)Clear the active digits in setting mode

TN-M series crane scale technical manual

- 6 -

4.3 Remote controller

Key 1

For using shift gross and net weight

Key 2

For using enter sleep mode

Key 3

For using enter Zero

Key 4

For using tare

TN-M series crane scale technical manual

- 7 -

5. OPERATION

Initial Start-up

Warm-up time of 15 minutes stabilizes the measured values after switching on.

5.1 Switching on/off

Switch on the scale by pressing ON/OFF key.Display will be show the scale version

and will be starting self checking.

After self checking, display will be come to normal weighing mode.

To switched off the scale, press ON/OFF key again.

5.2 Zeroing

Environmental conditions can lead to the balance exactly zero in spite of the platform

not taking any strain. However, you can set the display of your balance to zero any time

by pressing ZERO key and therefore ensure that the weighing starts at zero.

5.3 Using Tare

The weight of any container can be tared by pressing TARE button so that with

subsequent weighing the net weight of the object being weighed is always displayed.

Taring a container

Load weight on the hook.

Press TARE key. Zero is displayed, and tare is subtracted. And NET indicator will be

on.

Remove weight from the hook. Tared weight is displayed. It can set only one tare

value. It will be shown with a minus value.

Press G/N to change between gross weight and net weight.

Clearing tare

To clear the tare value, remove the load from the hook.

Press TARE key. Zero is displayed, the NET indicator off ,tare weight is cleared.

5.4 Select Weighing Units

Load the weight on the hook,Example: display show 0.8 kg

Hold SLEEP key for 3 seconds in normal weighing mode.

The weight will be convert to tunit ,the indicator of left side display will

appear,Example: display show 0.0008 t

Hold SLEEP key again to back to kilogram mode.

5.5 Overload Warning

Please do not add item that is over the maximum capacity. When reading“--ol--”,

remove the item on the hook to avoid damage to the load cell.

Ce manuel convient aux modèles suivants

Table des matières

Manuels Matériel de construction populaires d'autres marques

SASFORKS

SASFORKS EXTREME Manuel utilisateur

Hailo

Hailo H-50 Manuel utilisateur

Graco

Graco LineLazer ES 1000 Manuel d'utilisation et d'entretien

Greenlee

Greenlee 555RSC Manuel utilisateur

Manitowoc

Manitowoc Grove CD3340B Manuel utilisateur

Lux Tools

Lux Tools A-FMR-20 Set Manuel utilisateur

SIP

SIP 03683 Manuel utilisateur

Volvo

Volvo L30G Manuel utilisateur

Grizzly

Grizzly G8712 Manuel utilisateur

Modulift

Modulift CMOD 12 Manuel utilisateur

Case

Case DV201 Manuel utilisateur

Sealey

Sealey SC10.V2 Manuel utilisateur

Wacker Neuson

Wacker Neuson DT05 Manuel utilisateur

HYVA

HYVA AMCO VEBA 81 Series Manuel utilisateur

Atlas Copco

Atlas Copco Dynapac V5100TV Manuel utilisateur

Toro

Toro 323 Manuel utilisateur

Manitowoc

Manitowoc National Crane 1400A Manuel utilisateur

SGS

SGS EC1500 Manuel utilisateur
