TSAT 3500 Manuel utilisateur

Product: U3510A Revision: 02P

September 2020

TSAT - Telemetry and data transfer via SATellite

TSAT 3500 User Guide

HUB Station and Remote Terminal

Installation, Operation and Maintenance

Guide

TSAT 3500 - Telemetry and data transfer via SATellite

Installation, Operation and Maintenance Guide, September 2020 Page 2 of 40

Document Status

Product description: HUB Station and Remote Terminal Installation Operation and

Maintenance Guide

Revision

Date

Reason for change

Archive

10.08.2020

First Revision

U3510A01

17.09.2020

Minor updates: Ch 7: Interfaces

U3510A02

Approved

SHA

Date

17.09.2020

Checked

CBE

Date

17.09.2020

Further information about TSAT 2000/2100/2150/3000/3500 can be obtained from:

TSAT AS

Martin Linges vei 25

N-1364 FORNEBU

NORWAY

Telephone: +47 66 77 44 40

TSAT AS makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of

merchantability and fitness for a particular purpose. TSAT AS assumes no responsibility for any errors that may appear in

this document. TSAT AS makes no commitment to update nor to keep current the information contained in this document.

Specifications and procedures may change at any time without notice. No part of this document may be copied or

reproduced in any form or by any means without prior written consent of TSAT AS.

Brand names used in this document are the property of their respective owners. Company and product names are

trademarks or registered trademarks of their respective companies.

TSAT 3500 - Telemetry and data transfer via SATellite

Installation, Operation and Maintenance Guide, September 2020 Page 3 of 40

Documentation Comment Form

TSAT AS encourages you to comment on the documentation supplied with our products. This

information helps us to provide quality products to meet your needs.

Edition Date: September 2020

Product: U3510A, revision 02

Please comment on the correctness, completeness, clarity, organisation and usefulness of the

manual.

________________________________________________________________________

If you find errors in the manual, please record the page numbers and describe the errors.

________________________________________________________________________

Thank you for your help.

Name___________________________________________________________________

Title_____________________________________________________________________

Company_________________________________________________________________

Address__________________________________________________________________

________________________________________________________________________

Phone (________)________________________________________________________

Mail to TSAT AS, Martin Linges vei 25, 1364 FORNEBU

[email protected]

TSAT 3500 - Telemetry and data transfer via SATellite

Installation, Operation and Maintenance Guide, September 2020 Page 4 of 40

Protective Grounding

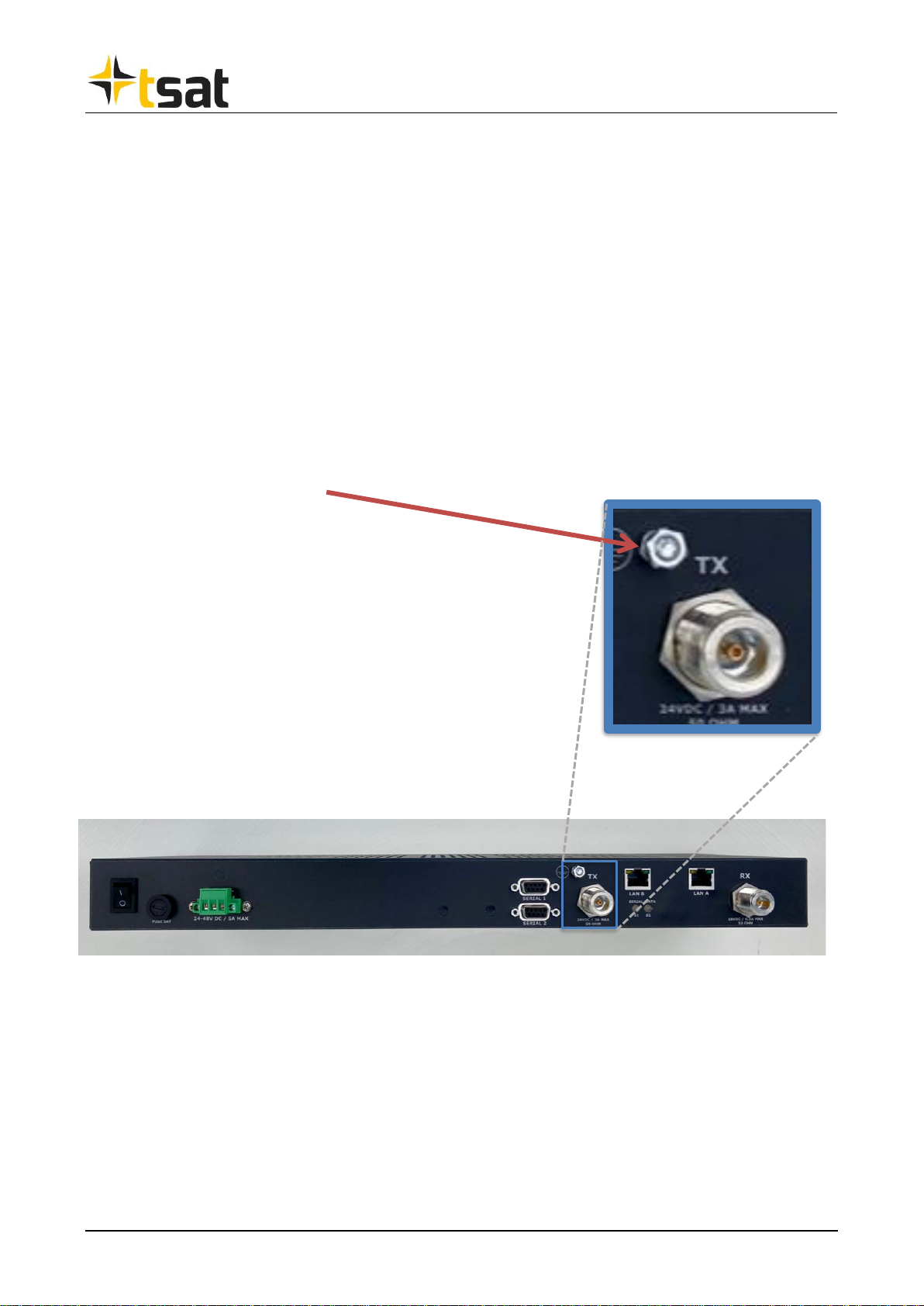

Protective grounding –here shown for rack-mount version.

M4 SCREW:

PROTECTIVE

GROUNDING

TSAT 3500 - Telemetry and data transfer via SATellite

Installation, Operation and Maintenance Guide, September 2020 Page 5 of 40

Table of Contents

1INTRODUCTION......................................................................................................................................... 7

1.1 SCOPE.......................................................................................................................................................... 7

1.2 TSAT 3500 SYSTEM INTRODUCTION .......................................................................................................... 7

2HUB STATION AND REMOTE TERMINAL SITE REQUIREMENTS .............................................. 9

2.1 INTRODUCTION............................................................................................................................................ 9

2.2 ANTENNA SITE REQUIREMENTS................................................................................................................... 9

2.2.1 Site elevation and azimuth angles .......................................................................................................... 9

2.2.2 Signal path obstruction .......................................................................................................................... 9

2.3 ANTENNA MOUNT REQUIREMENTS............................................................................................................ 10

2.4 ANTENNA MOUNT METHODS ..................................................................................................................... 10

2.4.1 Pole mount ........................................................................................................................................... 10

2.4.2 Wall mount / Ground mount................................................................................................................. 10

2.5 CABLE REQUIREMENTS.............................................................................................................................. 11

2.5.1 Data cable requirements ...................................................................................................................... 11

2.5.2 BUC/LNB cable requirements TSAT 3500........................................................................................... 11

2.5.3 DC Power cables.................................................................................................................................. 11

3HUB STATION INSTALLATION ........................................................................................................... 12

3.1 INTRODUCTION.......................................................................................................................................... 12

3.2 ANTENNA UNIT ASSEMBLY ........................................................................................................................ 13

3.3 ANTENNA POINTING .................................................................................................................................. 13

3.3.1 Introduction.......................................................................................................................................... 13

3.3.2 Antenna pointing procedure................................................................................................................. 14

3.4 RF FRONT END MOUNTING ....................................................................................................................... 15

3.4.1 RF Front End assembly........................................................................................................................ 15

3.4.2 RF Front End rotation adjustment ....................................................................................................... 16

3.5 MAIN UNIT MOUNTING ............................................................................................................................. 19

3.6 PROTECTIVE GROUNDING .......................................................................................................................... 19

3.7 SUPERVISORY TERMINAL INSTALLATION .................................................................................................. 19

3.8 HUB STATION MODULES INTERCONNECTION ON TSAT 3500 .................................................................. 20

4REMOTE TERMINAL INSTALLATION .............................................................................................. 21

4.1 INTRODUCTION.......................................................................................................................................... 21

4.2 ANTENNA UNIT ASSEMBLY ....................................................................................................................... 22

4.3 ANTENNA POINTING .................................................................................................................................. 22

4.4 RF FRONT END MOUNTING ....................................................................................................................... 22

4.5 MAIN UNIT MOUNTING ............................................................................................................................. 22

4.6 REMOTE TERMINAL MODULES INTERCONNECTION TSAT 3500 ................................................................ 23

4.7 PROTECTIVE GROUNDING .......................................................................................................................... 23

5HUB STATION OPERATION .................................................................................................................. 24

5.1 PRE-OPERATIONAL REQUIREMENTS........................................................................................................... 24

5.2 MAIN UNIT CONFIGURATION ..................................................................................................................... 24

5.3 SUPERVISORY TERMINAL CONFIGURATION ............................................................................................... 24

5.4 HUB STATION POWER-UP ......................................................................................................................... 24

5.5 CIRCUIT-SWITCHED PROTOCOL OPERATION............................................................................................... 25

5.6 LAN (TCP/IP) OPERATION........................................................................................................................ 25

5.7 SUPERVISORY TERMINAL OPERATION....................................................................................................... 25

5.7.1 Introduction.......................................................................................................................................... 25

5.7.2 Network Status monitoring................................................................................................................... 25

5.7.3 Logging of statistical data.................................................................................................................... 25

5.8 ADDING NEW REMOTE TERMINALS ........................................................................................................... 25

5.9 REMOVING REMOTE TERMINALS FROM THE NETWORK ............................................................................. 25

TSAT 3500 - Telemetry and data transfer via SATellite

Installation, Operation and Maintenance Guide, September 2020 Page 6 of 40

6REMOTE TERMINAL OPERATION..................................................................................................... 26

6.1INTRODUCTION.......................................................................................................................................... 26

6.2 REMOTE TERMINAL CONFIGURATION ....................................................................................................... 26

6.3 REMOTE TERMINAL POWER-UP ................................................................................................................. 26

6.4 APPLICATION PORT OPERATION ................................................................................................................. 27

6.4.1 Async. ports.......................................................................................................................................... 27

6.4.2 LAN ports ............................................................................................................................................. 27

7INTERFACE SPECIFICATIONS ............................................................................................................ 28

7.1 TSAT 3500 /TSAT 3500 PRO ................................................................................................................. 28

8HUB STATION AND REMOTE TERMINAL MAINTENANCE ........................................................ 31

8.1 INTRODUCTION.......................................................................................................................................... 31

8.2 NORMAL MAINTENANCE............................................................................................................................ 31

8.3 MAIN UNIT SOFTWARE /FIRMWARE UPGRADES. ....................................................................................... 31

8.4 SUPERVISORY TERMINAL SERVICE/MAINTENANCE.................................................................................... 31

9TROUBLESHOOTING ............................................................................................................................. 32

9.1 SUPERVISORY TERMINAL .......................................................................................................................... 32

9.2 HARDWARE PROBLEMS ............................................................................................................................. 33

10 CHECK LISTS TSAT 3500 ....................................................................................................................... 34

11 APPENDIX:................................................................................................................................................. 40

11.1 TECHNICAL SPECIFICATIONS ..................................................................................................................... 40

11.2 HUB ANTENNA ASSEMBLY MANUAL IF APPLICABLE................................................................................. 40

11.3 RT ANTENNA ASSEMBLY MANUAL IF APPLICABLE .................................................................................... 40

TSAT 3500 - Telemetry and data transfer via SATellite

Installation, Operation and Maintenance Guide, September 2020 Page 7 of 40

1Introduction

1.1 Scope

This document is intended for giving system engineers, support engineers, and installation and

service personnel the necessary information to plan, install, operate and maintenance a TSAT

network. A brief trouble-shooting guide is also included.

The Supervisory Terminal and Network Management System is described in the "Supervisory

Terminal User Guide".

1.2 TSAT 3500 System Introduction

The TSAT 3500 satellite communication network is dedicated to low-to-medium data rate

communication via satellite. The Remote Terminals are controlled by one common HUB Station in a

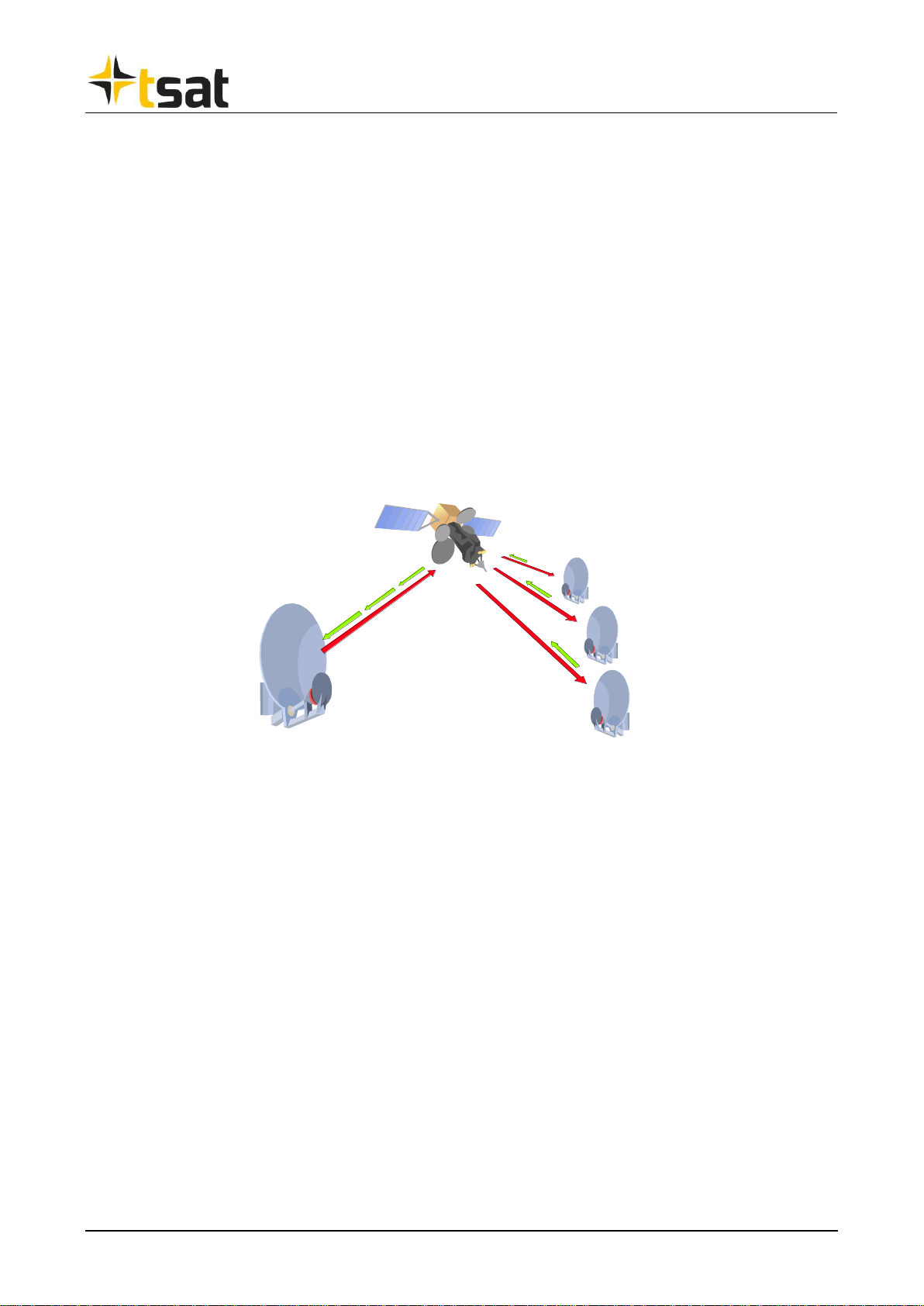

full duplex closed star network configuration, see Figure 1-1. The unique design of TSAT 3500

introduces low-cost solutions to traditional problem areas in low data rate satellite communication,

such as frequency stability, phase noise, and interference requirements. Flexible interface and

protocol options offer cost-effective communication solutions for data collection, remote monitoring

and control and transaction applications.

Hub Station

1.8->

Remote Terminals

0.9-1.8 m

9.6kbps –833kbps

Figure 1-1 TSAT 3500 Closed Network

•Low data rate: 9.6kbps –833kbps enables low transponder load.

•The outbound link, from the HUB to the RT’s, is running continuously, addressing

and commanding the Remote Terminals.

•The Remote Terminals share one or several inbound links either by time division

multiplexing or by random access.

•Any conventional Ku-band or C-band communication transponder can be used.

•Closed network: TSAT 3500 is a dedicated, private network.

•Mesh network, optionally

TSAT 3500 - Telemetry and data transfer via SATellite

Installation, Operation and Maintenance Guide, September 2020 Page 8 of 40

The TSAT 3500 design allows a complete HUB station comparable in size and complexity to

traditional VSAT’s (Very Small Aperture Terminals). Because of the extremely low-cost HUB station,

TSAT 3500 requires low investments in earth station equipment. The efficient utilisation of satellite

power and bandwidth gives low operational costs, enabling cost-effective solutions even for small

networks.

The modular design enables flexibility for future extension of network capacity. Adding more inbound

link frequencies, requiring only the addition of an extra Main Unit in the HUB Station will increase the

inbound link capacity. If the network grows beyond the capacity of the outbound link, the network

can be divided into sub-networks by adding new outbound links.

Possible applications include:

•Collection and distribution of data, i.e. environmental, ecological and security surveillance.

•Remote monitoring and control (SCADA), e.g. within electrical generation, transmission and

distribution, oil and gas pipelines, water management.

•Transaction oriented networks, i.e. credit-card verification, on-line betting, automatic teller

machines (ATM).

•Collection of seismological data

Figure 1-2 TSAT 3500 Network Configuration.

Supervisory Terminal

Remote Terminal

Asynch serial

interface (RS 232,

option RS422/485)

Network Management

TSAT HUB

Station

Communication protocols

HUB

Main

Unit

Main

Unit

Antenna

RF Front End

Antenna

RF Front End

LAN (TCP/IP)

Ref

osc

LAN (TCP/IP)

interface (RS 232,

option RS422/485)

interface (RS 232,

option RS422/485)

TSAT 3500 - Telemetry and data transfer via SATellite

Installation, Operation and Maintenance Guide, September 2020 Page 9 of 40

2HUB Station and Remote Terminal Site Requirements

2.1 Introduction

The following sections describe the requirements for the TSAT network sites, including mechanical

requirements for the HUB Station and Remote Terminal sites, pointing direction, and wind load.

2.2 Antenna Site requirements

2.2.1 Site elevation and azimuth angles

The site elevation and azimuth angles must be known before a site survey can be performed. The

antenna site elevation and azimuth angle, and distance to the satellite, can be calculated when the

following parameters are determined.

•The location of the satellite in the geostationary orbit, normally given in degrees with

references to the zero meridian (Greenwich, London). Angle is positive towards east.

•Site longitudinal location (degrees).

•Site latitudinal location (degrees).

The required parameters are:

r m

= •

638 10

4 2172 10

. (

(

earth radius)

distance earth center to geostationary orbit)

lattitude antenna site

longitude antenna site) - (longitude satellite position in geostationary orbit)





The antenna site elevation angle, from horizontal plane, is given by:

( ( )

( )

 

)

    

=  − − arctan cos cos / / cos cos /

r r

e s 121 2

The antenna site azimuth angle, from true north, positive angle clockwise, is found from the equation:

( ) ( )

( )

a arctg tg= +180

 

/sin

The distance to the satellite is given by:

 

d r r r r

s e s e

= + −    

2 2 1 2

2 cos cos /

 

There exist programs that would do these calculations automatically, with satellite position and site

coordinates as input.

2.2.2 Signal path obstruction

The antenna site must have an unobstructed bore sight to the satellite position in the geostationary

orbit, as shown in Figure 2-1. An obstruction inside this envelope will result in reduced signal to noise

ratio and increased transmit signal interference levels which are not compliant with ETSI and satellite

operator requirements.

TSAT 3500 - Telemetry and data transfer via SATellite

Installation, Operation and Maintenance Guide, September 2020 Page 10 of 40

2 deg.

1 deg.

5 m for 0.55 m dia.

10 m for 0.9 m dia.

10 m for 1.2 m dia.

< 100 m

> 100 m

Antenna diameter

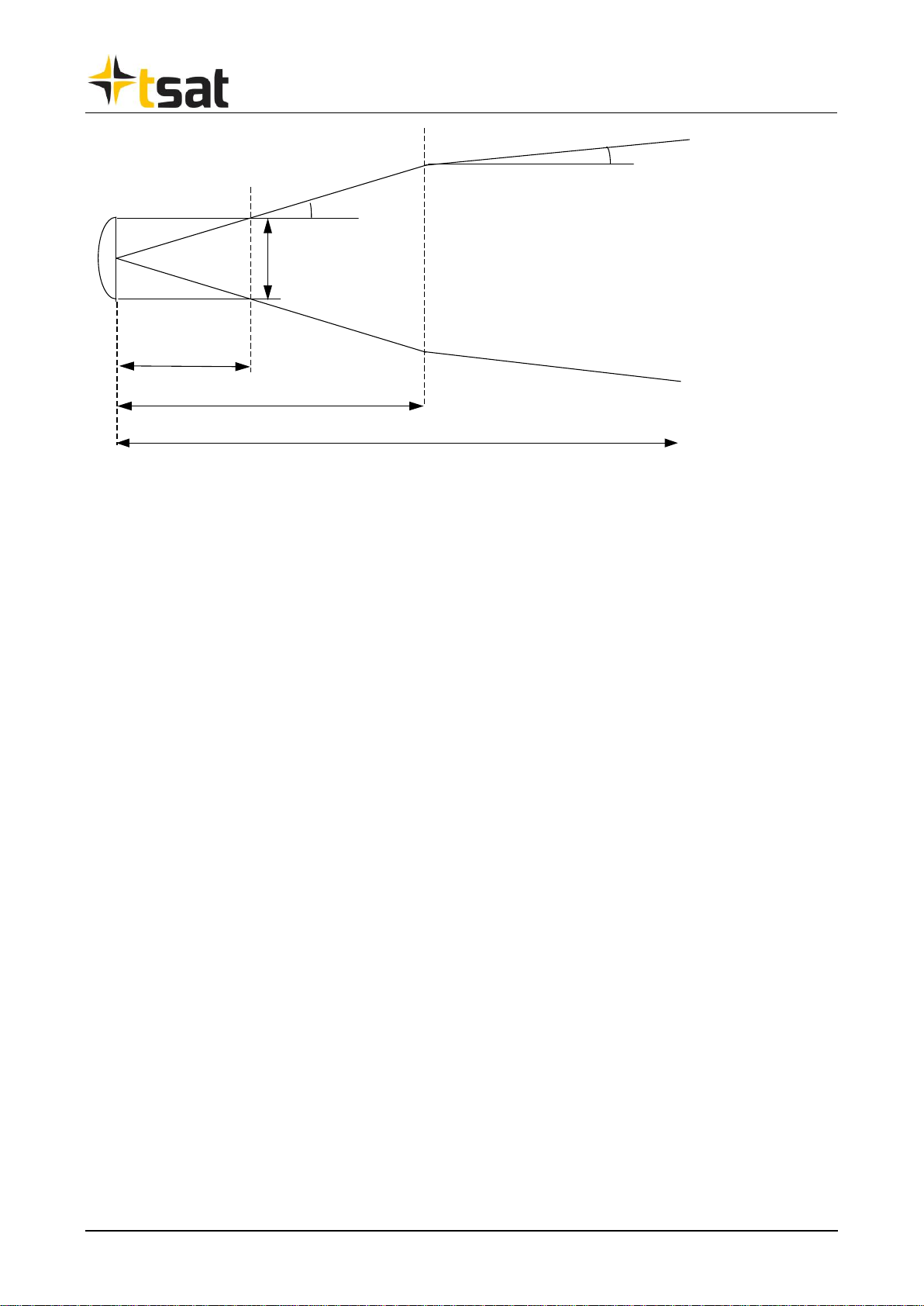

Figure 2-1 Transmit signal path envelope

2.3 Antenna Mount requirements

To maintain compliance with ETSI and satellite operator requirements, the antenna mount must be

permanently fixed to a supporting structure that enables the antenna to maintain a stability within 0.5

degrees under normal operating conditions (for a wind speed of up to 30 m/s). In addition, the

specification given in ETSI EN 301 428 state that under the condition of 100 km/h maximum wind

speed, with gusts of 130 km/h lasting 3 seconds, the antenna or other parts of the structure shall not

show any sign of permanent distortion and shall not need repointing after the application of the wind

load. A load of 20 mm of ice coating on the antenna surface should also be considered in areas

where this condition might occur. The supporting structure should therefore be constructed with this

in mind, or existing structure should be examined carefully, before the antenna mount is assembled

2.4 Antenna mount methods

2.4.1 Pole mount

The HUB Station antenna diameter is normally 1.8m or 2.4m. The 1.8m antenna normally fits a pole

dimension of 4.5 inches(114,3mm).Other HUBantenna dimensions canalso be used. For assembly

and mounting of the HUB antenna see the description supplied with the antenna.

The Remote Terminal antenna diameter is normally 96 cm or 1.2m and uses 3-inch pole size. For

C-band, 1.8m is also often used. For assembly and mounting of the Remote Terminal antenna see

the description supplied with the antenna.

2.4.2 Wall mount / Ground mount

If a wall mount is used, the distance from the wall to the pole must allow the antenna to be rotated

sufficiently to point to the satellite position in the geostationary orbit se. With the 120 cm antenna the

distance from the wall to the pole must be 630 mm to allow pointing parallel with the wall.

See the documentation supplies with the mounts for assembling and mounting.

Table des matières

Manuels Radar marin populaires d'autres marques

Furuno

Furuno 1751 MARK-2 Manuel utilisateur

RADAC

RADAC WaveGuide 5 Onboard 2 Manuel utilisateur

JRC

JRC JMA-9922-6XA Manuel utilisateur

Furuno

Furuno 1931 MARK-2 Manuel utilisateur

JRC

JRC JMR-9230-S Manuel utilisateur

Koden

Koden MDC-1810P Manuel utilisateur

Furuno

Furuno FR-2010 Manuel utilisateur

Furuno

Furuno FAR-3210 Manuel utilisateur

Koden

Koden MDC-7006 Manuel utilisateur

Furuno

Furuno 1751 Manuel utilisateur

Furuno

Furuno FCR-902 Manuel utilisateur

Koden

Koden MDC-2240 Manuel utilisateur

Garmin

Garmin GMR 18 XHD Manuel utilisateur

Furuno

Furuno FCR-2139S-BB Manuel utilisateur

Koden

Koden MDC-2000 series Manuel utilisateur

Garmin

Garmin GMR 40 Mode d'emploi

JRC

JRC JMA-5212-4 Manuel utilisateur

Simrad

Simrad R5000 Manuel utilisateur
