TRW Easycheck Manuel utilisateur

operating instructions

bedieningshandleiding

manuel de l’utilisateur

bedienungsanweisung

istruzioni per l’uso

instuções de utilização

manuel de instrucciones

Çalıs

¸tırma talimatları

TRW – Safety

Part number I317289 (EN)

- Issue 10

Operating instructions

Part number I317 289 (EN)

Issue 10

TRW – Safety

Contents Introduction

Overview .................................................................. 1

Display screen .......................................................... 6

Keypad ...................................................................... 6

Connection................................................................ 7

Safety precautions .................................................... 8

Communication problems......................................... 8

Scan function - EOBD

What is EOBD?......................................................... 9

Identifying compliant vehicles ................................ 10

Diagnostic Trouble Codes....................................... 11

Interpreting EOBD fault codes................................ 12

Using scan function ................................................ 13

Menu options.......................................................... 15

FastCheck

Introduction............................................................. 18

Safety instructions .................................................. 19

FastCheck ABS ....................................................... 21

FastCheck Airbag.................................................... 25

FastCheck Climate.................................................. 30

FastCheck EMS ...................................................... 33

Manufacturer Applications - EMS........................... 34

FastCheck EPB ....................................................... 83

FastCheck SAS ..................................................... 101

FastCheck Service ................................................ 106

FastCheck TPMS .................................................. 123

Diagnostic connector locations............................. 131

User menu

Overview .............................................................. 148

Security................................................................. 150

CAN Converter (Firmware update) ....................... 151

Multiplexer Cable (Firmware update).................... 152

General information

Cleaning ................................................................ 154

Software updates ................................................. 154

Specification ......................................................... 155

Contents Declaration of Conformity ..................................... 155

Appendix A: Glossary

Glossary of terms.................................................. 156

Appendix B: Cables

Cable identification................................................ 160

Appendix C: Manufacturer compatibility

Scan function ........................................................ 168

FastCheck functions ............................................. 169

Appendix D: Manual service reset

Service Reminder Indicator (SRI) .......................... 170

Alfa Romeo ........................................................... 170

Audi....................................................................... 171

BMW..................................................................... 172

Citroen .................................................................. 173

Fiat ........................................................................ 180

Ford....................................................................... 181

GM Vauxhall/Opel ................................................. 182

Lancia.................................................................... 183

Land Rover............................................................ 184

Mercedes.............................................................. 185

Peugeot................................................................. 186

Renault.................................................................. 192

Smart .................................................................... 198

Volkswagen........................................................... 199

Volvo ..................................................................... 200

Introduction

Overview

Nearly every new road vehicle, and many older vehicles, have multiple control

modules that monitor and control different aspects of the vehicle (e.g. Engine,

Transmission, Body, Suspension, etc.). The TRW easycheck service tool has been

specifically designed to connect to, and communicate with, a number of these

control modules and allow the user to extract information (e.g. Diagnostic Trouble

Codes) which may aid in the diagnosis of system problems.

The functions available on the TRW easycheck service tool are dependent on the

number of functions that have been purchased. Additional functions can be

purchased separately. For further details, please contact the Product Support Team

by calling freephone 00800 2002 8282 or visit www.trwaftermarket.com/

easycheck.

Scan

The EOBD (European On-Board Diagnostic) Scan function allows you to access

the vehicles emission related data through the OBD functionality. This includes

MI (Malfunction Indicator) status, read and clear faults, live data, O2 sensor tests,

freeze frame data and more.

EMS

FastCheck EMS allows you to read and clear fault codes stored by the selected

system. Additional functions may be available such as live data, actuator tests,

maintenance and injector programming depending on the selected system.

Brakes

FastCheck ABS allows you to read and clear any fault codes stored by the

selected system.

OM0947

Introduction

FastCheck EPB (Electronic Parking Brake) allows you to read and clear any fault

codes stored by the selected system, and in addition can be used during brake

operation checks or brake pad replacement.

SRS

FastCheck Airbag allows you to read and clear any fault codes stored by the

selected system.

Climate

FastCheck Climate allows you to read and clear any fault codes stored by the

selected system.

SAS

FastCheck SAS (Steering Angle Sensor) allows you to read and clear any fault

codes stored by the selected system, and in addition can be used to calibrate the

steering angle sensor.

Service

FastCheck Service allows you to reset, dependant upon vehicle, the oil service

interval indicator, service and inspection warning lights.

TPMS

The ‘TPMS’ (Tyre Pressure Monitoring System) function can be used to

re-program TPMS tyre valves to the control module.

If you are using the service tool for the first time, it is recommended that you read

these instructions and safety guidelines fully, prior to commencing any testing on a

vehicle.

Getting started

Connect the Multiplexer cable (YTD965) or the EOBD cable (YTD950) to the service

tool and the vehicle's diagnostic connector. Once connected, the current software

version number is displayed.

Registration and unlocking of units

A new or updated service tool requires a security key to unlock the specific

functions. To register the service tool, log on to

www.trwaftermarket.com/easycheck

and select the link to the administration centre.

Auto-activation is possible using the website if an update cable is available.

Alternatively, after obtaining your security key from the web site, use the following

procedure to unlock your service tool:

1. Select 'User Menu' from the main menu.

2. Select 'Security' from the user menu.

Introduction

3. Select 'Enter Security Key' from the security menu.

4. Using the and keys, scroll through the alpha/numerical character list.

5. Confirm each character by pressing the key.

If you make a mistake use the key and enter the correct character. To re-

enter the code from the beginning, press the key.

6. When prompted to verify the security key, press to confirm.

7. Power down the service tool by disconnecting the power source.

8. Reconnect the power supply to restart the service tool. The screen should now

show a list of the functions included.

Further support can be obtained by calling freephone 00800 2002 8282.

Introduction

Kit contents

TRW easycheck kit (YTD700, YTD701)

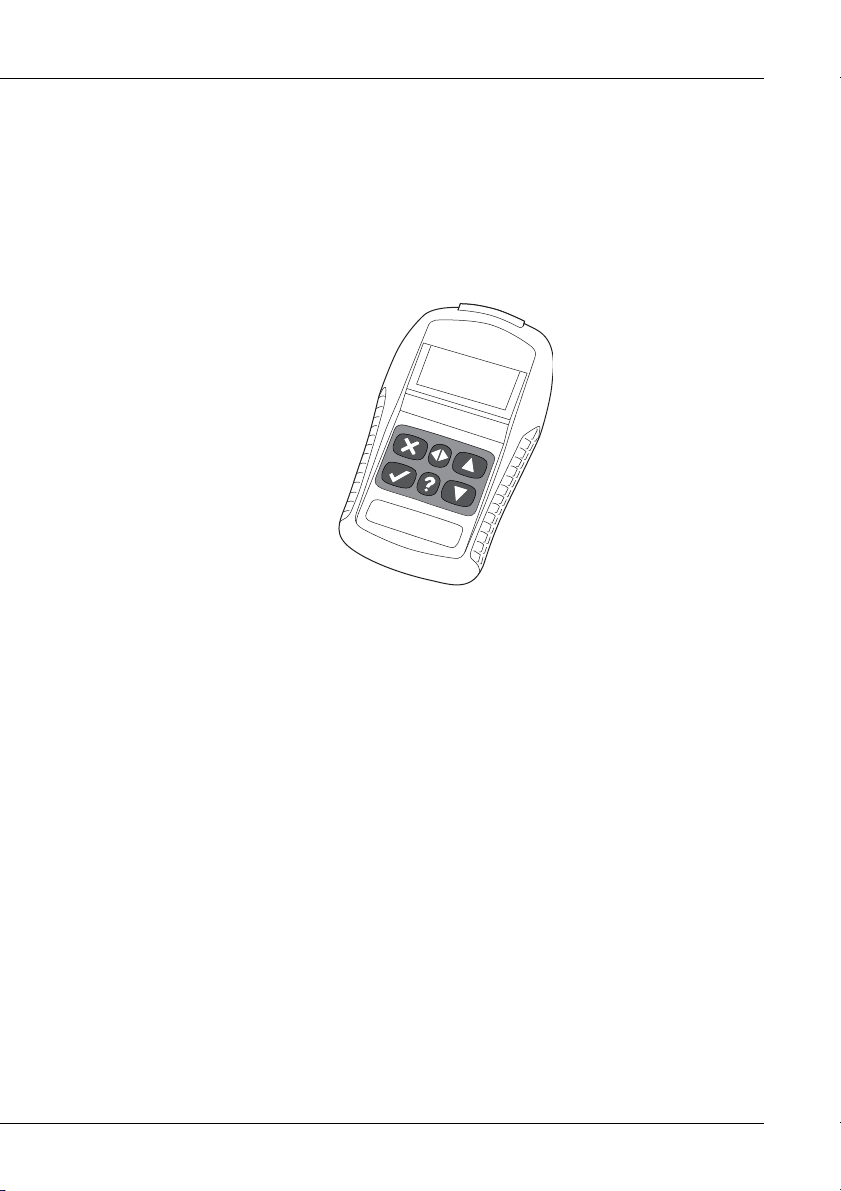

1. Service tool

2. EOBD cable

3. Carry case

4. CD ROM containing operating instructions

5. EOBD pin-switchable cable

OM1386

112

11 AL
