SERVICE MANUAL
Let’s Fly Outdoor rollator
from Trustcare
TABLE OF CONTENTS
Exchange of fender Page 3
Exchange of rear wheel Page 4
Exchange of rear wheel mounting plate Page 5
Exchange of brake yoke Page 7
Exchange of rubber springs Page 8
Exchange of front wheel Page 9
Exchange of brake housing and brake lever Page 10
Exchange of front fork and bearings Page 12
Exchange of seat Page 13
Exchange of brake wire Page 14
Exchange of handle and handle tube Page 16
Exchange of linkage arm Page 18
Exchange of wire guide Page 19
Exchange of height adjustment Page 20
Exchange of middle joint folding cross Page 21
Page 22
Art. No. 0468N
Art. No. 0473N
Art. No. 0474, 0475
Art. No. 0476
Art. No. 0480
Art. No. LF304
Art. No. LF306
Art. No. LF318
Art. No. LF301, LF302, LF324
Art. No. LF305
Art. No. LF307, LF308
Art. No. LF312, LF321
Art. No. LF313
Art. No. LF320
Art. No. LF326
Art. No. LF311
Exchange of unfold hook
Adjustment of unfold hook
Adjustment of brake/parking brake
Art. No. LF311
Art. No. LF306
Page 23
Page 23
Let’s Fly Spare part. Art. No. 0468N.
3. www.trustcare.se
Let’s Fly Service Manual. Revision version No: 2 – Aug 2017
Exchange of fender Let’s Fly.
1. Unscrew the double screw A and the two screws B
holding the fender.
2. Pull out the rear wheel mounting plate just enough
to free the fender.
3. Unscrew the wheel cap and remove the damaged
fender.
4. Screw the new fender and the wheel cap in place.
5. Turn the fender into correct position and tighten the
wheel cap screw..
6. Push the assembly into the rear leg and screw back
the screws A and B.
A
BB
Fender
A
BB
A
BB
5. The wheel can be taken off and
replaced with a new one.
4. To replace the rear wheel, open
the retaining ring (snap-ring) with a
pliers.
6. Use the pliers to lock the new
snap-ring firmly into the groove on
the axle.
Let’s Fly Spare part. Art. No. 0473N.
Groove
4. www.trustcare.se
Let’s Fly Service Manual. Revision version No: 2 – Aug 2017
Exchange of rear wheel Let’s Fly.
A
B B
A
B B
1. Unscrew the double screw A and
the two screws B holding the fender.
2. Pull out the rear wheel mounting
plate just enough to free the fender.
3. Unscrew the wheel cap and
remove the fender.
A
B B
7. Screw the fender and the wheel
cap back in place.
8. Turn the fender in correct position
and tighten the wheel cap screw.
9. Screw back the screws A and B.
9. Use the pliers to lock the snap-ring
firmly into the groove on the axle.
Groove
Exchange of rear wheel mounting plate. Page 1.
Let’s Fly Spare part. Art. No. 0474, 0475.
Let’s Fly Service Manual. Revision version No: 2 – Aug 2017
1. Unscrew the double screw B and
the two screws C holding the fender.
4. Remove the yoke from the wire
and the mounting plate.
2. Put the handle in lowest position.
B
C
C
Fender
Wire guide
Sleeve
Brake yoke
3. Pull out the brake, sleeve, fender,
and the wire guide from the rear leg.
7. Remove the wheel from the old
mounting plate
8. Put the wheel on the new
mounting plate.
5. Unscrew the wheel cap and
remove the fender.
6. To remove the wheel, remove the
retaining ring (snap-ring) with a pliers.
5. www.trustcare.se
Slot
12. Check brake function when the
wire has a loop, see picture.
Let’s Fly Spare part. Art. No. 0474, 0475.

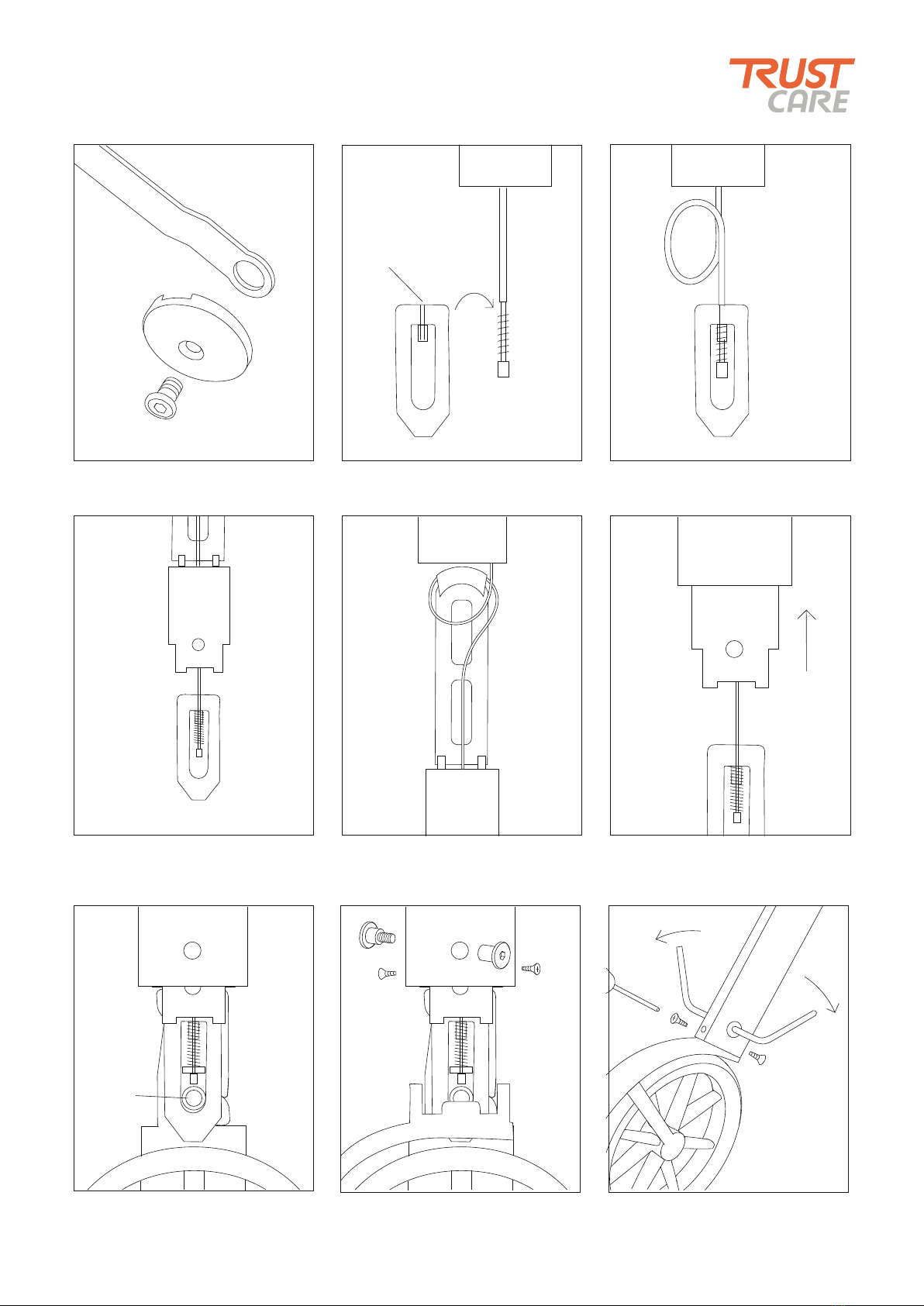

Exchange of rear wheel mounting plate. Page 2.
Let’s Fly Service Manual. Revision version No: 2 – Aug 2017
Wire
guide
13. Attach the wire guide to the top
of the sleeve.
14. Make a loop on the wire.
16. Mount the brake yoke and wire
onto the wheel plate.
15. Push the sleeve and wire guide
into the rear leg.
18. Push the whole assembly into
rear leg and screw back the screws.
17. Put the fender in place.
Sleeve
Loop
Sleeve
Brake yoke
Distance
Rubber
Rubber B
C
C
Sleeve
Fender
Sleeve
6. www.trustcare.se
10. Put back the fender and
wheelcap.
11. Mount the wire and the spring
on the yoke.
Let’s Fly Spare part. Art. No. 0476.
Let’s Fly Service Manual. Revision version No: 2 – Aug 2017
7. www.trustcare.se
1. Push the handle down to lowest
position.
2. Unscrew the double screw A and
the two screws B holding the fender.
3. Pull out the mounting plate with
the brake yoke from the rear leg.
6. push the whole assembly into the rear leg including
the fender.
7. Screw the double screw A and the two screws B
back in place.
Exchange of brake yoke.
4. Remove the damaged brake yoke and put in the
new one.
A
B B
Distance sleeve
5. Mount the yoke and distance sleeve and wire on the
wheel mounting plate.
A
B B
Let’s Fly Spare part. Art. No. 0480.
Let’s Fly Service Manual. Revision version No: 2 – Aug 2017
Exchange of rubber springs on rear wheel.
8. www.trustcare.se
1. Unscrew the double screw B and the two screws C
holding the fender.
2. Pull out the brake just enough so you can take away
the rubber springs.
Distance Rubber
Rubber
5. Put fender in place and push the whole brake assembly
into the rear leg including the fender.
6. Screw the double screw B and the two screws C
back in place.
4. Don’t forget to put the distance sleeve into the yoke.
Fender
B
C C
B
C C
Rubber springs
3. Remove the damaged rubber springs and put in the
new ones.
9. www.trustcare.se
Let’s Fly Spare part. Art. No. LF 304.
Exchange of front wheel Let’s Fly.
1. Unscrew screw B and remove the C-clip at C. 2. Remove the old wheel from the front fork.
Let’s Fly Service Manual. Revision version No: 2 – Aug 2017
3. Put the new wheel onto the axle including the two ball
bearings.
4. Lock the wheel with the C-clip and screw the hub cap
in place over the hub with screw B.
B
C
B
C
B
C
10. www.trustcare.se
Fender
Wire guide
Sleeve
Brake yoke
Let’s Fly Spare part. Art. No. LF306.
Exchange of brake housing, brake lever. Page 1
1. Unscrew the double screw B and the two screws C
holding the fender.
2. To make is simple to remove the brake components
you can use a hook tool like the one in the picture.
1
2
Let’s Fly Service Manual. Revision version No: 3 – Okt 2019
3. Pull out the brake fender. 4. Use the hook tool to pull out the
sleeve and wire guide separately.
6. Unscrew the screw on the handle and pull out the
brake housing and brake lever .
5. Unmount the brake from the wire.
7. Dont remove the brake wire from the old brake handle.
B
C
C
Sleeve
Pull
