INSTALLATION MANUAL FOR AIR CURTAIN MODELS

TAC (TRUE AIR CURTAIN MODELS)

CONGRATULATIONS!

You have just purchased the finest commercial

refrigeration available. You can expect many years

of trouble-free operation.

TRUE FOOD SERVICE EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366

(636)-240-2400 • FAX (636)272-2408 • INT’L FAX (636)272-7546 • (800)325-6152

Parts Department (800)424-TRUE • Parts Department FAX# (636)272-9471

TABLE OF CONTENTS

Safety Information

TAC-48 Installation Tips –––––––––––––––––––– 1

Safety Precautions ––––––––––––––––––––––– 2

Proper Disposal –––––––––––––––––––––––––– 3

Connecting Electricity ––––––––––––––––––––– 4

Adapter Plugs ––––––––––––––––––––––––––– 4

Installation / Operation Instructions

Ownership –––––––––––––––––––––––––––––– 5

Required Tools ––––––––––––––––––––––––––– 5

Uncrating ––––––––––––––––––––––––––––––– 5

Locating –––––––––––––––––––––––––––––––– 5

Installation of Leg/Castors –––––––––––––––––– 6

Electrical Instructions ––––––––––––––––––––– 7

Leveling Cabinet ––––––––––––––––––––––––– 7

Conductors and Circuits –––––––––––––––––––– 8

Start-up & Light Switch Location –––––––––––– 9

Mechanical Temperature Control

Adjustments –––––––––––––––––––––––––– 10-11

Defrost Timer Instructions ––––––––––––––––– 12

Digital Temperature Control Adjustments ––––– 13

Remote Unit Installation––––––––––––––––––– 14

Shelving & Flavor Strip Installation–––––––––– 15

Maintenance, Care & Cleaning

Cleaning Condenser Coil –––––––––––––––– 16-17

Stainless Steel Equipment Care & Cleaning – 18-19

Light Bulb Replacement ––––––––––––––––––– 19

Warranty (U.S.A. & CANADA ONLY!) ––––––––– 20

TAC-30

TAC-36

TAC-48

TAC-48GS

TAC-72RC

10/7/08 2K SB #897010

*Spanish, German, French, and Dutch version included.

............ www.truemfg.com ............

True Food Service Equipment, Inc.

............ www.truemfg.com ............

True Food Service Equipment, Inc.

2 2

• This refrigerator must be properly installed

and located in accordance with the Installation

Instructions before it is used.

• Do not allow children to climb, stand or hang

on the shelves in the refrigerator. They could

damage the refrigerator and seriously injure

themselves.

• Do not touch the cold surfaces in the

refrigerated compartment when hands are damp

or wet. Skin may stick to these extremely cold

surfaces.

• Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance.

• Keep fingers out of the “pinch point” areas;

clearances between the doors and cabinet are

necessarily small; be careful closing doors when

children are in the area.

NOTE: We strongly recommend that any servicing be

performed by a qualified individual.

• Unplug the refrigerator before cleaning and

making repairs.

• Setting temperature controls to the 0 position

does not remove power to the light circuit or

evaporator fans.

WARNING!

Use this appliance for its intended purpose as described in this Owner Manual.

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

How to Maintain Your Unit

to Receive the Most Efficient and

Successful Operation

You have selected one of the finest commercial refrigeration units made. It is manufactured under

strict quality controls with only the best quality materials available. Your TRUE cooler, when

properly maintained, will give you many years of trouble-free service.

SAFETY INFORMATION

............ www.truemfg.com ............

True Food Service Equipment, Inc.

SAFETY INFORMATION

PROPER DISPOSAL OF THE REFRIGERATOR

DANGER!

RISK OF CHILD ENTRAPMENT

USE OF EXTENSION CORDS

NEVER USE AN EXTENSION CORD! TRUE will not warranty any display case that has been connected to an

extension cord.

Child entrapment and suffocation are not problems

of the past. Junked or abandoned display cases

are still dangerous… even if they will sit for “just a

few days.” If you are getting rid of your old display

case, please follow the instructions below to help

prevent accidents.

Before You Throw Away Your Old Refrigerator or

Freezer:

• Take off the doors.

• Leave the shelves in place so that children may

not easily climb inside.

Refrigerant Disposal

Your old refrigerator may have a cooling system

that uses “Ozone Depleting ” chemicals. If you are

throwing away your old refrigerator, make sure the

refrigerant is removed for proper disposal by a

qualified service technician. If you intentionally

release any refrigerants you can be subject to

fines and imprisonment under provisions of the

environmental regulations.

............ www.truemfg.com ............

True Food Service Equipment, Inc.

4 4

SAFETY INFORMATION

The power cord of this appliance is equipped

with a 3-prong (grounding) plug which mates

with a standard 3-prong (grounding) wall outlet to

minimize the possibility of electric shock hazard

from this appliance.

Have the wall outlet and circuit checked by a

qualified electrician to make sure the outlet is

properly grounded.

If the outlet is a standard 2-prong outlet, it is your

personal responsibility and obligation to have it

replaced with the properly grounded 3-prong wall

outlet.

The unit should always be plugged into it’s own

individual electrical circuit, which has a voltage

rating that matches the rating plate.

This provides the best performance and also

prevents overloading building wiring circuits which

could cause a fire hazard from overheated wires.

Never unplug your freezer by pulling on the power

cord. Always grip plug firmly and pull straight out

from the outlet.

Repair or replace immediately all power cords that

have become frayed or otherwise damaged. Do not

use a cord that shows cracks or abrasion damage

along its length or at either end.

When removing the freezer away from the wall, be

careful not to roll over or damage the power cord.

HOW TO CONNECT ELECTRICITY

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

For personal safety, this appliance must be properly grounded.

WARNING!

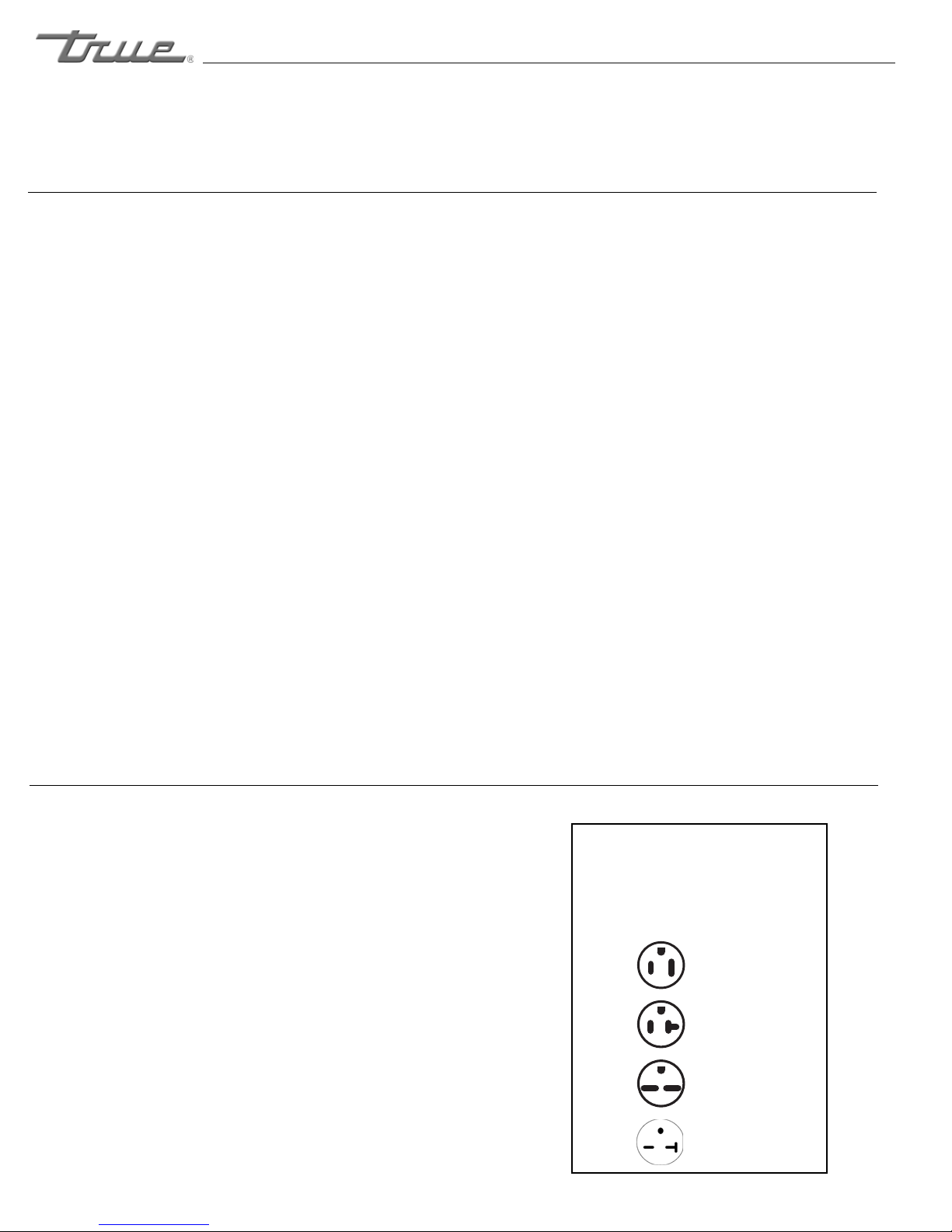

USE OF ADAPTER PLUGS

NEVER USE AN ADAPTER PLUG! Because of potential safety hazards under certain conditions, we strongly

recommend against the use of an adapter plug. NEMA plugs

TRUE uses these types of plugs.

If you do not have the right outlet

have a certiﬁed electrician install

the correct power source.

115/60/1

NEMA-5-15R

115/60/1

NEMA-5-20R

208-230/60/1

NEMA-6-15R

208-230/60/1

NEMA-6-20R

............ www.truemfg.com ............

True Food Service Equipment, Inc.

INSTALLATION / OPERATION INSTRUCTIONS

To insure that your unit works properly from the

first day, it must be installed properly. We highly

recommend a trained mechanic and electrician

install your True equipment. The cost of a

professional installation is money well spent.

Before you start to install your True unit, carefully

inspect it for freight damage. If damage is

discovered, immediately file a claim with the

delivery freight carrier.

True is not responsible for damage incurred during

shipment.

OWNERSHIP

• Adjustable Wrench

• Phillips Head Screwdriver

• Level

REQUIRED TOOLS

Step 1

The following procedure is recommended for

uncrating the unit:

A. Remove the outer packaging by pulling tri-wall

nails from skid. Remove (4) cardboard corner

pads and dust cover.

B. Inspect for concealed damage. Again,

immediately file a claim with the freight carrier

if there is damage.

C. Move your unit as close to the final location as

possible before removing the wooden skid.

UNCRATING

INSTALLATION / OPERATION INSTRUCTIONS

Step 2

A. Remove packing material behind cabinet as a

cushion. Carefully lay the unit on its back to

remove skid.

When lifting unit remember to leave the

cabinet upright for 24 hours before

plugging into power source.

B. Remove skid by unscrewing all base rail anchor

brackets. Place skid to the side.

C. Carefully lift cabinet upright.

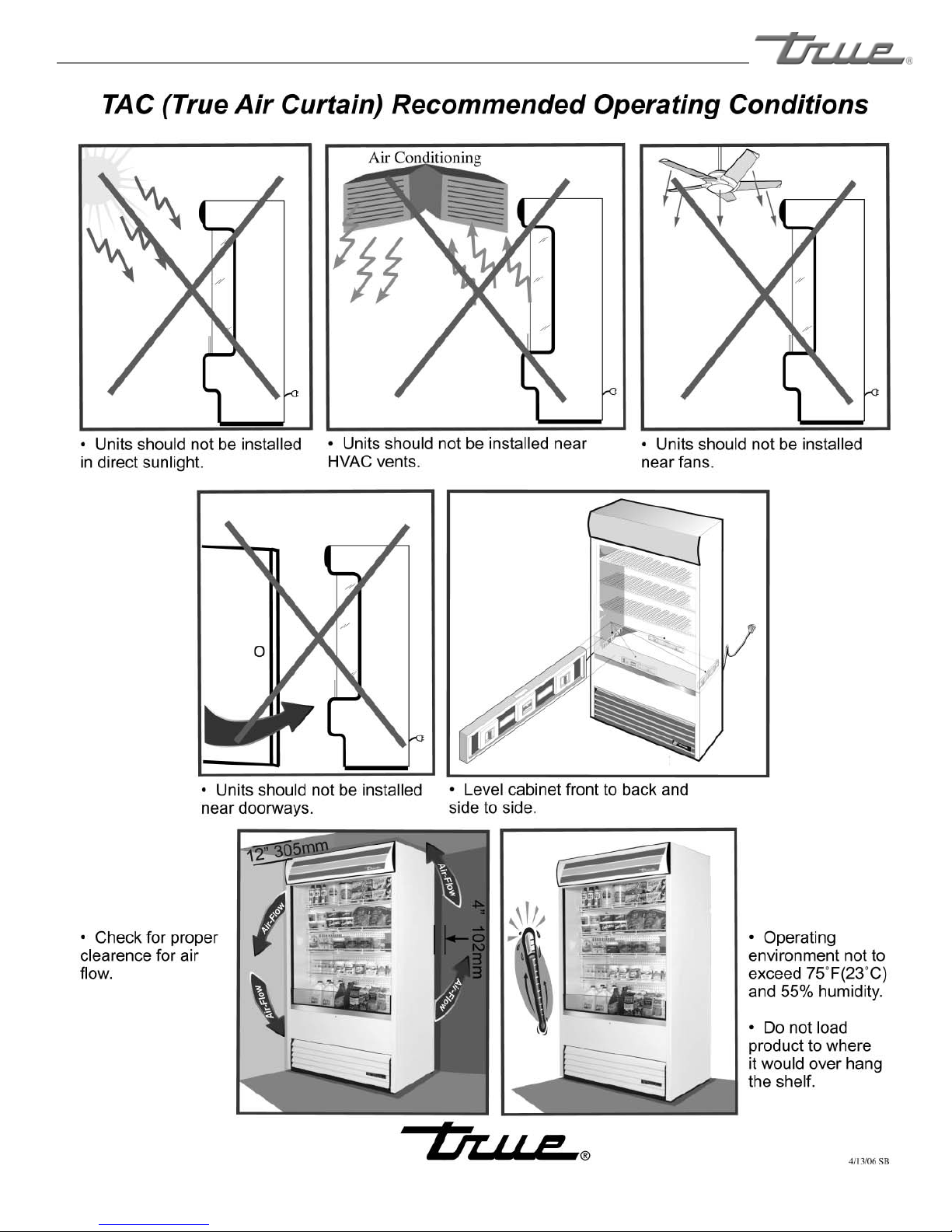

Installation Tips

• Place cabinet in an area that will not have any

air drafts.

• Excessive airflow around cabinet can effect

interior cabinet airflow (air-curtain).

• No HVAC supply or return air vents pushing air

into or pulling air out of cabinet.

• No doorways.

• No ceiling fans.

• Do not place into direct sunlight.

NOTE:

Check for correct clearance space in back of

cabinet and above. A 4” clearance requirement

for the rear of cabinet and 12” clearance

above cabinet.

• Maximum ambient condition 75 degrees and

55% Relative Humidity.

LOCATING

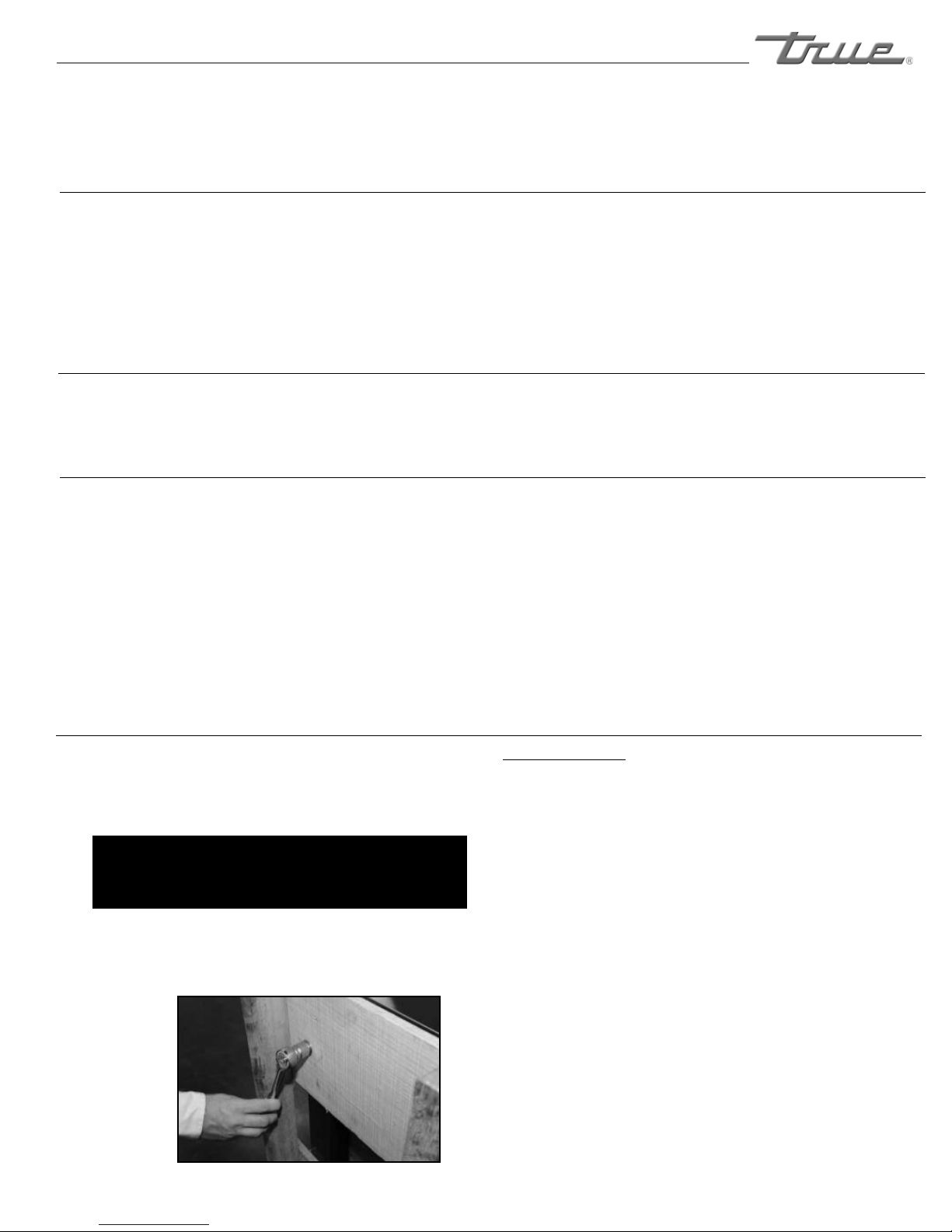

Removing skid

from bottom of

cabinet.

............ www.truemfg.com ............

True Food Service Equipment, Inc.

6 6

INSTALLATION / OPERATION INSTRUCTIONS

INSTALLATION OF LEGS AND CASTORS

Leg levelers in the bottom

of the cabinet can be

backed out for leveling.

Step 3

Leg Levelers:

If the cabinet is not level use an open-end wrench

and turn adjustable tips on legs until cooler is level.

(See image 1).

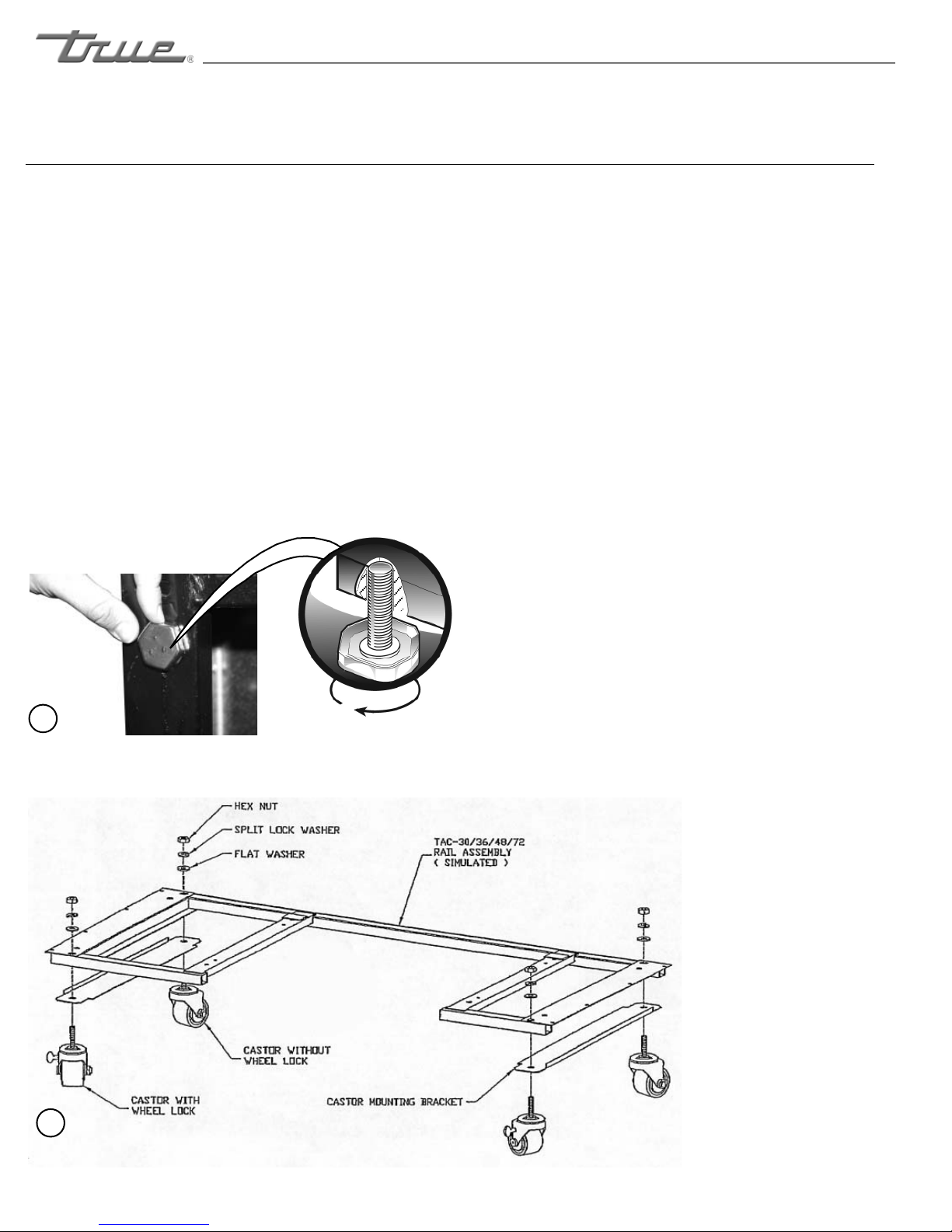

Castor Installation: (Kit Contents)

2 - Castor mounting bracket

2 - Castor, 2-1/2” diameter wheel with 3/8” - 16 x 1-

1/2” threaded stem without brake

2 - Castor, 2-1/2” diameter wheel with 3/8” - 16 x 1-

1/2” threaded stem with brake

4 - Washer, flat, 3/8” I.D. x 1” O.D.

4 - Washer, split lock, 3/8” I.D.

4 - Nut, hex, 3/8” - 16

(See image 2).

CAUTION

To avoid damage to lower rail assembly, slowly raise

unit to upright position after installing castors.

............ www.truemfg.com ............

True Food Service Equipment, Inc.

INSTALLATION / OPERATION INSTRUCTIONS

Step 5

A. Before your new unit is connected to a power

supply, check the incoming voltage with a

voltmeter. If anything less than 100% of the

rated voltage for operation is noted, correct

immediately.

B. All units are equipped with a 8 ft. (2.4m) service

cord, and must be powered at proper operating

voltage at all times. Refer to cabinet data plate

for this voltage.

True requires that a sole circuit be dedicated for the

unit. Failure to do so voids warranty.

WARNING

Compressor warranties are void if compressor burns out due to

low voltage.

WARNING

Power supply cord ground should not be removed!

NOTE

To reference wiring diagram - Remove lower rear grill. Wiring

diagram is positioned on the inside cabinet wall.

ELECTRICAL INSTRUCTIONS

LEVELING

Step 4

Securing Castors

A. Set unit in its final location. Be sure there is

adequate ventilation in your room. Under extreme

heat conditions, (100°F+, 38°C+), you may want to

install an exhaust fan.

Warning

Warranty is void if ventilation is insufficient.

B. Proper leveling of your True cooler is critical to

operating success (for non-mobile models). Effective

condensate removal and door operation will be

effected by leveling.

C. The cooler should be leveled inside the cabinet

front to back and side to side with a level.

D. Ensure that the drain hose or hoses are

positioned in the pan.

E. Free plug and cord from inside the lower rear of

the cooler (do not plug in).

F. The unit should be placed close enough to the

electrical supply so that extension cords are never

used.

Warning

Compressor warranties are void if the unit is more than 8ft.

(2.4m) from plug-in connection. TRUE will not warranty any

units that are connected to an extension cord.

............ www.truemfg.com ............

True Food Service Equipment, Inc.

8 8

INSTALLATION / OPERATION INSTRUCTIONS

CONDUCTORS AND CIRCUITS

Wire Gauge for 2% Voltage Drop in Supply Circuits.

115 Volt Distance In Feet To Center of Load

Amps 20 30 40 50 60 70 80 90 100 120 140 160

2 14 14 14 14 14 14 14 14 14 14 14 14

3 14 14 14 14 14 14 14 14 14 14 14 12

4 14 14 14 14 14 14 14 14 14 12 12 12

5 14 14 14 14 14 14 14 12 12 12 10 10

6 14 14 14 14 14 14 12 12 12 10 10 10

7 14 14 14 14 14 12 12 12 10 10 10 8

8 14 14 14 14 12 12 12 10 10 10 8 8

9 14 14 14 12 12 12 10 10 10 8 8 8

10 14 14 14 12 12 10 10 10 10 8 8 8

12 14 14 12 12 10 10 10 8 8 8 8 6

14 14 14 12 10 10 10 8 8 8 6 6 6

16 14 12 12 10 10 8 8 8 8 6 6 6

18 14 12 10 10 8 8 8 8 8 8 8 5

20 14 12 10 10 8 8 8 6 6 6 5 5

25 12 10 10 8 8 6 6 6 6 5 4 4

30 12 10 8 8 6 6 6 6 5 4 4 3

35 10 10 8 6 6 6 5 5 4 4 3 2

40 10 8 8 6 6 5 5 4 4 3 2 2

45 10 8 6 6 6 5 4 4 3 3 2 1

50 10 8 6 6 5 4 4 3 3 2 1 1

Wire Gauge for 2% Voltage Drop in Supply Circuits.

230 Volt Distance In Feet To Center of Load

Amps 20 30 40 50 60 70 80 90 100 120 140 160

5 14 14 14 14 14 14 14 14 14 14 14 14

6 14 14 14 14 14 14 14 14 14 14 14 12

7 14 14 14 14 14 14 14 14 14 14 12 12

8 14 14 14 14 14 14 14 14 14 12 12 12

9 14 14 14 14 14 14 14 14 12 12 12 10

10 14 14 14 14 14 14 14 12 12 12 10 10

12 14 14 14 14 14 14 12 12 12 10 10 10

14 14 14 14 14 14 12 12 12 10 10 10 8

16 14 14 14 14 12 12 12 10 10 10 8 8

18 14 14 14 12 12 12 10 10 10 8 8 8

20 14 14 14 12 10 10 10 10 10 8 8 8

25 14 14 12 12 10 10 10 10 8 8 6 6

30 14 12 12 10 10 10 8 8 8 6 6 6

35 14 12 10 10 10 8 8 8 8 6 6 5

40 14 12 10 10 8 8 8 6 6 6 5 5

50 12 10 10 8 6 6 6 6 6 5 4 4

60 12 10 8 6 6 6 6 6 5 4 4 3

70 10 10 8 6 6 6 5 5 4 4 2 2

80 10 8 8 6 6 5 5 4 4 3 2 2

90 10 8 6 6 5 5 4 4 3 3 1 1

100 10 8 6 6 5 4 4 3 3 2 1 1

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels True Manufacturing Company Réfrigérateur

True Manufacturing Company

True Manufacturing Company TBR Series Manuel utilisateur

True Manufacturing Company

True Manufacturing Company TDB-24-48-1-G-1 Manuel utilisateur

True Manufacturing Company

True Manufacturing Company TMW TMW-36F Manuel utilisateur

True Manufacturing Company

True Manufacturing Company TMW TMW-36F Manuel utilisateur

True Manufacturing Company

True Manufacturing Company GDM-3 Manuel utilisateur

True Manufacturing Company

True Manufacturing Company TCGR-50 Manuel utilisateur

True Manufacturing Company

True Manufacturing Company GDM-HST02-HC-TSL01 Manuel utilisateur

True Manufacturing Company

True Manufacturing Company GDM Series Manuel utilisateur

True Manufacturing Company

True Manufacturing Company TCGR-50 Manuel utilisateur

True Manufacturing Company

True Manufacturing Company TBB-2 Manuel utilisateur

True Manufacturing Company

True Manufacturing Company TGU-2 Manuel utilisateur

True Manufacturing Company

True Manufacturing Company TR1RRI-1S Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
