Troy-Bilt 1924 Manuel utilisateur

Owner’s Manual / Manual del Propietario

Questions? Preguntas?

Helpline - 1-888-611-6708 M-F 8-5 CT

Manual No. 192372GS Revision 2 (02/12/2003)

Portable Generator / Generador Portátil

Model / Modelo 01924

Printed in USA

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON,WISCONSIN, U.S.A.

IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY

IMPORTANTE: LEYO LA SEGURIDAD LAS ORDENESY LAS INSTRUCCIONES DETENIDAMENTE

Troy-Bilt® is a registered trademark of MTD and is used under license to Briggs & Stratton Power Products.

Troy-Bilt® es una marca registrada registrada de MTD y se usa abajo licencia a Briggs & Stratton Power Products.

Section Schematic and Wiring Diagram

SCHEMATIC

Section 8: Schematic and Wiring Diagram

WIRING DIAGRAM

Section Exploded Views and Parts Lists

EXPLODED VIEW - MAIN UNIT

Section 9: Exploded Views and Parts Lists

Item Part # Qty. Description

1 P191719GS 1 CRADLE

2 70642GS 2 MOUNT,Vibration

3 76222GS 3 SCREW

4 186058AGS 1 HOUSING, Engine Adapter

5 191745GS 1 ASSY,Alternator (see page 18)

6 43107GS 4 SCREW

7 22129GS 4 WASHER, Lock

8 96796GS 1 WASHER

9 186347GS 1 COVER, Bearing Carrier

10 86307GS 4 SCREW

11 24823GS 1 SCREW

12 191436GS 1 DECAL, Caution Hot Muffler

13 45771GS 4 NUT

14 191785GS 1 BRACKET, Muffler

15 275015 1 GASKET, Exhaust

16 66476GS 2 SCREW

17 188301GS 1 MUFFLER

18 36781GS 2 SCREW

19 83083GS 1 SCREEN, Spark Arrest

20 B4986GS 1 DECAL, Ground

21 67989GS 9 NUT

22 85652GS 2 MOUNT,Vibration

23 192373GS 1 DECAL, Control Panel

24 191743GS 1 ASSY, Control Panel (see page 19)

25 189164GS 4 NUT

26 74908GS 4 SCREW

27 J191790GS 1 SHIELD, Heat

Item Part # Qty. Description

28 192374GS 1 DECAL, Heat Shield

29 77395GS 4 NUT, Lock

30 48031CGS 2 CLAMP, Hose, Band

31 191795GS 1 HOSE, Fuel, Formed

32 26850GS 2 WASHER

33 14353621GS 1 WIRE, Ground

34 191435GS 1 DECAL, Fuel Shut Off

35 23762GS 1 WASHER

36 86494GS 1 SCREW,Wing

37 B2153GS 4 SCREW

38 88325GS 1 ASSY,Tank, Fuel

(Includes Items 41 & 42)

39 B4363GS 1 GAUGE, Fuel

40 92982GS 1 DECAL, Danger

41 80270GS 1 VALVE,Tank

42 78299GS 1 BUSHING, Plastic Tank

43 83465GS 4 GROMMET,Tank

44 78831AGS 4 SCREW

45 189235GS 1 DECAL, Operating Instructions

46 188333GS 1 DECAL, Fuel Level

47 192372GS 1 MANUAL, Owners

48 43483GS 1 PLUG, 250V, 20A

49 192523GS 1 DECAL, Recoil

50 86292GS 1 SCREW

51 192375GS 1 DECAL,Air Cleaner

52 MS5242 1 MANUAL, Engine

900 NSP 1 ENGINE

PARTS LIST - MAIN UNIT

ALTERNATOR EXPLODED VIEW AND PARTS LIST

Item Part # Qty. Description

1 186059GS 1 ADAPTER, Mounting,Alternator

2 191685GS 1 ROTOR

3 191686AGS 1 STATOR

4 186060GS 1 RBC, with O-Ring (p/n 189197GS)

5 86308GS 4 SCREW

6 91825GS 1 ASSY, Holder, Rectifier/Brush

7 66849GS 2 SCREW

8 22694GS 1 RECEPTACLE, 6 pin

9 81917GS 2 PIN, Roll

10 191051AGS 1 ASSY,Wire, Ground

11 74908GS 1 SCREW

12 23762GS 1 WASHER

13 190356GS 1 HARNESS,Wire, Power

Section 9: Exploded Views and Parts Lists

CONTROL PANEL EXPLODED VIEW AND PARTS LIST

Item Part # Qty. Description

1 188914GS 1 COVER, Lid, Control Panel

2 188889AGS 1 CONTROL PANEL, Compact

3 189167GS 2 CLIP, Hinge Pin Retainer

4 189182GS 2 SPRING, Hinge, Pin

5 189166GS 2 PIN, Hinge, Cover, Compact

6 68759GS 2 OUTLET, 120V, 20A, Duplex

7 189165GS 4 NUT

8 84198GS 2 CAP, Circuit Breaker

9 75207DGS 2 BREAKER, Circuit

10 68867GS 1 OUTLET, 120/240V Locking, 20A

11 189164GS 2 NUT

12 84543CGS 2 SCREW

13 93857GS 1 BAR, Retaining

14 188890GS 1 COVER, Back, Control Panel

15 82308GS 2 SCREW

16 22694GS 1 HOUSING, Receptacle

17 192241GS 4 SCREW

Section 9: Exploded Views and Parts Lists

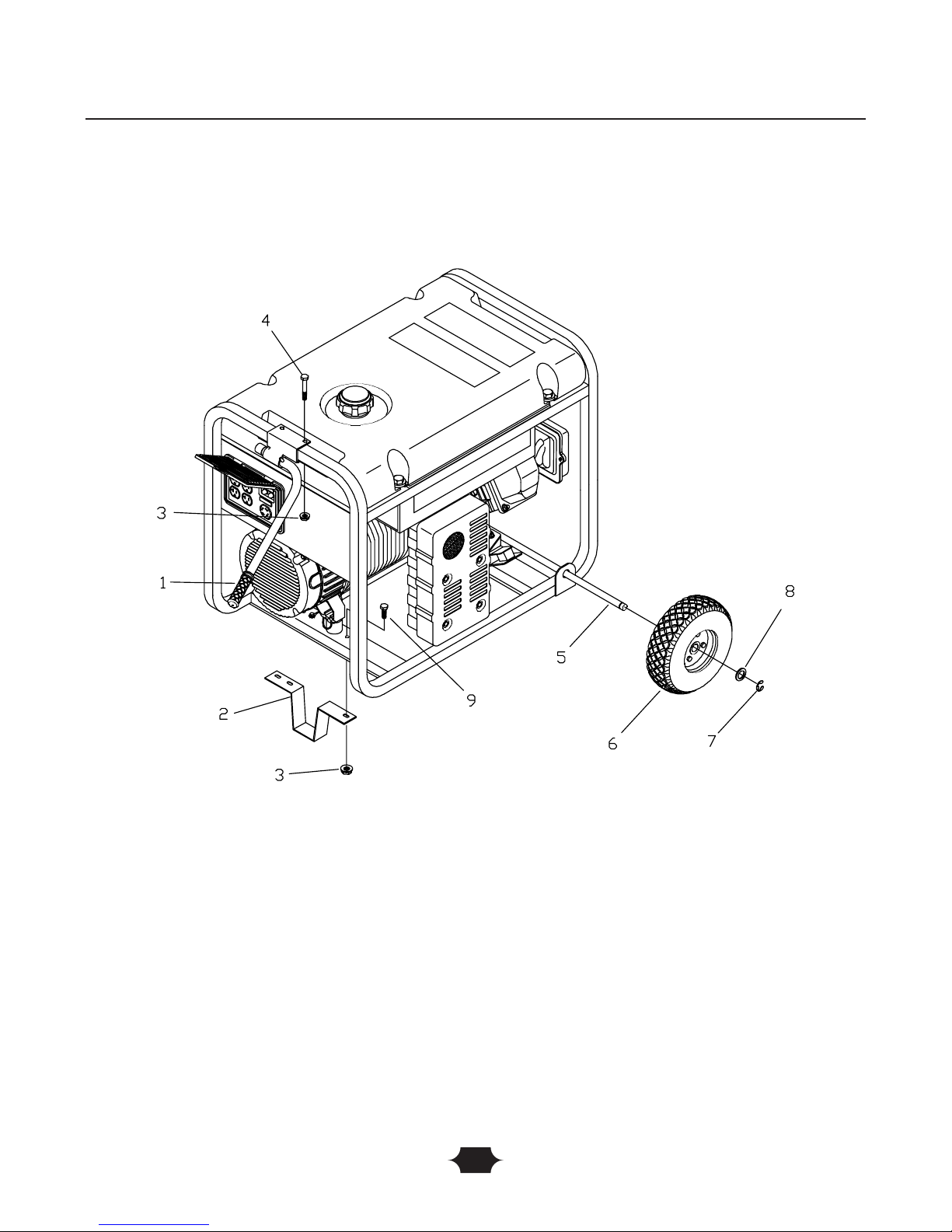

WHEEL KIT EXPLODED VIEW AND PARTS LIST

Item Part # Qty. Description

1 189715GS 1 ASSY, Handle

2 B1764GS 1 LEG, Mounting

3 52858GS 4 NUT, Lock

4 39287GS 2 SCREW

5 191267NGS 1 AXLE

6 B4966GS 2 WHEEL

7 191265GS 2 E-RING

8 22247GS 2 WASHER

9 42907GS 2 SCREW
