Troy-Bilt 18AEB9C7766 Mode d’emploi

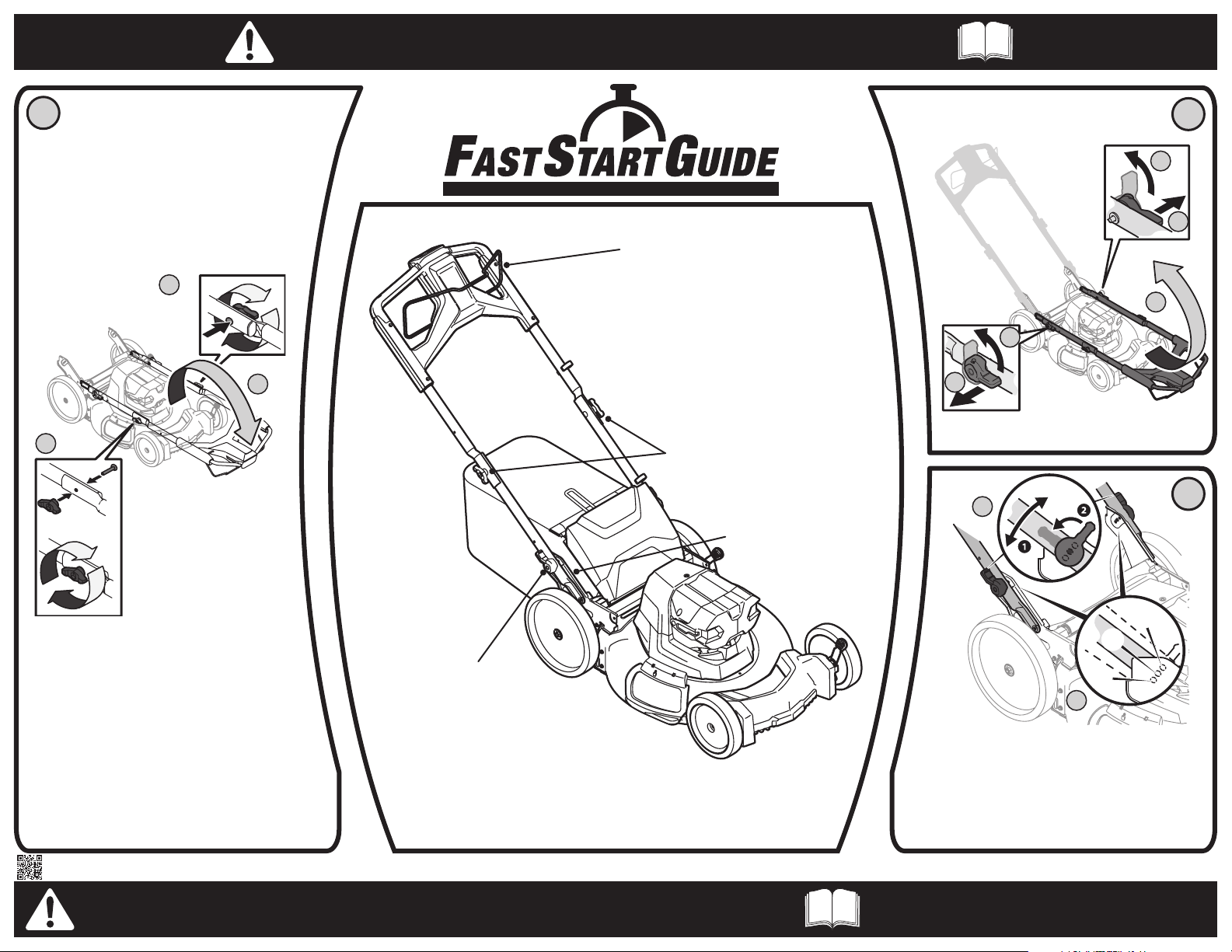

Wing Knobs

Note: Refer to your Operator’s Manual

for instructions on attaching the grass collector.

A. Pull out the handle adjustment levers to

release the handle adjustment pins from the

handle bracket.

Handle Bracket

Blade Control

Handle

Adjustment

Lever

B. Rotate the levers up

perpendicular to the handle.

C. Carefully lift the handle up.

Setting-Up Handle

A. Place the handle into one of the three handle height

positions, high (a), medium (b) or low (c), located on

the handle brackets

B. Turn the handle adjustment levers until they are

parallel with the handle to release the pins and lock

them into one of the handle height holes in the

handle brackets.

(c)

(b)

(a)

A. Turning counterclockwise, loosen wing

knob securing the left side upper and lower

handles together. Remove packaging with

wing knob and bolt securing the right side

upper and lower handles together.

B. Gently lift and

pivot the upper

handle forward.

C. Remove the wing knob and bolt from

packaging removed in STEP A. Insert bolt

through the right side upper and lower

handles. Turning clockwise, tighten the

wing knobs to secure the upper and lower

handles together.

READ AND UNDERSTAND ALL INSTRUCTION, WARNING, AND DANGER LABELS.

PARA INSTRUCCIONES EN ESPAÑOL, REFIÉRASE AL MANUAL DEL OPERADOR.

IMPORTANT: READ OPERATOR'S, BATTERY AND CHARGER MANUALS THOROUGHLY

AND FOLLOW THE IMPORTANT SAFE OPERATION PRACTICES BEFORE OPERATING . Need Help? Call 1-888-TO-HELP-U

A. Lift up the battery

housing lid.

Charging Battery Starting Motor

Installing Battery

A. Plug the battery charger into an

appropriate power outlet.

B. With the battery indicator light facing away from the

battery latch, slide the battery into the active battery

port. Push the battery firmly until the battery locks

into place. There should be an audible “click” and the

battery latch should be in the upright position.

C. Close battery housing lid.

B. Insert the battery into the charging dock.

The LED should illuminate.

C. Once the battery is fully charged, remove

it from the battery charger.

Blade Control

Battery

Charger

Starter Push Key

LED

A. Insert the push start safety key into the

starter housing located in the center of

handle panel until it snaps in place.

B. Standing behind the mower, pull the blade

control back against the upper handle.

C. Push the push start safety key to start the

motor.

READ AND UNDERSTAND ALL INSTRUCTION, WARNING, AND DANGER LABELS.

PARA INSTRUCCIONES EN ESPAÑOL, REFIÉRASE AL MANUAL DEL OPERADOR.

IMPORTANT: READ OPERATOR'S, BATTERY AND CHARGER MANUALS THOROUGHLY

AND FOLLOW THE IMPORTANT SAFE OPERATION PRACTICES BEFORE OPERATING . Need Help? Call 1-888-TO-HELP-U
