Troy-Bilt EtherBridge Manuel utilisateur

EtherBridge

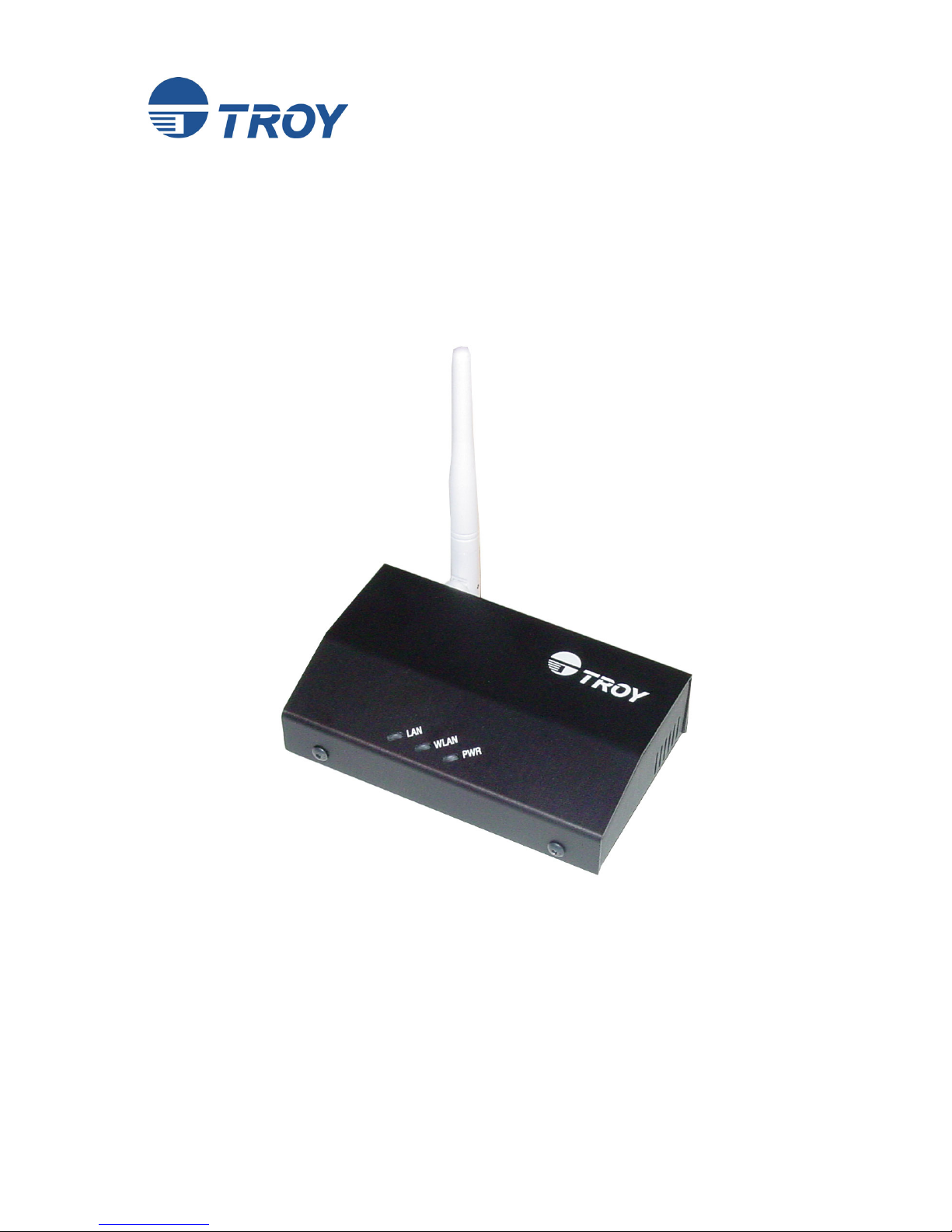

Ethernet to Wireless Client Adapter

Installation and User’s Guide

Part Number 40177-100

Revision A

Notice

TROY GROUP, INC. SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES

OF MERCHANTABILITY AND FITNESS OF THIS PRODUCT FOR A

PARTICULAR PURPOSE. TROY shall not be liable for any errors contained in this

manual or for any damages resulting from loss of use, data profits, or any incidental or

consequential damages arising from the use of TROY products or services.

Warning

This equipment has been tested and found to comply with the limits for a Class B digital

device pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable

protection against such interference when operating in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy, and if not installed

and used in accordance with this guide, may cause harmful interference to radio

communications.

Operation of this equipment in a residential area is likely to cause interference in which

case the user, at his or her own expense, will be required to take whatever measures will

be required to correct the interference.

Trademarks

HP, HP/UX, LaserJet, DesignJet, DeskJet, PaintJet, JetDirect, and JetAdmin are

trademarks of Hewlett-Packard Company. DEC, DECserver, VMS, LAT, and ULTRIX

are trademarks of Digital Equipment Corporation. UNIX is a trademark of UNIX

Systems Laboratories. Ethernet is a trademark of Xerox Corporation. PostScript is a

trademark of Adobe Systems Incorporated. NetWare is a trademark of Novell, Inc.

Apple, Macintosh, LaserWriter, and AppleTalk are trademarks of Apple Computer, Inc.

IBM, LAN Server, and AIX are trademarks of International Business Machines

Corporation. LAN Manager, Windows, and MS-DOS are trademarks of Microsoft

Corporation. VINES is a trademark of Banyan Systems Inc. PrintKit is a trademark of

Northlake Software. QADD is a trademark of Network Compatibility Group. LAN

Attached and UNIX Printing for VINES is a trademark of Incognito Software Inc. XJet,

XMark, XConnect, and XAdmin are trademarks of TROY Group, Inc.

TROY Group, Inc.

2331 S. Pullman Street

Santa Ana, CA 92705

TEL: (949) 250-3280

FAX: (949) 250-8972

http://www.troygroup.com

[email protected]

Printed in the United States of America

October 1, 2003

User’s Guide

Document #40177-100 Rev. A

TABLE OF CONTENTS

Introduction...................................................................................1

Package Contents ........................................................................1

EtherBridge Adapter Components................................................2

Restoring Factory Default Settings...............................................2

LED Status Indicators...................................................................3

Installing the EtherBridge Adapter Hardware ...............................4

Configuring the EtherBridge Adapter............................................5

Installing the EtherBridge Utility....................................................5

EtherBridge Utility Menus.............................................................6

Web Browser Configuration........................................................10

Upgrading the EtherBridge Firmware.........................................11

Obtaining Technical Support ......................................................12

Returning Products.....................................................................13

Contacts......................................................................................14

Safety and Regulatory Notices...................................................15

Declaration of Conformity...........................................................17

Regulatory Information ...............................................................18

User’s Guide

Document #40177-100 Rev. A 1

TROY Installation Instructions

(FOR USE WITH TROY ETHERBRIDGE ADAPTERS)

NOTE: This User’s Guide is available in other languages that can be printed from

the TROY EtherBridge Installation CD.

Introduction

The TROY EtherBridge Adapter is an Ethernet-to-wireless adapter that

converts any 10/100 Ethernet-enabled device to an 802.11b wireless

client device.

Package Contents

 TROY EtherBridge Adapter

 5-Volt Power Supply

 Ethernet Crossover Cable

 Universal Mounting Kit (for attaching the EtherBridge adapter to

a convenient location)

 Desktop Mounting kit (for placing the EtherBridge adapter on a

desktop surface)

 User’s Guide (This booklet)

 TROY EtherBridge Installation CD

NOTE: If any of the above items are missing or damaged, contact TROY.

READ ME FIRST

TROY Group, Inc.

EtherBridge Adapter Components

 Power Connector – The power supply cable plugs into this

connector.

 LED Status Indicators – used to indicate the operational status of

the EtherBridge adapter. Refer to the table below for detailed LED

status light descriptions.

 LAN Port – used for connecting the EtherBridge adapter to any

10baseT or 100baseTX Ethernet connection (an Ethernet card,

hub, router, or other wired access point) for network access. You

must use the included Ethernet crossover cable (or any other

crossover cable) when you directly connect two devices (such as a

PC, printer, or other Ethernet-enabled device) without the use of a

hub or switch.

 Reset Button – used to restore the EtherBridge adapter to factory

default settings.

Restoring Factory Default Settings

The TROY EtherBridge Adapter can be reset to factory default settings

by performing the following steps:

1. Disconnect power from the EtherBridge Adapter. Press and hold the

reset button for three seconds while reapplying power to the device.

2. Release the reset button as soon as the WLAN LED is blinking and

the LAN LED is off.

3. Press and hold the reset button again for approximately ten seconds.

4. Release the reset button as soon as the WLAN and LAN LEDs begin

flashing rapidly.

User’s Guide

Document #40177-100 Rev. A 3

LED Status Indicators

The front panel of the EtherBridge adapter provides three LED (Light

Emitting Diode) indicators for easy monitoring. The following table

defines the function of each LED.

Label Color State Description

ON The device is receiving power.

PWR GREEN

OFF The device is not receiving power.

ON The device is associated to a wireless

access point and has wireless LAN

activity.

WLAN GREEN

OFF No wireless LAN activity.

Blinking Wired LAN activity.

OFF No wired LAN activity.

LAN GREEN

ON Ethernet link established.

TROY Group, Inc.

Installing the EtherBridge Adapter Hardware

1. Connect the EtherBridge to any 10/100 Ethernet connection.

NOTE: Use the included Ethernet crossover cable when directly connecting two

devices together (such as a PC, printer, or other Ethernet-enabled device)

without the use of hub or switch.

2. Connect the power supply adapter to the power socket on the

EtherBridge adapter, and plug the other end of the power supply into

a suitable electrical outlet.

3. Mount the EtherBridge adapter on either the desktop or other

convenient location:

 Desktop mount – attach the adhesive rubber feet (provided in

the desktop mounting kit) to the bottom of the EtherBridge

adapter as shown below.

 Universal mount – peel off the protective backing from the

Velcro strips (provided in the universal mounting kit) and attach

one strip on each side of the product label as shown below.

User’s Guide

Document #40177-100 Rev. A 5

Configuring the EtherBridge Adapter

The EtherBridge adapter can be configured from either the EtherBridge

Configuration Utility (supplied on the TROY EtherBridge Installation CD

that came with the product and downloadable from www.troygroup.com),

or by using a standard Web browser (e.g., Internet Explorer or Netscape

Navigator).

Installing the EtherBridge Utility

1. Insert the EtherBridge Installation CD into the CD-ROM drive of your

Windows-based computer. The CD should start automatically on

any Windows 95 or later PC, and then display a top-level menu.

2. Click on EtherBridge Utility Setup, and follow the on-screen

instructions to install the EtherBridge Utility.

3. After the installation is complete, start the EtherBridge Utility from the

Windows Start menu (Start, Programs, TROY Group, EtherBridge,

EtherBridge Utility), and it will search for all available EtherBridge

adapters on the network.

4. Select the EtherBridge you want to configure. Enter the password

(the default password is access using all lower-case letters), and

then click on the Login button. You should now be able to configure

the EtherBridge.

TROY Group, Inc.

EtherBridge Utility Menus

The EtherBridge Utility provides five main menus (INFO, SECURITY,

STATUS, AP BROWSER, and ABOUT) to assist you with monitoring

and configuring the Etherbridge adapter. The following are brief

descriptions of each available menu.

Info

This menu item displays the current EtherBridge settings such as ESSID,

adapter name, rate, IP address, subnet mask, and default gateway.

ESSID

The ESSID is a unique ID used by access points and client stations

to identify a wireless LAN. Wireless clients associating to any

access point must have the same ESSID. The default ESSID is

“ANY”, which will connect the EtherBridge to the nearest access

point. The ESSID can have up to 32 characters.

NAME

Assign a unique name for the EtherBridge Adapter. The default

name is EtherBridge.

RATE

The EtherBridge provides various data rate options for you to select.

Data rates options include 1 Mbps, 2 Mbps,5.5 Mbps, 11 Mbps,

and Auto.In most networking scenarios, the factory default “Auto”

setting will usually provide the most efficient data rate.

IP ADDRESS

Assign an IP address to your EtherBridge if you wish to configure it

via the Web Browser interface. Consult your network administrator

to obtain an available IP address (the default IP address is

192.168.1.1). For further setup, please refer to the following section.

SUBNET MASK

Assign a subnet mask to your EtherBridge if you wish to configure it

via the Web Browser interface. Consult your network administrator

to obtain the correct subnet mask to use.

User’s Guide

Document #40177-100 Rev. A 7

DEFAULT GATEWAY

Assign a default gateway to your EtherBridge if you wish to configure

it via the Web Browser interface. Consult your network administrator

to obtain the correct default gateway to use.

PASSWORD

It is highly recommended that you assign a new password to your

EtherBridge for security. Enter the new administrator password you

would like to use in the New Password and Confirm Password

fields respectively. Passwords are case-sensitive and are limited to

a maximum length of 32 alphanumeric characters.

After setting the parameters, click on the Apply button to save and

activate the changes. To return to the previous page, click on the

Cancel button.

DEFAULT

Click on the Default button to restore the EtherBridge to factory

default settings.

Security

To prevent unauthorized wireless stations from accessing data

transmitted over the network, the Wireless LAN Smart Station Adapter

offers WEP (Wired Equivalent Privacy), which encrypts data transmitted

over the wireless medium.

Click on the Security tab to view the current security status of the

EtherBridge. Click on the Setup button to change the current security

configuration.

Table des matières

Autres manuels Troy-Bilt Adaptateur

Troy-Bilt

Troy-Bilt WindConnect II Manuel utilisateur

Manuels Adaptateur populaires d'autres marques

PCB Piezotronics

PCB Piezotronics 090B274 Manuel utilisateur

Auvidea

Auvidea J20 Manuel du produit

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuel utilisateur

Akribis

Akribis ITF-21-BISS-MIT Manuel utilisateur

Tenda

Tenda W54U Manuel utilisateur

ROHO

ROHO AGILITY Manuel utilisateur

PROLiNK

PROLiNK WN2001 Manuel utilisateur

Hawking

Hawking HUF2 Manuel utilisateur

Airlink101

Airlink101 AWLC4030 Manuel utilisateur

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuel utilisateur

Philips

Philips SWA4554S/10 Manuel utilisateur

JVC

JVC TS-C9D2B Manuel d'instructions

NETGEAR

NETGEAR A6100 Manuel utilisateur

D-Link

D-Link DWA-121 Manuel utilisateur

Philips

Philips SWA2037 Manuel utilisateur

Basalte

Basalte 0610-20 Manuel utilisateur

Yealink

Yealink EHS40 Manuel utilisateur

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuel utilisateur
