Tristel Stella Pulse Mode d’emploi
Pump Hose Replacement Instructions
Copyright © 2012 Tristel Solutions Ltd Page 1 of 3 Stella Pulse Pump Hose Replacement
First Release / April 2013
Stella Pulse
PUMP HOSE REPLACEMENT INSTRUCTIONS
1Introduction
1.1 Intended Purpose and Performance
Stella Pulse has a pump hose that needs to be replaced every 400 clean cycles. The
replacement of the hose enhances pump performance. Operating Instructions are noted in the
Stella User Operating Instructions Guide.
1.2 Items Required for Pump Hose Replacement
oStella Pulse
oPump Hose Replacement Set
oFlat Head Screw Driver
2Stella Pump Hose Replacement Process
Stella Pulse Description
Pump Hose Replacement Instructions
Copyright © 2012 Tristel Solutions Ltd Page 2 of 3 Stella Pulse Pump Hose Replacement
First Release / April 2013

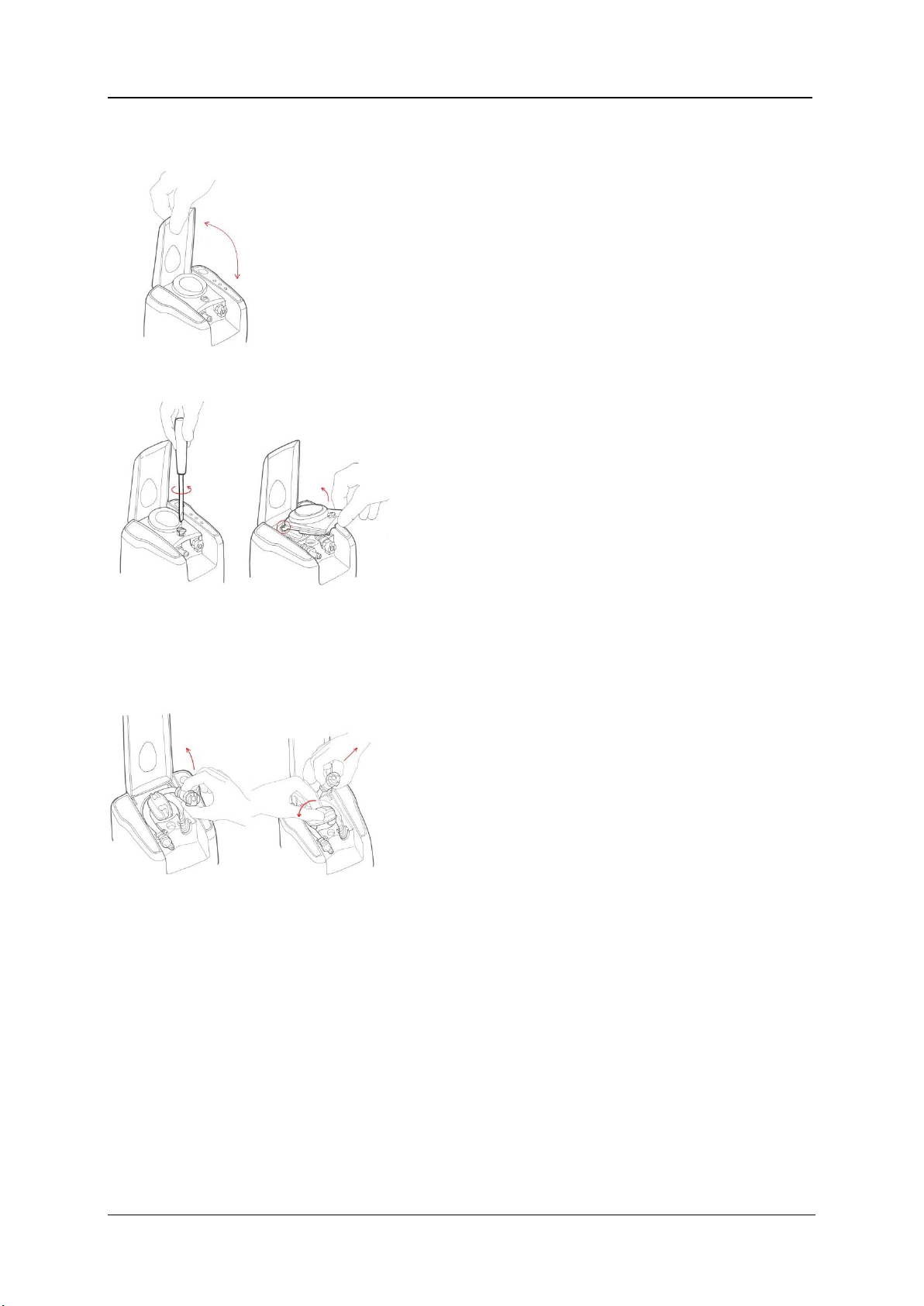

1. Lift the cover on Stella Pulse
2. Using a Using a flat head screw driver, unscrew the window and remove from Stella Pulse
3. Remove the pump hose by lifting the pump hose connector on one side. Turn the green
pump head clockwise to lift the curved hose, and then lift the pump hose connector on
the second side
Pump Hose Replacement Instructions
Copyright © 2012 Tristel Solutions Ltd Page 3 of 3 Stella Pulse Pump Hose Replacement
First Release / April 2013
4. Insert the new pump hose into Stella Pulse. Place the left hand pump hose connector in
first. This is the smaller connector with the plastic point. The hose then curves around
the green pump head which can be turned by hand. Check that the hose is pushed down
at the rear of the green pump head. The right hand pump hose connector is then locked
into place.
5. Replace the window, ensuring that the back ridge is pushed back correctly into Stella
Pulse, and then fix the screw securely, taking care not to over tighten
The pump hose connectors will not fit if they are not connected to the correct sides of Stella
Pulse. Stella Pulse will not operate if the Window is not replaced correctly.
Re-order spare Pump Hose parts from your Stella Sales Agents. Follow the re-cycle program
instructions from your Sales Agent which reduces the cost of spare parts.
